TLC7701IDRG4 - Texas Instruments
Voltage supervisor with programmable delay time 8-SOIC -40 to 85
Technical Details
| Case/Package | SOIC |
| Height | 1.75mm |
| Lead Free | Lead Free |
| Length | 4.9mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 125°C |
| Max Power Dissipation | 725mW |
| Max Reset Threshold Voltage | 1.16V |
| Max Supply Current | 16µA |
| Max Supply Voltage | 6V |
| Min Operating Temperature | -40°C |
| Min Reset Threshold Voltage | 1.04V |
| Min Supply Voltage | 2V |
| Number of Pins | 8 |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 9µA |
| Overvoltage Threshold | 1.16V |
| Power Dissipation | 725mW |
| Quiescent Current | 9µA |
| Radiation Hardening | No |
| Reset | Active High/Active Low |
| Reset Timeout | 1.1ms |
| RoHS | Compliant |
| Thickness | 1.58mm |
| Threshold Voltage | 1.1V |
| Watchdog Timer | No |
| Width | 3.91mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

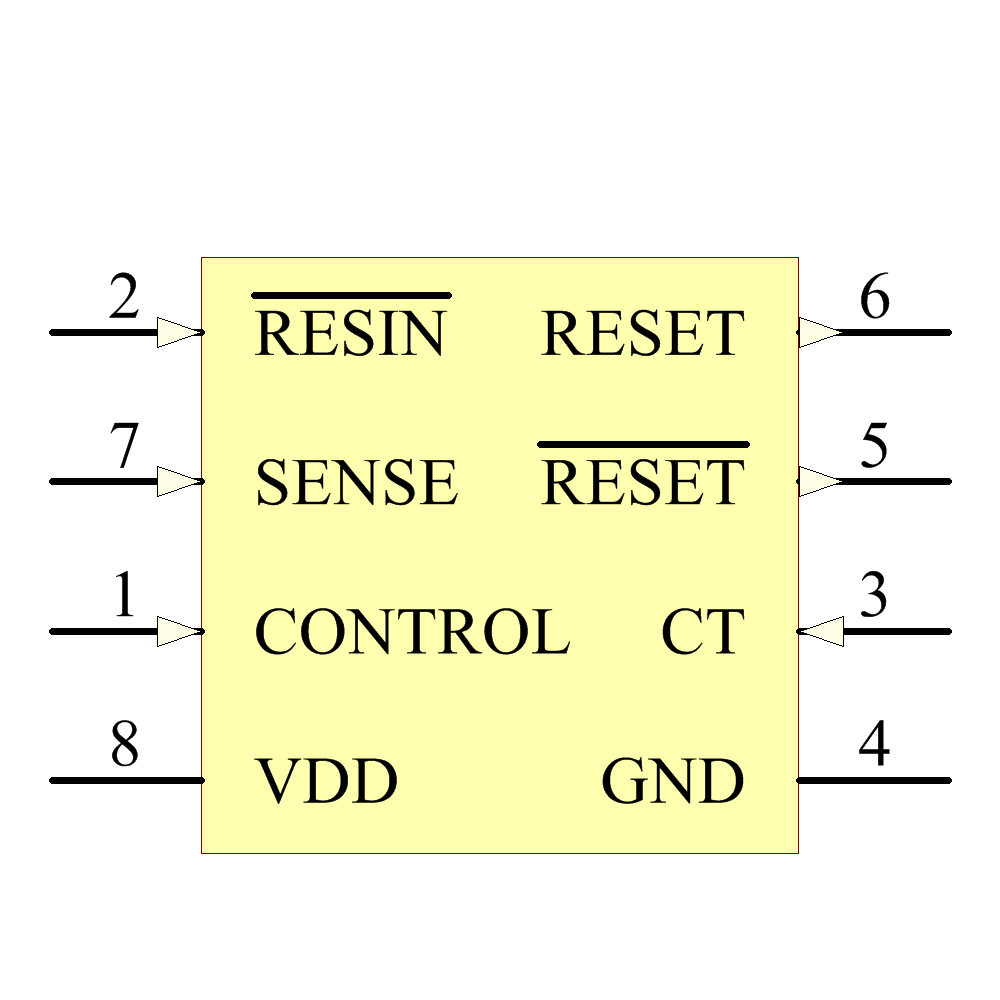

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Obsolete |
