TPD2E001DRLR - Texas Instruments

11V Unidirectional 5.5V SOT-553-5 ESD and Surge Protection (TVS/ESD) ROHS

Technical Details

Ambient Temperature Range High	85°C
Breakdown Voltage	11V
Capacitance	1.5pF
Case/Package	SOT
Clamping Voltage	105.5V
Contact Plating	Gold
Depth	1.2mm
Direction	Unidirectional
Element Configuration	Dual
Height	0m
Interface	Ethernet, LVDS
Lead Free	Lead Free
Leakage Current	1nA
Length	1.6mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Junction Temperature (Tj)	150°C
Max Operating Temperature	85°C
Max Supply Voltage	5.5V
Min Breakdown Voltage	11V
Min Operating Temperature	-40°C
Min Supply Voltage	900mV
Number of Bidirectional Channels	2
Number of Channels	2
Number of Outputs	2
Number of Pins	5
Operating Supply Voltage	5.5V
Peak Pulse Current	10A
Polarity	Unidirectional
Power Line Protection	Yes
Radiation Hardening	No
REACH SVHC	No
Reverse Standoff Voltage	5.5V
RoHS	Compliant
Schedule B	8541100080, 8541100080\|8541100080\|8541100080\|8541100080\|8541100080
Termination	SMD/SMT
Thickness	550µm
Weight	2.806603mg
Width	1.2mm
Working Voltage	5.5V

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

Texas Instruments TPD2E001DRLR | Texas Instruments

Texas Instruments

Datasheets

Lifecycle Status Indicator

Production

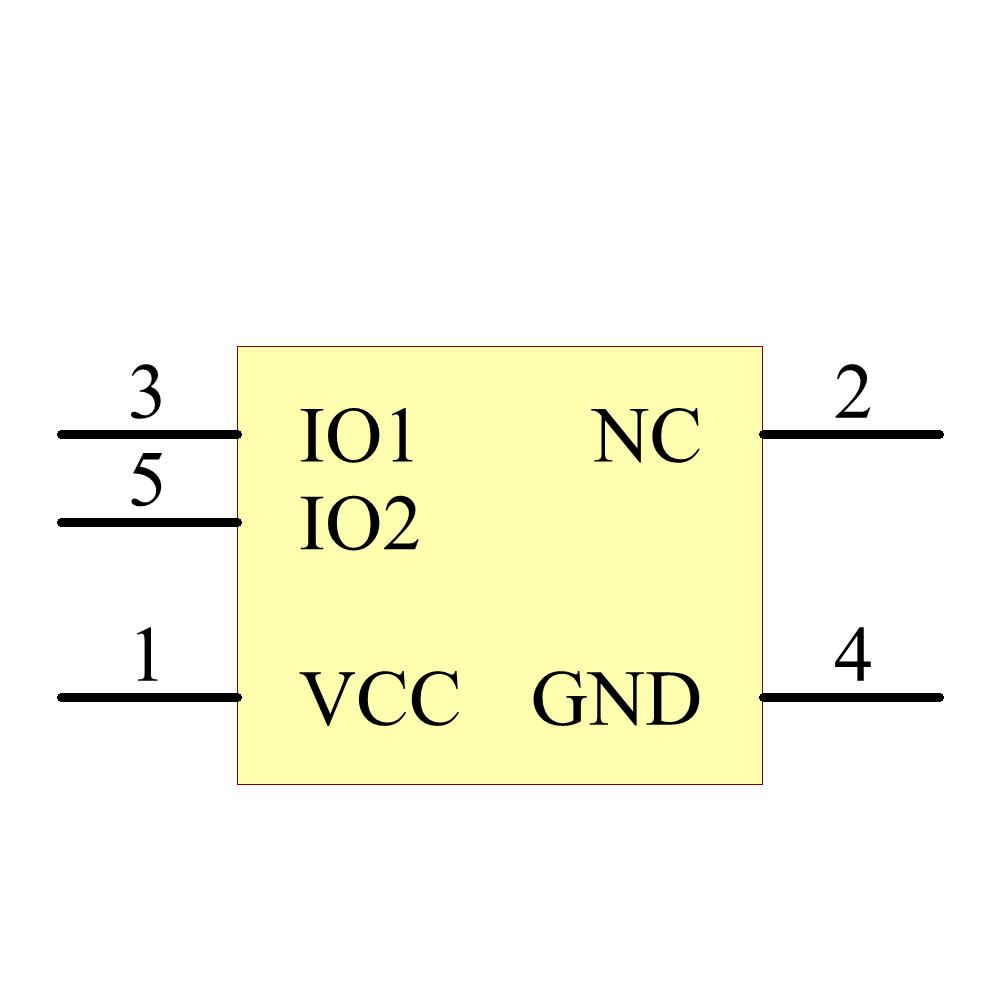

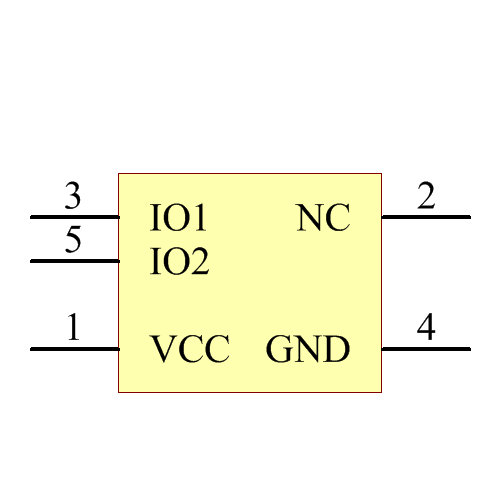

Symbol

TPD2E001DRLR Symbol - Texas Instruments

TPD2E001DRLR Symbol - Texas Instruments

TPD2E001DRLR Symbol - Texas Instruments

TPD2E001DRLR Symbol - Texas Instruments

‹ ›

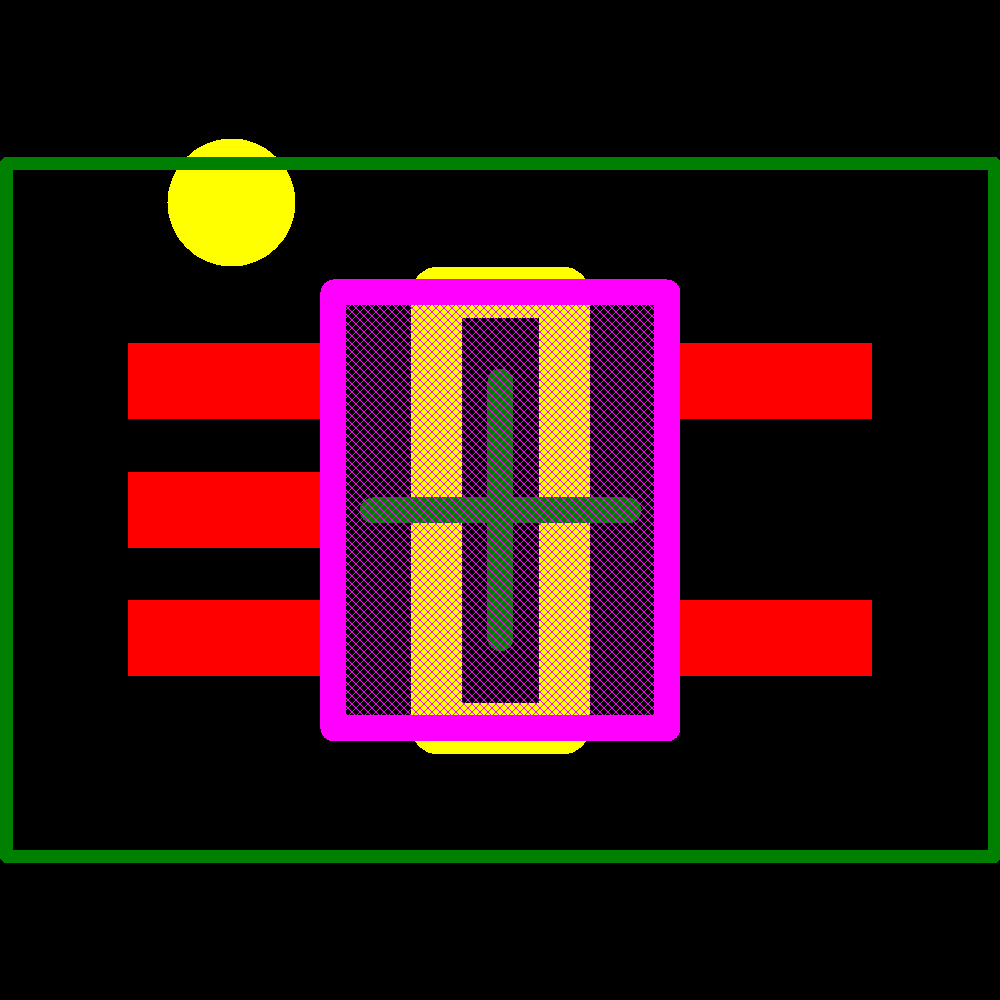

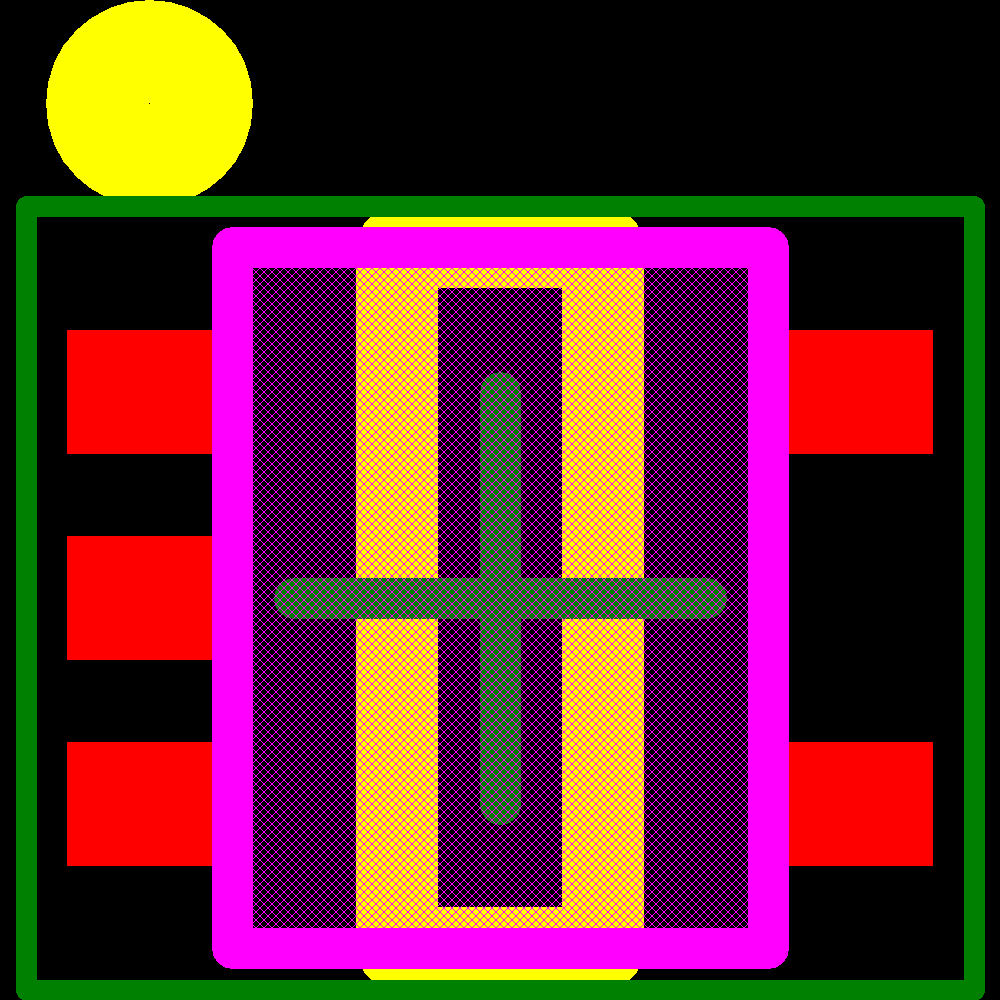

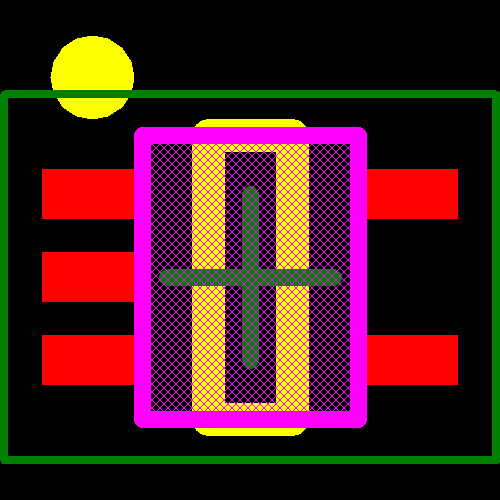

Footprint
