Texas Instruments - TPD2E1B06DRLR

TPD2E1B06DRLR - Texas Instruments

Dual 1-pF, ±5.5-V, ±10-kV ESD protection diode with ESD rating for USB 2.0 6-SOT-5X3 -40 to 125

 Datasheets

Technical Details

Ambient Temperature Range High 125°C
Breakdown Voltage 7V
Capacitance 1.3pF
Case/Package SOT
Clamping Voltage 15V
Depth 1.3mm
Direction Bidirectional
Element Configuration Dual
Height 600µm
Interface LVDS
Lead Free Lead Free
Leakage Current 10nA
Length 1.6mm
Lifecycle Status Production
Manufacturer Lifecycle Status ACTIVE
Max Operating Temperature 125°C
Min Breakdown Voltage 7V
Min Operating Temperature -40°C
Mount Surface Mount
Number of Bidirectional Channels 2
Number of Channels 2
Number of Pins 6
Packaging Cut Tape (CT)
Peak Pulse Current 2.5A
Peak Pulse Power 35W
Power Line Protection No
Radiation Hardening No
Reverse Standoff Voltage 5.5V
RoHS Compliant
Schedule B 8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|85
Thickness 550µm
Width 1.2mm
Working Voltage 5.5V

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No

Images

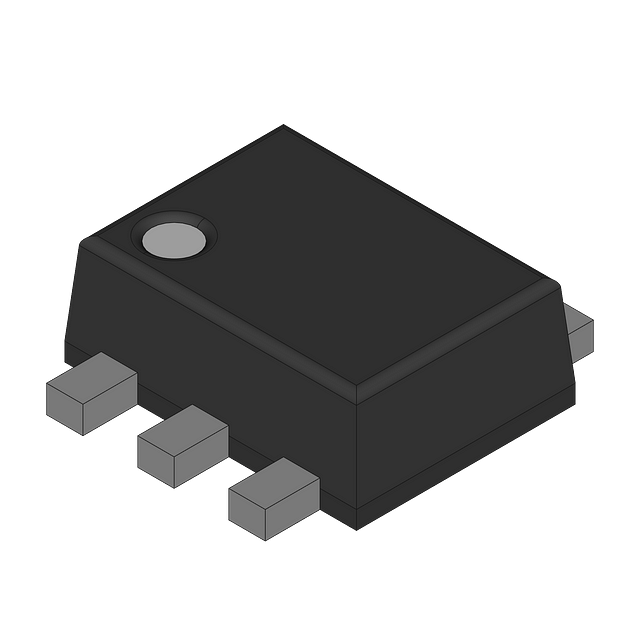

Texas Instruments TPD2E1B06DRLR | Rochester Electronics

Rochester Electronics

Datasheets

 Rochester Electronics
 Verical
 DigiKey

Lifecycle Status Indicator

   Production
Symbol

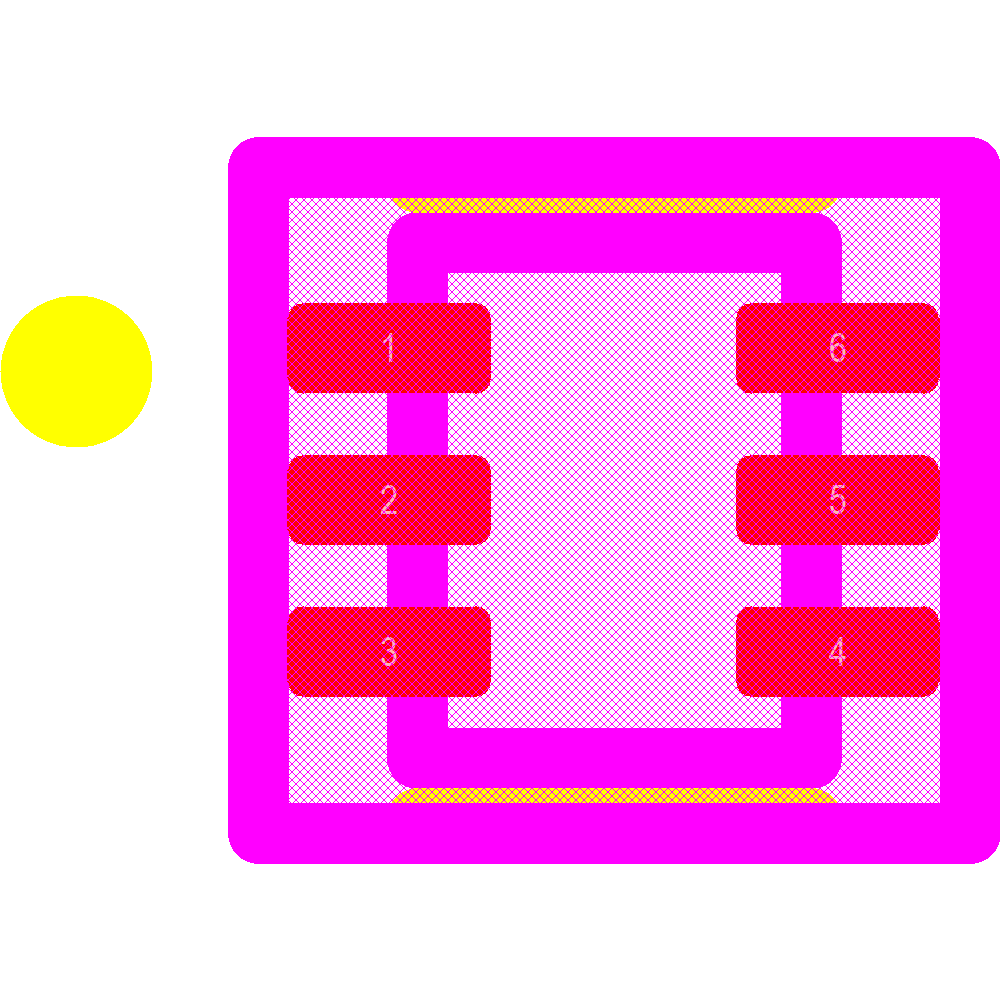

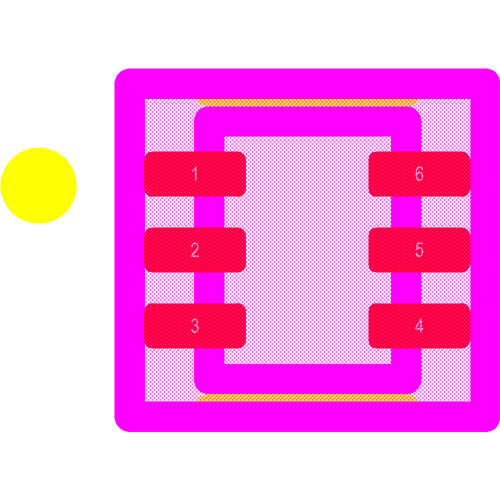

Footprint
