Texas Instruments - TPD3E001DRLR

TPD3E001DRLR - Texas Instruments

Trans Voltage Suppressor Diode, 90W, 5.5V V(RWM), Unidirectional, 1 Element, Silicon

 Datasheets

Technical Details

Ambient Temperature Range High 85°C
Breakdown Voltage 11V
Capacitance 1.5pF
Case/Package SOT-553
Clamping Voltage 105.5V
Depth 1.2mm
Direction Unidirectional
Height 0m
Interface USB
Lead Free Lead Free
Leakage Current 1nA
Length 1.6mm
Lifecycle Status Production
Manufacturer Lifecycle Status ACTIVE
Max Junction Temperature (Tj) 150°C
Max Operating Temperature 85°C
Max Supply Current 100nA
Max Supply Voltage 5.5V
Max Supply Voltage (DC) 5.5V
Min Breakdown Voltage 11V
Min Operating Temperature -40°C
Min Supply Voltage 900mV
Min Supply Voltage (DC) 900mV
Nominal Supply Current 1nA
Number of Bidirectional Channels 3
Number of Channels 3
Number of Pins 5
Operating Supply Voltage 950mV
Peak Pulse Current 5.5A
Peak Pulse Power 90W
Power Line Protection Yes
Radiation Hardening No
REACH SVHC No
Reverse Standoff Voltage 5.5V
RoHS Compliant
Schedule B 8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080
Termination SMD/SMT
Thickness 550µm
Weight 2.806603mg
Width 1.2mm

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : No

Images

Texas Instruments TPD3E001DRLR | Texas Instruments

Texas Instruments

Datasheets

 Arrow Electronics
 Verical
 DigiKey

Lifecycle Status Indicator

   Production

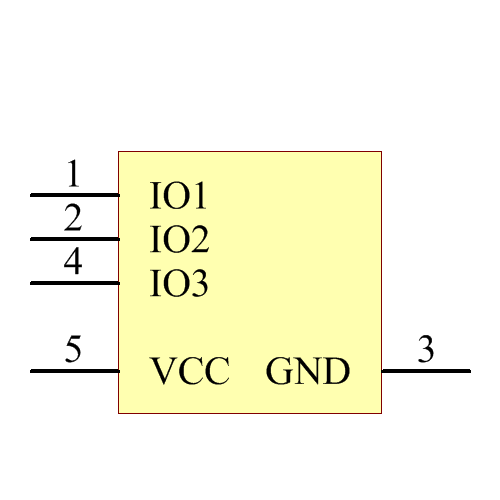

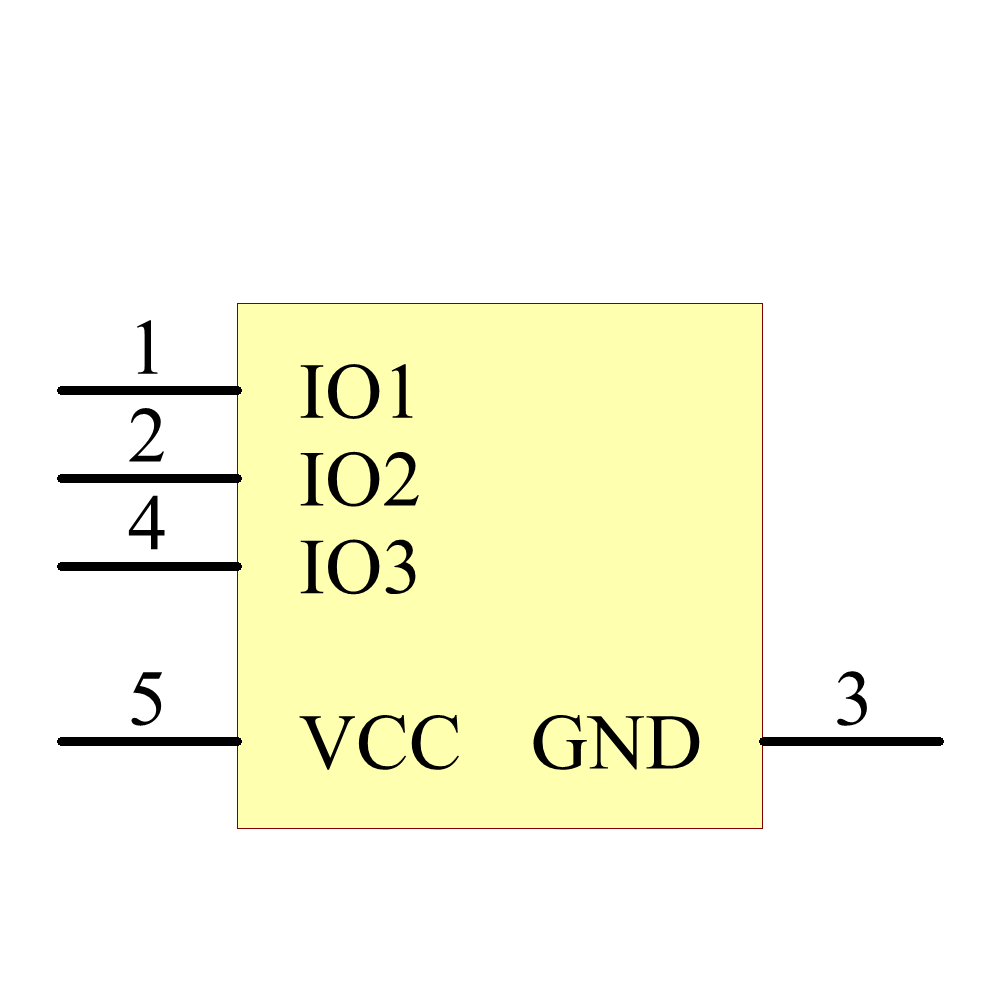

Symbol

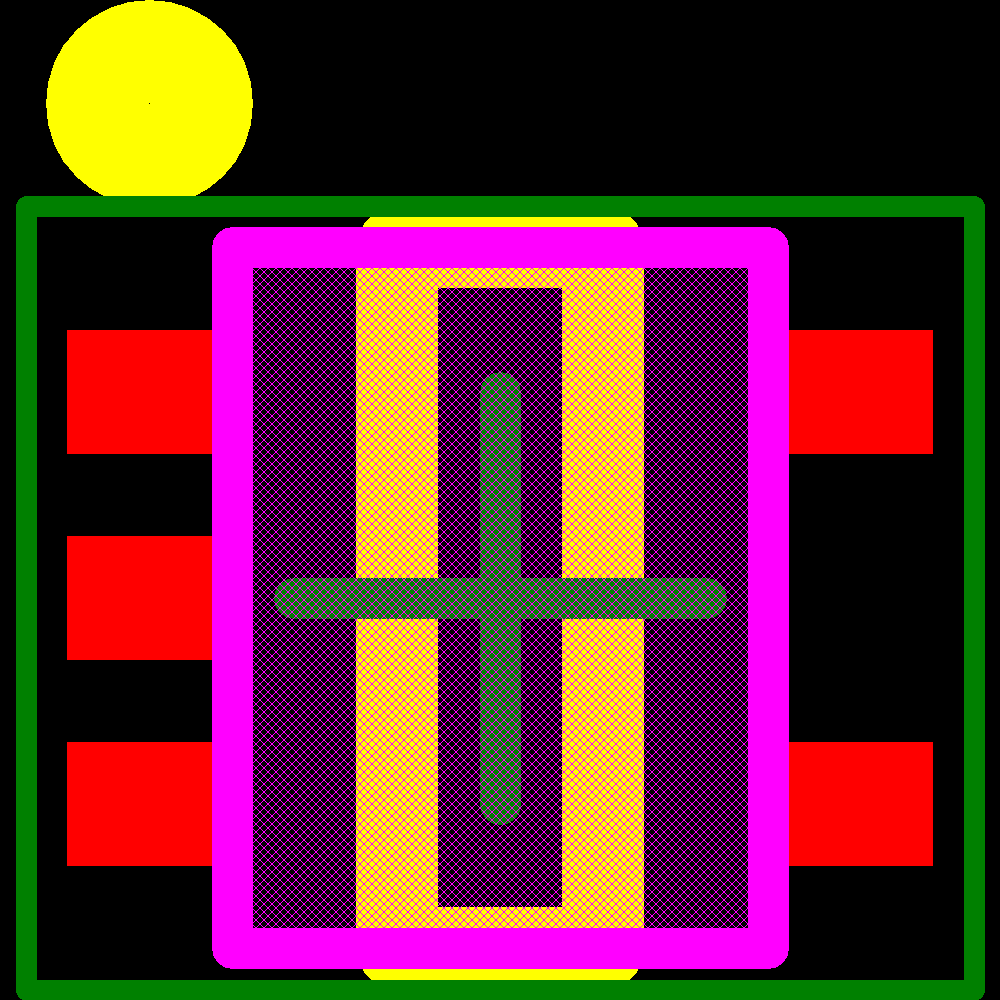

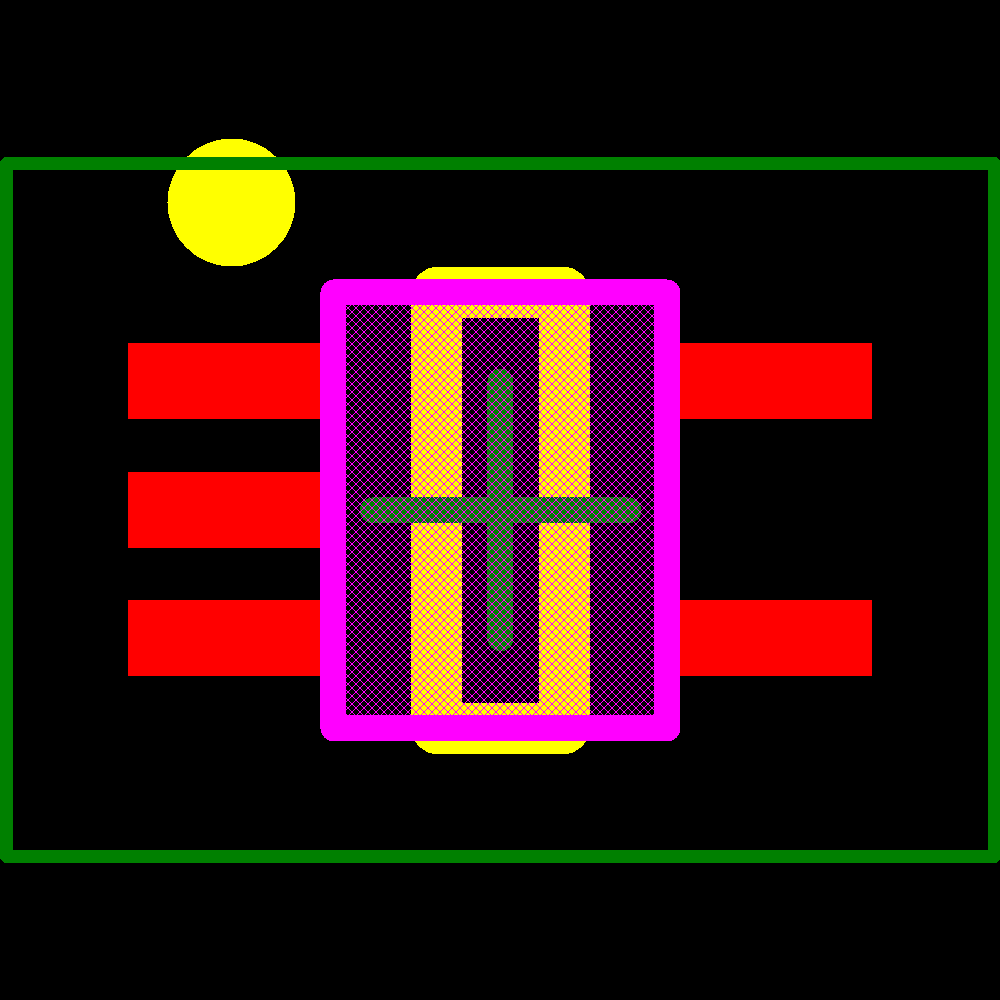

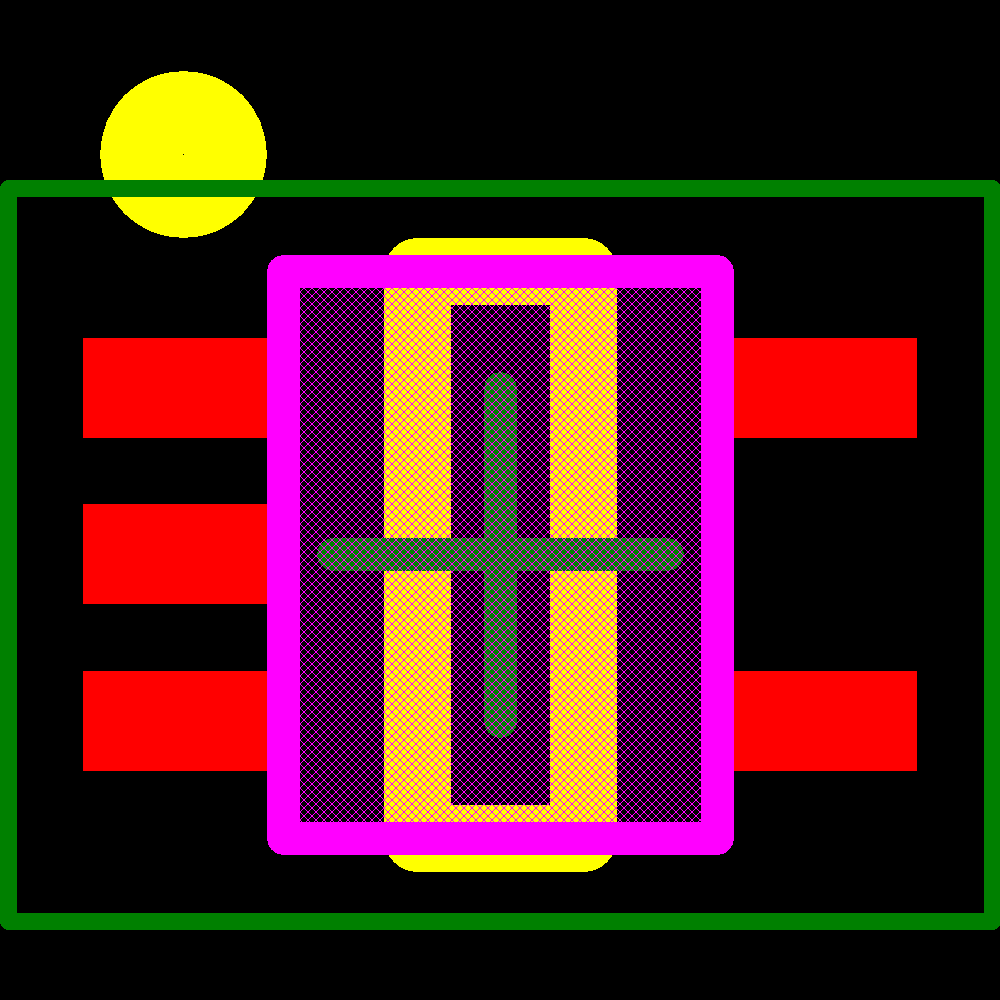

Footprint
