TPD4E002DRL2 - Texas Instruments
Quad 11-pF, 5.5-V, ±15-kV ESD protection diode 5-SOT-5X3 -40 to 125
Technical Details
| Breakdown Voltage | 6.1V |
| Capacitance | 11pF |
| Case/Package | SOT |
| Composition | Zener |
| Depth | 1.2mm |
| Direction | Unidirectional |
| Height | 0m |
| Interface | GPIO |
| Lead Free | Lead Free |
| Leakage Current | 100nA |
| Length | 1.6mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 85°C |
| Min Breakdown Voltage | 6V |
| Min Operating Temperature | -40°C |
| Number of Channels | 4 |
| Number of Pins | 5 |
| Number of Unidirectional Channels | 4 |
| Packaging | Tape and Reel |
| Peak Pulse Power | 35W |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reverse Standoff Voltage | 3V |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Thickness | 550µm |
| Width | 1.2mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

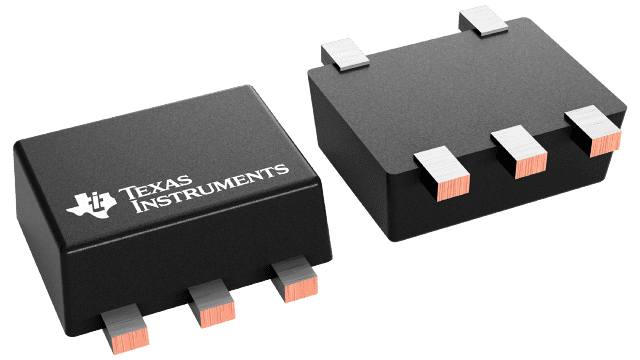

Images
Texas Instruments
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| STMicroelectronics | Obsolete | ||
| Bourns | Obsolete | ||
| Semtech | Production | ||
| Semtech | Production | ||
| onsemi | Production | ||
| onsemi | EOL | ||
| Bourns | Production |
