Texas Instruments - TPD6E05U06RVZR

TPD6E05U06RVZR - Texas Instruments

ESD Suppressor Diode Array ±15kV@Air Gap/±12kV@Contact Disc 14-Pin UQFN T/R

 Datasheets

Technical Details

Ambient Temperature Range High 125°C
Breakdown Voltage 6.5V
Capacitance 470fF
Clamping Voltage 14V
Depth 1.45mm
Direction Unidirectional
Height 550µm
Interface Ethernet, LVDS
Lead Free Lead Free
Leakage Current 10nA
Length 3.5mm
Lifecycle Status Production
Manufacturer Lifecycle Status ACTIVE
Max Operating Temperature 125°C
Max Power Dissipation 40W
Min Breakdown Voltage 6V
Min Operating Temperature -40°C
Mount Surface Mount
Number of Bidirectional Channels 6
Number of Channels 6
Number of Pins 14
Operating Supply Voltage 5.5V
Packaging Tape & Reel (TR)
Peak Pulse Current 2.5A
Peak Pulse Power 40W
Polarity Bidirectional
Power Line Protection Yes
Radiation Hardening No
Reverse Standoff Voltage 5.5V
RoHS Compliant
Schedule B 8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080
Termination SMD/SMT
Thickness 500µm
Width 1.35mm
Working Voltage 5.5V

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No

Images

Texas Instruments TPD6E05U06RVZR | Texas Instruments

Texas Instruments

Datasheets

 DigiKey
 DigiKey
 DigiKey

Lifecycle Status Indicator

   Production

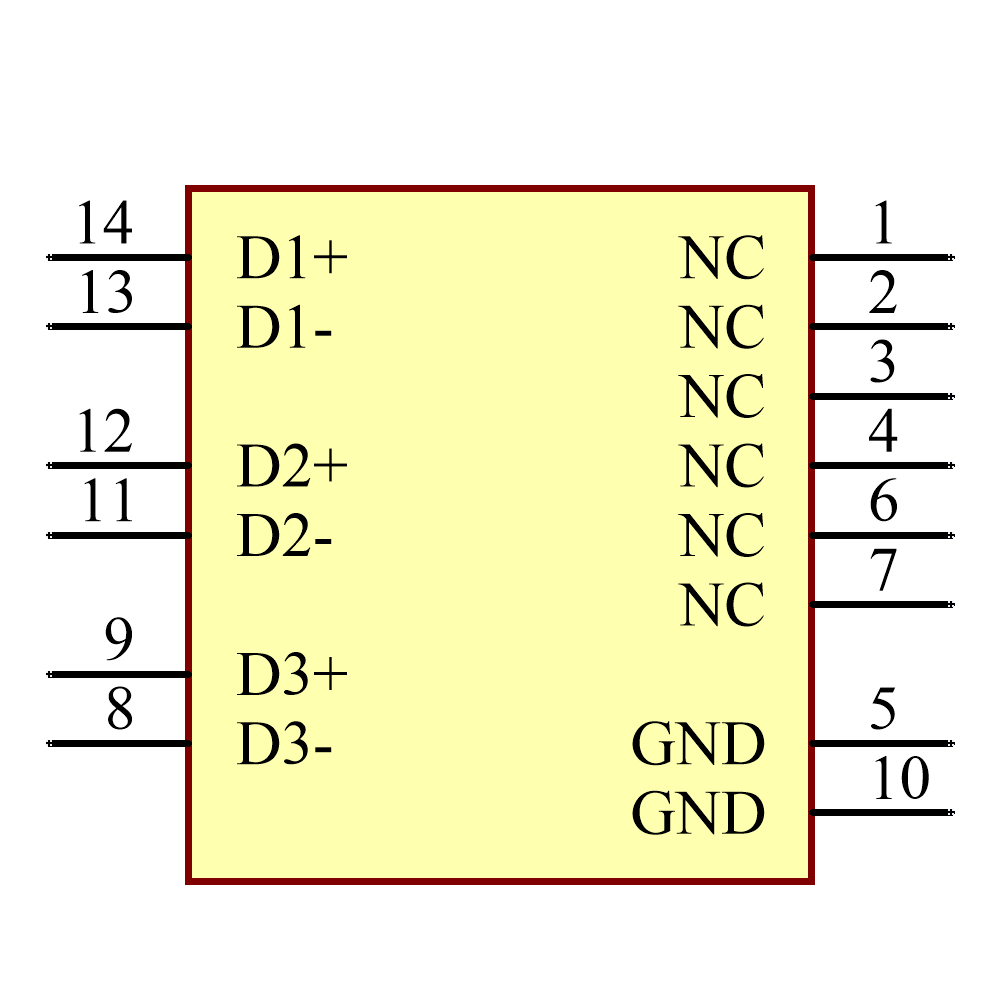

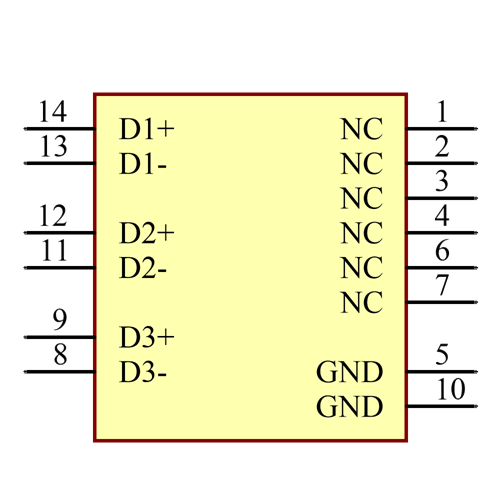

Symbol

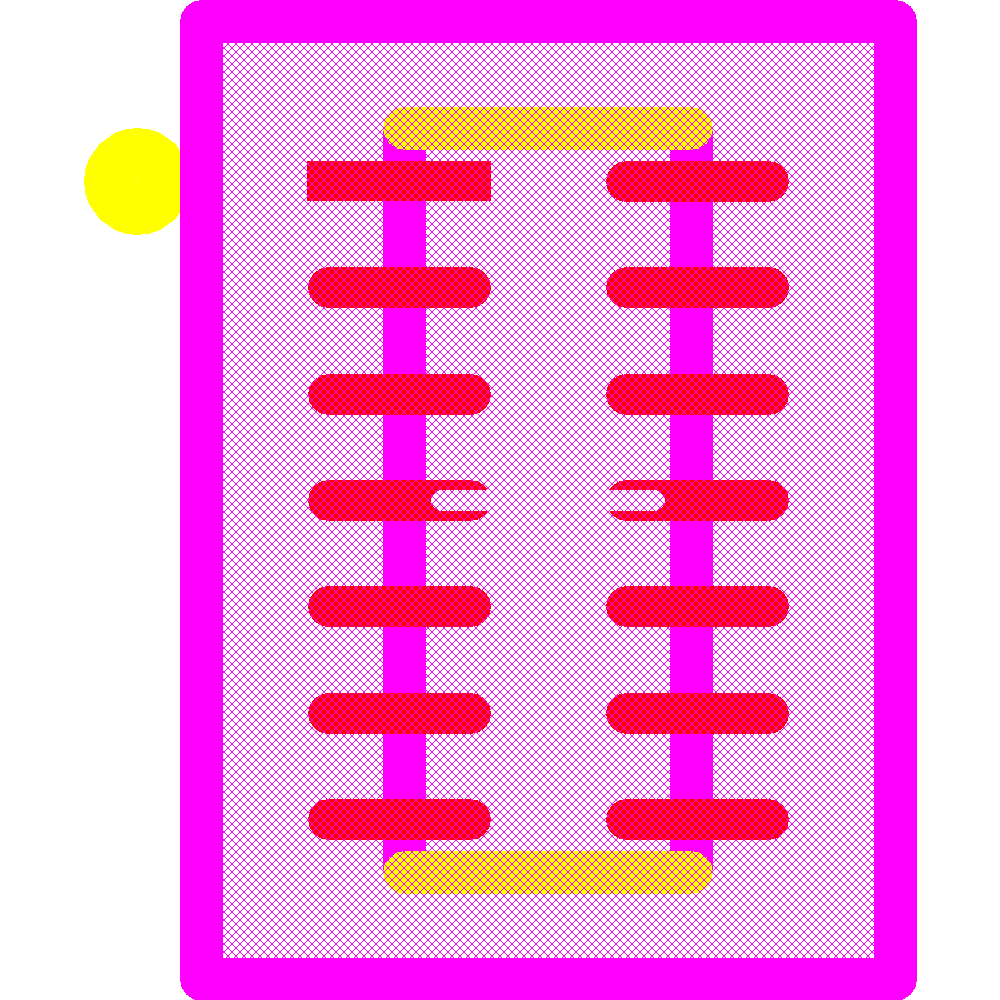

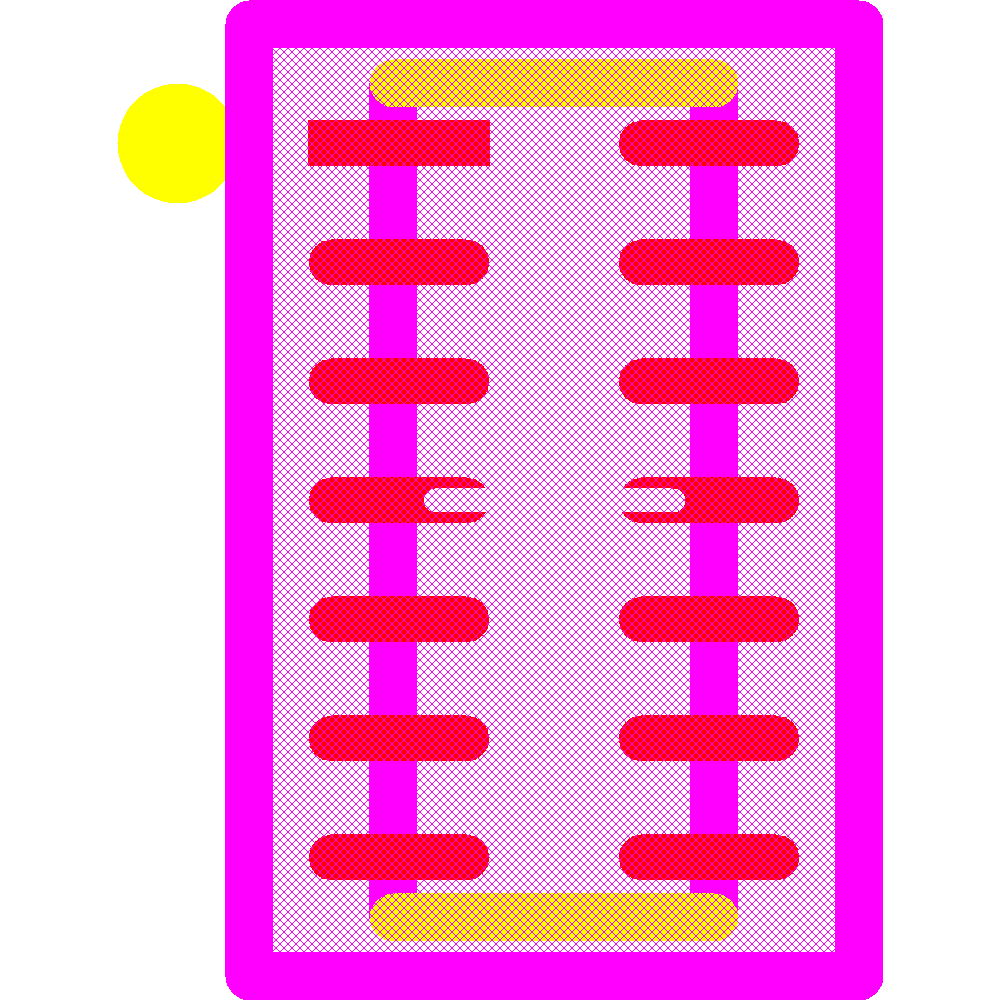

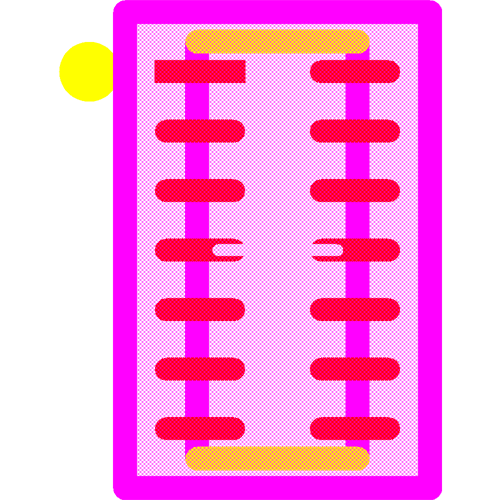

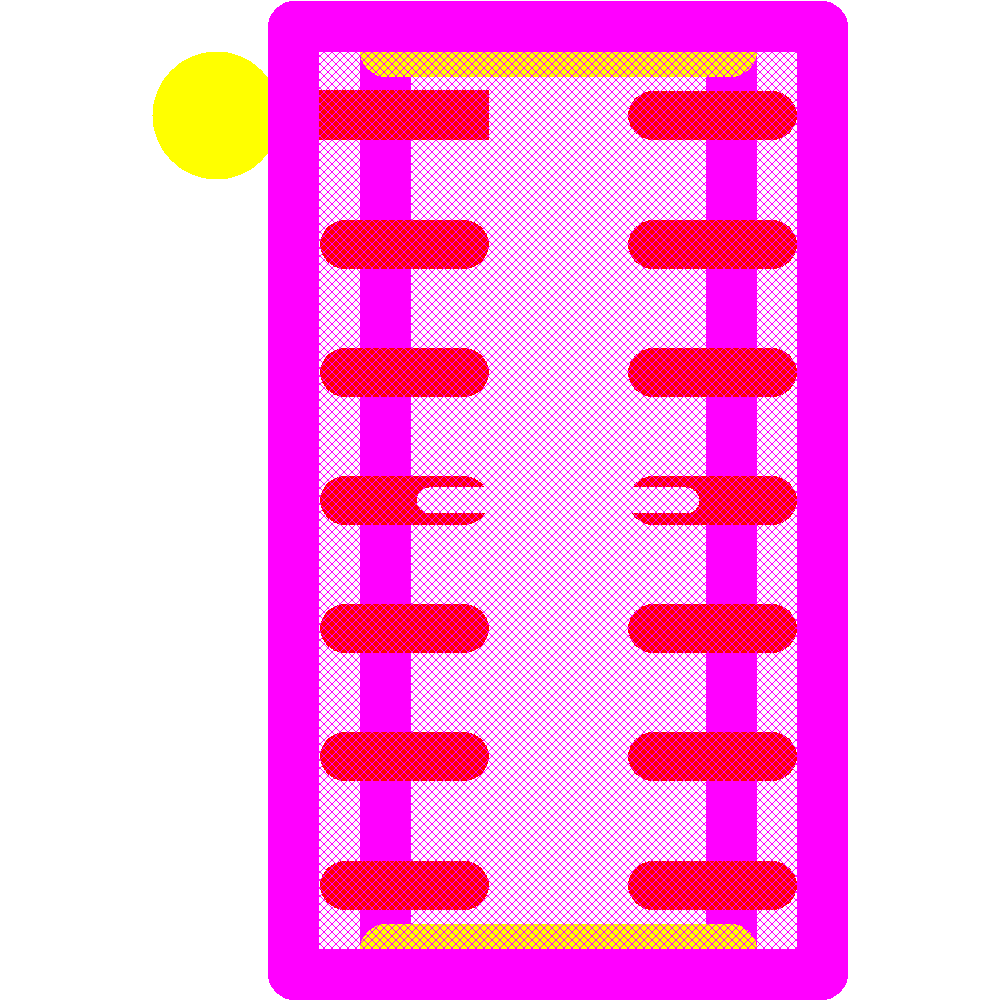

Footprint
