Integrated Circuits (ICs) > Power Management ICs > LED Drivers

TPIC6259N - Texas Instruments

IC 8-BIT ADDRESSABLE LATCH20-DIP "D-Type, Addressable 1 Channel 1: 8 IC Standard 20-PDIP"

Technical Details

Case/Package	PDIP
Height	5.08mm
Independent Circuits	1
Lead Free	Lead Free
Length	24.33mm
Lifecycle Status	Production
Logic Function	D-Type
Manufacturer Lifecycle Status	ACTIVE
Max Operating Temperature	125°C
Max Supply Current	15µA
Max Supply Voltage	5.5V
Min Operating Temperature	-40°C
Min Supply Voltage	4.5V
Mount	Through Hole
Number of Bits	8
Number of Channels	8
Number of Circuits	1
Number of Elements	1
Number of Input Lines	1
Number of Output Lines	8
Number of Outputs	8
Number of Pins	20
Operating Supply Voltage	5V
Output Current	250mA
Output Voltage	45V
Polarity	Inverting
Propagation Delay	625ns
Quiescent Current	100µA
Radiation Hardening	No
REACH SVHC	No
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000\|8542390000\|8542390000\|8542390000
Thickness	4.57mm
Turn-On Delay Time	625ps
Weight	1.1991g
Width	6.35mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

Texas Instruments TPIC6259N | Texas Instruments

Texas Instruments

Datasheets

Rochester Electronics

Lifecycle Status Indicator

Production

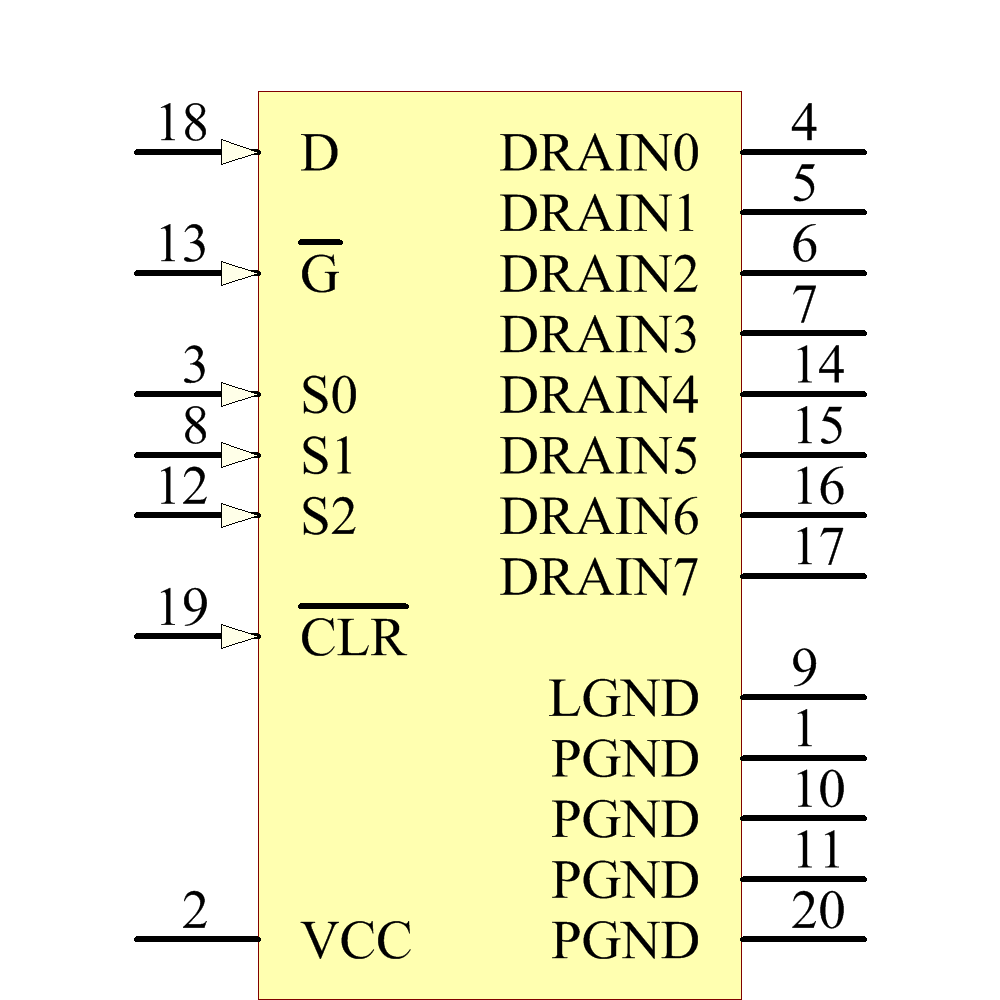

Symbol

TPIC6259N Symbol - Texas Instruments

TPIC6259N Symbol - Texas Instruments

TPIC6259N Symbol - Texas Instruments

TPIC6259N Symbol - Texas Instruments

‹ ›

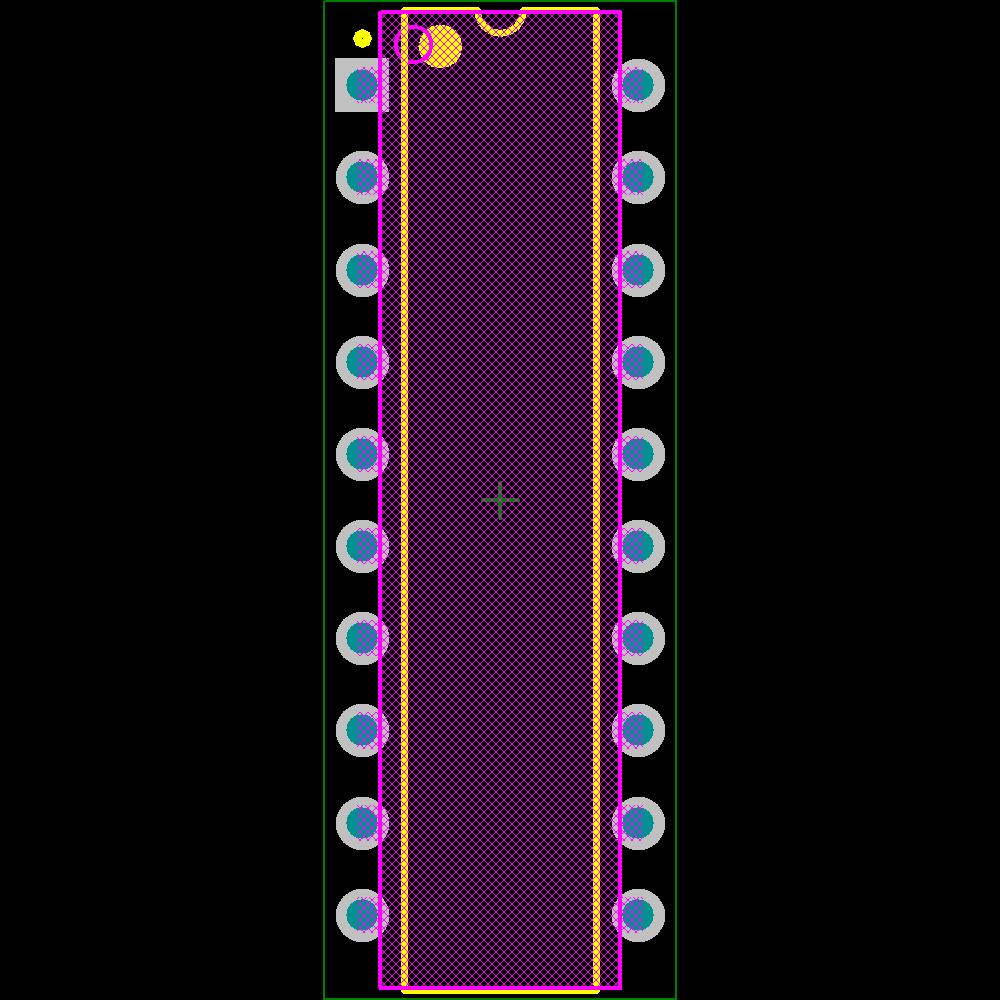

Footprint

TPIC6259N Footprint - Texas Instruments

TPIC6259N Footprint - Texas Instruments

TPIC6259N Footprint - Texas Instruments

TPIC6259N Footprint - Texas Instruments

‹ ›
