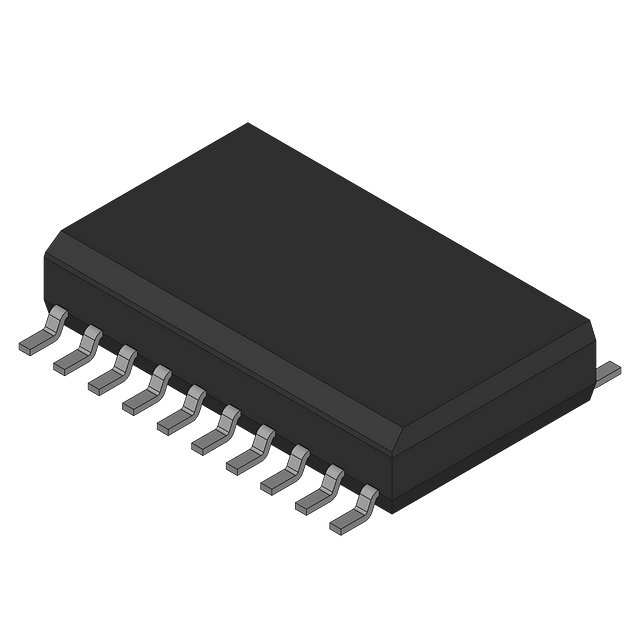

TPIC6273DW - Texas Instruments
IC D-TYPE TRANSP SGL 8: 8 20SOIC D-Type Transparent Latch 1 Channel 8: 8 IC Standard 20-SOIC
Technical Details
| Case/Package | SOIC |
| Clock Edge Trigger Type | Positive Edge |
| Drain to Source Resistance | 1.3mΩ |
| Height | 2.65mm |
| Independent Circuits | 1 |
| Length | 12.8mm |
| Lifecycle Status | Production |
| Logic Function | D-Type, Latch |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Bits | 8 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Input Lines | 8 |
| Number of Output Lines | 8 |
| Number of Outputs | 8 |
| Number of Pins | 20 |
| Operating Supply Voltage | 5V |
| Output Current | 250mA |
| Output Voltage | 45V |
| Polarity | Non-Inverting |
| Power Dissipation | 225mW |
| Propagation Delay | 625ns |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Thickness | 2.35mm |
| Turn-On Delay Time | 625ps |
| Weight | 513.211417mg |
| Width | 7.5mm |
