Integrated Circuits (ICs) > Power Management ICs > LED Drivers

TPIC6B595N - Texas Instruments

Shift Register/Latch/Driver Single 8-Bit Serial to Serial/Parallel Automotive 20-Pin PDIP Tube

Technical Details

Case/Package	PDIP
Contact Plating	Gold
Direction	Unidirectional
Height	5.08mm
Length	24.33mm
Lifecycle Status	Production
Logic Function	Shift Register
Manufacturer Lifecycle Status	ACTIVE
Max Junction Temperature (Tj)	150°C
Max Operating Temperature	125°C
Max Supply Voltage	5.5V
Min Operating Temperature	-40°C
Min Supply Voltage	4.5V
Mount	Through Hole
Nominal Supply Current	90mA
Number of Bits	8
Number of Bits per Element	8
Number of Circuits	1
Number of Elements	1
Number of Input Lines	1
Number of Inputs	1
Number of Output Lines	9
Number of Outputs	8
Number of Pins	20
Operating Supply Voltage	5V
Output Current	500mA
Output Voltage	50V
Propagation Delay	150ns
Radiation Hardening	No
REACH SVHC	No
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000\|8542390000\|8542390000\|8542390000
Thickness	4.57mm
Turn-On Delay Time	200ns
Weight	1.1991g
Width	6.35mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

Texas Instruments TPIC6B595N | Rochester Electronics

Rochester Electronics

Datasheets

Rochester Electronics

Lifecycle Status Indicator

Production

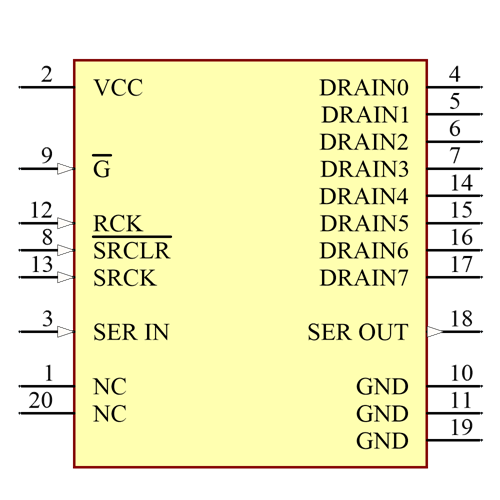

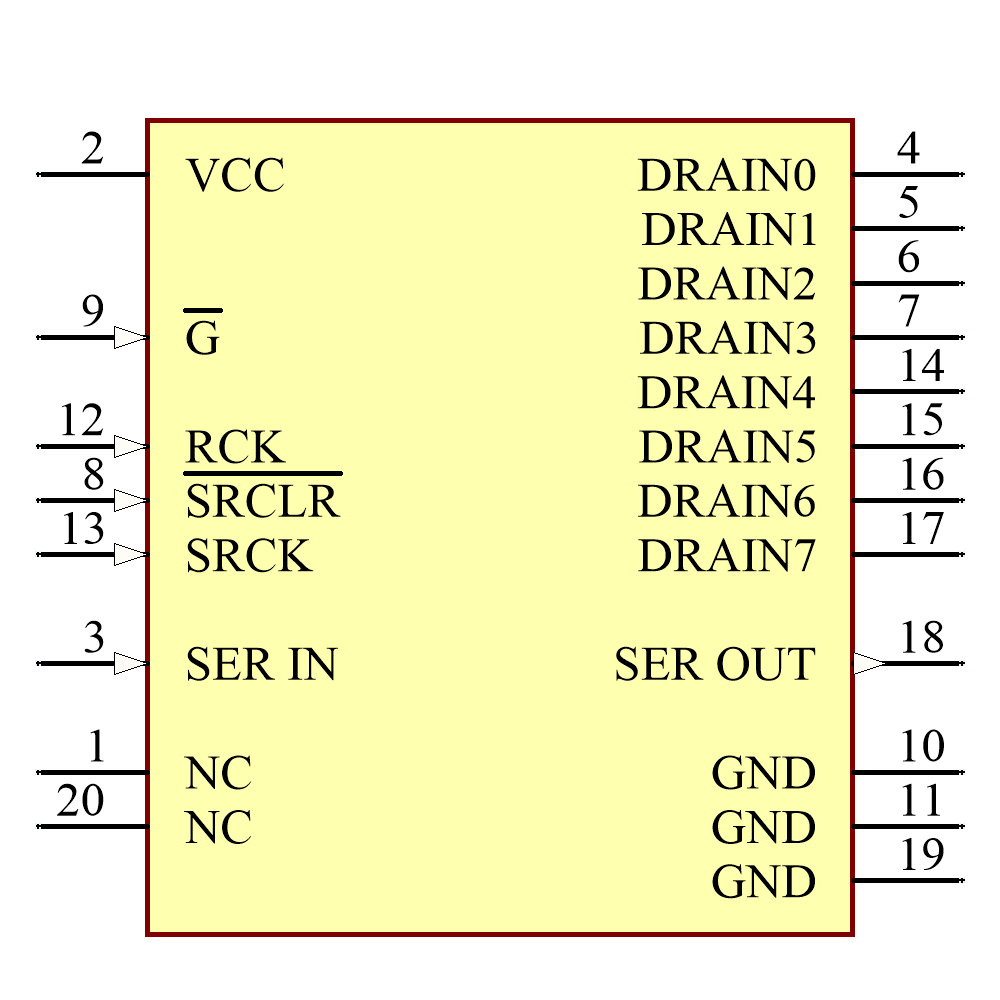

Symbol

TPIC6B595N Symbol - Texas Instruments

TPIC6B595N Symbol - Texas Instruments

TPIC6B595N Symbol - Texas Instruments

TPIC6B595N Symbol - Texas Instruments

‹ ›

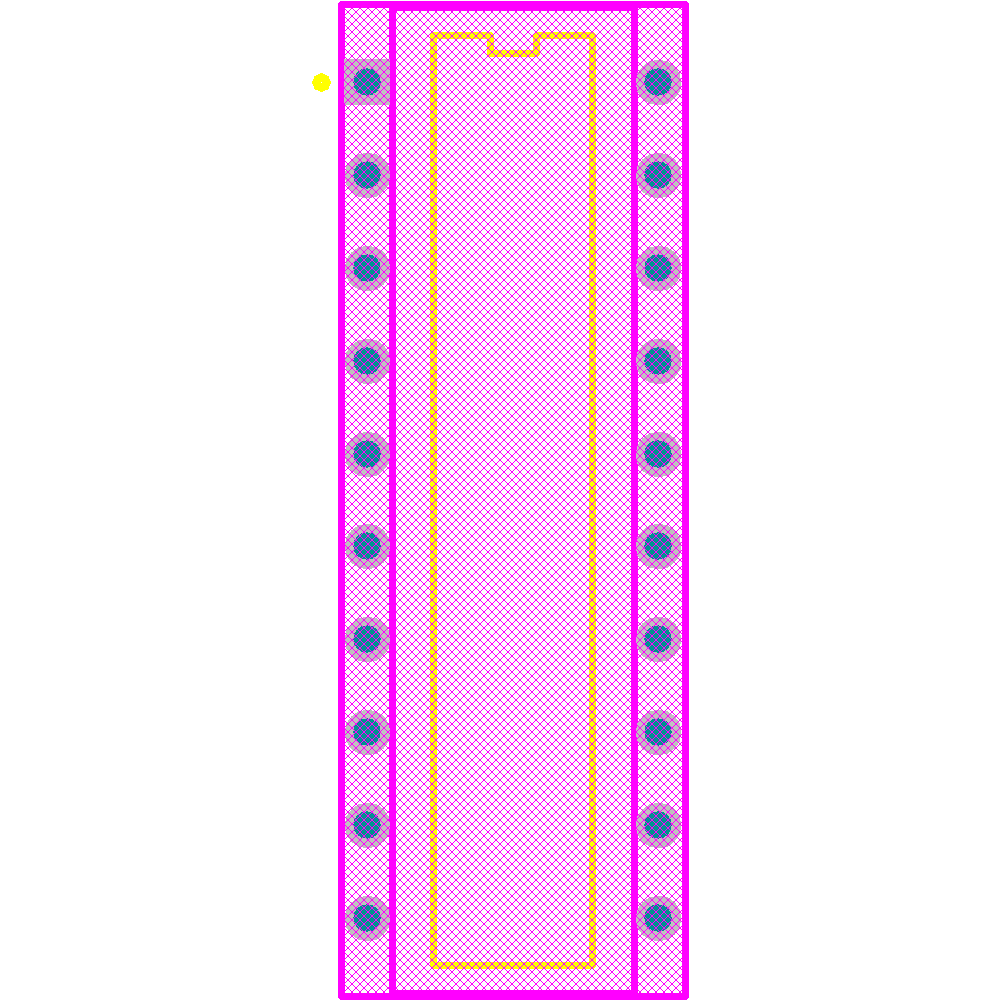

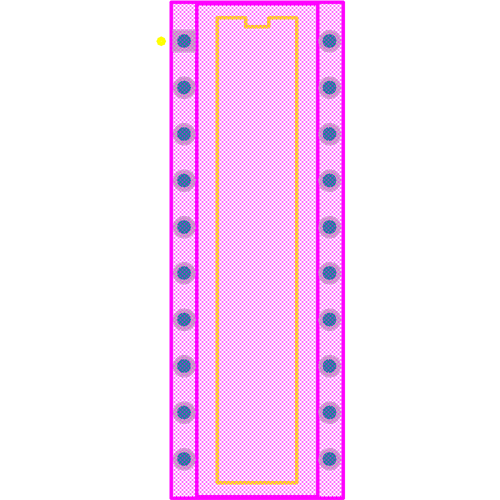

Footprint

TPIC6B595N Footprint - Texas Instruments

TPIC6B595N Footprint - Texas Instruments

TPIC6B595N Footprint - Texas Instruments

TPIC6B595N Footprint - Texas Instruments

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
Texas Instruments	TPIC6B595DWG4	Obsolete
Texas Instruments	TPIC6B595DWRG4	Obsolete
Texas Instruments	TPIC6B595DWR	Production
Allegro MicroSystems	A6B595KLWTR	Obsolete
Allegro MicroSystems	A6B595KLWTR-T	Obsolete
Texas Instruments	TPIC6B595DW	Obsolete
Allegro MicroSystems	A6B595KA-T	Obsolete
Texas Instruments	TPIC6B596N	Production
Texas Instruments	SN74LS598NE4	Unknown
onsemi	74F322PC	Obsolete

See more alternatives See less alternatives
