TPPM0302DGN - Texas Instruments
400-mA, low-dropout voltage regulator with power good 8-HVSSOP 0 to 70
Technical Details
| Case/Package | HTSSOP EP |
| Height | 1.1mm |
| Input Bias Current | 2.5mA |
| Lead Free | Lead Free |
| Length | 3mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 5.5V |
| Max Operating Temperature | 70°C |
| Max Output Current | 400mA |
| Max Output Voltage | 5V |
| Max Power Dissipation | 1.36W |
| Max Supply Voltage | 5.5V |
| Min Input Voltage | 4.5V |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 4.5V |
| Number of Outputs | 1 |
| Number of Pins | 8 |
| Number of Regulators | 1 |
| Output Current | 400mA |
| Output Type | Fixed |
| Output Voltage | 3.3V |
| Polarity | Positive |
| Power Dissipation | 1.36kW |
| Quiescent Current | 2.5mA |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Thickness | 1.02mm |
| Width | 3mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

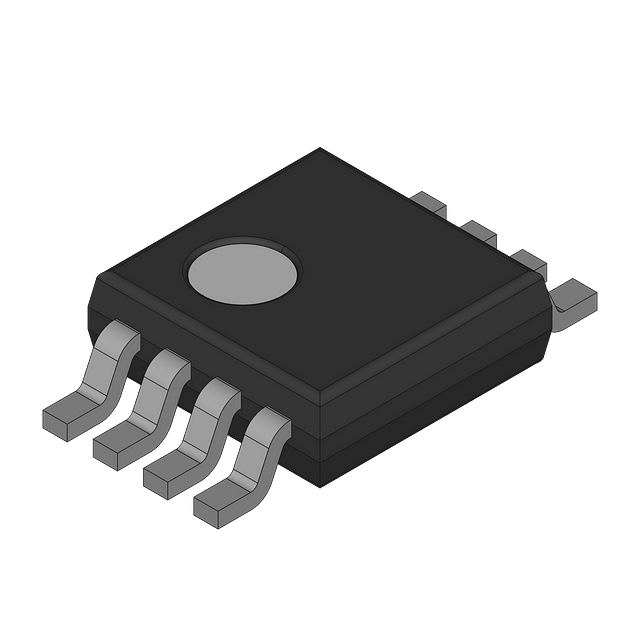

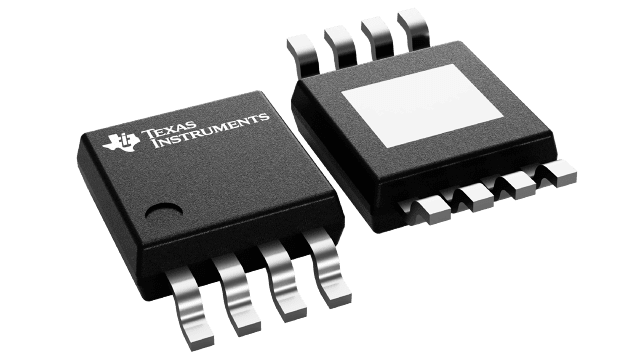

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| onsemi | Obsolete | ||
| onsemi | Production | ||
| onsemi | Obsolete | ||
| Analog Devices | Unknown | ||
| Analog Devices | Unknown | ||
| onsemi | Obsolete | ||
| Texas Instruments | Unknown |
