TPS2113ADRBT - Texas Instruments
IC OR CTRLR SRC SELECT 8SON OR Controller Source Selector Switch N-Channel 2: 1 8-SON (3x3)
Technical Details
| Case/Package | TSSOP |
| Current - Output 2 | 1.25A |
| Height | 1mm |
| Lead Free | Lead Free |
| Length | 3mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 5.5V |
| Max Operating Temperature | 85°C |
| Max Output Current | 1.25A |
| Max Power Dissipation | 1W |
| Max Supply Current | 55µA |
| Min Input Voltage | 2.8V |
| Min Operating Temperature | -40°C |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Number of Outputs | 1 |
| Number of Pins | 8 |
| Operating Supply Current | 55µA |
| Operating Supply Voltage | 5.5V |
| Output Current | 2A |
| Propagation Delay | 280ps |
| Radiation Hardening | No |
| REACH SVHC | No |
| Resistance | 110Ω |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Thickness | 880µm |
| Turn-On Delay Time | 1ms |
| Width | 3mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

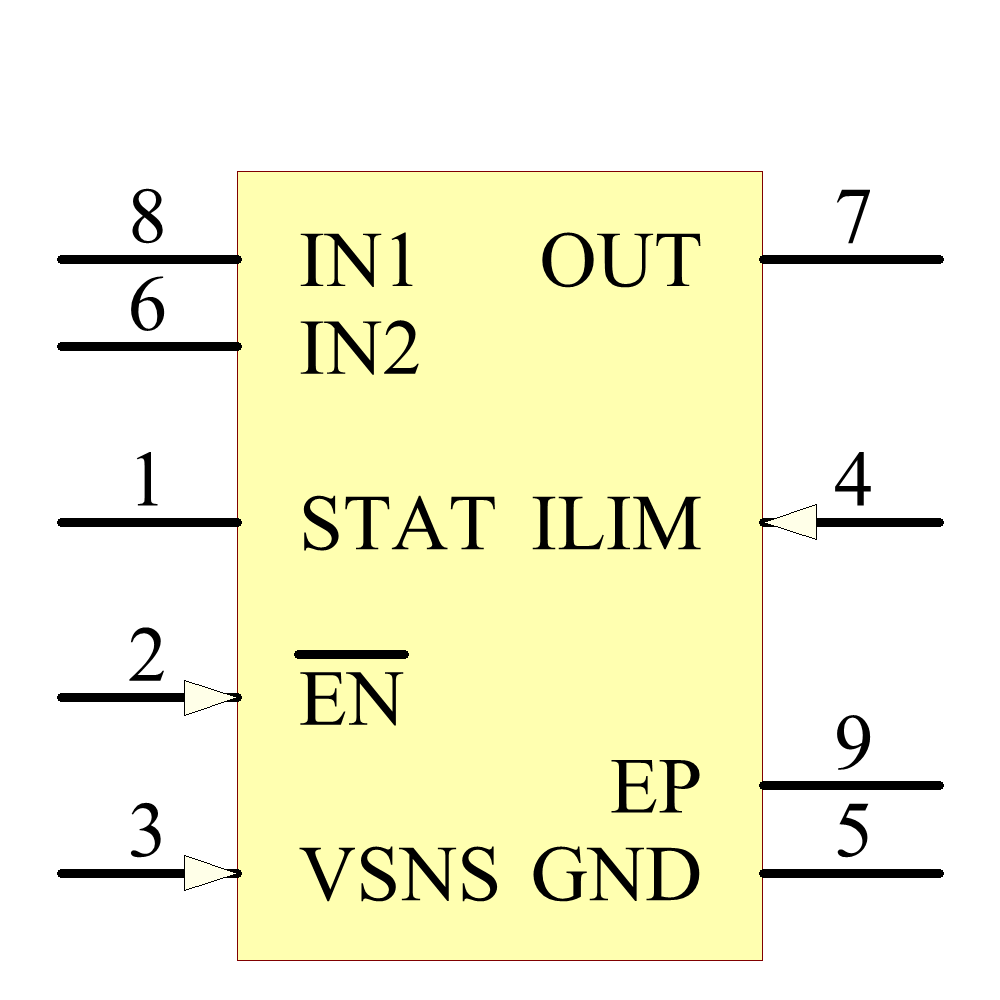

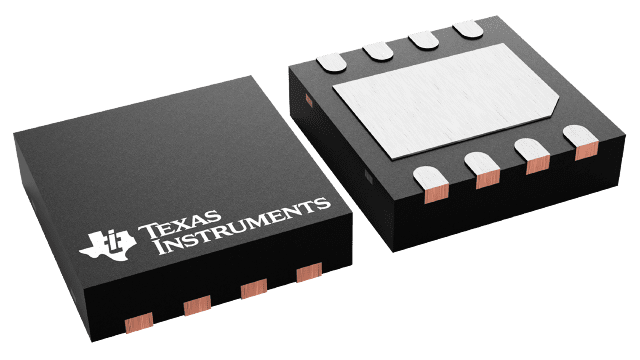

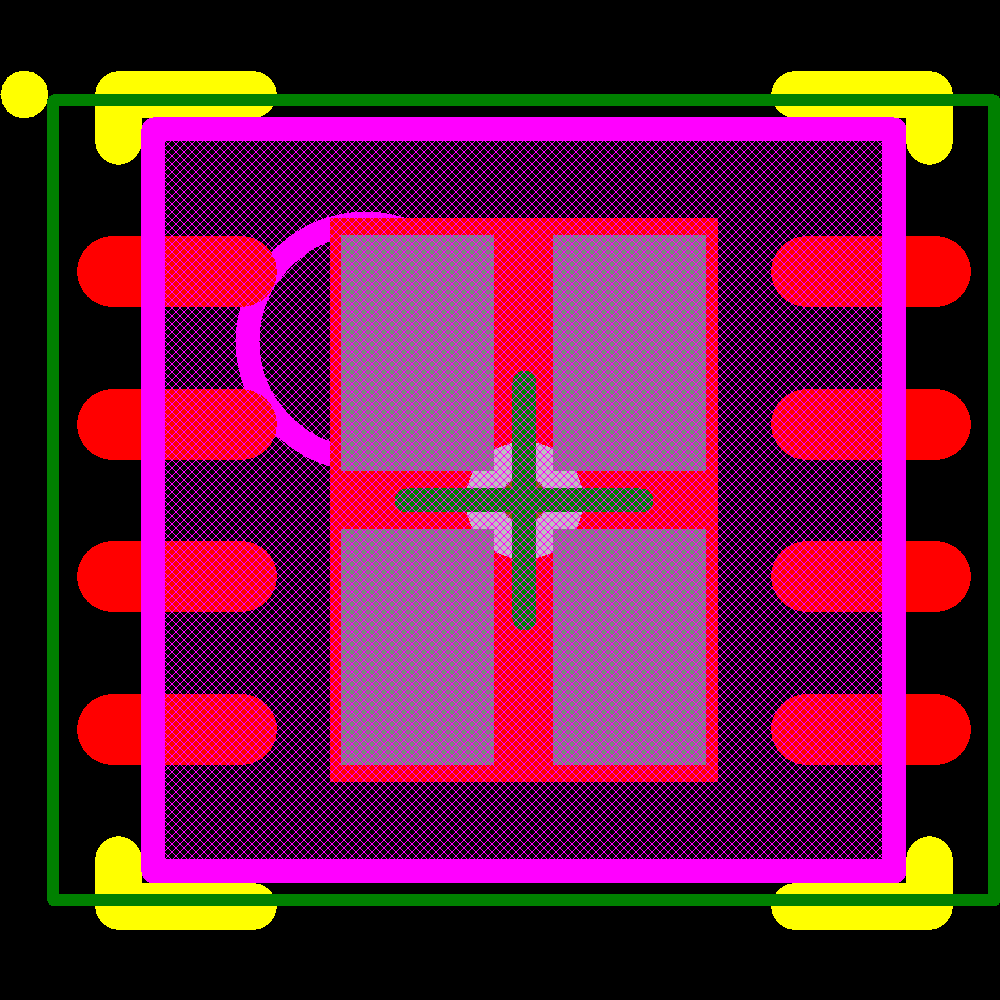

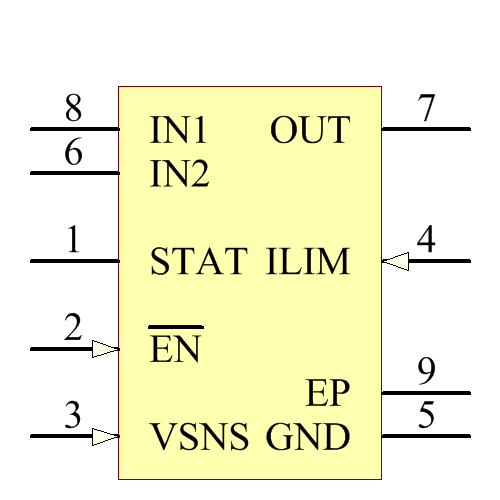

Images
Texas Instruments
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Analog Devices | Production | ||
| Analog Devices / Linear Technology | Unknown | ||
| Analog Devices | Unknown | ||
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Unknown | ||
| Analog Devices | Production |
