TPS2115ADRBTG4 - Texas Instruments
IC OR CTRLR SRC SELECT 8SON OR Controller Source Selector Switch N-Channel 2: 1 8-SON (3x3)
Technical Details
| Current - Output 2 | 1.25A |
| Height | 1mm |
| Lead Free | Lead Free |
| Length | 3mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 5.5V |
| Max Operating Temperature | 85°C |
| Max Output Current | 1.25A |
| Min Input Voltage | 2.8V |
| Min Operating Temperature | -40°C |
| Number of Inputs | 2 |
| Number of Outputs | 1 |
| Number of Pins | 8 |
| Operating Supply Voltage | 5.5V |
| Output Current | 1.25A |
| Radiation Hardening | No |
| RoHS | Compliant |
| Thickness | 880µm |
| Turn-On Delay Time | 1ms |
| Weight | 24.012046mg |
| Width | 3mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

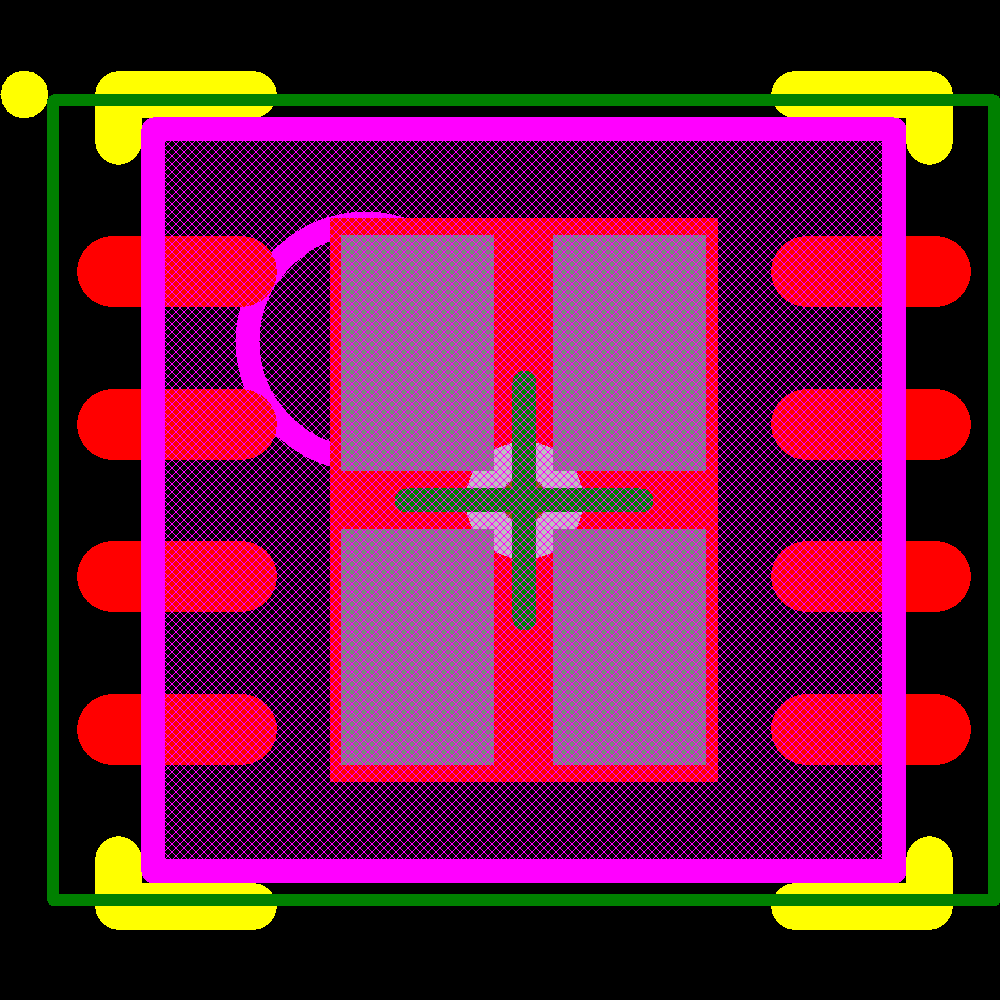

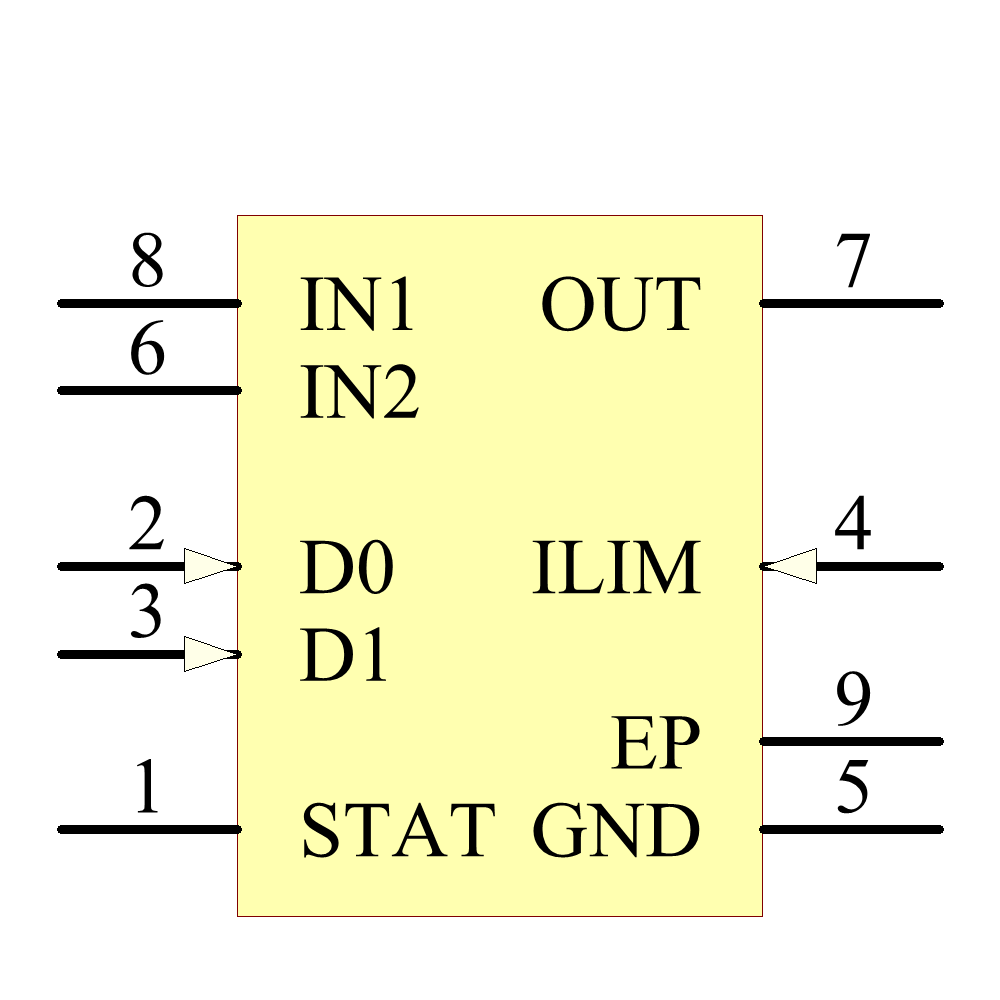

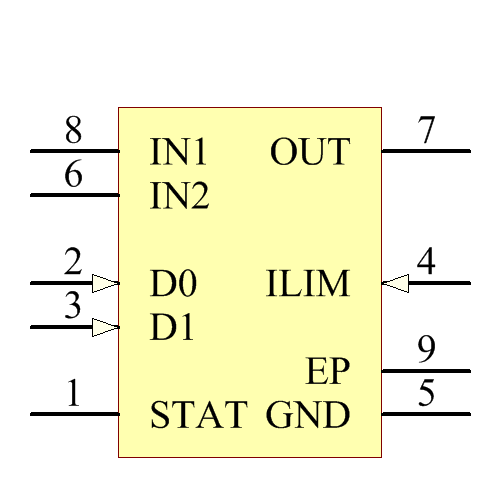

Images
