TPS22941DCKR - Texas Instruments
5.5-V, 0.04-A, 500-mΩ, load switch with current limit and active low enable 5-SC70 -40 to 85

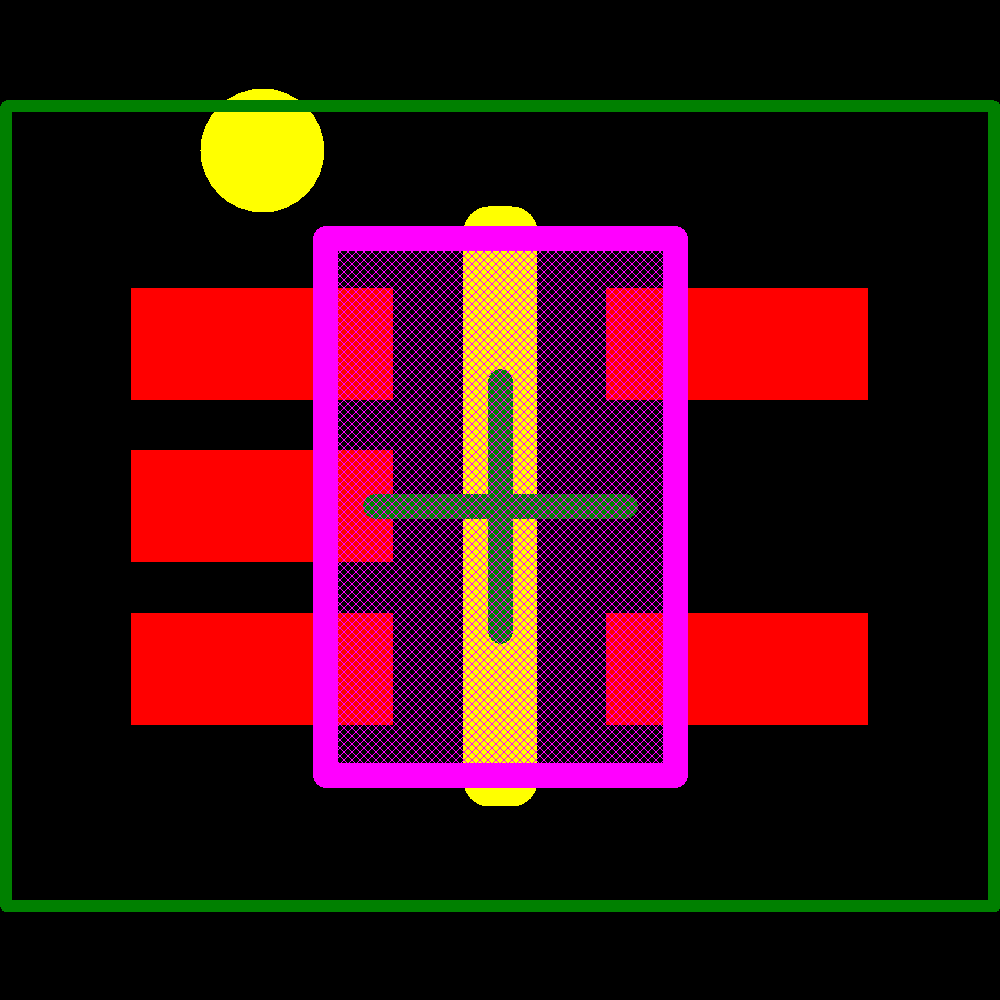

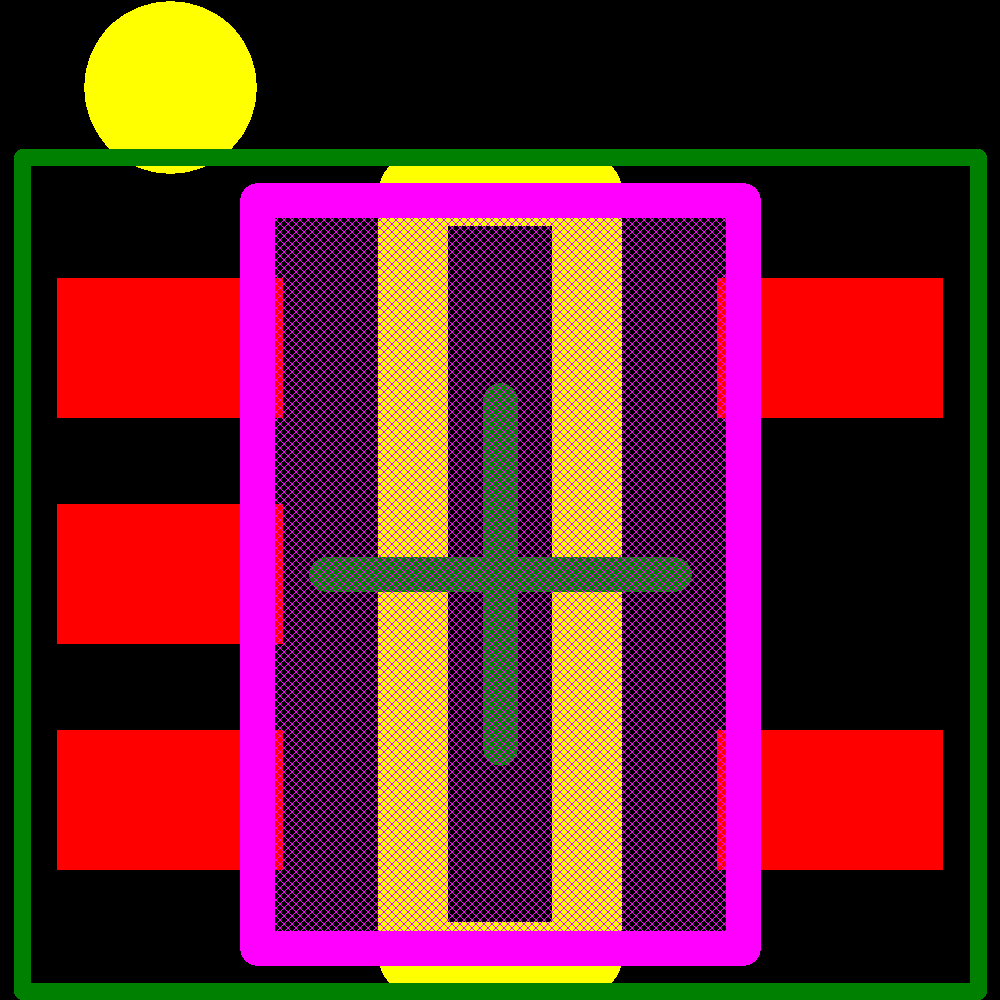

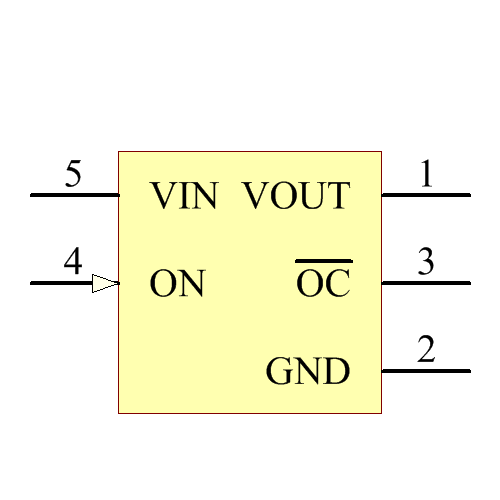

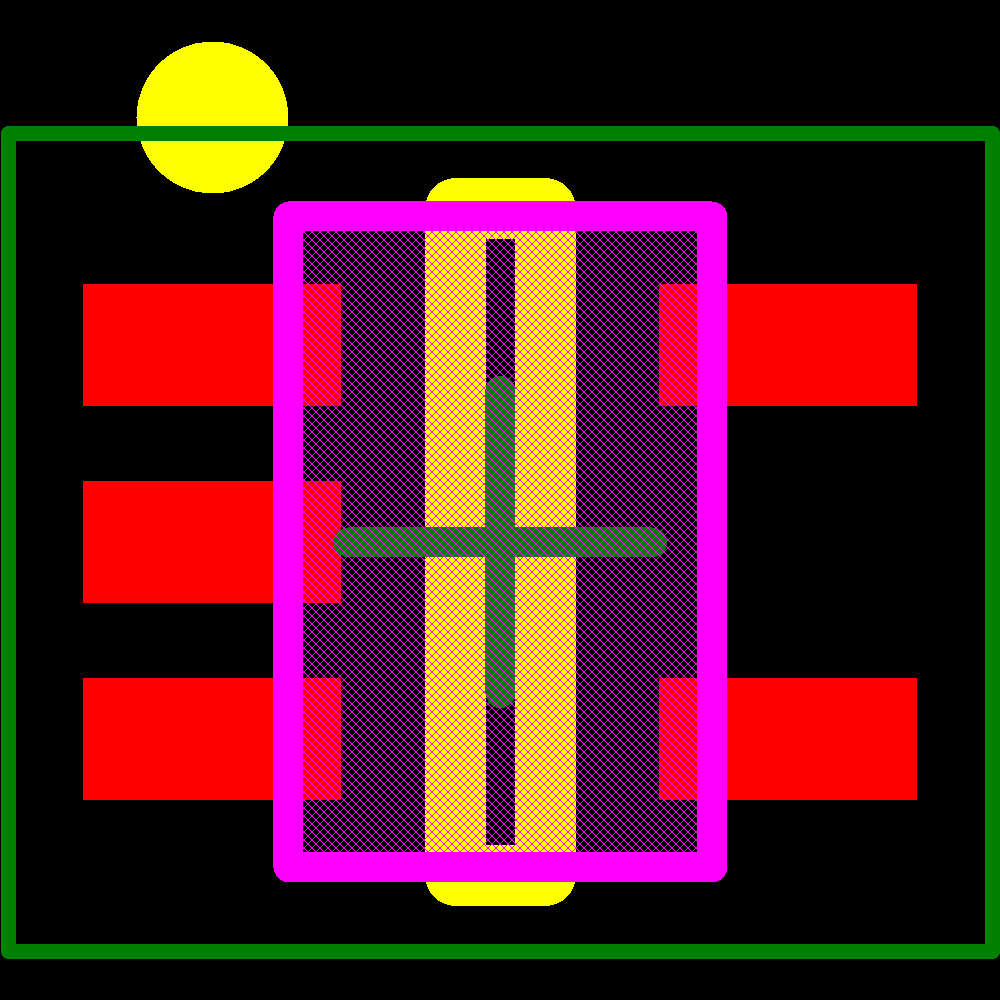

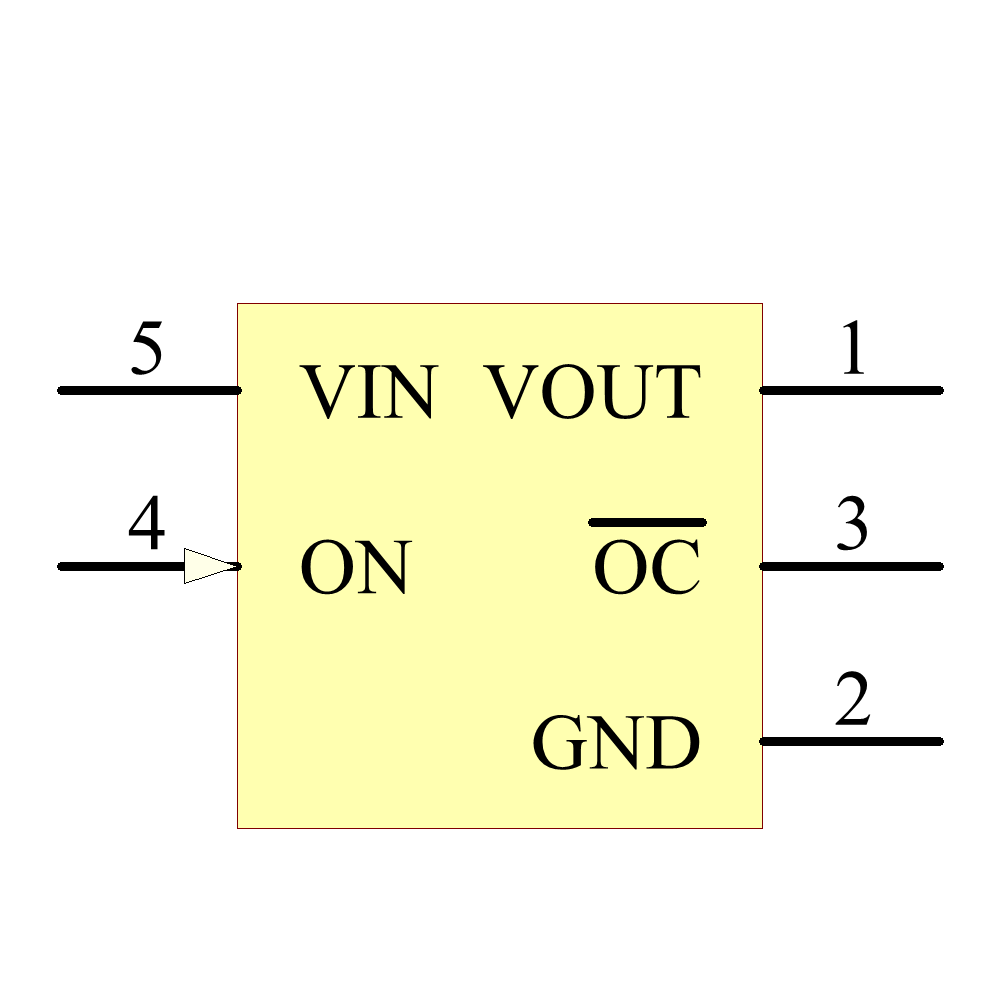

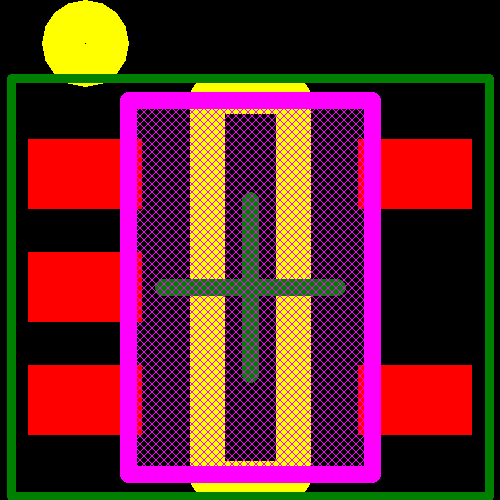

Technical Details
| Case/Package | SC |
| Current | 20mA |
| Fault Protection | Over Temperature |
| Height | 1.1mm |
| Interface | On/Off |
| Lead Free | Lead Free |
| Length | 2mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 5.5V |
| Max Operating Temperature | 85°C |
| Max Output Current | 40mA |
| Max Power Dissipation | 122mW |
| Max Supply Current | 80µA |
| Max Supply Voltage | 5.5V |
| Min Current Limit | 40mA |
| Min Input Voltage | 1.62V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.62V |
| Nominal Input Voltage | 5.5V |
| Nominal Supply Current | 1µA |
| Number of Channels | 1 |
| Number of Inputs | 1 |
| Number of Outputs | 1 |
| Number of Pins | 5 |
| Output Configuration | High Side |
| Output Current | 80mA |
| Power Dissipation | 122mW |
| Power Rating | 122mW |
| Quiescent Current | 40µA |
| Radiation Hardening | No |
| REACH SVHC | No |
| Resistance | 500mΩ |
| RoHS | Compliant |
| Schedule B | 8542390000 |
| Termination | SMD/SMT |
| Thickness | 900µm |
| Turn-Off Delay Time | 30µs |
| Turn-On Delay Time | 60µs |
| Voltage | 5.5V |
| Width | 1.25mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No
