Integrated Circuits (ICs) > Power Management ICs > Power Switch ICs - Power Distribution

TPS2557DRBT - Texas Instruments

0.5-5A adjustable ILIMIT, 2.5-6.5V, 22mΩ USB power switch, active-high 8-SON -40 to 125

Technical Details

Contact Plating	Gold
Current	5A
Fault Protection	Over Temperature
Height	1mm
Interface	On/Off
Lead Free	Lead Free
Length	3mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Input Voltage	6.5V
Max Operating Temperature	85°C
Max Output Current	5A
Max Power Dissipation	2.403W
Max Supply Voltage	6.5V
Min Input Voltage	2.5V
Min Operating Temperature	-40°C
Min Supply Voltage	2.5V
Mount	Surface Mount
Nominal Input Voltage	6.5V
Number of Inputs	1
Number of Pins	8
Output Configuration	High Side
Output Current	5A
Packaging	Cut Tape
Power Rating	2.403W
Radiation Hardening	No
REACH SVHC	No
Resistance	22mΩ
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000\|8542390000\|8542390000\|8542390000
Termination	SMD/SMT
Thickness	880µm
Turn-Off Delay Time	6ms
Turn-On Delay Time	9ms
Voltage	6.5V
Weight	24.012046mg
Width	3mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

Texas Instruments TPS2557DRBT | Texas Instruments

Texas Instruments

Datasheets

Arrow Electronics

Lifecycle Status Indicator

Production

Symbol

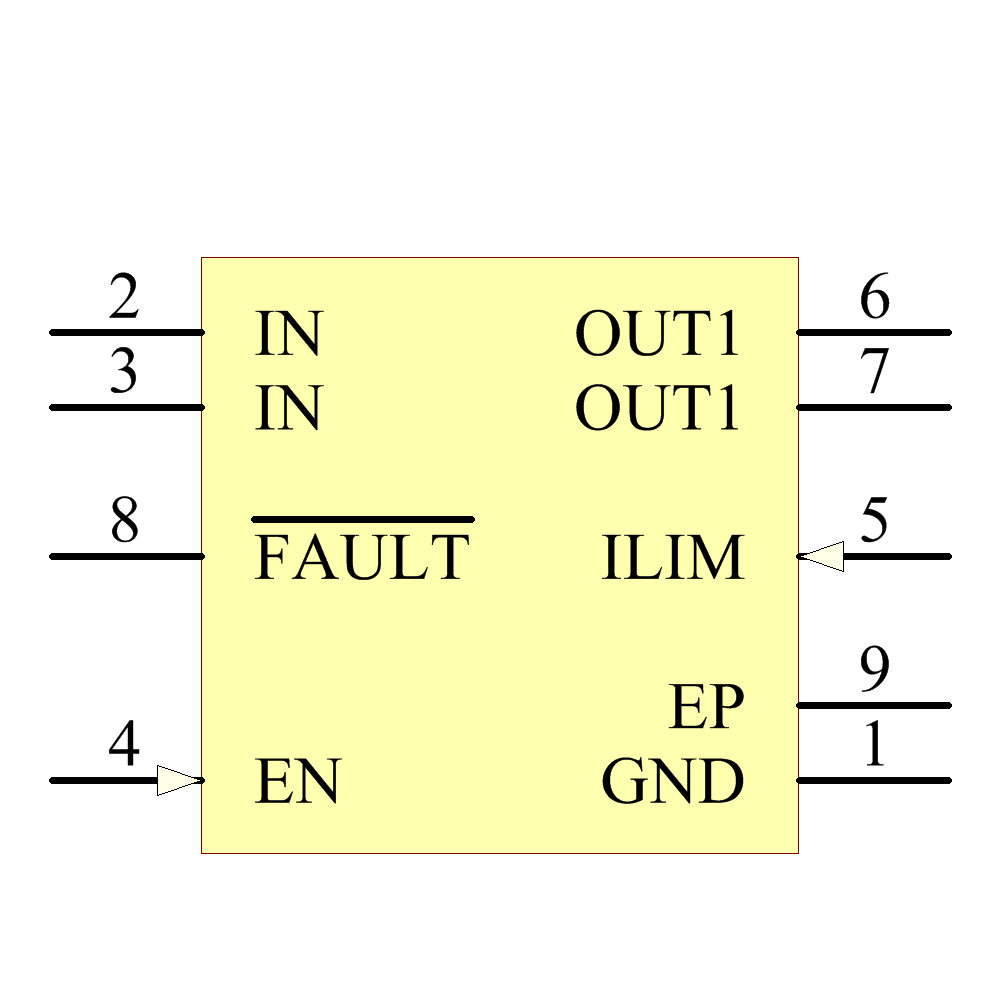

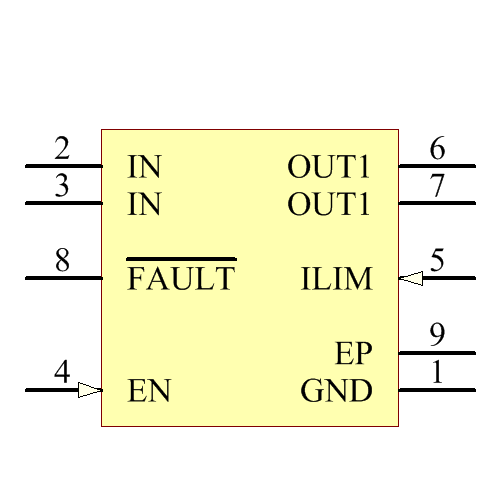

TPS2557DRBT Symbol - Texas Instruments

TPS2557DRBT Symbol - Texas Instruments

TPS2557DRBT Symbol - Texas Instruments

TPS2557DRBT Symbol - Texas Instruments

‹ ›

Footprint

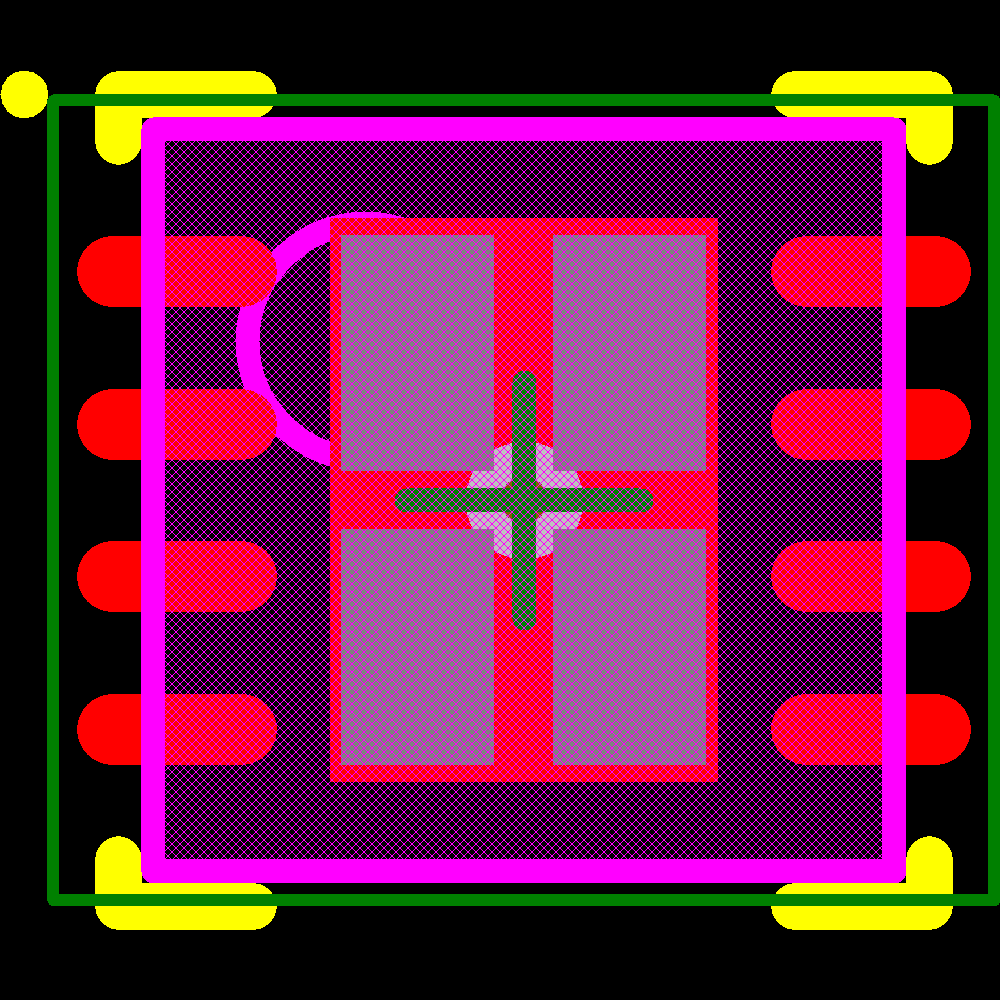

TPS2557DRBT Footprint - Texas Instruments

TPS2557DRBT Footprint - Texas Instruments

TPS2557DRBT Footprint - Texas Instruments

TPS2557DRBT Footprint - Texas Instruments

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
Texas Instruments	TPS2557DRB	Unknown
Texas Instruments	TPS2557DRBR	Production
Texas Instruments	TPS2557QDRBRQ1	Production
Texas Instruments	TPS2557QDRBTQ1	Production
Monolithic Power Systems	MP2617AGL-Z	Production
Diodes Inc.	AP2401FGE-7	Obsolete
Diodes Inc.	AP2411FGE-7	Production
STMicroelectronics	ST890DTR	Production
Texas Instruments	TPS2556DRBT	Production
Texas Instruments	TPS2556DRBR	Production
