TPS3106K33DBVTG4 - Texas Instruments
Dual-channel, voltage supervisor, ultra-low supply current 6-SOT-23 -40 to 125
Technical Details
| Case/Package | SOT-23 |
| Height | 0m |
| Lead Free | Contains Lead |
| Length | 2.9mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 437mW |
| Max Reset Threshold Voltage | 2.963V |
| Max Supply Current | 27µA |
| Max Supply Voltage | 3.3V |
| Min Operating Temperature | -40°C |
| Min Reset Threshold Voltage | 2.919V |
| Min Supply Voltage | 400mV |
| Number of Pins | 6 |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 1.2µA |
| Overvoltage Threshold | 2.963V |
| Power Dissipation | 437mW |
| Quiescent Current | 1.2µA |
| Radiation Hardening | No |
| Reset | Active Low |
| Reset Timeout | 65ms |
| RoHS | Compliant |
| Thickness | 1.2mm |
| Threshold Voltage | 2.941V |
| Undervoltage Threshold | 2.941V |
| Watchdog Timer | Yes |
| Width | 1.6mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

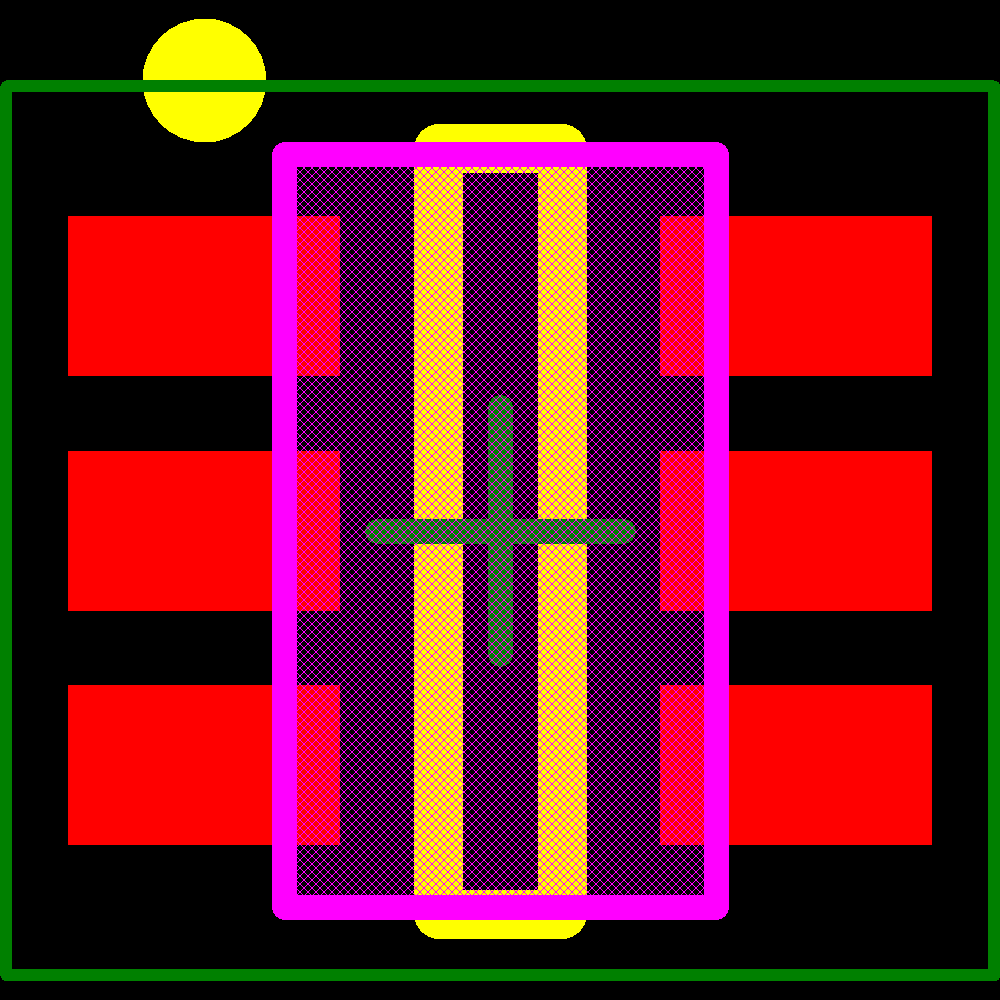

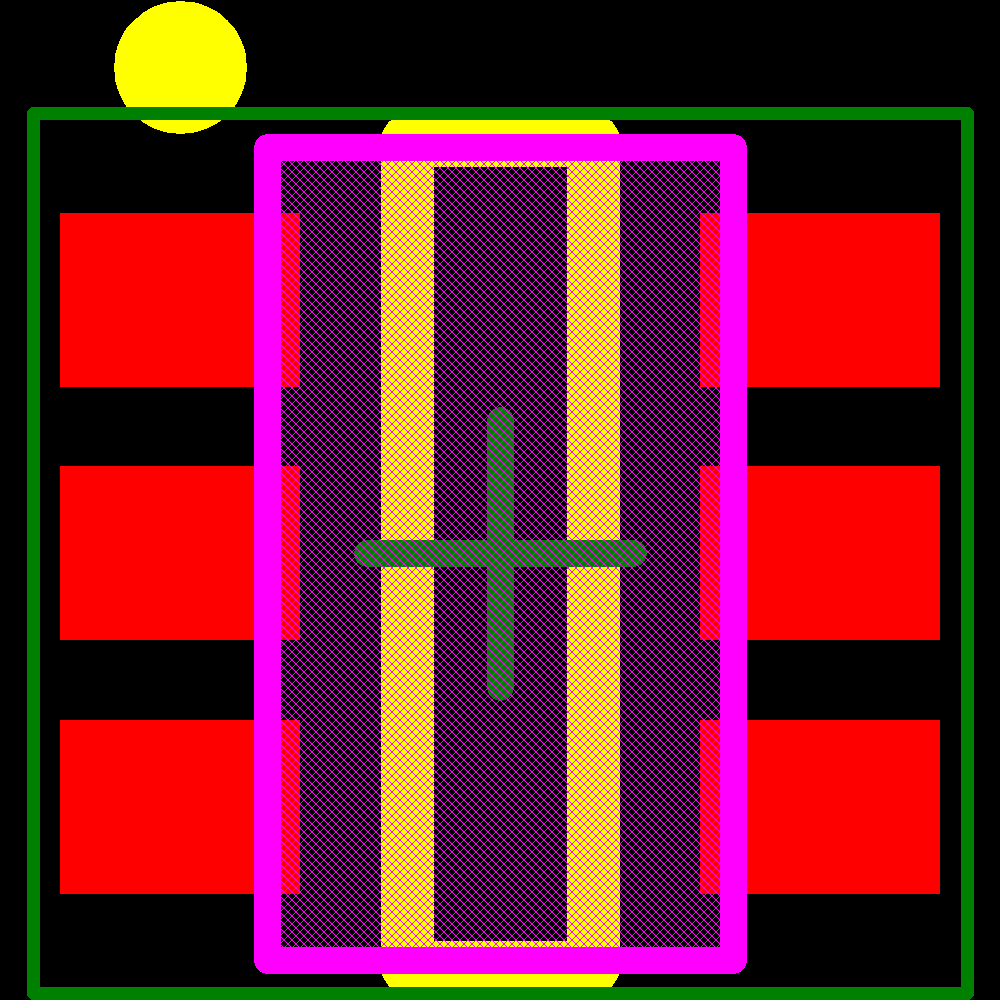

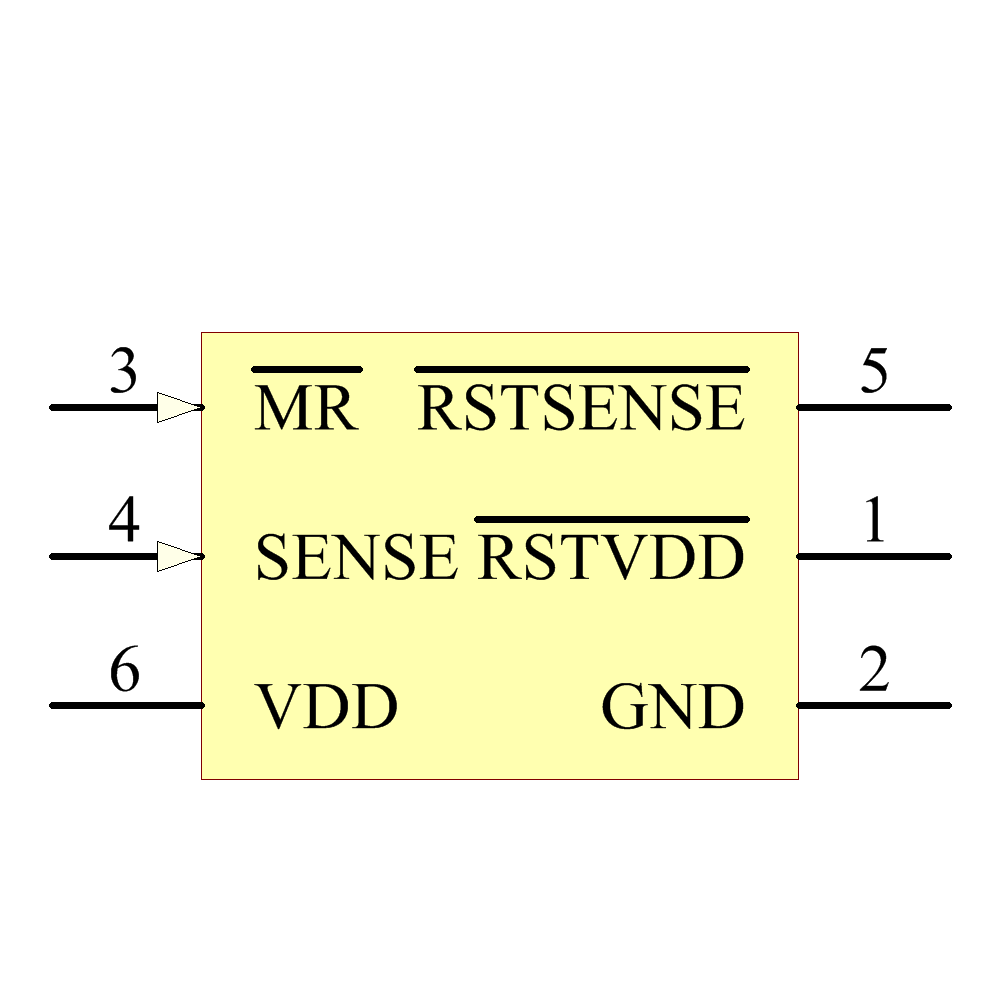

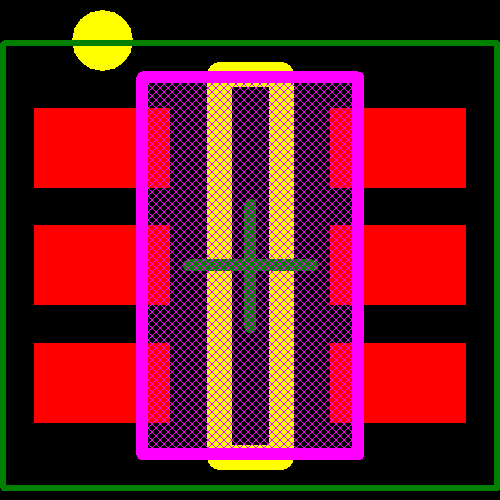

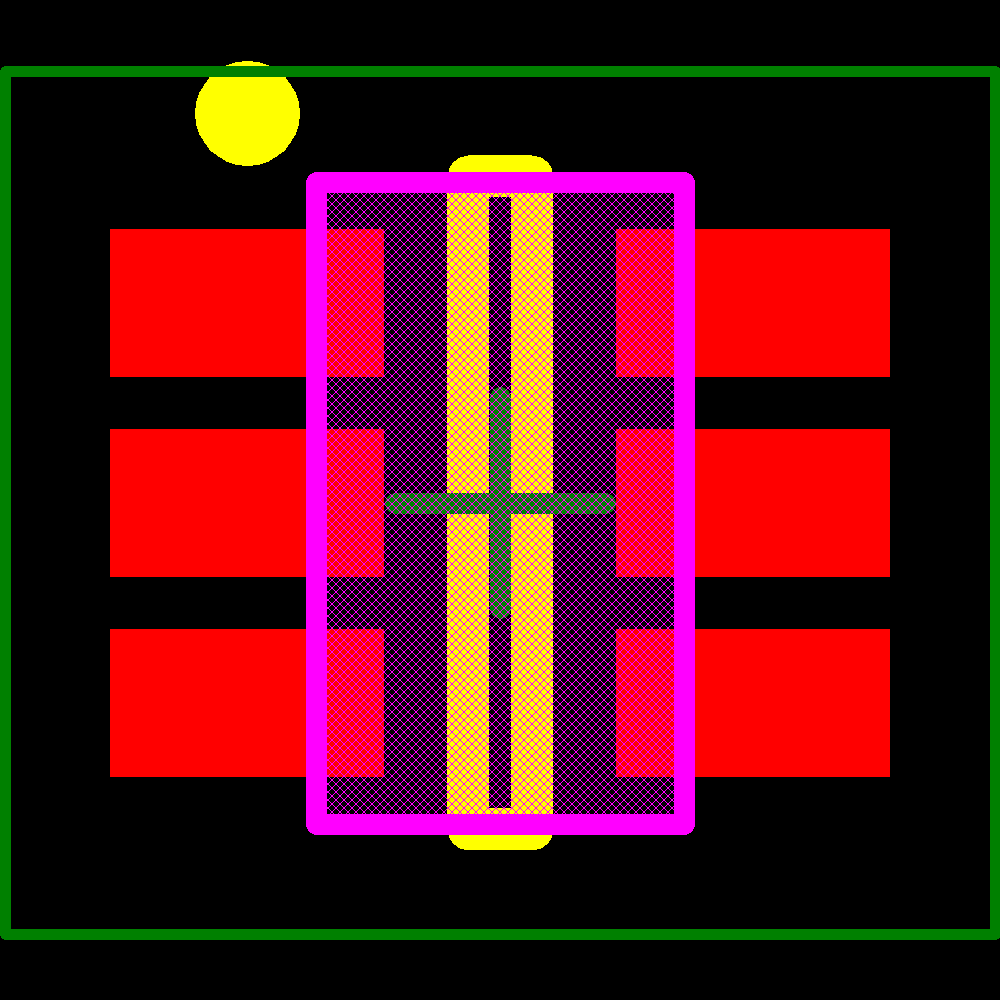

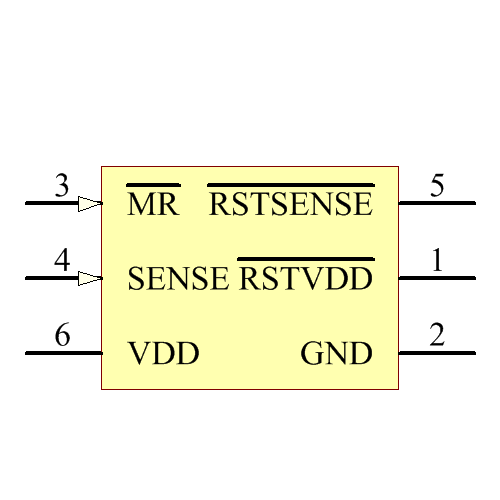

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Mouser |
US: 989
|
$ | 4.43 | 2.93 | 2.67 | 2.27 | 1.64 | 1.55 | ||
