TPS3808G12DRVRG4 - Texas Instruments
Low-quiescent current supervisor with programmable delay & manual reset 6-WSON -40 to 125
Technical Details
| Height | 800µm |
| Lead Free | Lead Free |
| Length | 2mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 125°C |
| Max Reset Threshold Voltage | 1.1256V |
| Max Supply Voltage | 6.5V |
| Min Operating Temperature | -40°C |
| Min Reset Threshold Voltage | 1.1144V |
| Min Supply Voltage | 1.8V |
| Number of Pins | 6 |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 2.4µA |
| Overvoltage Threshold | 1.1256V |
| Quiescent Current | 2.4µA |
| Reset | Active Low |
| RoHS | Compliant |
| Thickness | 750µm |
| Threshold Voltage | 1.12V |
| Undervoltage Threshold | 1.12V |
| Watchdog Timer | No |
| Width | 2mm |
Compliance
RoHS : Unconfirmed

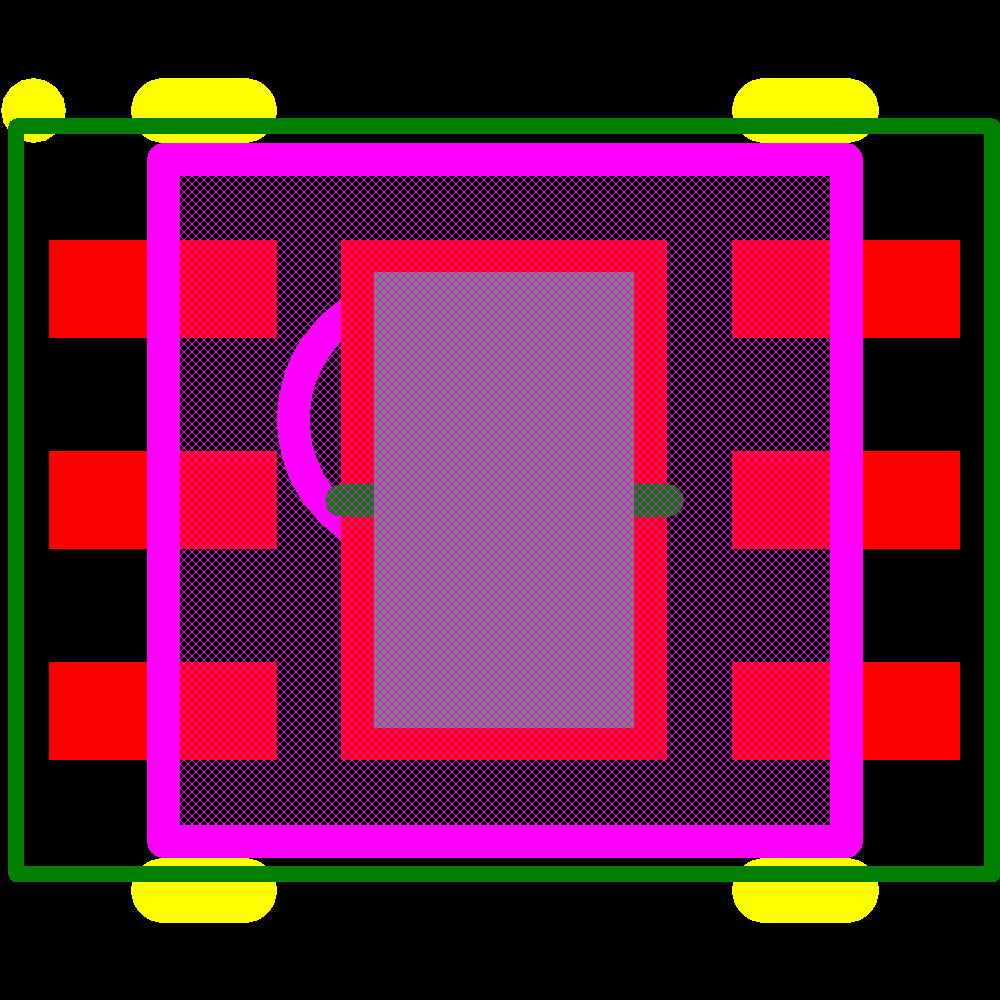

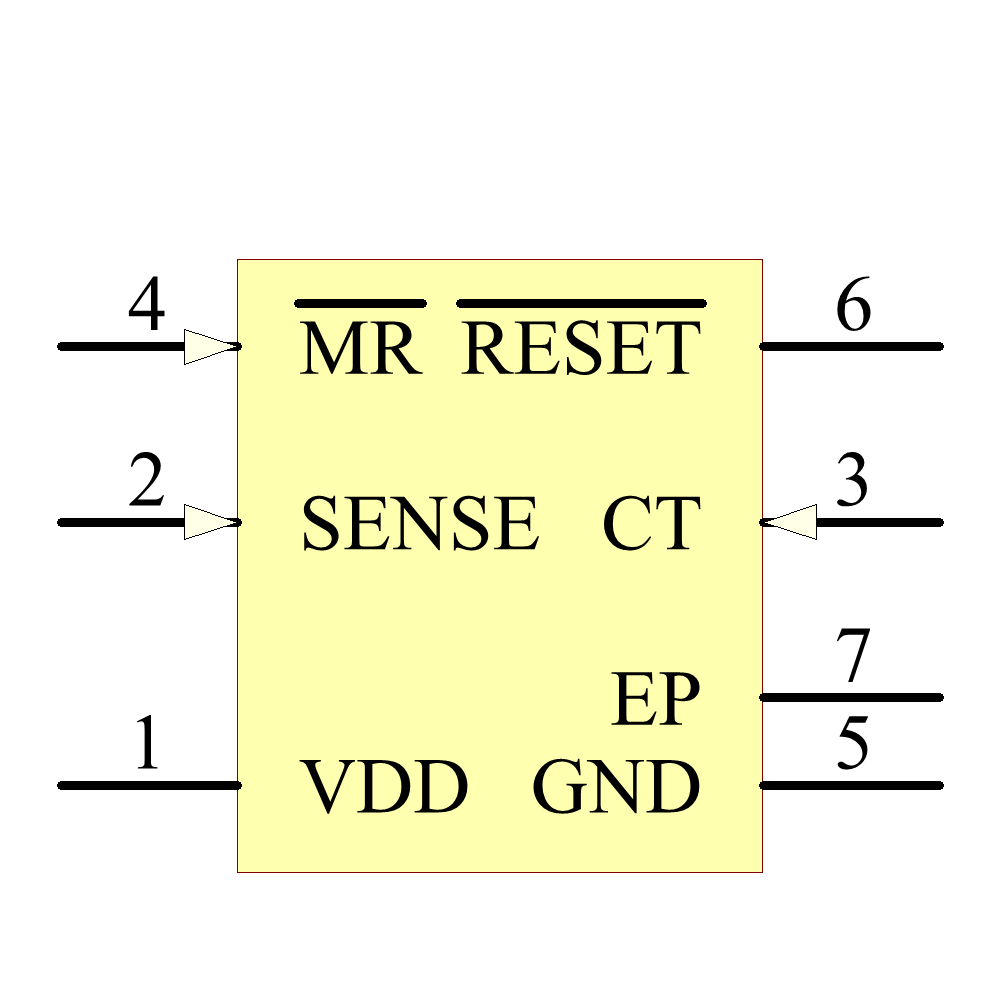

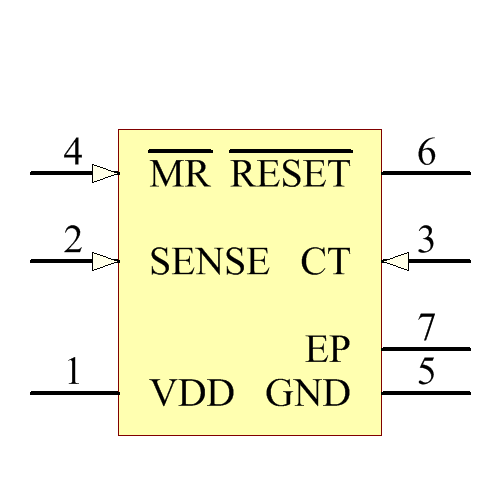

Images
