TPS40074RHLT - Texas Instruments
Midrange Input Synchronous Buck Controller With Voltage Feed-Forward 20-VQFN -40 to 85
Technical Details
| Case/Package | VQFN |
| Duty Cycle | 95% |
| Height | 900µm |
| Lead Free | Lead Free |
| Length | 4.5mm |
| Max Frequency | 1MHz |
| Max Input Voltage | 28V |
| Max Operating Temperature | 85°C |
| Max Output Current | 20A |
| Max Output Voltage | 23V |
| Min Input Voltage | 4.5V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 700mV |
| Number of Outputs | 1 |
| Number of Pins | 20 |
| Operating Supply Voltage | 28V |
| Output Current | 20A |
| Output Voltage | 23V |
| Quiescent Current | 1.5mA |
| RoHS | Compliant |
| Topology | Buck |
| Weight | 47.287005mg |
| Width | 3.5mm |
Compliance
RoHS : Unconfirmed

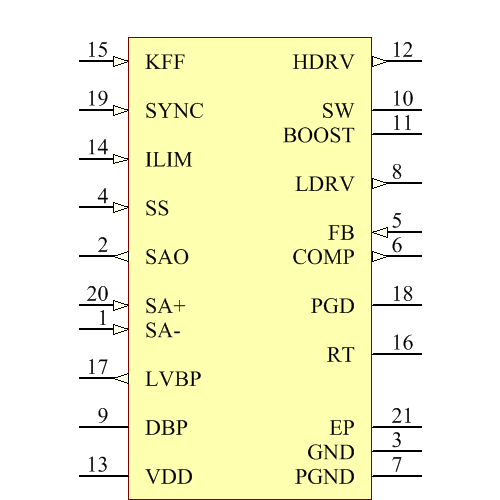

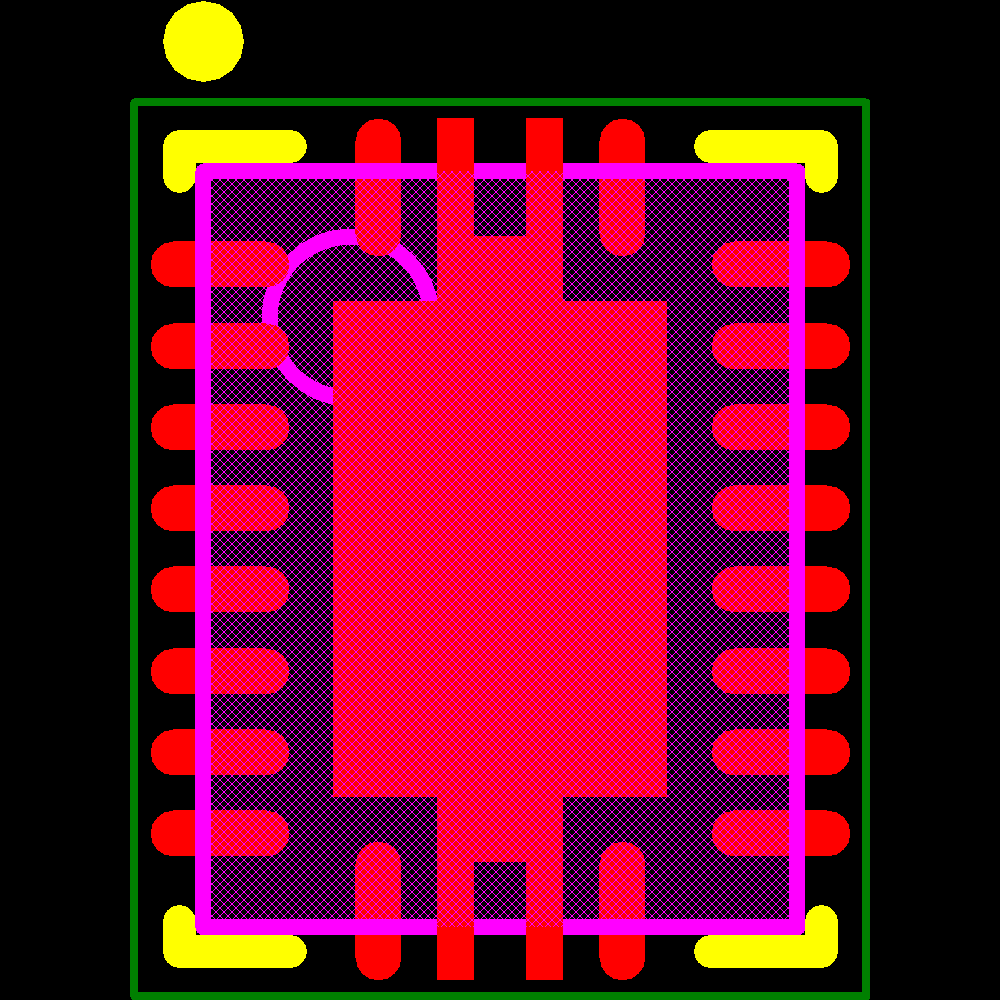

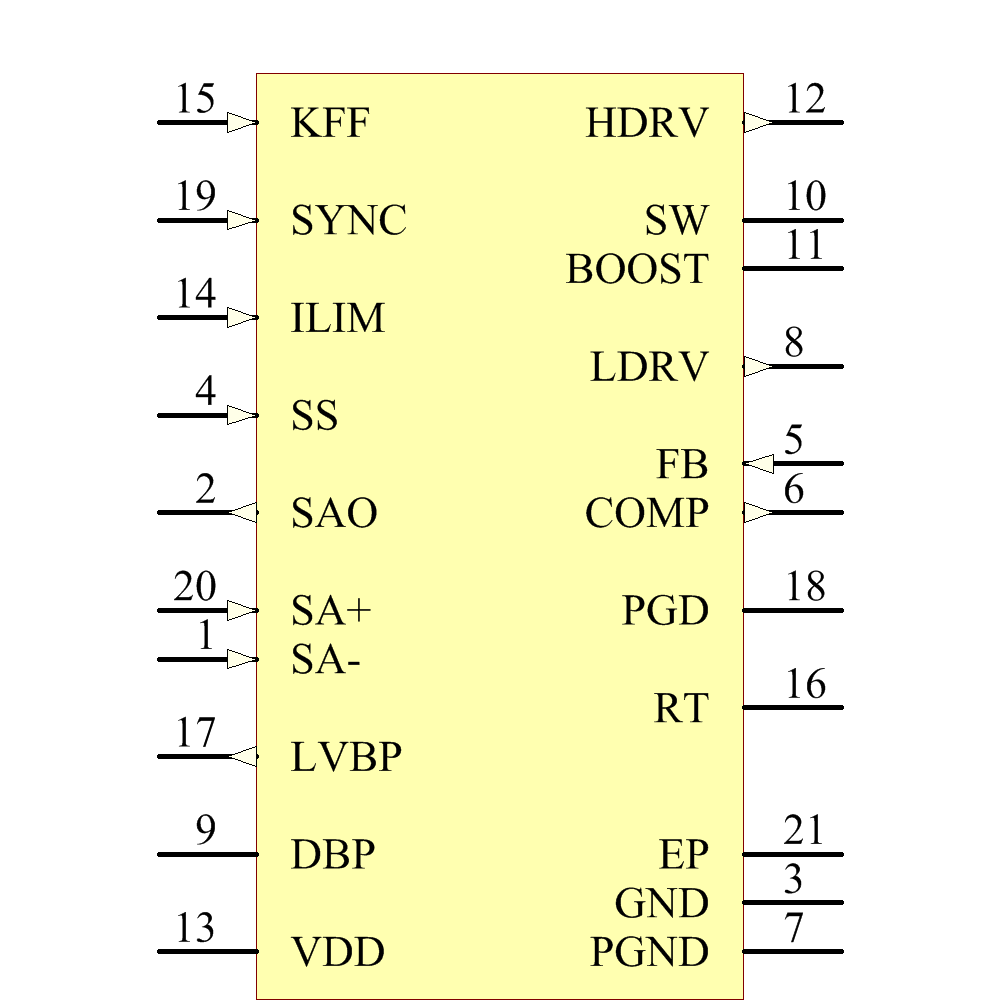

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production |
