TPS50601AHKH/EM - Texas Instruments
Switching Regulator, Current-mode, 6A, 1100kHz Switching Freq-Max, CDFP20
Technical Details
| Height | 2.54mm |
| Length | 12.7mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Duty Cycle | 100% |
| Max Junction Temperature (Tj) | 125°C |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 7V |
| Min Operating Temperature | -55°C |
| Min Supply Voltage | 3V |
| Nominal Supply Current | 5mA |
| Number of Outputs | 1 |
| Number of Pins | 20 |
| Output Current | 6A |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Thickness | 2.25mm |
| Topology | Buck |
| Width | 7.38mm |
Compliance
RoHS : Unconfirmed

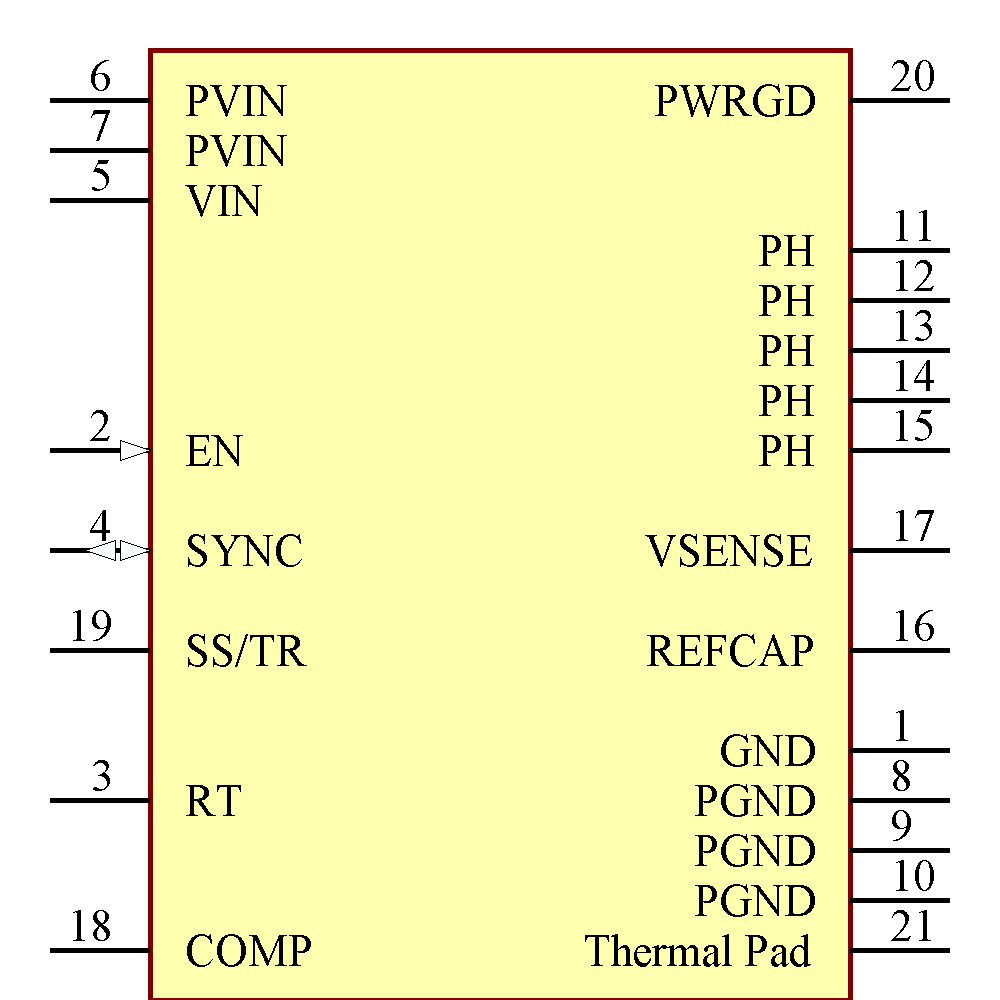

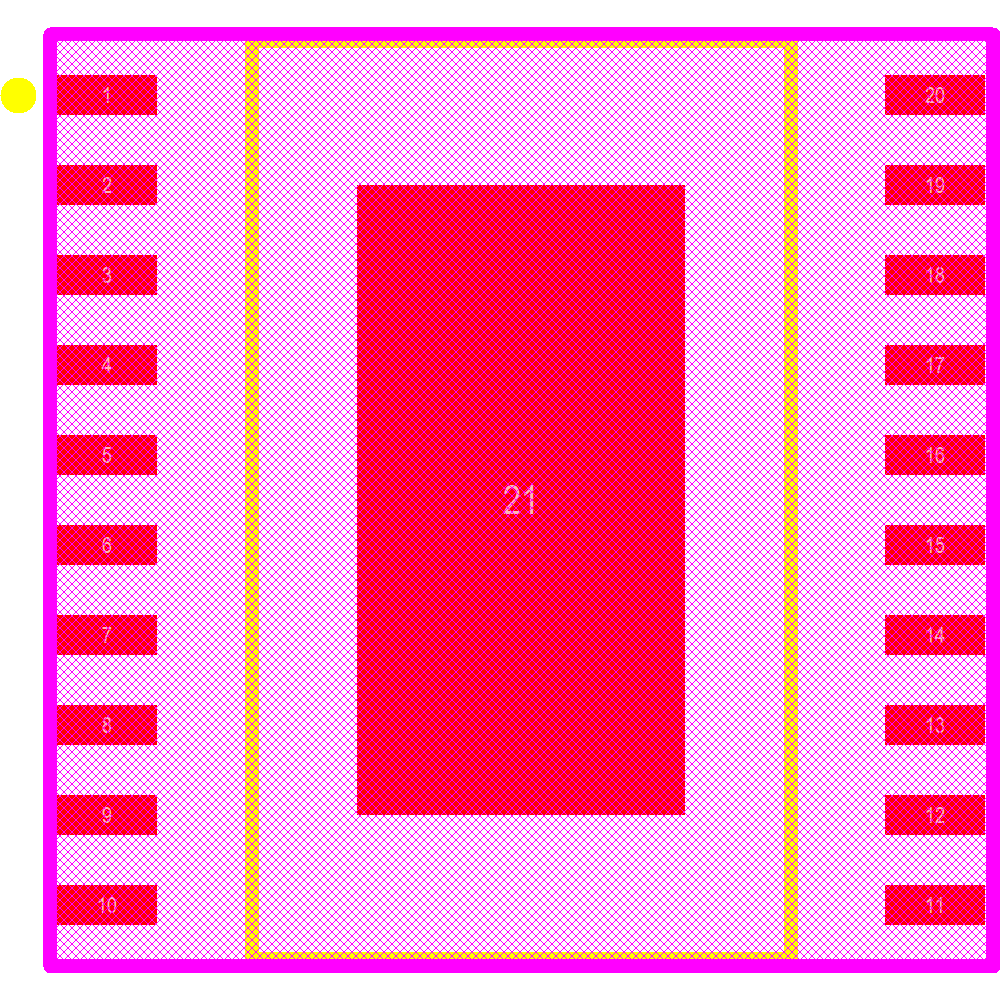

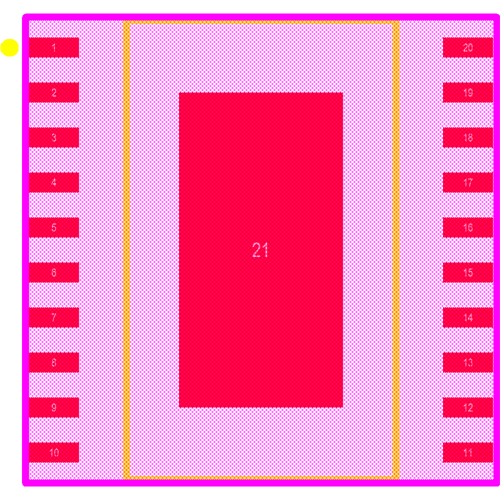

Images
Texas Instruments
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Texas Instruments |
US: 18031
|
$ | 1,306.091 | 1,236.122 | 1,236.122 | 1,166.153 | 1,166.153 | 1,166.153 | ||
Non-Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| SHENGYU ELECTRONICS |
CN: 56
|
$ | 918.8233 | 900.4468 | 900.4468 | 872.88 | 845.32 | 808.56 | ||
| Worldway Electronics |
HK: 50719
|
$ | ||||||||
| Utmel Electronic |
HK: 65
|
$ | ||||||||
