Integrated Circuits (ICs) > Power Management ICs > Voltage Regulators - Switching

TPS51117PWR - Texas Instruments

IC REG CTRLR BUCK 14TSSOP Buck Regulator Positive Output Step-Down DC-DC Controller IC 14-TSSOP

Technical Details

Case/Package	TSSOP
Contact Plating	Gold
Duty Cycle	95%
Height	0m
Lead Free	Lead Free
Length	5mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Frequency	550kHz
Max Input Voltage	28V
Max Operating Temperature	85°C
Max Output Current	10A
Max Output Voltage	5.5V
Min Input Voltage	1.8V
Min Operating Temperature	-40°C
Min Output Voltage	760mV
Number of Outputs	1
Number of Pins	14
Operating Supply Voltage	5.5V
Output Current	10A
Output Voltage	5.5V
Packaging	Tape & Reel (TR)
Quiescent Current	400µA
Radiation Hardening	No
RoHS	Compliant
Thickness	1mm
Topology	Buck
Weight	57.209338mg
Width	4.4mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

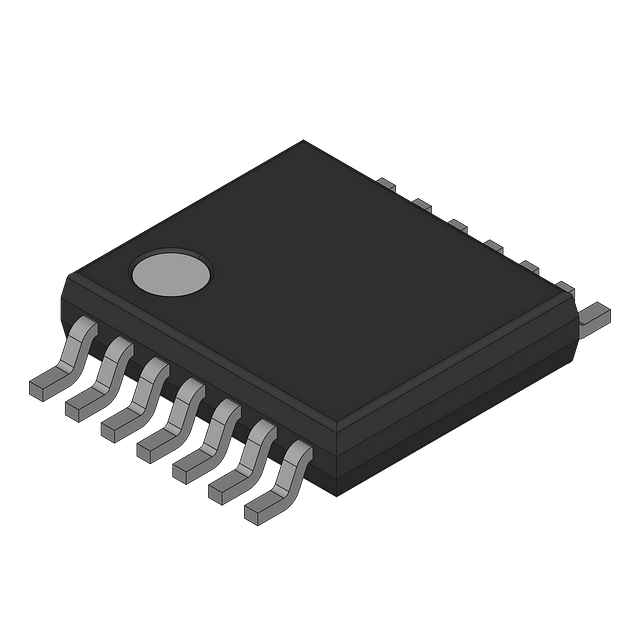

Images

Texas Instruments TPS51117PWR | Rochester Electronics

Rochester Electronics

Datasheets

Rochester Electronics

Lifecycle Status Indicator

Production

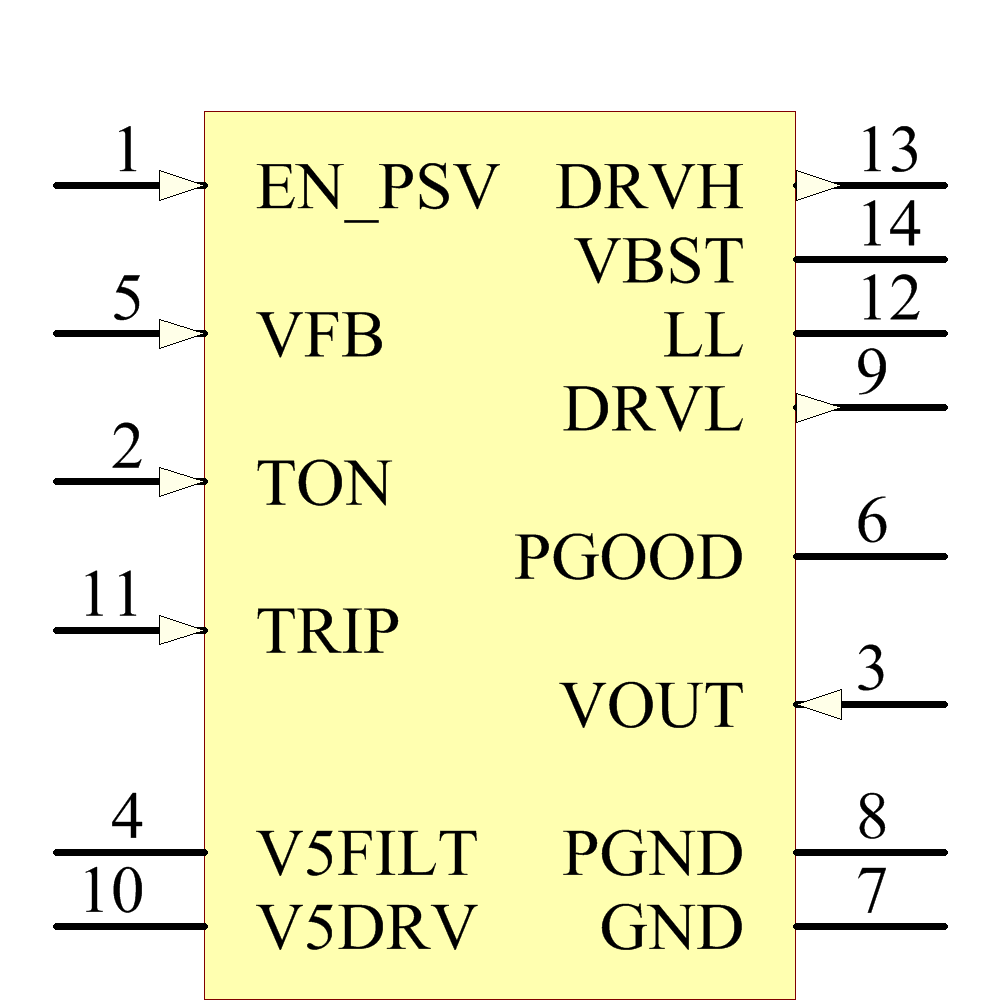

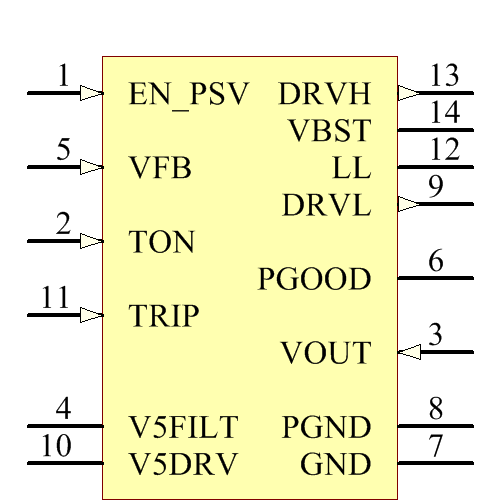

Symbol

TPS51117PWR Symbol - Texas Instruments

TPS51117PWR Symbol - Texas Instruments

TPS51117PWR Symbol - Texas Instruments

TPS51117PWR Symbol - Texas Instruments

‹ ›

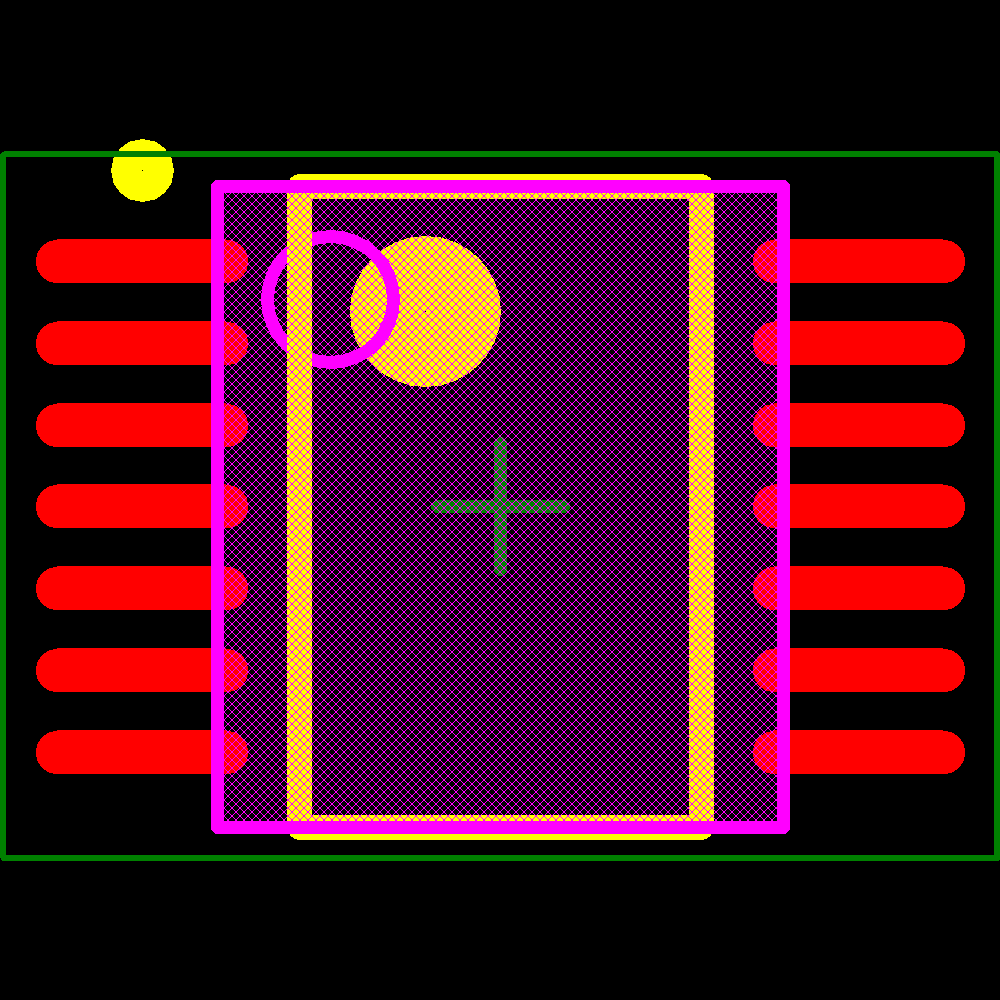

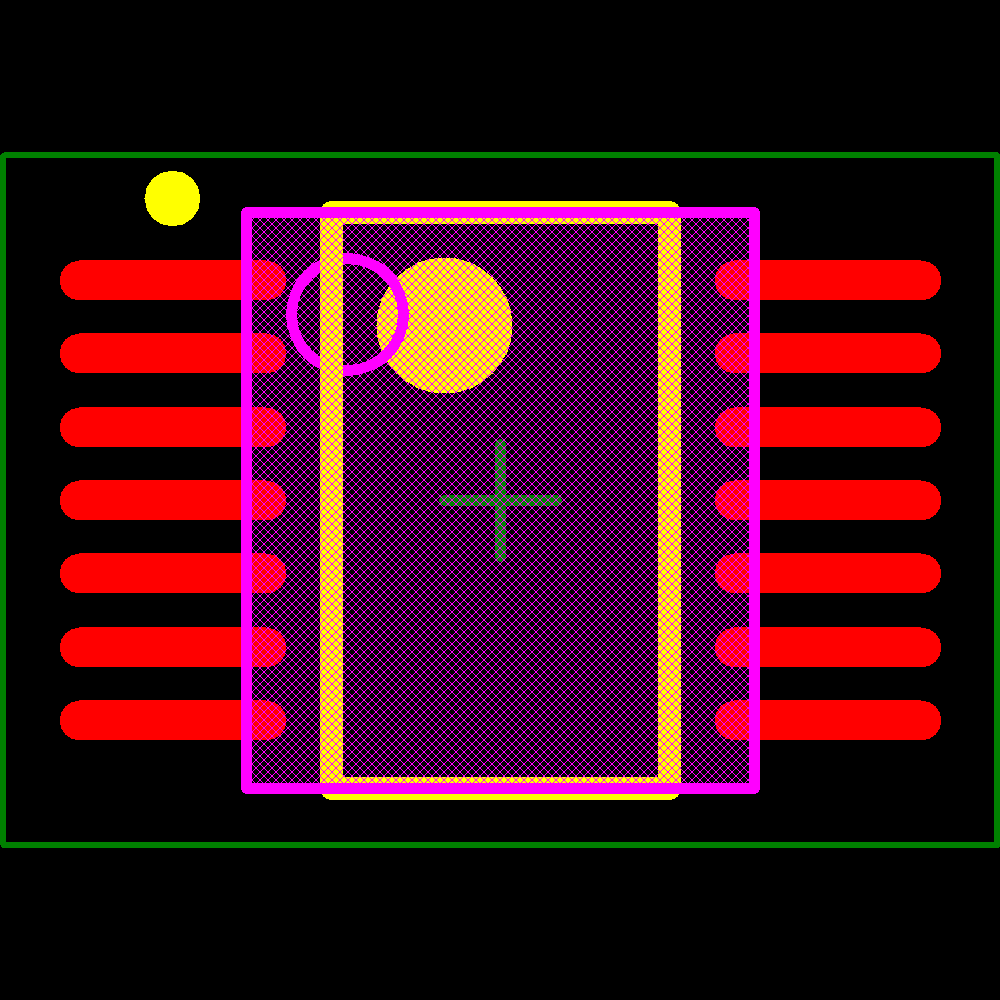

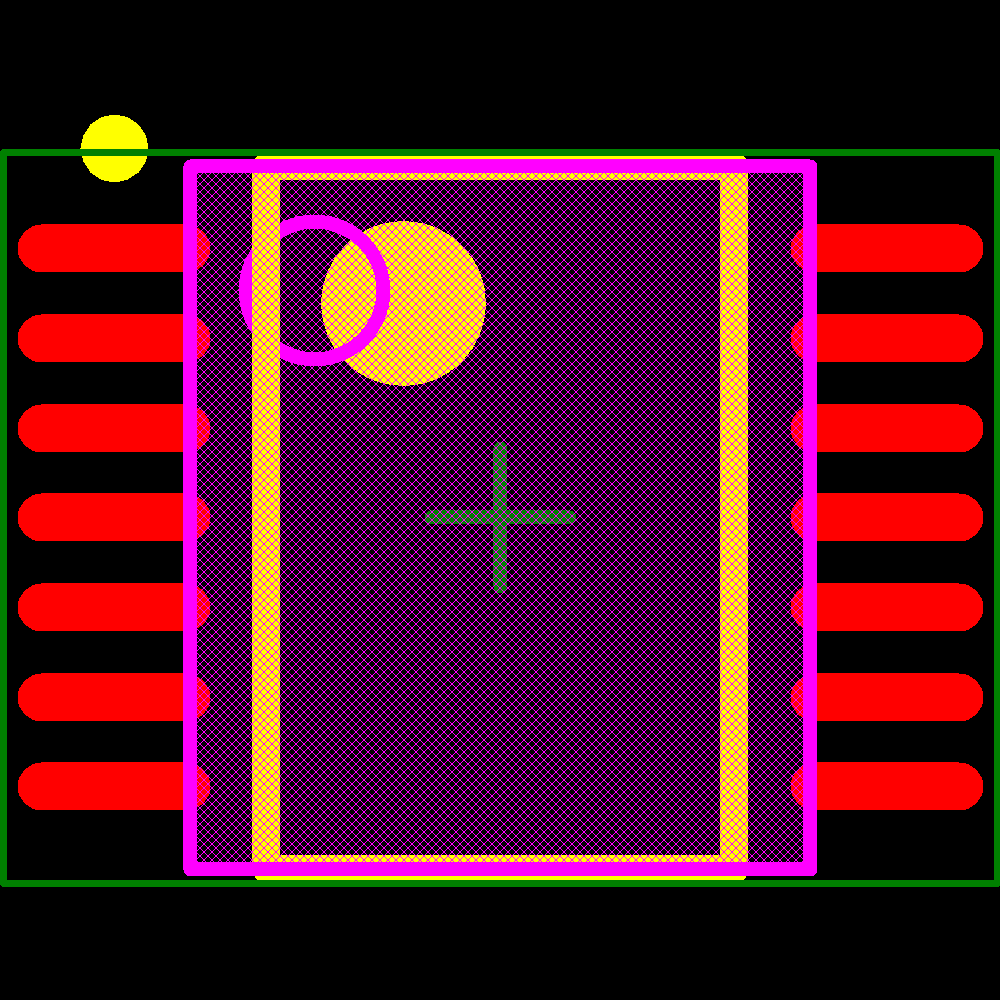

Footprint

TPS51117PWR Footprint - Texas Instruments

TPS51117PWR Footprint - Texas Instruments

TPS51117PWR Footprint - Texas Instruments

TPS51117PWR Footprint - Texas Instruments

TPS51117PWR Footprint - Texas Instruments

TPS51117PWR Footprint - Texas Instruments

TPS51117PWR Footprint - Texas Instruments

TPS51117PWR Footprint - Texas Instruments

TPS51117PWR Footprint - Texas Instruments

TPS51117PWR Footprint - Texas Instruments

TPS51117PWR Footprint - Texas Instruments

TPS51117PWR Footprint - Texas Instruments

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
Texas Instruments	TPS51117PWRG4	Production
Texas Instruments	TPS54425PWP	Production
Texas Instruments	TPS54225PWP	Production
Texas Instruments	LM3406HVMH/NOPB	Production
Texas Instruments	LM3406MH/NOPB	Production
Texas Instruments	LM25010MH	Unknown
Texas Instruments	UCC28231PW	Production
Texas Instruments	LM3406MHX/NOPB	Production
Texas Instruments	LM3406HVMHX/NOPB	Production
Texas Instruments	UCC27223PWPR	Production

See more alternatives See less alternatives
