TPS53316RGTT - Texas Instruments
Conv DC-DC 2.9V to 6V Synchronous Step Down Single-Out 0.6V to 4.8V 5A 16-Pin VQFN EP T/R
Technical Details
| Case/Package | VQFN |
| Efficiency | 96% |
| Height | 1mm |
| Lead Free | Lead Free |
| Length | 3mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 6V |
| Max Operating Temperature | 85°C |
| Max Output Current | 5A |
| Max Output Voltage | 4.2V |
| Min Input Voltage | 2.9V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 600mV |
| Number of Outputs | 1 |
| Number of Pins | 16 |
| Operating Supply Voltage | 6V |
| Output Current | 5A |
| Output Type | Adjustable |
| Output Voltage | 4.8V |
| Quiescent Current | 2mA |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8542390000 |
| Switching Frequency | 2MHz |
| Synchronous Rectifier | Yes |
| Thickness | 900µm |
| Topology | Buck |
| Width | 3mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

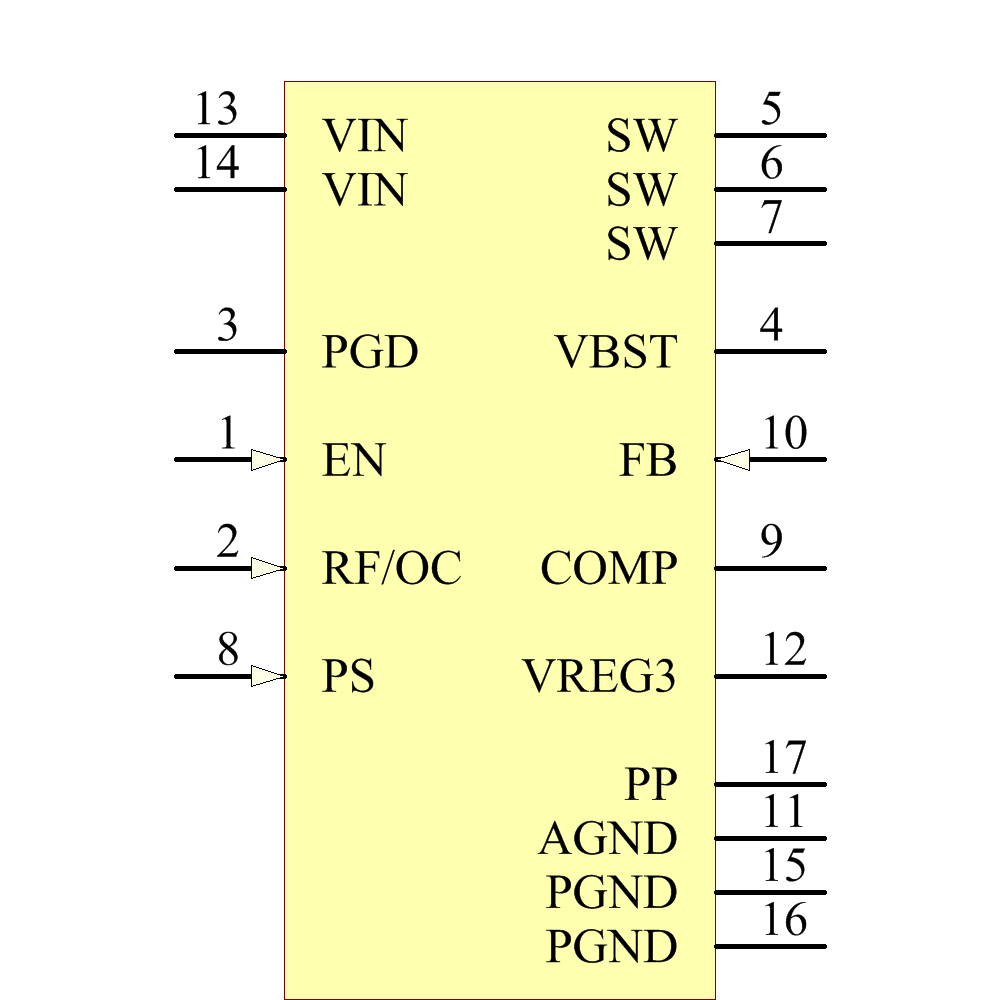

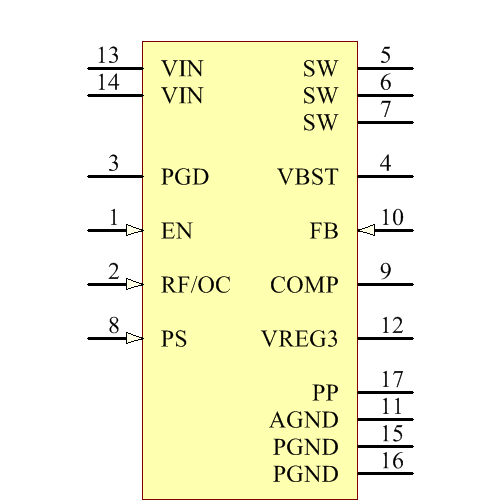

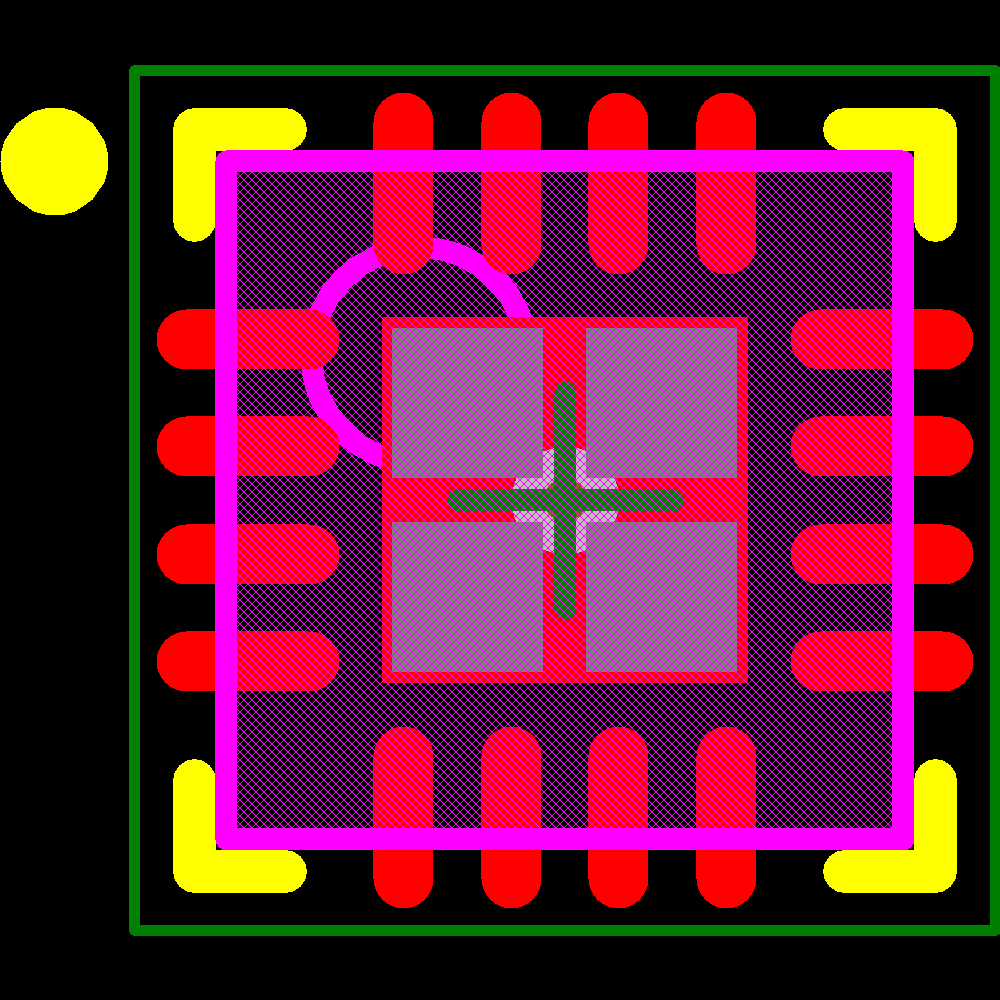

Images
Texas Instruments
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| onsemi | EOL | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | NRND | ||
| MaxLinear | Obsolete | ||
| Texas Instruments | NRND | ||
| MaxLinear | Obsolete | ||
| Analog Devices | Production | ||
| Analog Devices | Production |
