Texas Instruments - TPS54200DDCR

TPS54200DDCR - Texas Instruments

4.5V to 28V input voltage, synchronous buck LED driver 6-SOT-23-THIN -40 to 85

 Datasheets

Technical Details

Height 1.1mm
Length 2.9mm
Lifecycle Status Production
Manufacturer Lifecycle Status ACTIVE
Max Junction Temperature (Tj) 125°C
Max Operating Temperature 85°C
Max Supply Voltage 28V
Min Operating Temperature -40°C
Min Supply Voltage 4.5V
Number of Channels 1
Number of Outputs 1
Number of Pins 6
Output Current 1.5A
Output Voltage 28V
RoHS Compliant
Schedule B 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
Switching Frequency 600kHz
Thickness 870µm
Topology Buck
Width 1.6mm

Compliance

   RoHS : Unconfirmed

Images

Texas Instruments TPS54200DDCR | Texas Instruments

Texas Instruments

Datasheets

 DigiKey
 DigiKey
 DigiKey

Lifecycle Status Indicator

   Production

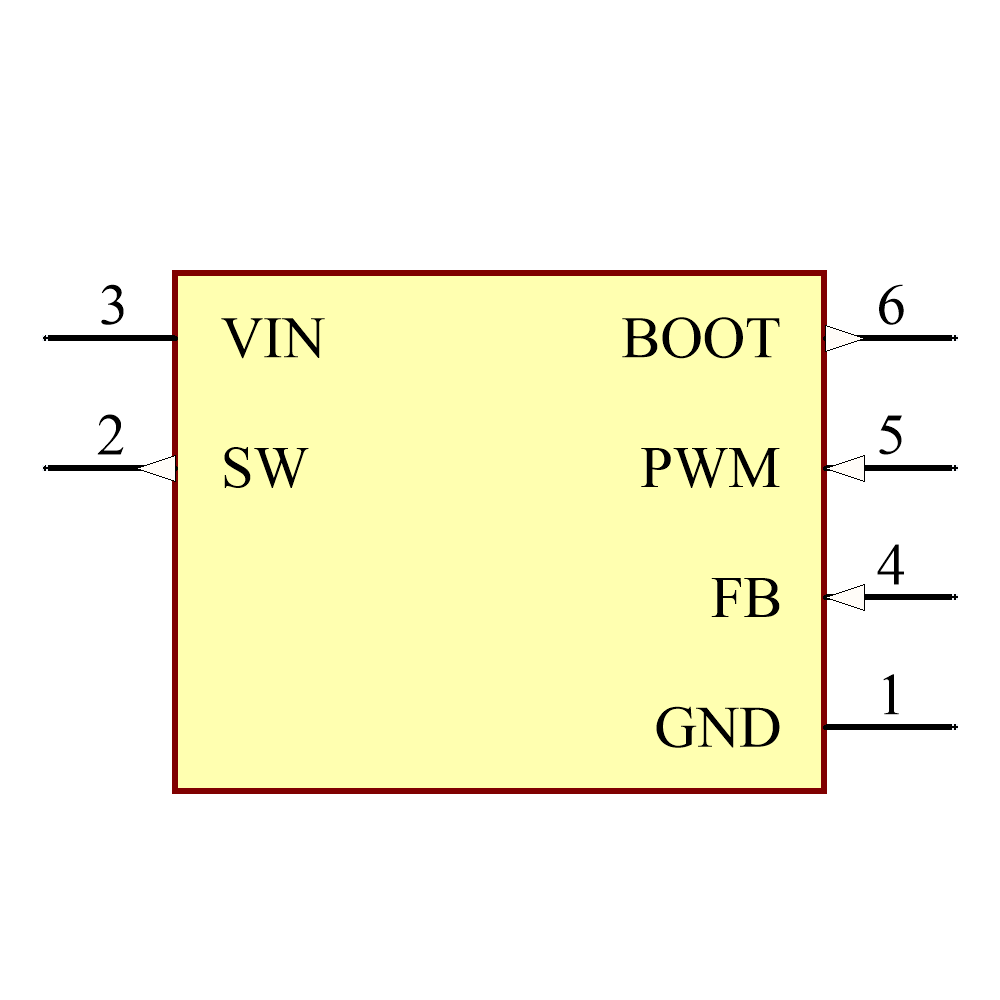

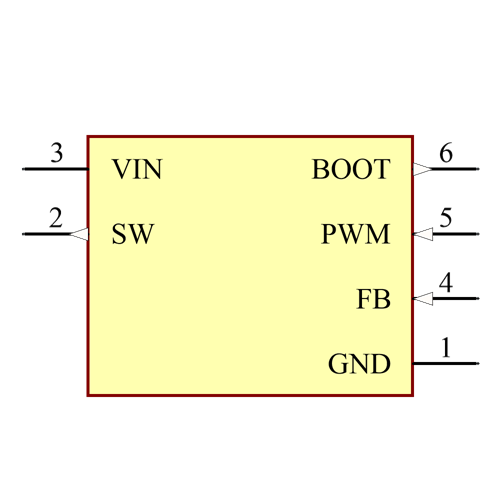

Symbol

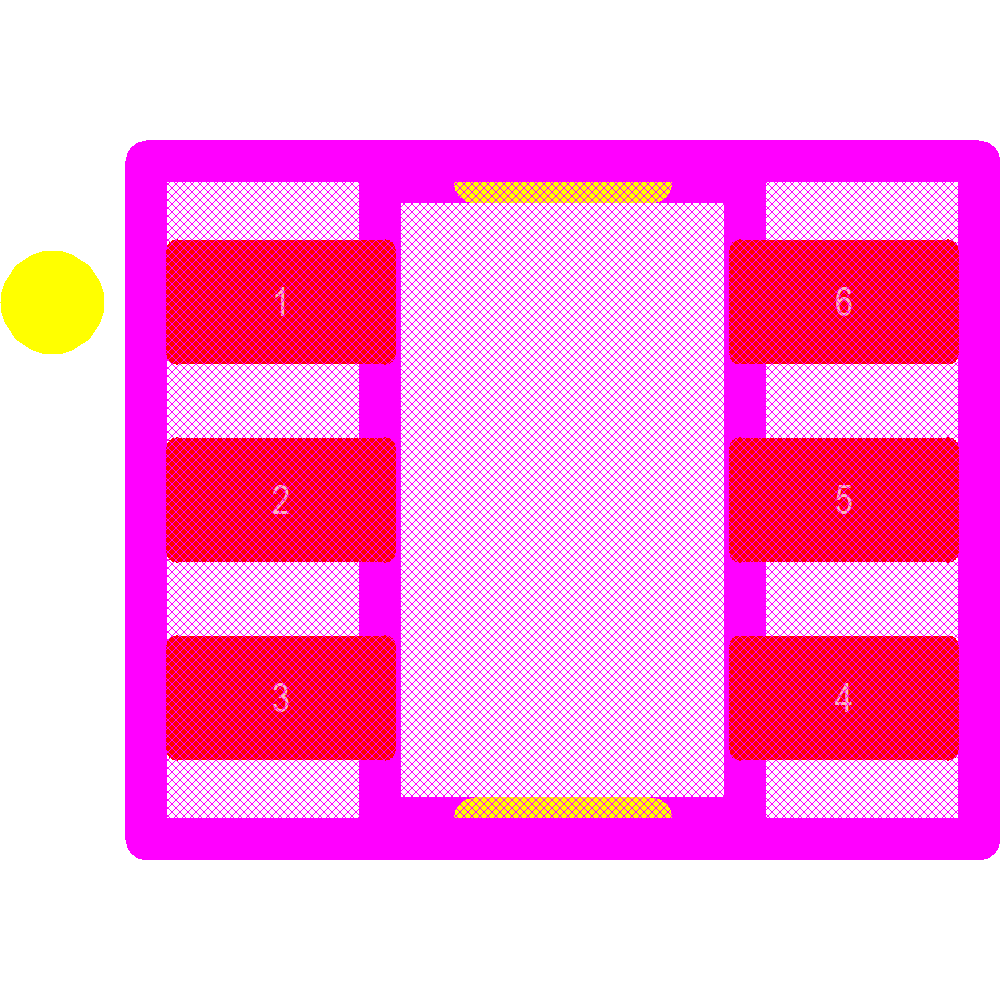

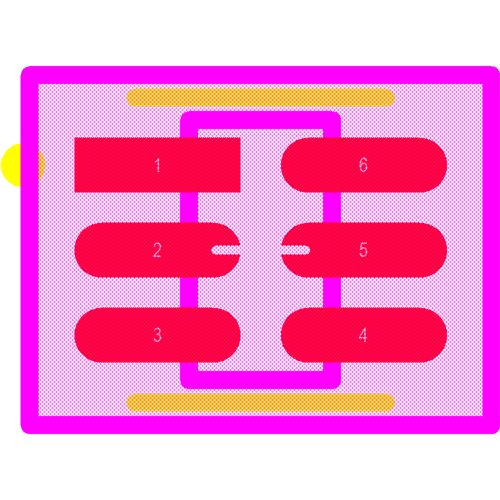

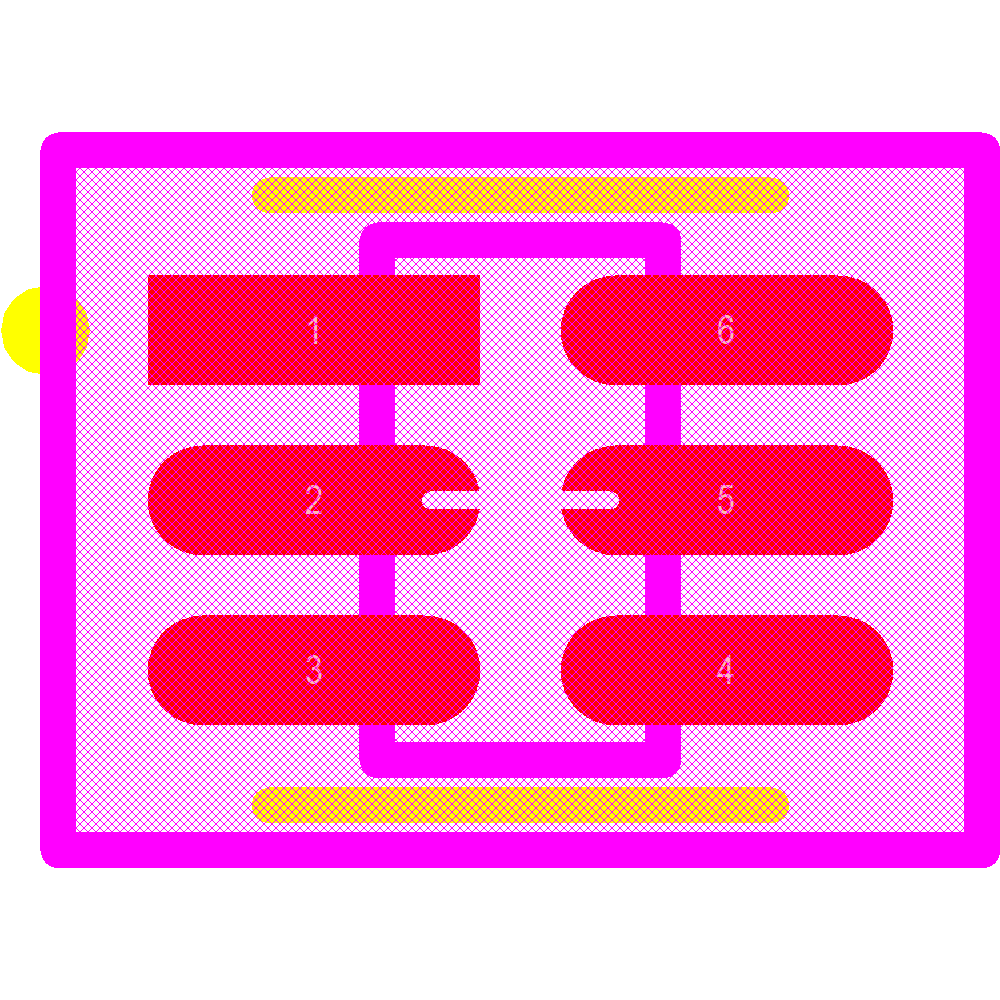

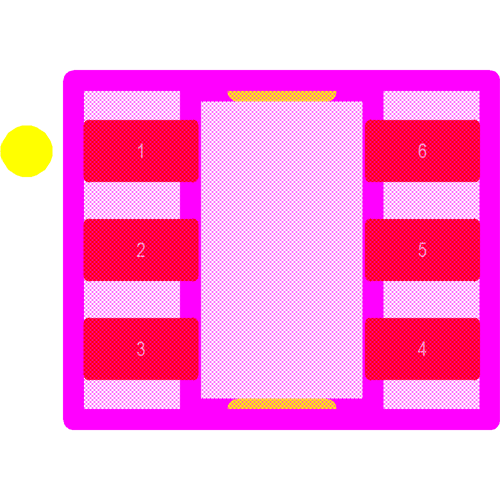

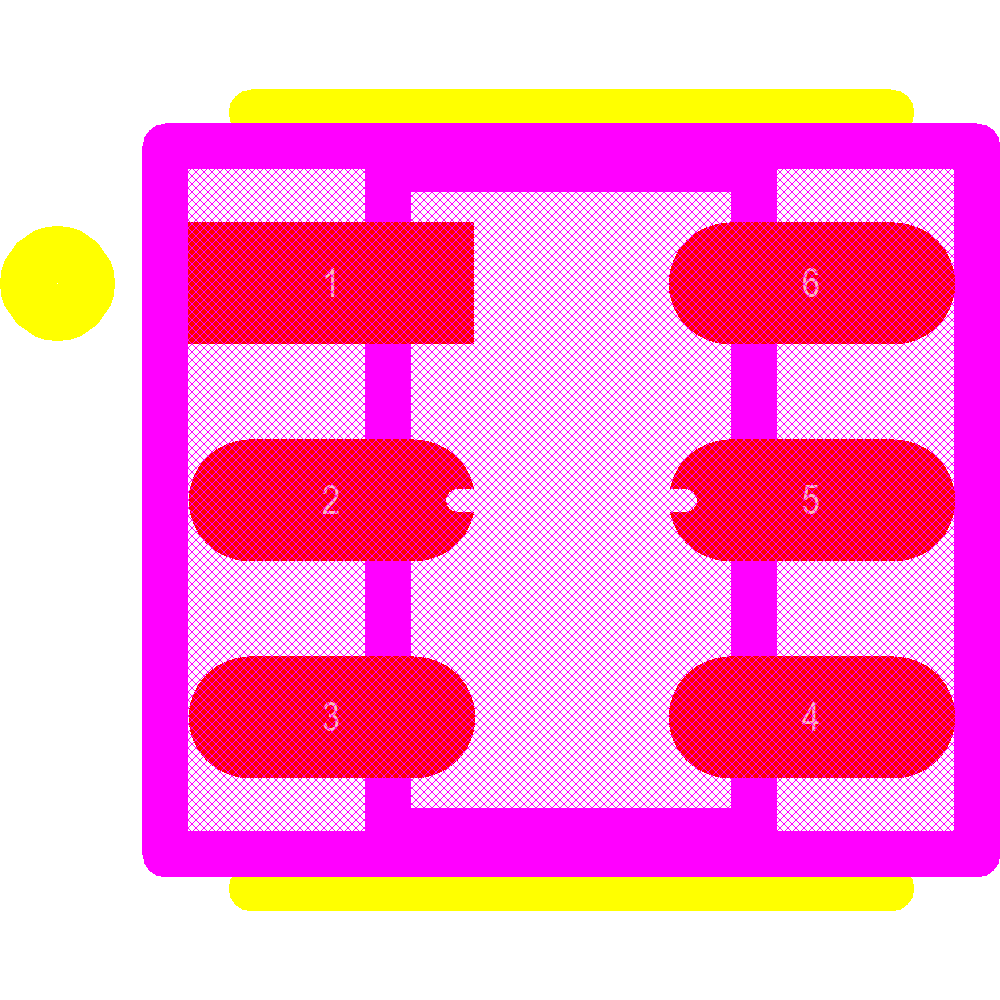

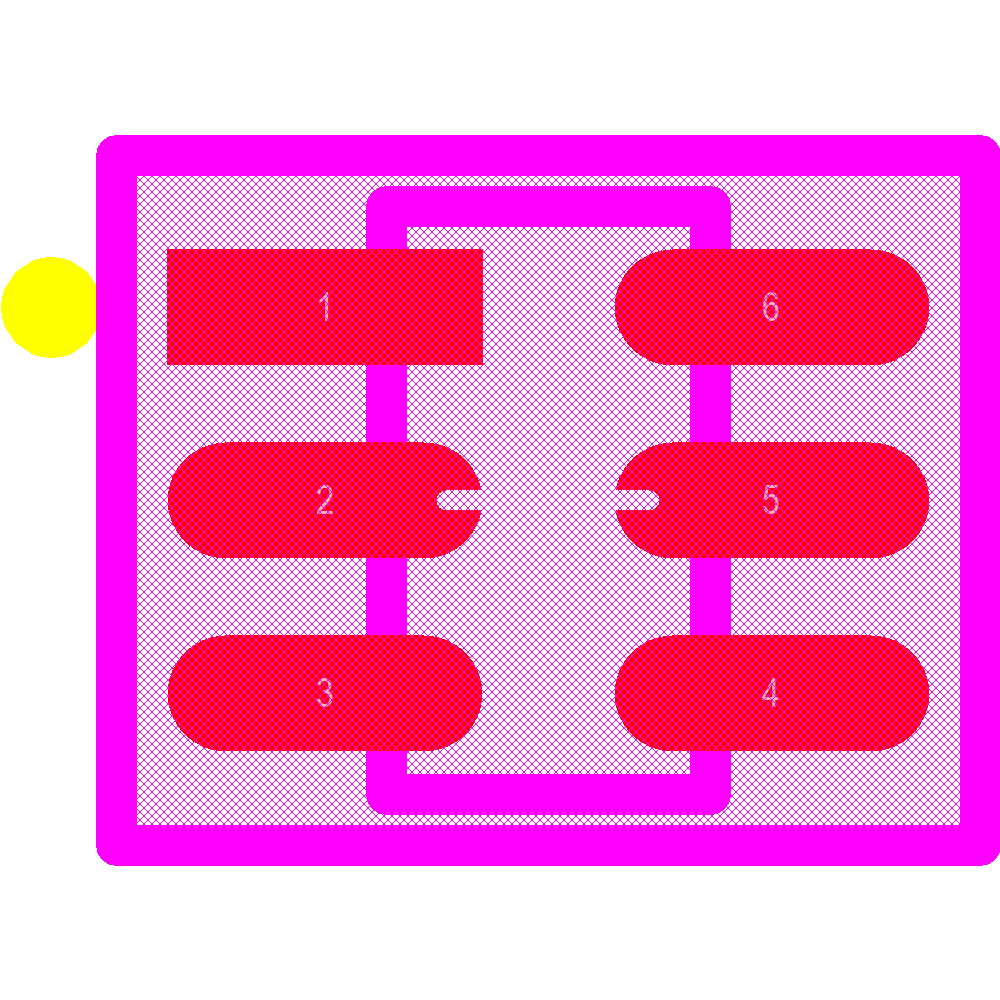

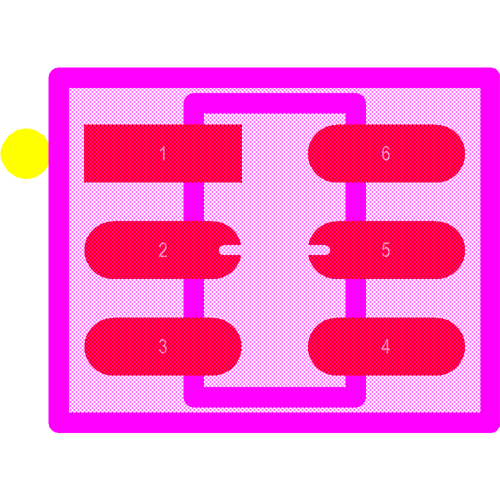

Footprint
