TPS60231RGTR - Texas Instruments

3-channel, current-regulated 75-mA charge pump for white LED backlight in 3x3 QFN 16-VQFN -40 to 85

Technical Details

Case/Package	VQFN
Contact Plating	Gold
Frequency	1.25MHz
Height	1mm
Lead Free	Lead Free
Length	3mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Input Voltage	6.5V
Max Operating Temperature	85°C
Max Output Current	75mA
Max Supply Voltage	6.5V
Min Input Voltage	2.7V
Min Operating Temperature	-40°C
Min Supply Voltage	2.7V
Nominal Supply Current	200µA
Number of Channels	3
Number of Outputs	3
Number of Pins	16
Output Current	75mA
Output Voltage	5.5V
Quiescent Current	200µA
Radiation Hardening	No
RoHS	Compliant
Switching Frequency	1MHz
Thickness	900µm
Topology	Boost
Touchscreen	Capacitive
Weight	22.906415mg
Width	3mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

Images

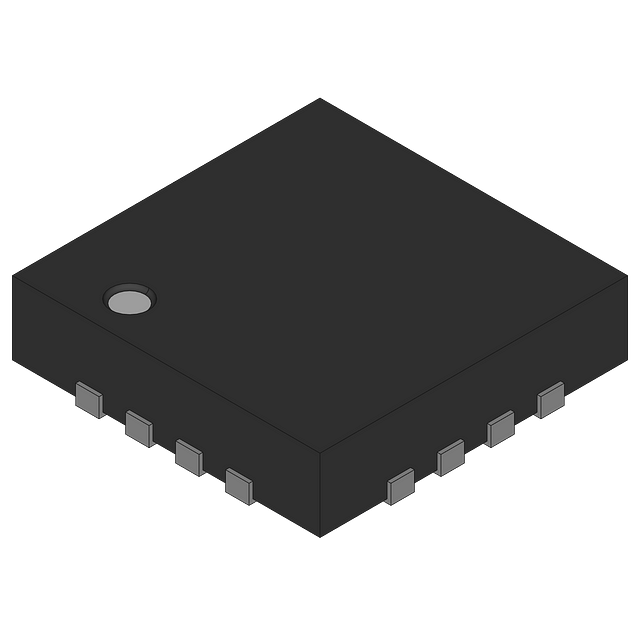

Texas Instruments TPS60231RGTR | Rochester Electronics

Rochester Electronics

Datasheets

Rochester Electronics

Lifecycle Status Indicator

Production

Symbol

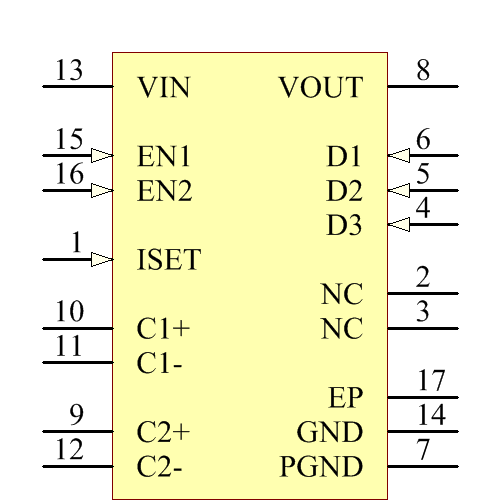

TPS60231RGTR Symbol - Texas Instruments

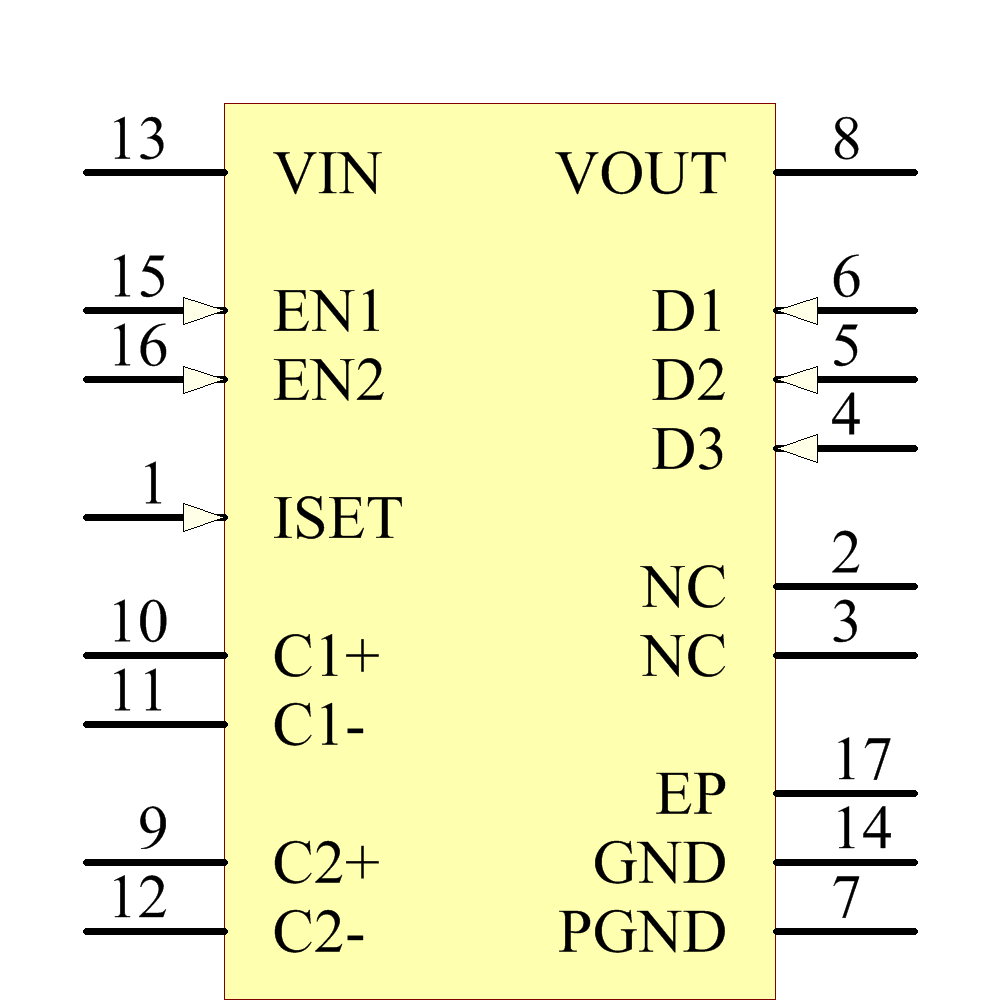

TPS60231RGTR Symbol - Texas Instruments

TPS60231RGTR Symbol - Texas Instruments

TPS60231RGTR Symbol - Texas Instruments

‹ ›

Footprint

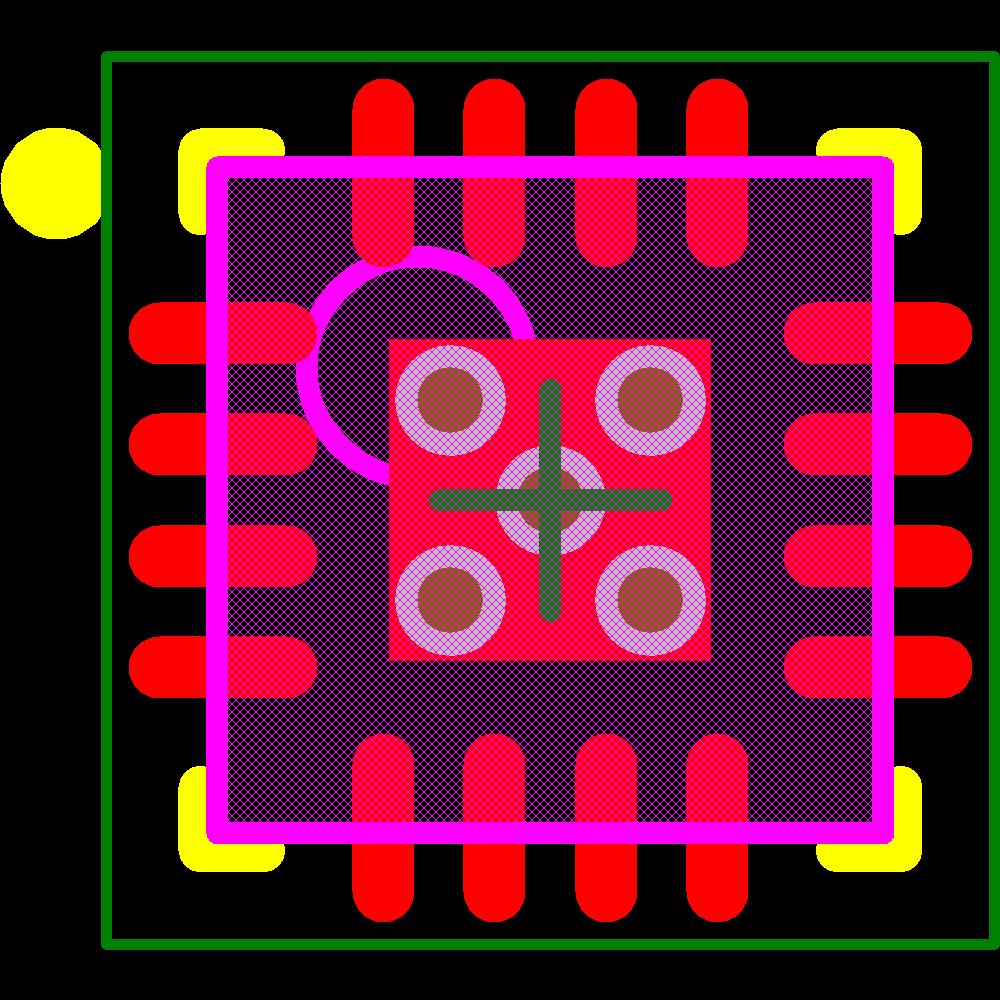

TPS60231RGTR Footprint - Texas Instruments

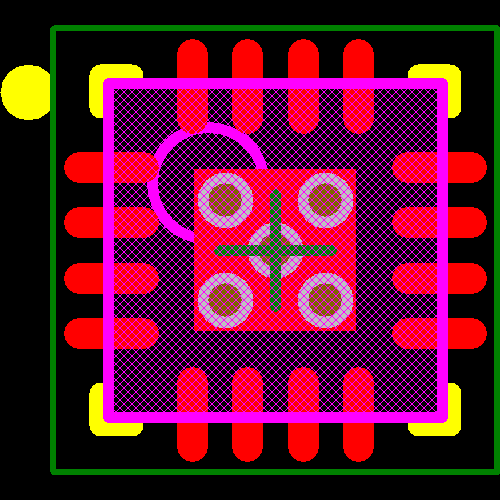

TPS60231RGTR Footprint - Texas Instruments

TPS60231RGTR Footprint - Texas Instruments

TPS60231RGTR Footprint - Texas Instruments

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
Texas Instruments	TPS60231RGTRG4	Production
Analog Devices	MAX8678ETE+	Obsolete
Analog Devices	MAX8678ETE+T	Unknown
Analog Devices	MAX8648ETE+	EOL
Analog Devices	MAX8847YETE+T	Obsolete
Analog Devices	MAX8847ZETE+T	Obsolete
Texas Instruments	TPS60230RGTRG4	Production
Analog Devices	MAX8848YETE+T	Unknown
Analog Devices	MAX8848ZETE+T	Obsolete
Texas Instruments	TPS60255RTERG4	Unknown
