TPS60231RGTRG4 - Texas Instruments
3-channel, current-regulated 75-mA charge pump for white LED backlight in 3x3 QFN 16-VQFN -40 to 85
Technical Details
| Case/Package | VQFN |
| Frequency | 1.25MHz |
| Height | 1mm |
| Lead Free | Lead Free |
| Length | 3mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 6.5V |
| Max Operating Temperature | 85°C |
| Max Output Current | 75mA |
| Max Supply Voltage | 6.5V |
| Min Input Voltage | 2.7V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.7V |
| Number of Channels | 3 |
| Number of Outputs | 3 |
| Number of Pins | 16 |
| Output Current | 75mA |
| Output Voltage | 5.5V |
| Packaging | Tape & Reel (TR) |
| Quiescent Current | 200µA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Switching Frequency | 1MHz |
| Thickness | 900µm |
| Topology | Boost |
| Touchscreen | Capacitive |
| Weight | 22.906415mg |
| Width | 3mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

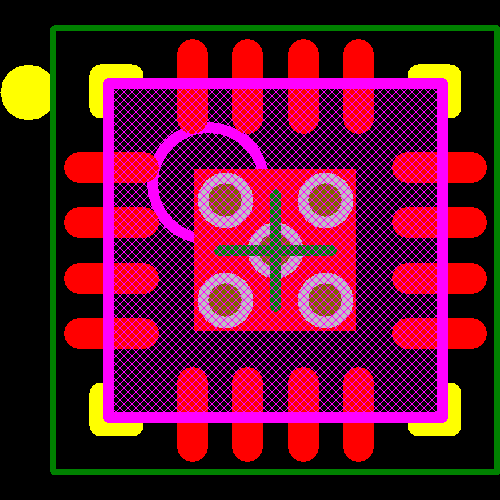

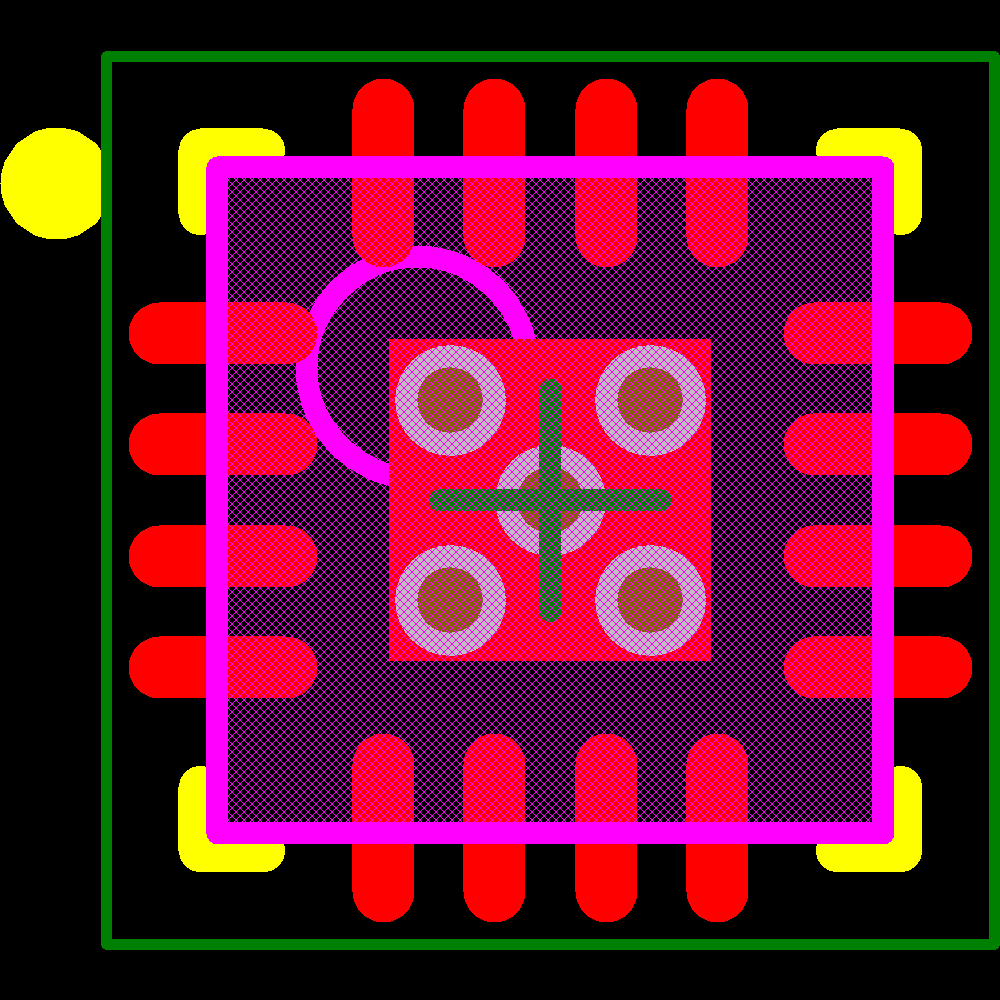

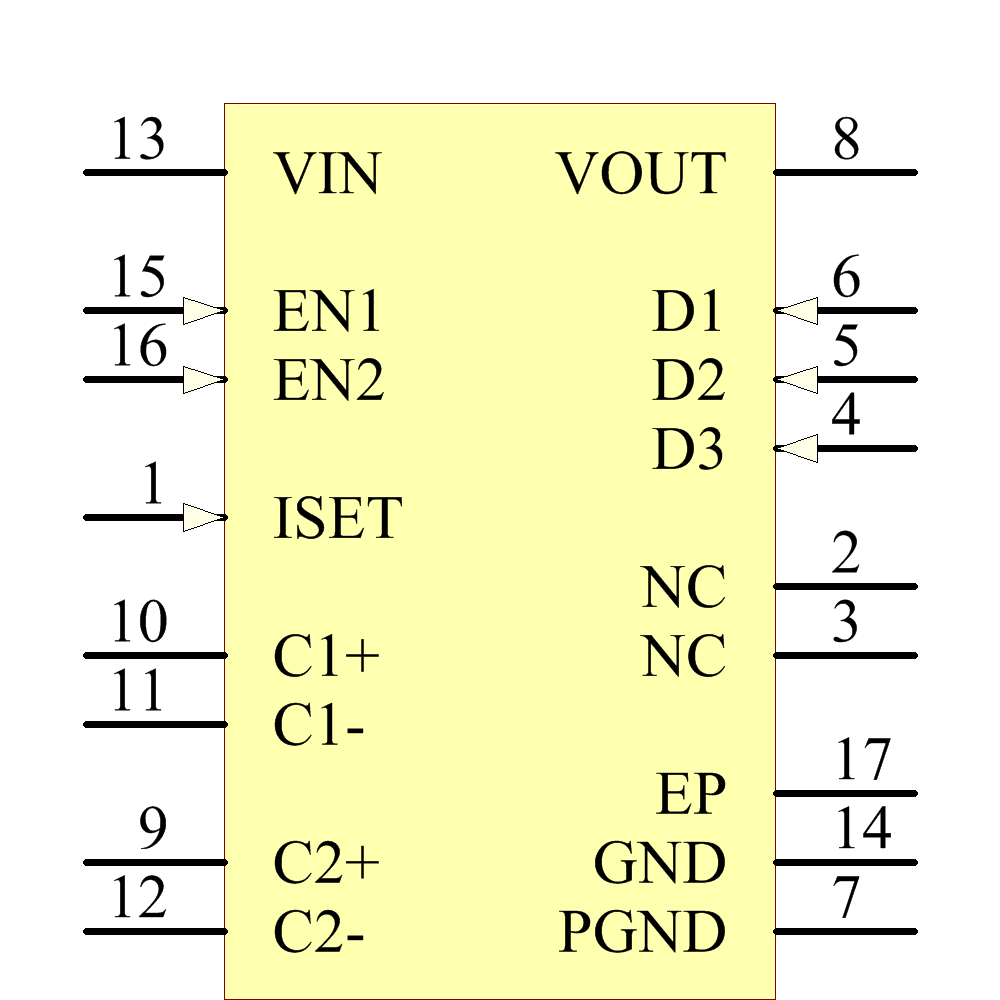

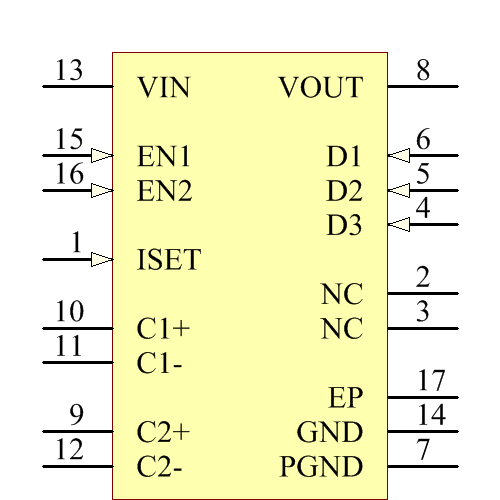

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| Analog Devices | Obsolete | ||
| Analog Devices | Unknown | ||
| Analog Devices | EOL | ||
| Analog Devices | Obsolete | ||
| Analog Devices | Obsolete | ||
| Texas Instruments | Production | ||
| Analog Devices | Unknown | ||
| Analog Devices | Obsolete | ||
| Texas Instruments | Unknown |
