TPS60250RTER - Texas Instruments
Tape & Reel (TR) TPS60250 Switched Capacitor (Charge Pump) I2C led driver 3mm 230mA 3.5V 2.05W
Technical Details
| Case/Package | QFN |
| Frequency | 750kHz |
| Height | 800µm |
| High Level Output Current | 230mA |
| Lead Free | Lead Free |
| Length | 3mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 6V |
| Max Operating Temperature | 85°C |
| Max Output Current | 230mA |
| Max Power Dissipation | 2.05W |
| Max Supply Current | 6.7mA |
| Max Supply Voltage | 6V |
| Min Input Voltage | 3V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 3V |
| Nominal Supply Current | 6.7mA |
| Number of Channels | 7 |
| Number of Outputs | 7 |
| Number of Pins | 16 |
| Number of Segments | 6 |
| Output Current | 230mA |
| Output Voltage | 6.5V |
| Packaging | Digi-Reel® |
| Power Dissipation | 821mW |
| Quiescent Current | 68µA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Switching Frequency | 750kHz |
| Thickness | 750µm |
| Topology | Boost |
| Touchscreen | Capacitive |
| Width | 3mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

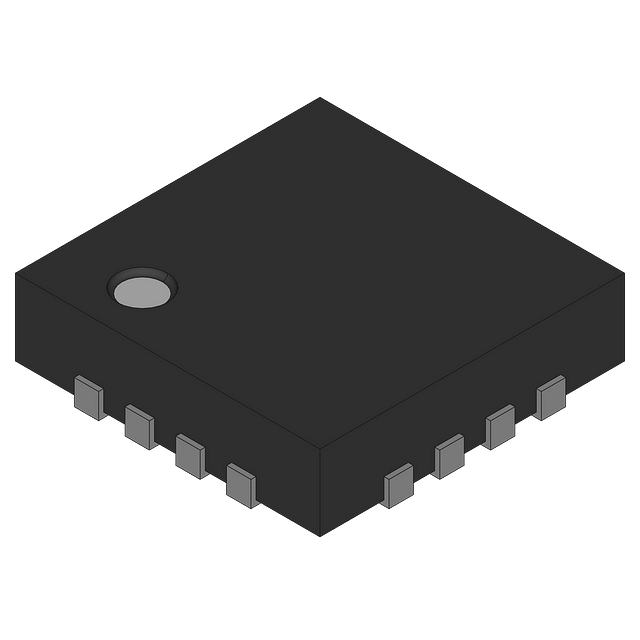

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Analog Devices | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Analog Devices | Production |
