Integrated Circuits (ICs) > Power Management ICs > Voltage Regulators - Switching

TPS61042DRBR - Texas Instruments

30-V, 500-mA switch boost converter in QFN-8 for white LED applications 8-SON -40 to 85

Technical Details

Case/Package	QFN
Contact Plating	Gold
Current Rating	38mA
Efficiency	85%
Frequency	1MHz
Height	1mm
High Level Output Current	30mA
Lead Free	Lead Free
Length	3mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Input Voltage	6V
Max Operating Temperature	85°C
Max Output Current	30mA
Max Output Voltage	28V
Max Supply Current	65µA
Max Supply Voltage	6V
Min Input Voltage	1.8V
Min Operating Temperature	-40°C
Min Output Voltage	1.8V
Min Supply Voltage	1.8V
Number of Channels	1
Number of Outputs	1
Number of Pins	8
Output Current	30mA
Output Power	370mW
Output Type	Adjustable
Output Voltage	27.5V
Packaging	Cut Tape
Quiescent Current	38µA
Radiation Hardening	No
REACH SVHC	No
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000\|8542390000\|8542390000\|8542390000
Switching Frequency	1MHz
Termination	SMD/SMT
Thickness	880µm
Topology	Boost
Weight	22.906415mg
Width	3mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

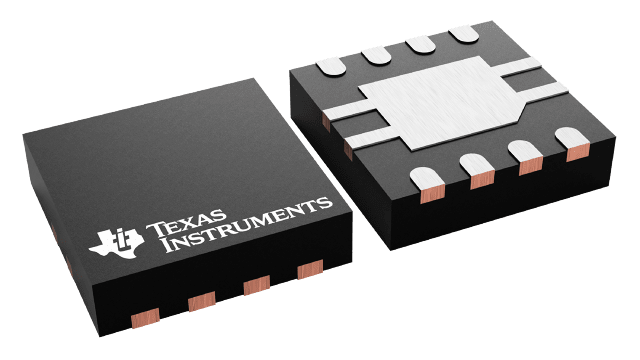

Texas Instruments TPS61042DRBR | Texas Instruments

Texas Instruments

Datasheets

Lifecycle Status Indicator

Production

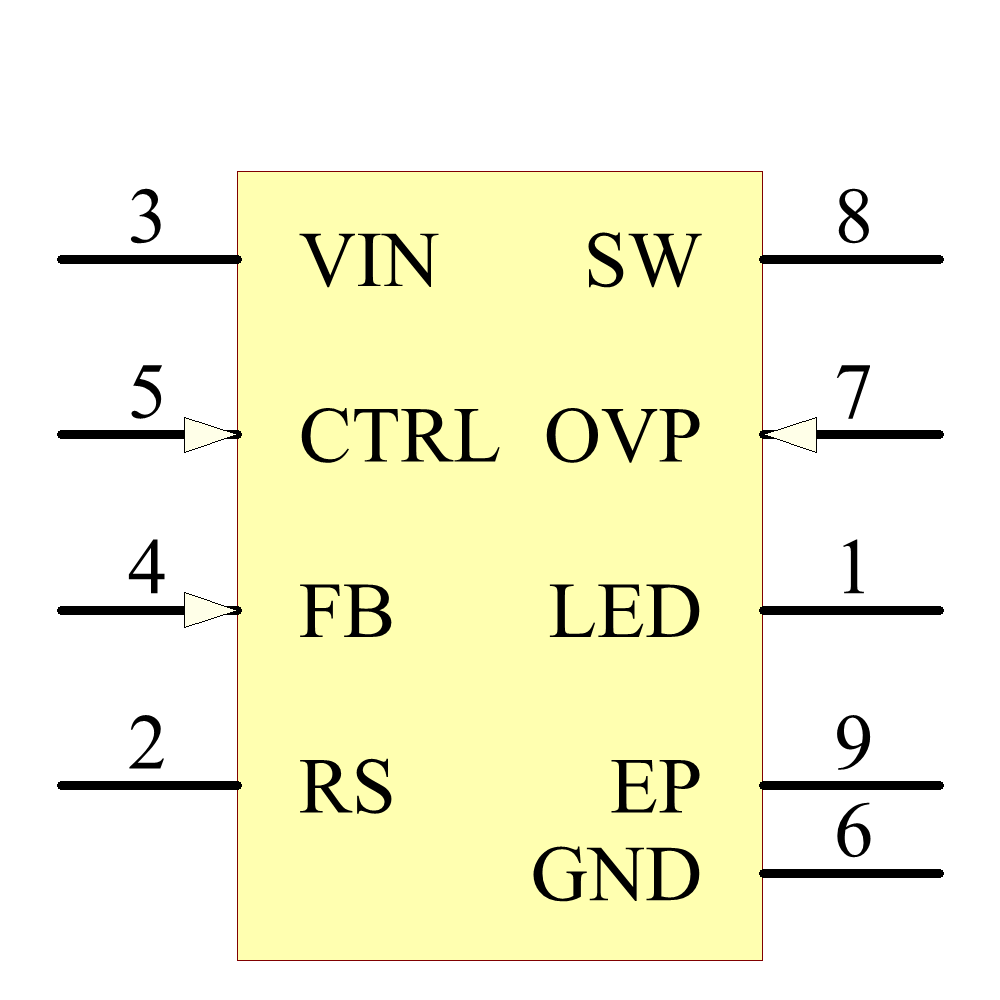

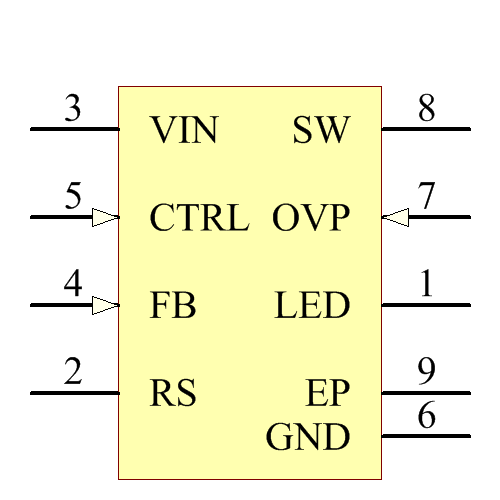

Symbol

TPS61042DRBR Symbol - Texas Instruments

TPS61042DRBR Symbol - Texas Instruments

TPS61042DRBR Symbol - Texas Instruments

TPS61042DRBR Symbol - Texas Instruments

‹ ›

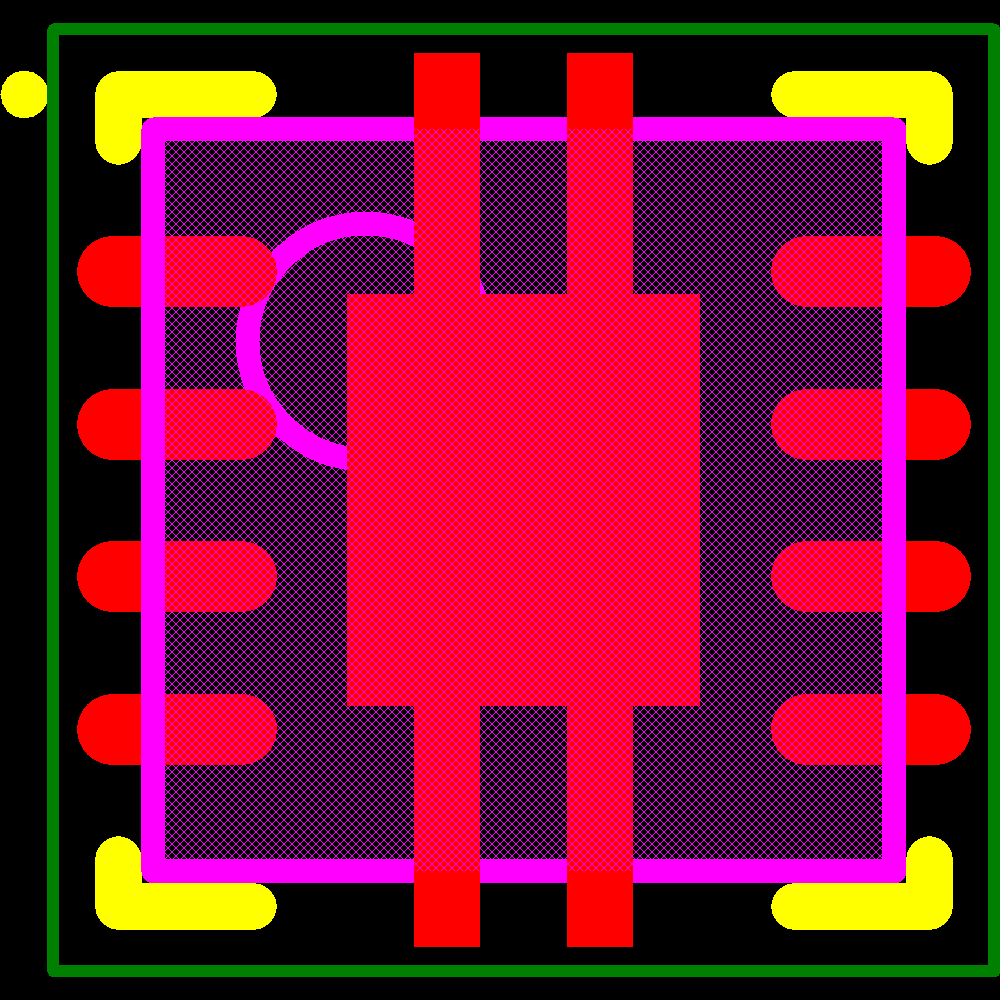

Footprint

TPS61042DRBR Footprint - Texas Instruments

TPS61042DRBR Footprint - Texas Instruments

TPS61042DRBR Footprint - Texas Instruments

TPS61042DRBR Footprint - Texas Instruments

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
Texas Instruments	TPS61042DRB	Unknown
Texas Instruments	TPS61042DRBRG4	Production
Texas Instruments	TPS61042DRBT	Production
Texas Instruments	TPS61042DRBTG4	Production
STMicroelectronics	STLD40DPMR	Obsolete
STMicroelectronics	STLD40DPUR	Production
STMicroelectronics	STLD20D-DEF	Obsolete
Texas Instruments	TPS61043DRB	Unknown
Texas Instruments	TPS61043DRBRG4	Unknown
onsemi	FAN5606DMPX	Obsolete

See more alternatives See less alternatives
