TPS61043DRBT - Texas Instruments
Tape & Reel (TR) TPS61043 Step-Up (Boost) PWM led driver 3mm 60mA 6V 370mW
Technical Details
| Case/Package | QFN |
| Efficiency | 85% |
| Frequency | 1MHz |
| Height | 1mm |
| Lead Free | Lead Free |
| Length | 3mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 6V |
| Max Operating Temperature | 85°C |
| Max Output Current | 30mA |
| Max Output Voltage | 16.9V |
| Max Power Dissipation | 370mW |
| Max Supply Current | 65µA |
| Max Supply Voltage | 6V |
| Min Input Voltage | 1.8V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 1.8V |
| Min Supply Voltage | 1.8V |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Number of Pins | 8 |
| Number of Segments | 4 |
| Output Voltage | 16.9V |
| Packaging | Tape & Reel |
| Power Dissipation | 370mW |
| Quiescent Current | 38µA |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Switching Frequency | 1MHz |
| Termination | SMD/SMT |
| Thickness | 880µm |
| Topology | Boost |
| Weight | 22.906415mg |
| Width | 3mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

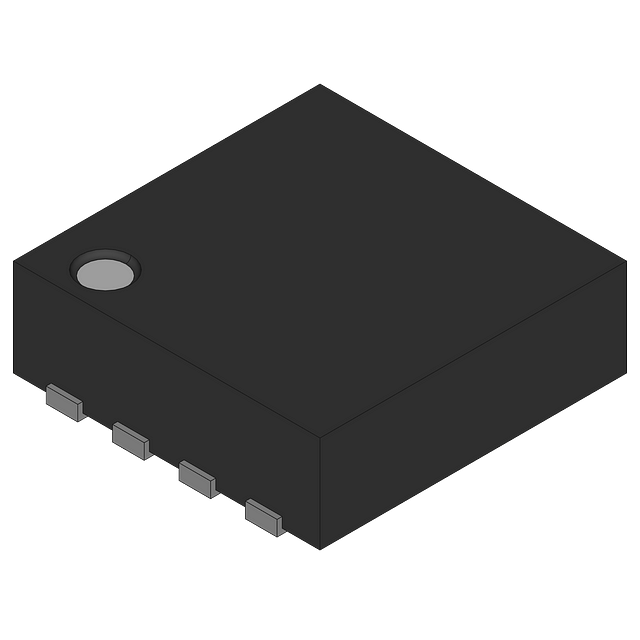

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| ROHM | Production | ||
| STMicroelectronics | Obsolete | ||
| STMicroelectronics | Production | ||
| STMicroelectronics | Obsolete | ||
| Texas Instruments | Unknown | ||
| onsemi | Obsolete |
