TPS61060DRBRG4 - Texas Instruments
Tape & Reel (TR) TPS61060 Step-Up (Boost) PWM led driver 3mm 400mA Switch 6V 1MHz
Technical Details
| Frequency | 1.2MHz |
| Height | 1mm |
| Lead Free | Lead Free |
| Length | 3mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 6V |
| Max Operating Temperature | 85°C |
| Max Output Current | 60mA |
| Max Supply Voltage | 6V |
| Min Input Voltage | 2.7V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.7V |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Number of Pins | 8 |
| Number of Segments | 3 |
| Packaging | Tape & Reel (TR) |
| Quiescent Current | 1mA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Thickness | 880µm |
| Topology | Boost |
| Weight | 24.012046mg |
| Width | 3mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

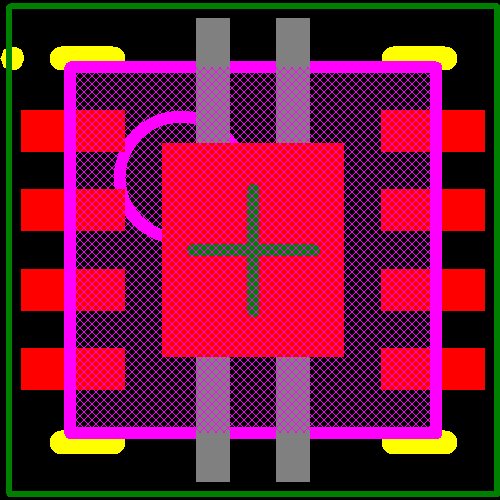

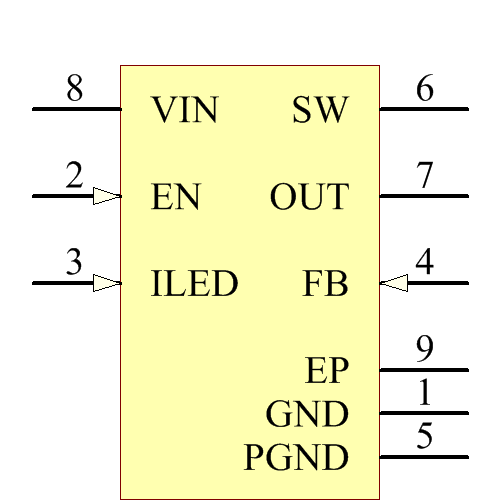

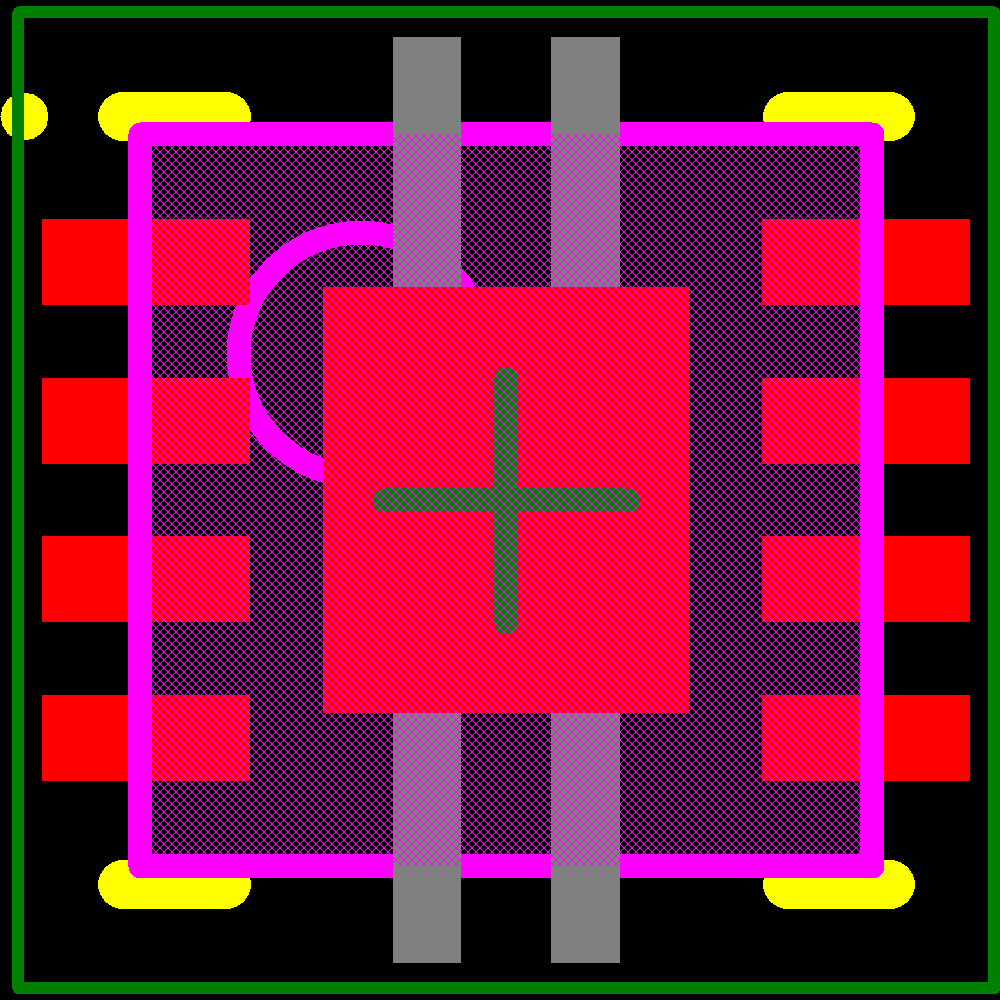

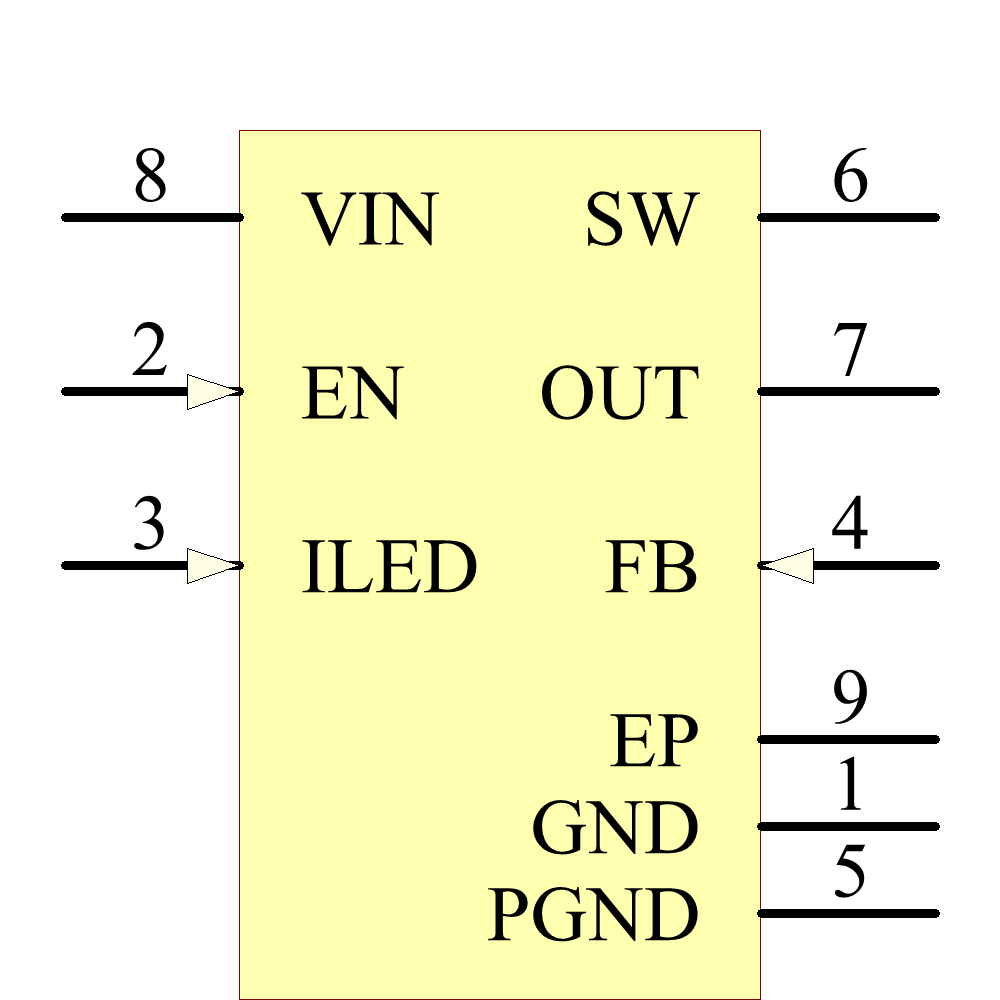

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| onsemi | Obsolete | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| STMicroelectronics | Obsolete | ||
| STMicroelectronics | Production | ||
| STMicroelectronics | Obsolete | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown |
