Integrated Circuits (ICs) > Power Management ICs > LED Drivers

TPS61060YZFR - Texas Instruments

Tape & Reel (TR) TPS61060 Step-Up (Boost) PWM led driver 1.75mm 400mA Switch 6V 1MHz

Technical Details

Case/Package	BGA
Frequency	1.2MHz
Height	625µm
High Level Output Current	60mA
Lead Free	Lead Free
Length	1.75mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Input Voltage	6V
Max Operating Temperature	85°C
Max Output Current	60mA
Max Supply Current	400mA
Max Supply Voltage	6V
Min Input Voltage	2.7V
Min Operating Temperature	-40°C
Min Supply Voltage	2.7V
Number of Channels	1
Number of Outputs	1
Number of Pins	8
Number of Segments	3
Quiescent Current	1mA
RoHS	Compliant
Topology	Boost
Width	1.75mm

Compliance

RoHS : Unconfirmed

Images

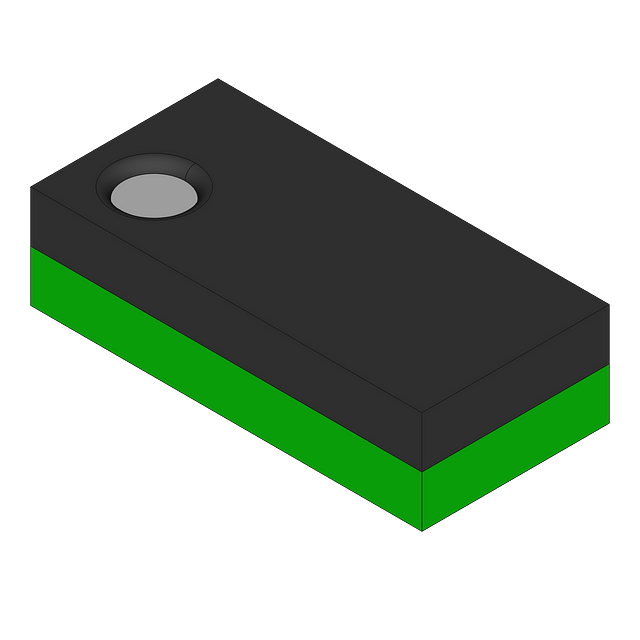

Texas Instruments TPS61060YZFR | Rochester Electronics

Rochester Electronics

Datasheets

Rochester Electronics

Lifecycle Status Indicator

Production

Symbol

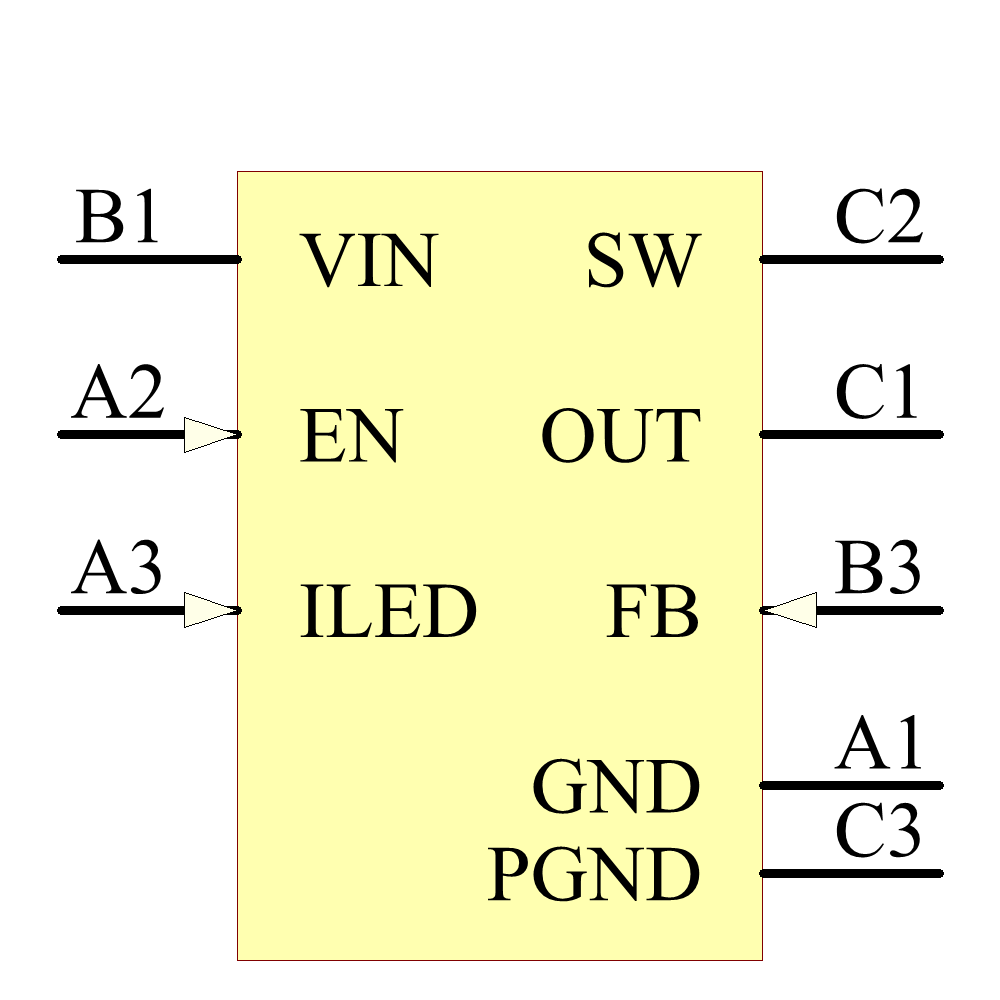

TPS61060YZFR Symbol - Texas Instruments

TPS61060YZFR Symbol - Texas Instruments

TPS61060YZFR Symbol - Texas Instruments

TPS61060YZFR Symbol - Texas Instruments

‹ ›

Footprint

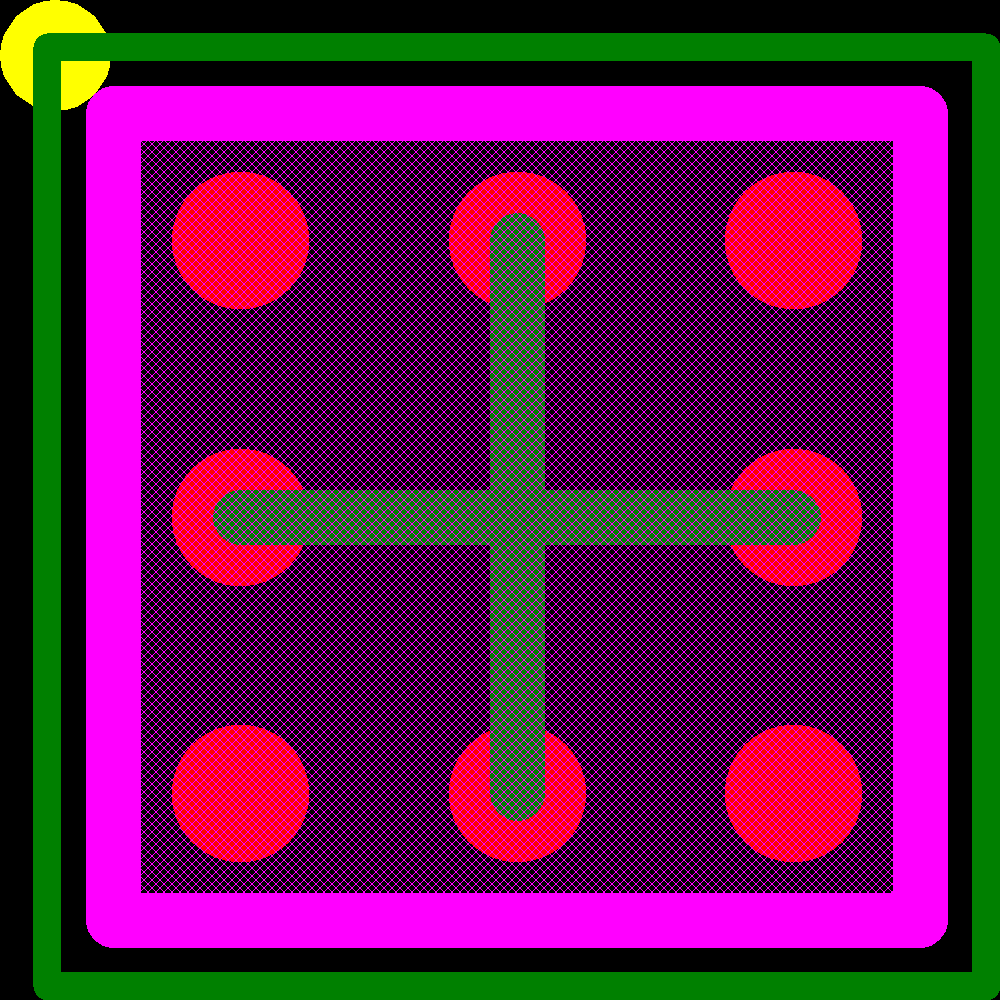

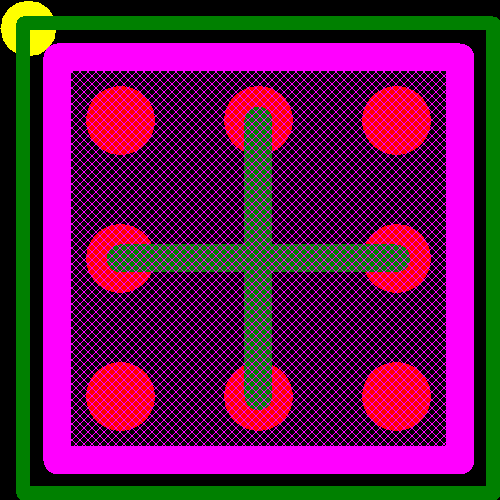

TPS61060YZFR Footprint - Texas Instruments

TPS61060YZFR Footprint - Texas Instruments

TPS61060YZFR Footprint - Texas Instruments

TPS61060YZFR Footprint - Texas Instruments

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
Texas Instruments	TPS61060YZFT	Production
onsemi	CAT3661HV3-GT2	Obsolete
Texas Instruments	TPS61060DRBRG4	Production
Texas Instruments	TPS61060DRBR	Production
Texas Instruments	TPS61062YZFT	Production
Texas Instruments	TPS61061YZFT	Production
Texas Instruments	TPS61061YZFR	Unknown
Texas Instruments	TPS61062YZFR	Production
onsemi	NCP5010FCT1G	Obsolete
