TPS61060YZFT - Texas Instruments

Tape & Reel (TR) TPS61060 Step-Up (Boost) PWM led driver 1.75mm 400mA Switch 6V 1MHz

Technical Details

Case/Package	BGA
Efficiency	80%
Frequency	1.2MHz
Height	625µm
High Level Output Current	60mA
Lead Free	Lead Free
Length	1.75mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Input Voltage	6V
Max Operating Temperature	85°C
Max Output Current	60mA
Max Supply Current	400mA
Max Supply Voltage	6V
Min Input Voltage	2.7V
Min Operating Temperature	-40°C
Min Supply Voltage	2.7V
Number of Channels	1
Number of Outputs	1
Number of Pins	8
Number of Segments	3
Output Voltage	15V
Packaging	Cut Tape
Quiescent Current	1mA
Radiation Hardening	No
REACH SVHC	No
RoHS	Compliant
Switching Frequency	1MHz
Termination	SMD/SMT
Topology	Boost
Width	1.75mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

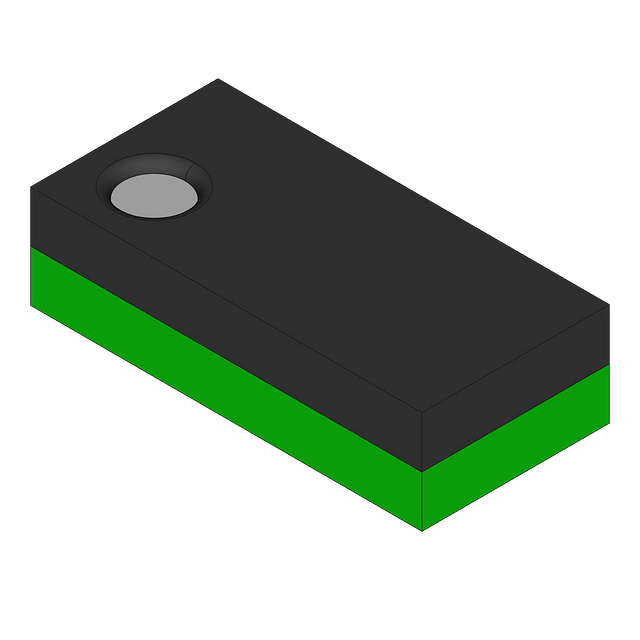

Images

Texas Instruments TPS61060YZFT | Rochester Electronics

Rochester Electronics

Datasheets

Rochester Electronics

Lifecycle Status Indicator

Production

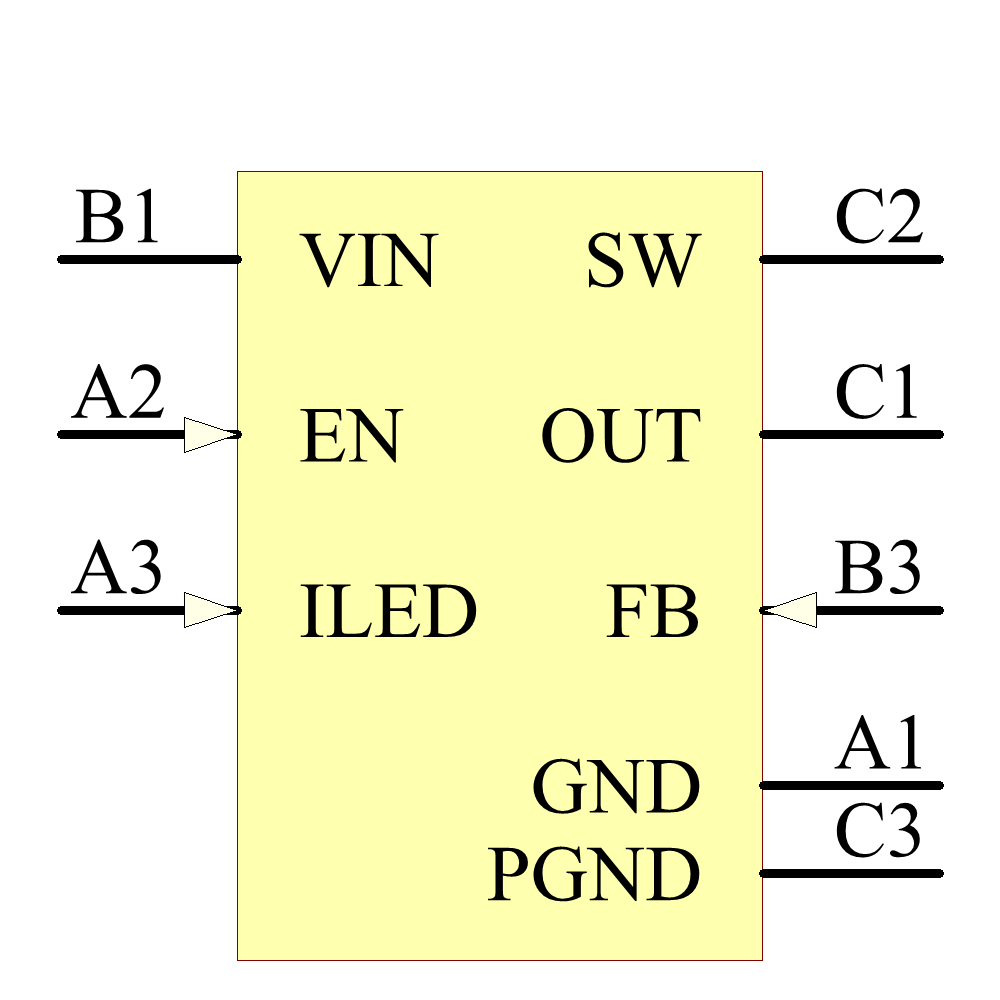

Symbol

TPS61060YZFT Symbol - Texas Instruments

TPS61060YZFT Symbol - Texas Instruments

TPS61060YZFT Symbol - Texas Instruments

TPS61060YZFT Symbol - Texas Instruments

‹ ›

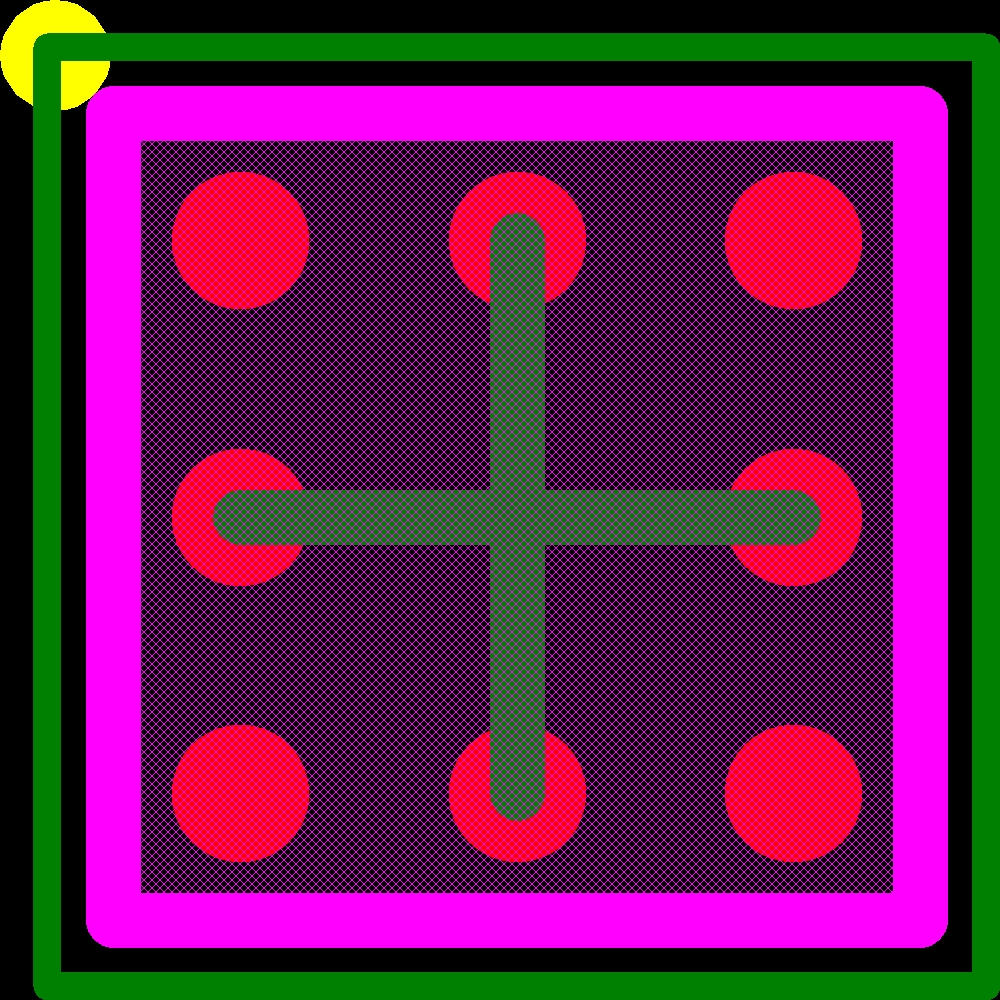

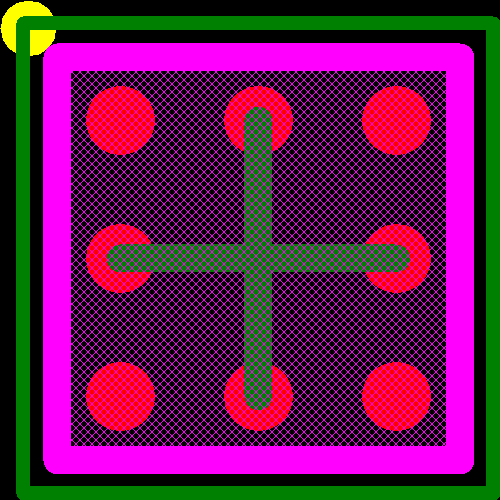

Footprint

TPS61060YZFT Footprint - Texas Instruments

TPS61060YZFT Footprint - Texas Instruments

TPS61060YZFT Footprint - Texas Instruments

TPS61060YZFT Footprint - Texas Instruments

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
Texas Instruments	TPS61060YZFR	Production
onsemi	CAT3661HV3-GT2	Obsolete
Texas Instruments	TPS61060DRBRG4	Production
Texas Instruments	TPS61060DRBR	Production
onsemi	NCP5010FCT1G	Obsolete
Texas Instruments	TPS61061YZFR	Unknown
Texas Instruments	TPS61062YZFT	Production
Texas Instruments	TPS61061YZFT	Production
Texas Instruments	TPS61062YZFR	Production
