TPS61140DRCR - Texas Instruments
Drivers- LED Drivers Dual, 700mA Switch, 1.2MHz Boost Cnvrtr
Technical Details
| Frequency | 1.5MHz |
| Height | 1mm |
| Lead Free | Lead Free |
| Length | 3mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 6V |
| Max Operating Temperature | 85°C |
| Max Output Current | 23mA |
| Max Output Voltage | 27V |
| Max Supply Current | 2mA |
| Max Supply Voltage | 6V |
| Min Input Voltage | 3V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 2.5V |
| Min Supply Voltage | 2.5V |
| Number of Channels | 2 |
| Number of Outputs | 2 |
| Number of Pins | 10 |
| Number of Segments | 4 |
| Output Current | 23mA |
| Output Voltage | 27V |
| Quiescent Current | 125µA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Thickness | 900µm |
| Topology | Boost |
| Weight | 26.109911mg |
| Width | 3mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

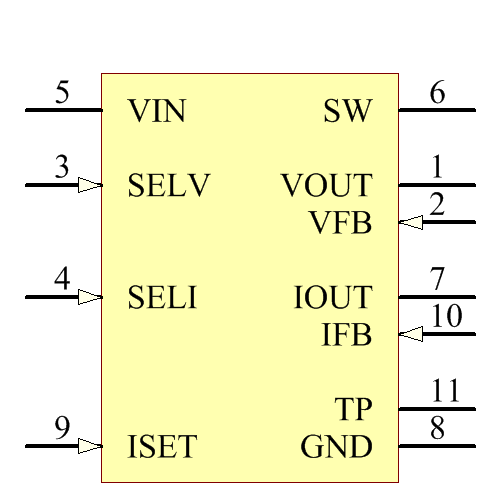

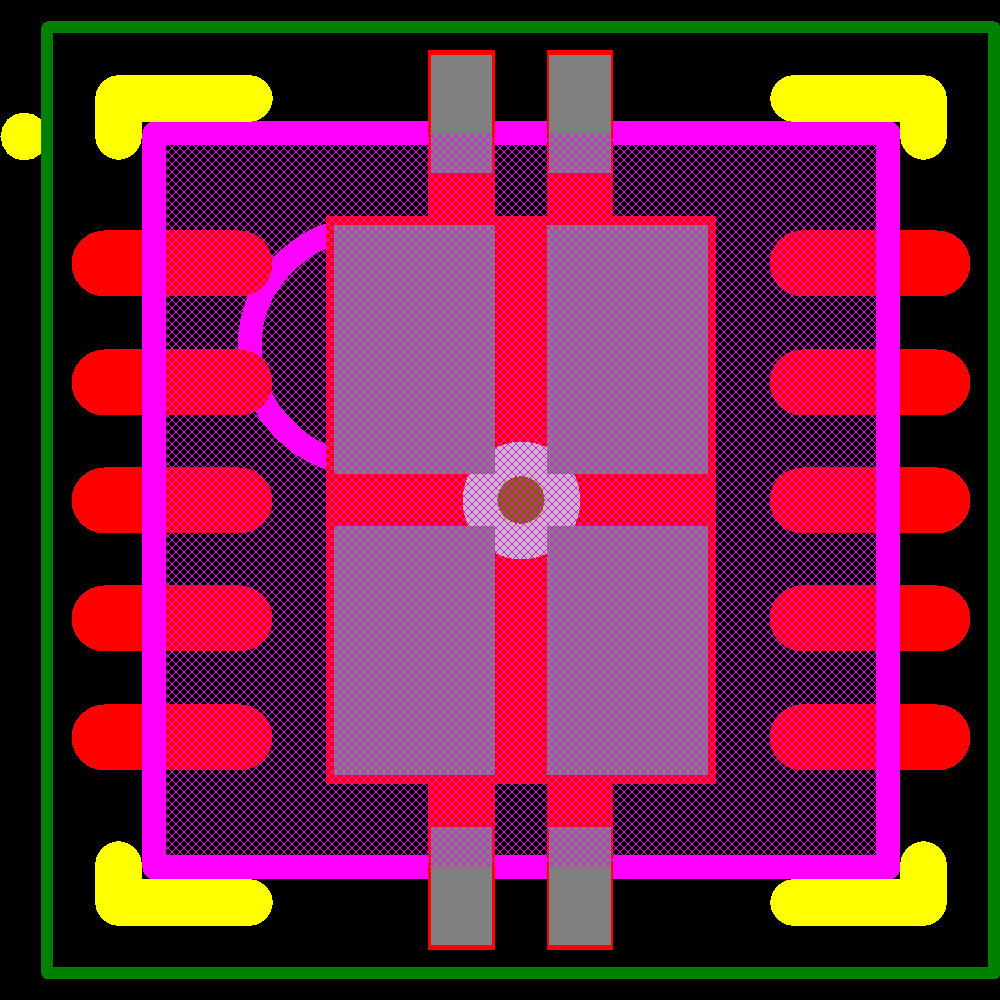

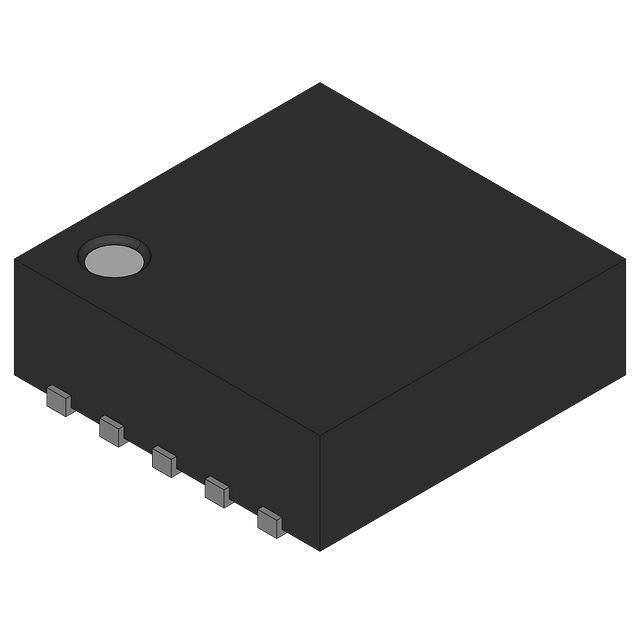

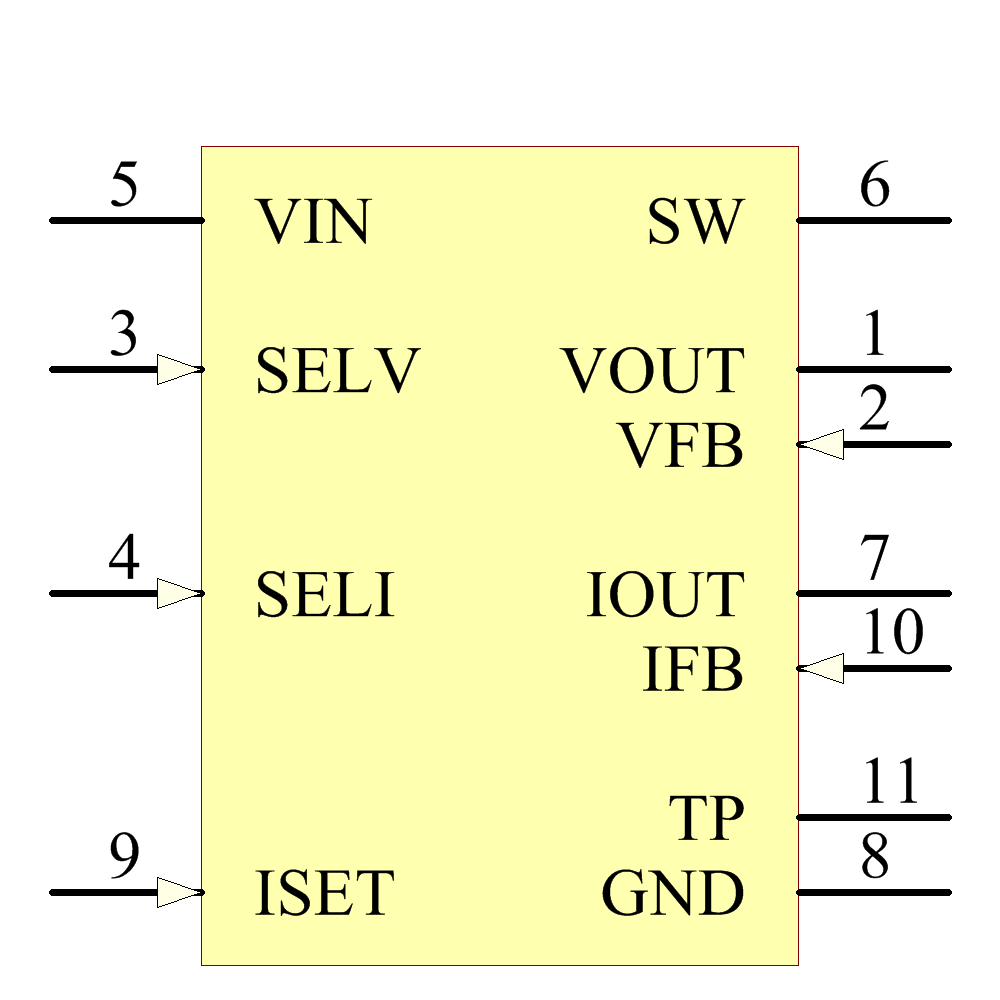

Images
