TPS61150ADRCTG4 - Texas Instruments
Tape & Reel (TR) TPS61150 Step-Up (Boost) PWM led driver 3mm 34mA 6V 370mW
Technical Details
| Frequency | 1.5MHz |
| Height | 1mm |
| Lead Free | Lead Free |
| Length | 3mm |
| Lifecycle Status | Production |
| Low Level Output Current | 34mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 6V |
| Max Operating Temperature | 85°C |
| Max Output Current | 34mA |
| Max Output Voltage | 27V |
| Max Power Dissipation | 370mW |
| Max Supply Current | 2mA |
| Max Supply Voltage | 6V |
| Min Input Voltage | 2.5V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 2.5V |
| Min Supply Voltage | 2.5V |
| Number of Channels | 2 |
| Number of Outputs | 2 |
| Number of Pins | 10 |
| Number of Segments | 14 |
| Output Current | 45mA |
| Output Voltage | 27V |
| Packaging | Tape & Reel (TR) |
| Power Dissipation | 370mW |
| Quiescent Current | 2mA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Thickness | 900µm |
| Topology | Boost |
| Weight | 26.109911mg |
| Width | 3mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

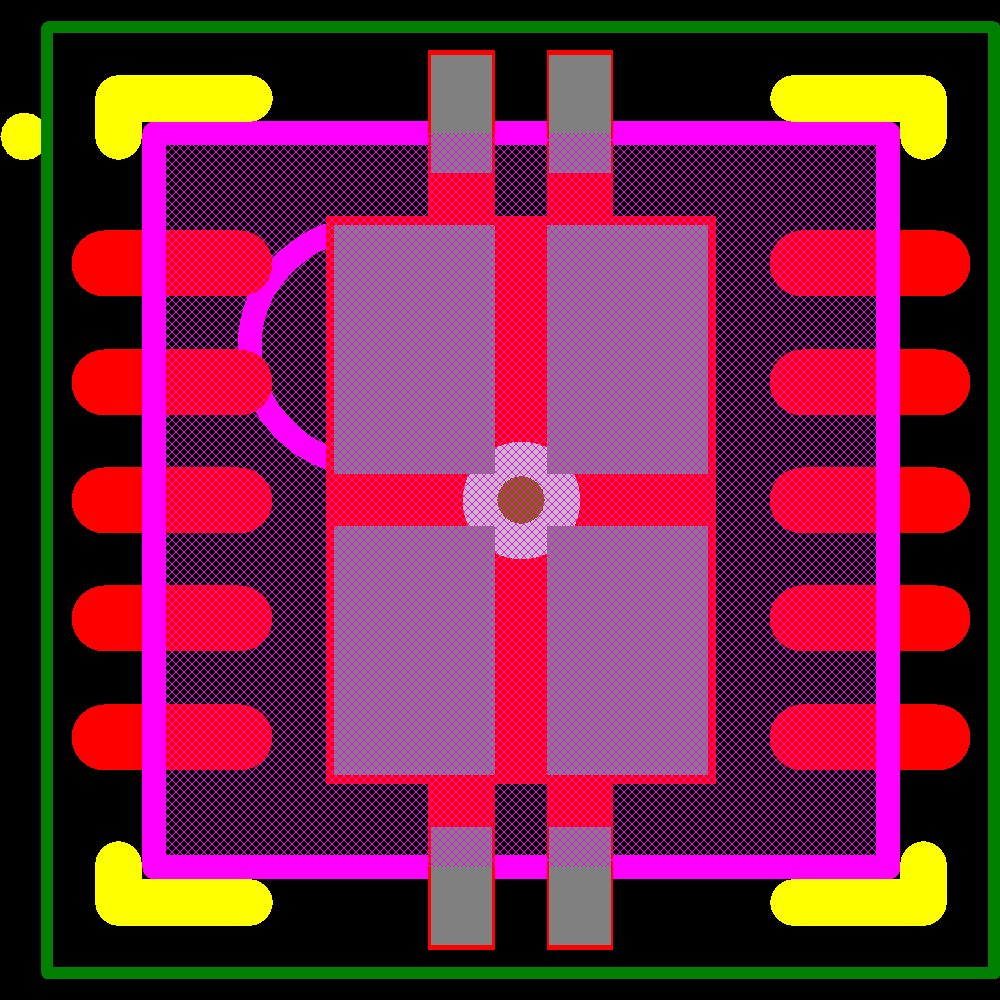

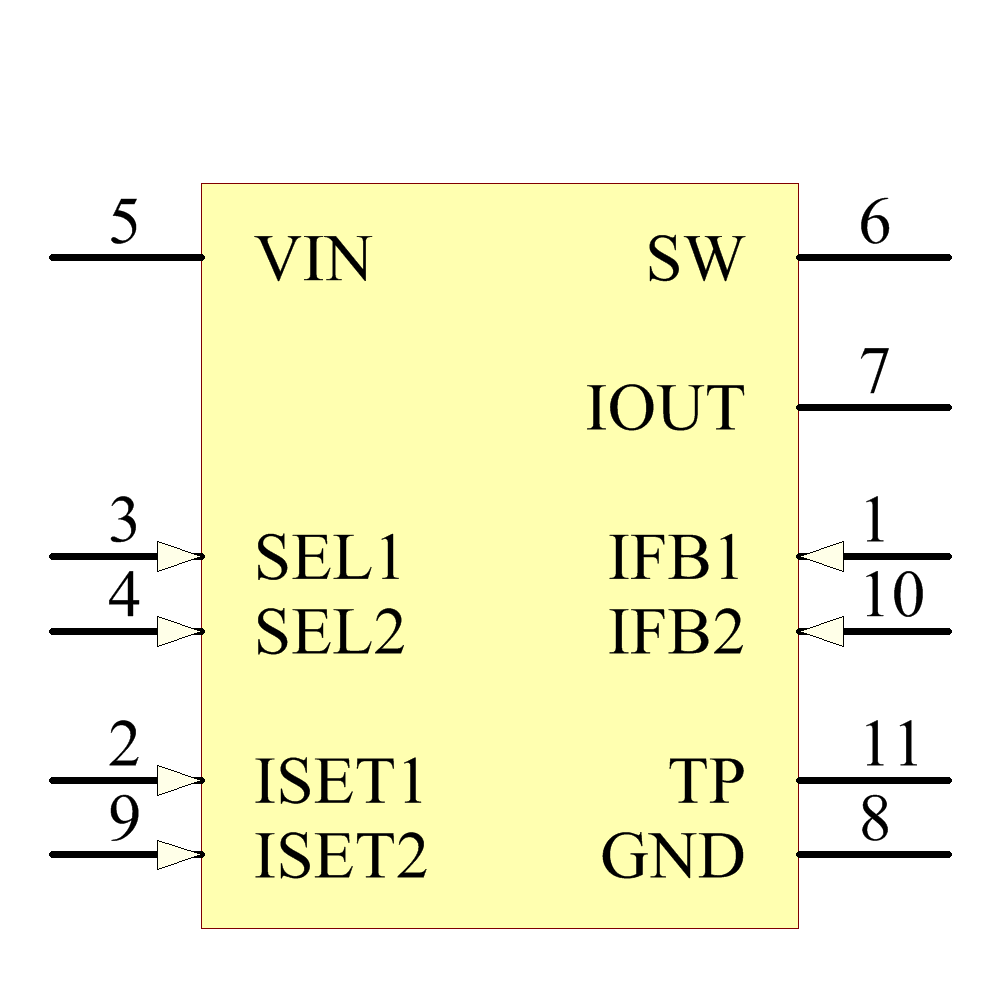

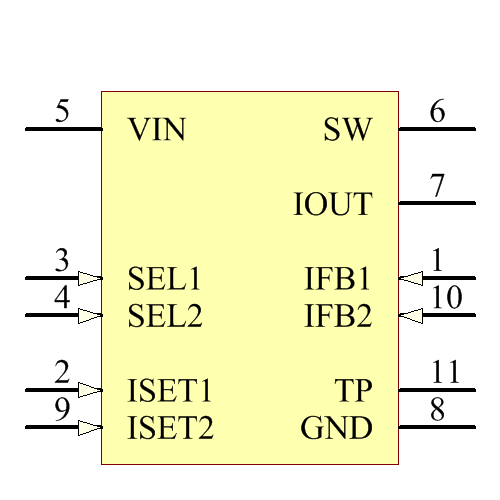

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Microchip | Production | ||
| Allegro MicroSystems | Obsolete | ||
| Diodes Inc. | Obsolete | ||
| Semtech | Obsolete | ||
| onsemi | Obsolete |
