TPS61161ADRVR - Texas Instruments

Tape & Reel (TR) TPS61161 Step-Up (Boost) PWM led driver 2mm 100muA 18V 1.54W

Technical Details

Contact Plating	Gold
Frequency	700kHz
Height	800µm
High Level Output Current	100µA
Lead Free	Lead Free
Length	2mm
Lifecycle Status	Production
Low Level Output Current	100µA
Manufacturer Lifecycle Status	ACTIVE
Max Input Voltage	18V
Max Operating Temperature	85°C
Max Power Dissipation	1.54W
Max Supply Current	1.8mA
Max Supply Voltage	18V
Min Input Voltage	2.7V
Min Operating Temperature	-40°C
Min Supply Voltage	2.7V
Number of Channels	1
Number of Outputs	1
Number of Pins	6
Number of Segments	10
Output Current	85mA
Output Voltage	38V
Packaging	Tape & Reel (TR)
Power Dissipation	1.54W
Quiescent Current	1.5mA
Radiation Hardening	No
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000\|8542390000\|8542390000\|8542390000
Thickness	750µm
Topology	Boost
Width	2mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

Images

Texas Instruments TPS61161ADRVR | Texas Instruments

Texas Instruments

Datasheets

Lifecycle Status Indicator

Production

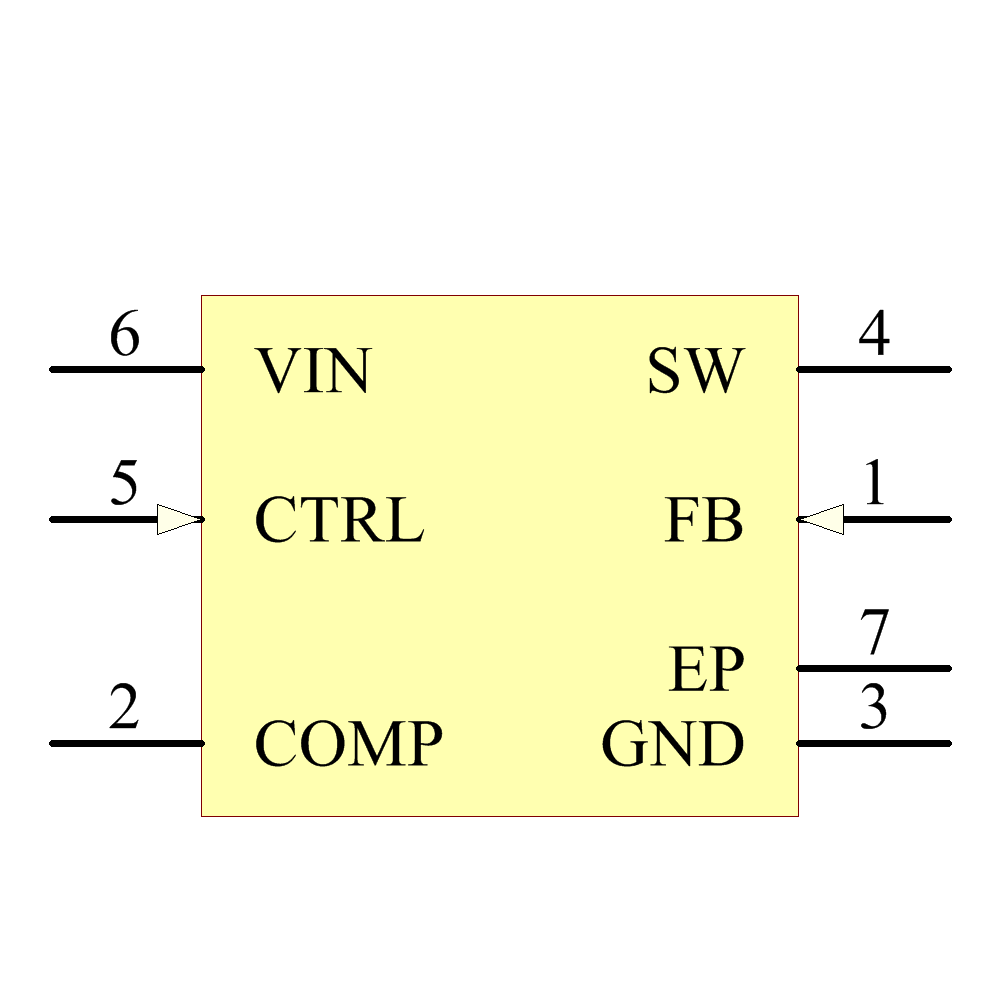

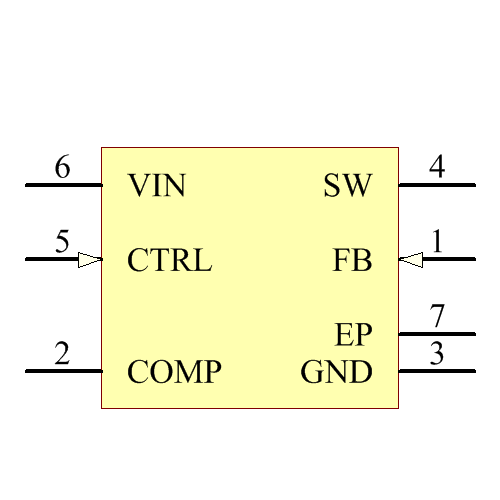

Symbol

TPS61161ADRVR Symbol - Texas Instruments

TPS61161ADRVR Symbol - Texas Instruments

TPS61161ADRVR Symbol - Texas Instruments

TPS61161ADRVR Symbol - Texas Instruments

‹ ›

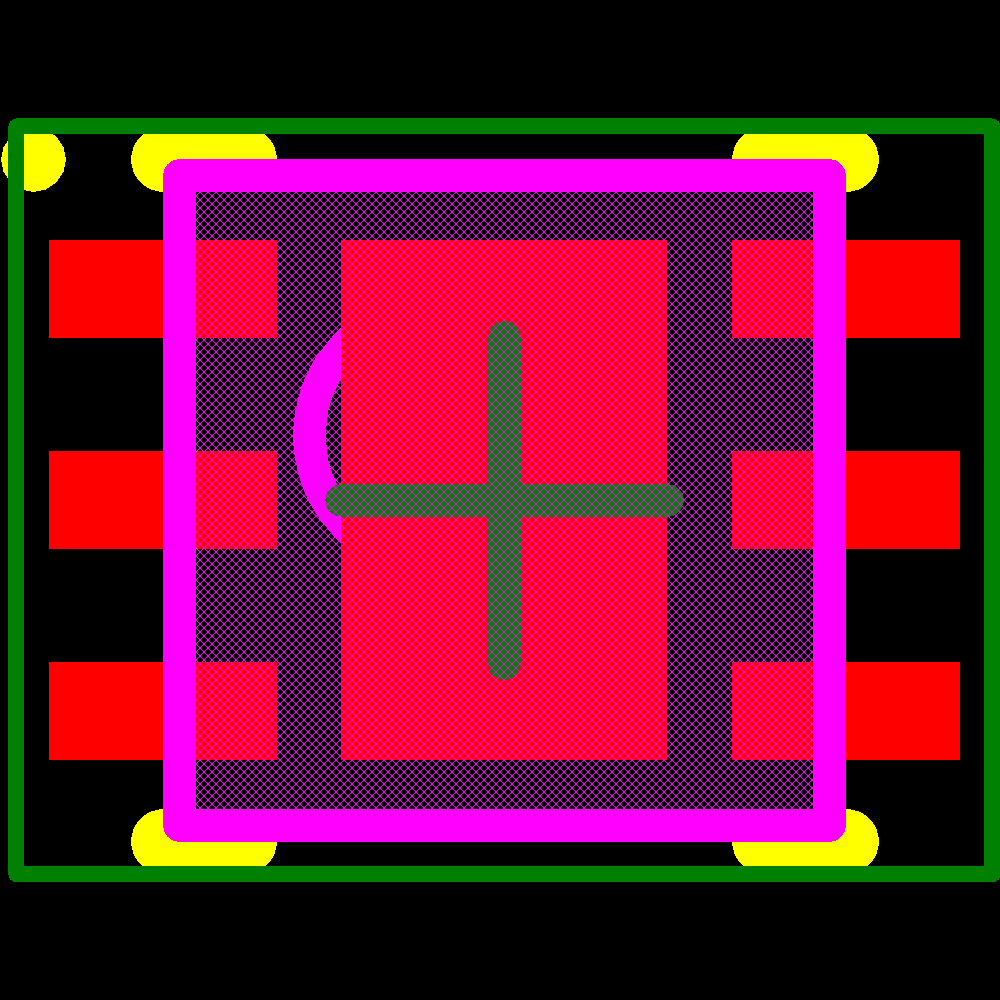

Footprint
