TPS61161DRVRG4 - Texas Instruments
Tape & Reel (TR) TPS61161 Step-Up (Boost) PWM led driver 2mm 700mA Switch 18V 1.54W
Technical Details
| Contact Plating | Gold |
| Frequency | 700kHz |
| Height | 800µm |
| High Level Output Current | 100µA |
| Lead Free | Lead Free |
| Length | 2mm |
| Lifecycle Status | Production |
| Low Level Output Current | 100µA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 18V |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 1.54W |
| Max Supply Voltage | 18V |
| Min Input Voltage | 2.7V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.7V |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Number of Pins | 6 |
| Number of Segments | 10 |
| Output Voltage | 38V |
| Packaging | Tape & Reel (TR) |
| Power Dissipation | 1.54W |
| Quiescent Current | 1.5mA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Thickness | 750µm |
| Topology | Boost |
| Width | 2mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

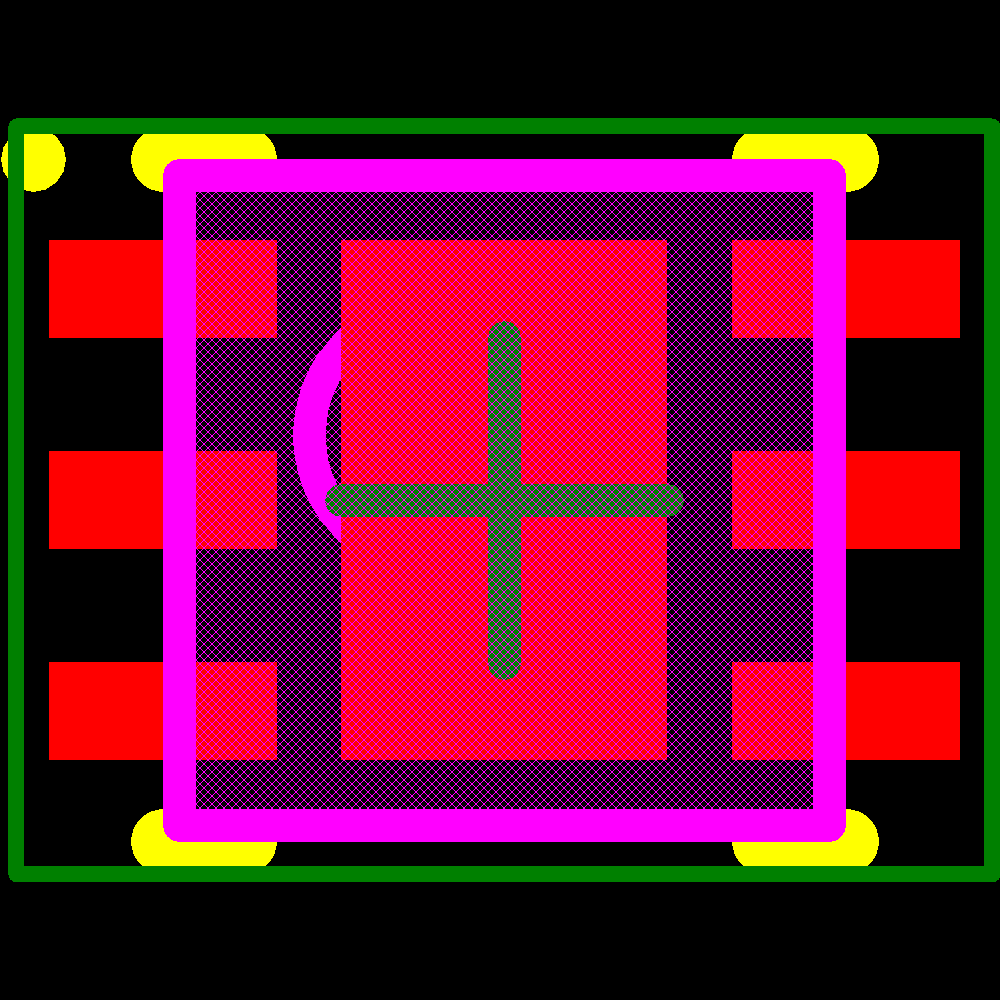

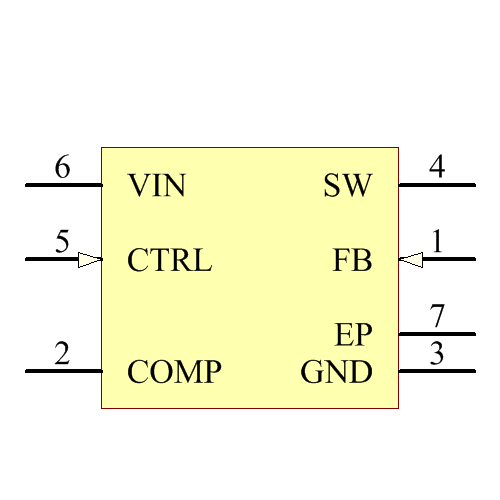

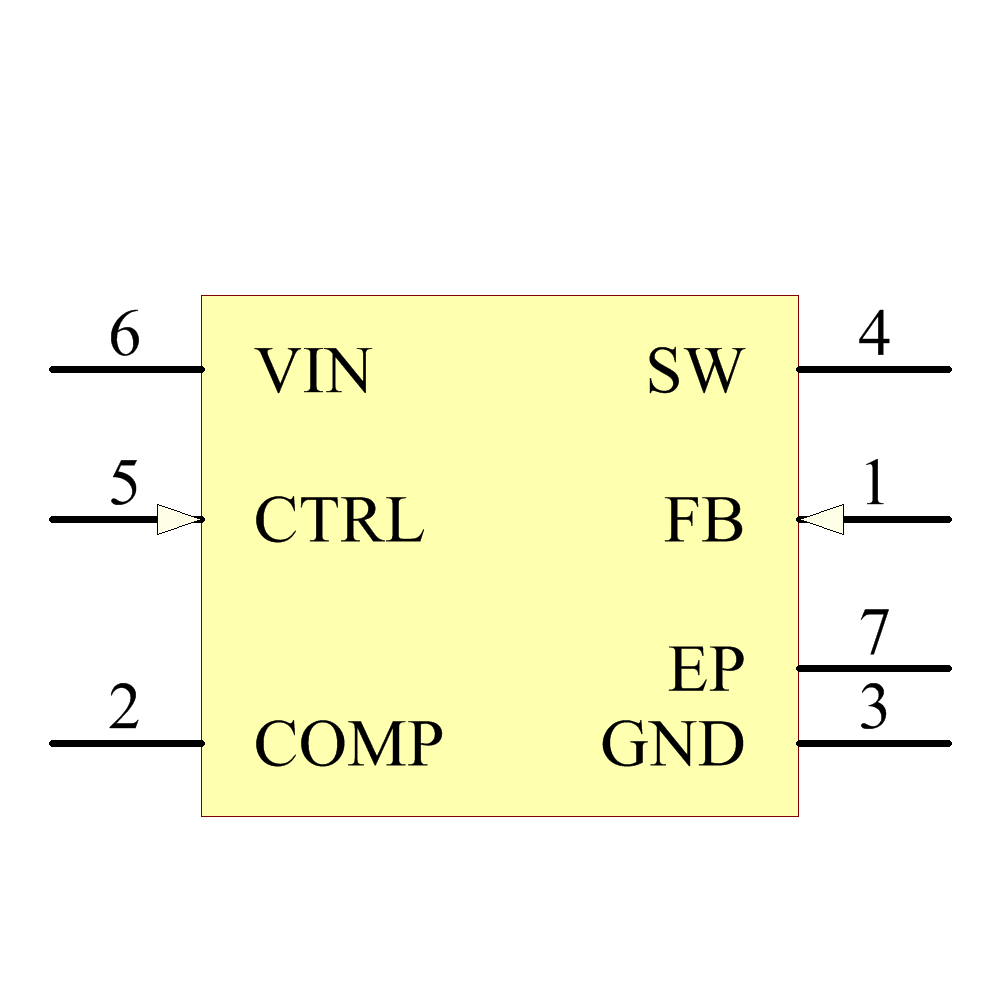

Images
