TPS61165DBVR - Texas Instruments

High brightness white LED driver in 2mm x 2mm QFN Package 6-SOT-23 -40 to 85

Technical Details

Ambient Temperature Range High	85°C
Case/Package	SOT-23
Contact Plating	Gold
Frequency	1.5MHz
Height	0m
Lead Free	Lead Free
Length	2.9mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Input Voltage	18V
Max Junction Temperature (Tj)	125°C
Max Operating Temperature	85°C
Max Power Dissipation	470mW
Max Supply Current	2.3mA
Max Supply Voltage	18V
Min Input Voltage	3V
Min Operating Temperature	-40°C
Min Supply Voltage	3V
Nominal Supply Current	2.3mA
Number of Channels	1
Number of Outputs	1
Number of Pins	6
Number of Segments	10
Output Current	1.2A
Output Voltage	38V
Power Dissipation	470mW
Quiescent Current	1.5mA
Radiation Hardening	No
REACH SVHC	No
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000\|8542390000\|8542390000\|8542390000
Switching Frequency	1.2MHz
Thickness	1.2mm
Topology	Boost
Width	1.6mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

Texas Instruments TPS61165DBVR | Texas Instruments

Texas Instruments

Datasheets

Arrow Electronics

Lifecycle Status Indicator

Production

Symbol

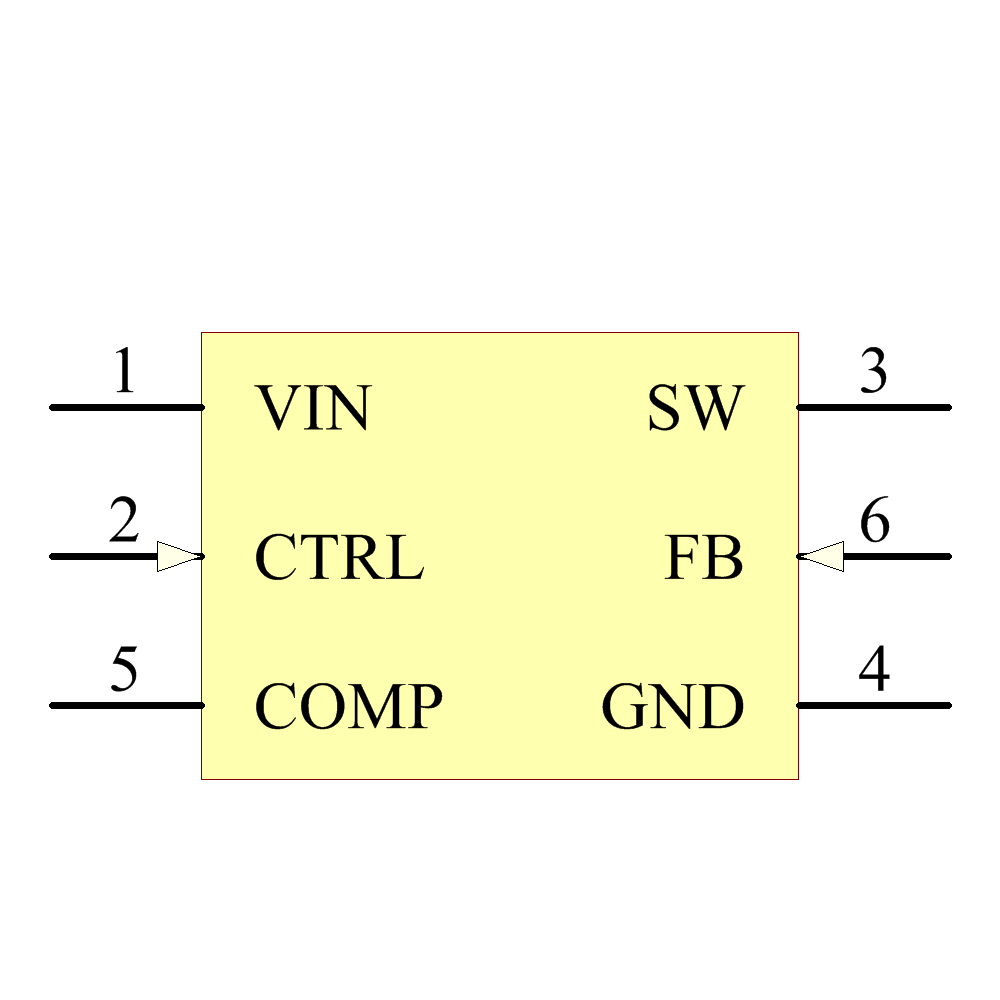

TPS61165DBVR Symbol - Texas Instruments

TPS61165DBVR Symbol - Texas Instruments

TPS61165DBVR Symbol - Texas Instruments

TPS61165DBVR Symbol - Texas Instruments

‹ ›

Footprint

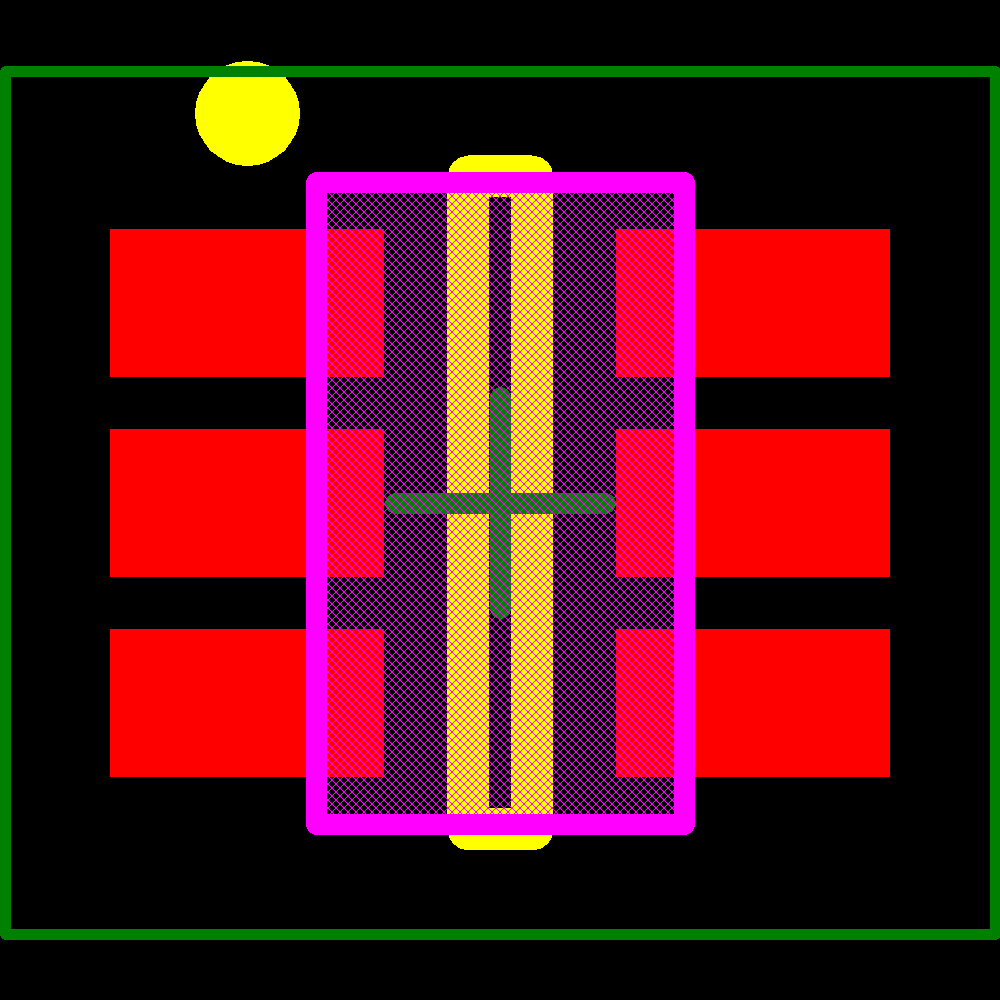

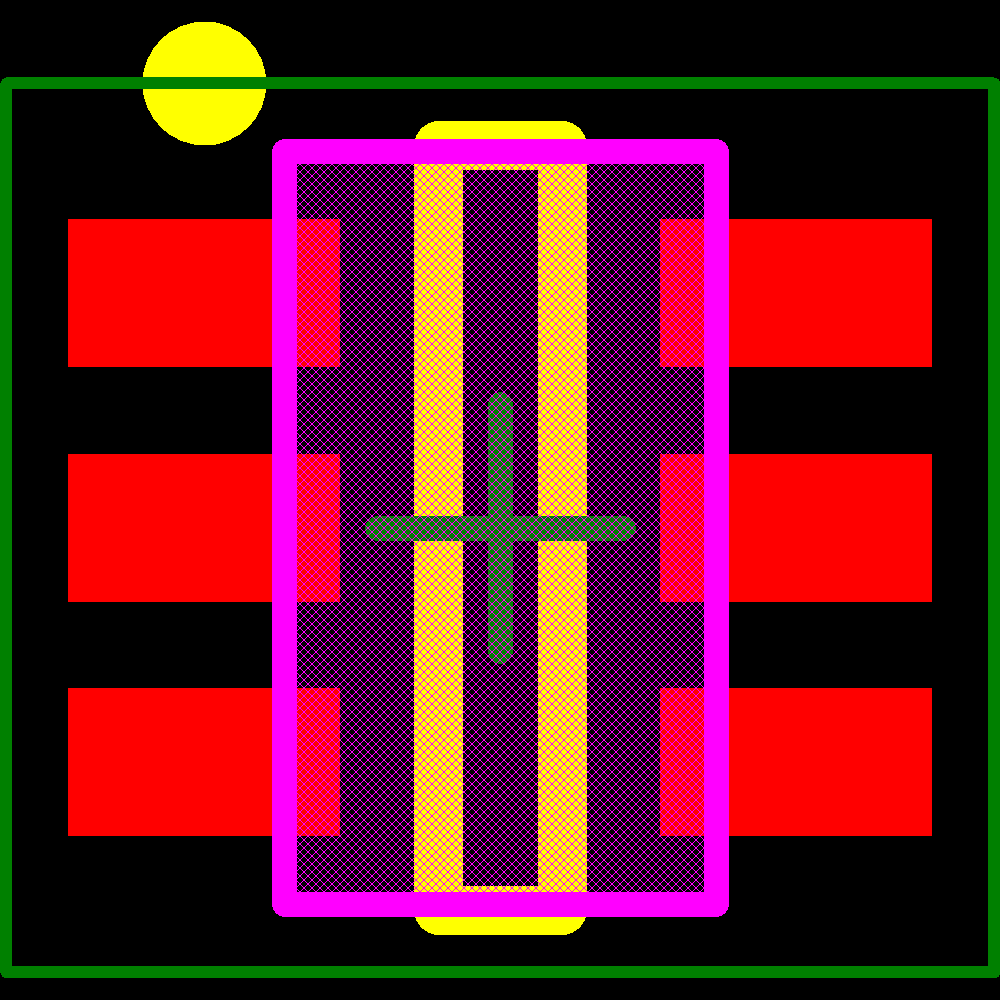

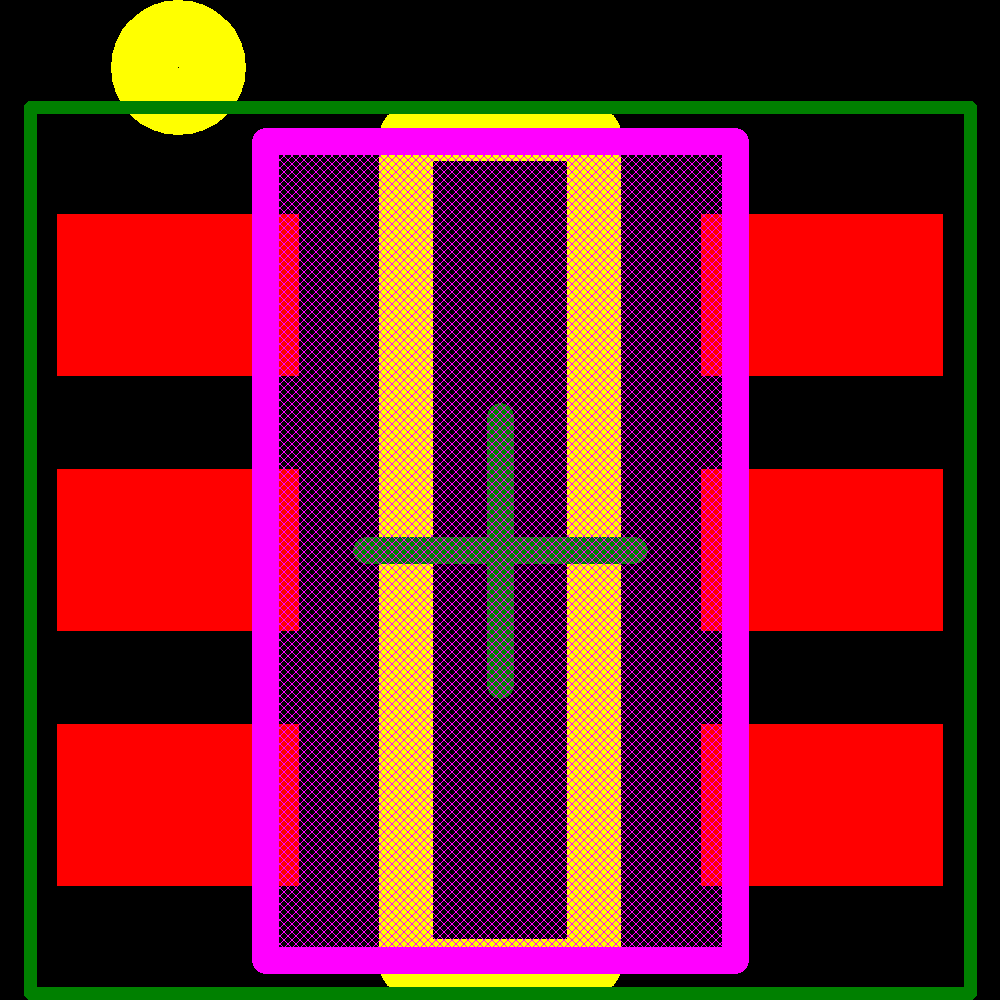

TPS61165DBVR Footprint - Texas Instruments
