TPS61169DCKR - Texas Instruments
Tape & Reel (TR) TPS61169 Step-Up (Boost) PWM led driver 2mm 1.8A Switch 5.5V 1.2MHz
Technical Details
| Case/Package | SC |
| Contact Plating | Gold |
| Dimming | PWM |
| Frequency | 1.2MHz |
| Height | 1.1mm |
| Lead Free | Lead Free |
| Length | 2mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 5.5V |
| Max Input Voltage (DC) | 5.5V |
| Max Junction Temperature (Tj) | 125°C |
| Max Operating Temperature | 85°C |
| Max Output Current | 2.4A |
| Max Output Voltage | 38V |
| Max Supply Voltage | 5.5V |
| Min Input Voltage | 2.7V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 2.7V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Nominal Input Voltage (DC) | 3.6V |
| Nominal Supply Current | 300µA |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Number of Pins | 5 |
| Output Current | 400mA |
| Output Current per Channel | 1.8A |
| Output Type | Frequency |
| Output Voltage | 38V |
| Packaging | Cut Tape |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Switching Frequency | 1.2MHz |
| Thickness | 900µm |
| Topology | Boost |
| Weight | 19.986414mg |
| Width | 1.25mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

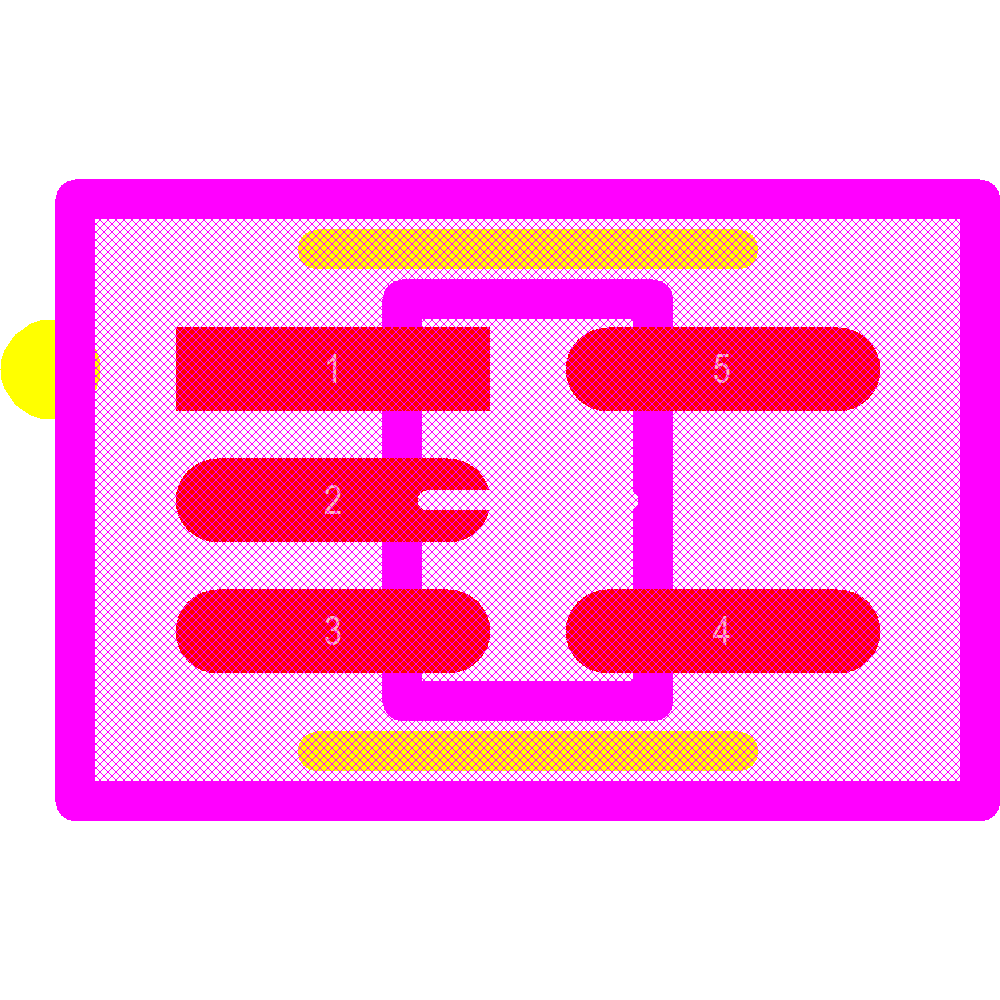

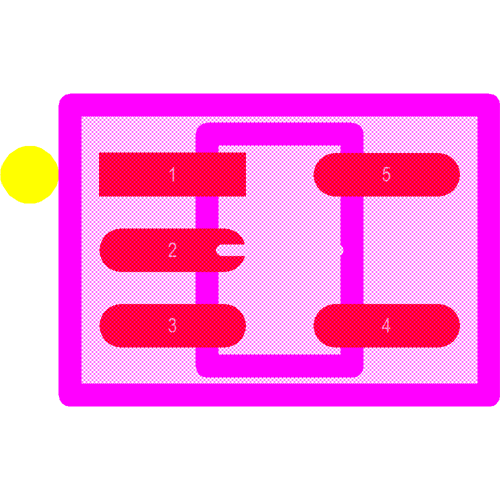

Images
