TPS61180RTER - Texas Instruments
1.5A white LED driver for notebooks with external 3.3V IC supply 16-WQFN -40 to 85
Technical Details
| Case/Package | QFN |
| Contact Plating | Gold |
| Frequency | 1.2MHz |
| Height | 800µm |
| Lead Free | Lead Free |
| Length | 3mm |
| Lifecycle Status | Production |
| Low Level Output Current | 25mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 24V |
| Max Operating Temperature | 85°C |
| Max Output Current | 1.5A |
| Max Power Dissipation | 2.05W |
| Max Supply Voltage | 3.6V |
| Min Input Voltage | 5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.7V |
| Number of Channels | 6 |
| Number of Outputs | 6 |
| Number of Pins | 16 |
| Number of Segments | 60 |
| Operating Supply Voltage | 3.15V |
| Output Current | 1.5A |
| Output Voltage | 39V |
| Packaging | Tape & Reel (TR) |
| Power Dissipation | 2.05W |
| Quiescent Current | 2mA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Thickness | 750µm |
| Topology | Boost |
| Width | 3mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

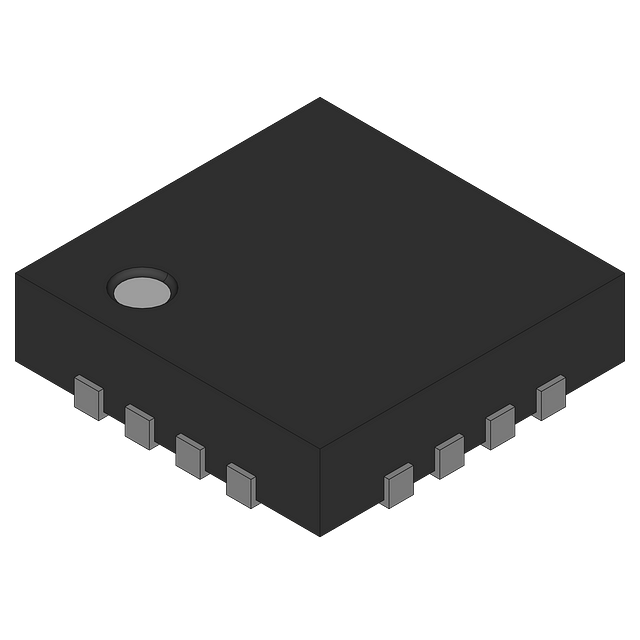

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Analog Devices | Obsolete | ||
| Analog Devices | Unknown | ||
| Analog Devices | EOL | ||
| Analog Devices | Obsolete | ||
| Analog Devices | Obsolete | ||
| Texas Instruments | Production | ||
| Analog Devices | Unknown |
