TPS61185RGER - Texas Instruments
2A WLED driver for notebooks with PWM control interface 24-VQFN -40 to 85
Technical Details
| Case/Package | VQFN |
| Frequency | 2MHz |
| Height | 1mm |
| Lead Free | Lead Free |
| Length | 4mm |
| Lifecycle Status | Production |
| Low Level Output Current | 25mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 24V |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 24V |
| Min Input Voltage | 4.2V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.2V |
| Number of Channels | 8 |
| Number of Outputs | 8 |
| Number of Pins | 24 |
| Number of Segments | 80 |
| Output Voltage | 38V |
| Packaging | Tape & Reel (TR) |
| Quiescent Current | 2mA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Thickness | 880µm |
| Topology | Boost |
| Width | 4mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

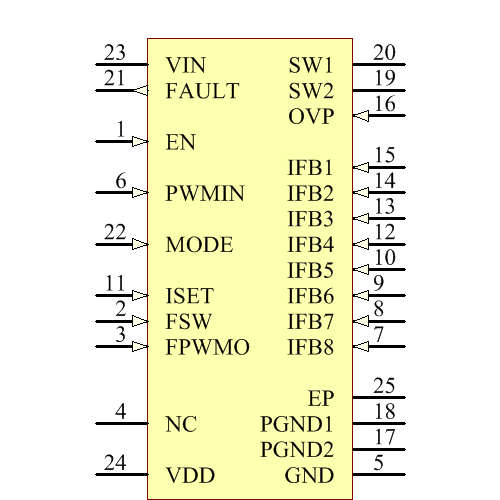

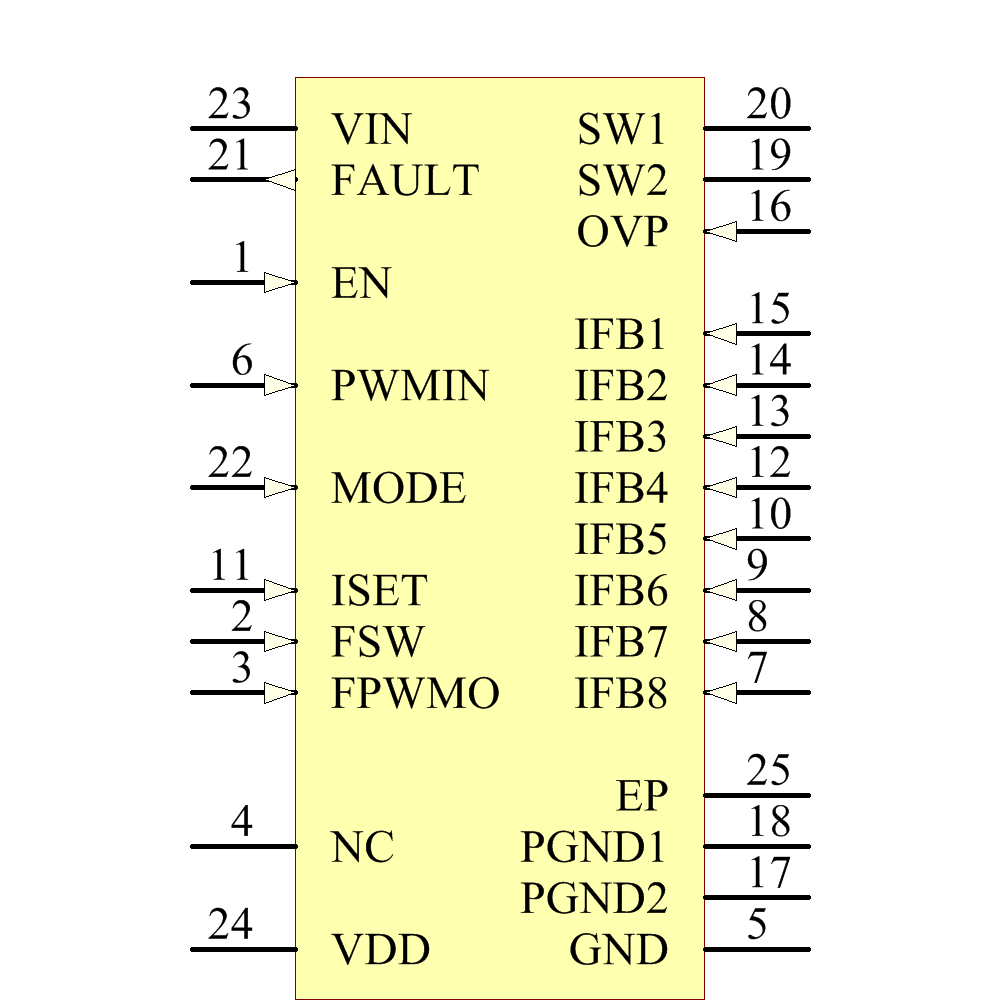

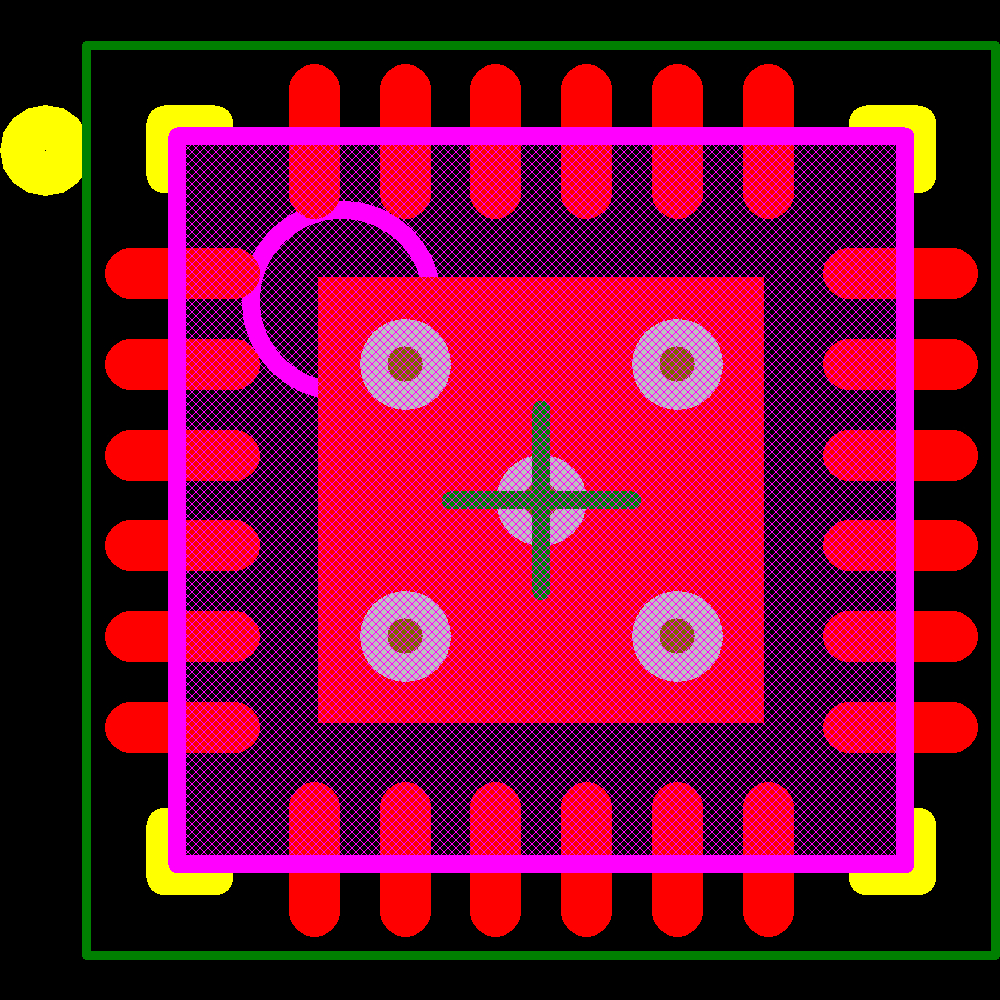

Images
Texas Instruments
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| Microchip | Unknown | ||
| Texas Instruments | Obsolete | ||
| Analog Devices | Unknown | ||
| Analog Devices | Unknown |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| DigiKey |
DE: 0
|
$ | 0.9444 | |||||||
| Mouser |
US: 0
|
$ | 1.22 | 1.22 | 1.22 | 1.22 | 0.976 | 0.876 | ||
| Texas Instruments |
US: 28275
|
$ | 1.449 | 1.449 | 1.449 | 1.197 | 0.647 | 0.647 | ||
