TPS61220DCKR - Texas Instruments

Conv DC-DC 0.7V to 5.5V Step Up Single-Out 1.8V to 5.5V 0.5A 6-Pin SC-70 T/R

Technical Details

Efficiency	95%
Height	1.1mm
Lead Free	Lead Free
Length	2mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Input Voltage	5.5V
Max Operating Temperature	85°C
Max Output Current	500mA
Max Output Voltage	5.5V
Min Input Voltage	700mV
Min Operating Temperature	-40°C
Min Output Voltage	1.8V
Number of Channels	1
Number of Outputs	1
Number of Pins	6
Operating Supply Voltage	5.5V
Output Current	200mA
Output Type	Adjustable
Output Voltage	5.5V
Quiescent Current	5µA
Radiation Hardening	No
REACH SVHC	No
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000\|8542390000\|8542390000\|8542390000
Switching Frequency	2MHz
Synchronous Rectifier	Yes
Thickness	900µm
Topology	Boost
Width	1.25mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

Texas Instruments TPS61220DCKR | Texas Instruments

Texas Instruments

Datasheets

Arrow Electronics

Lifecycle Status Indicator

Production

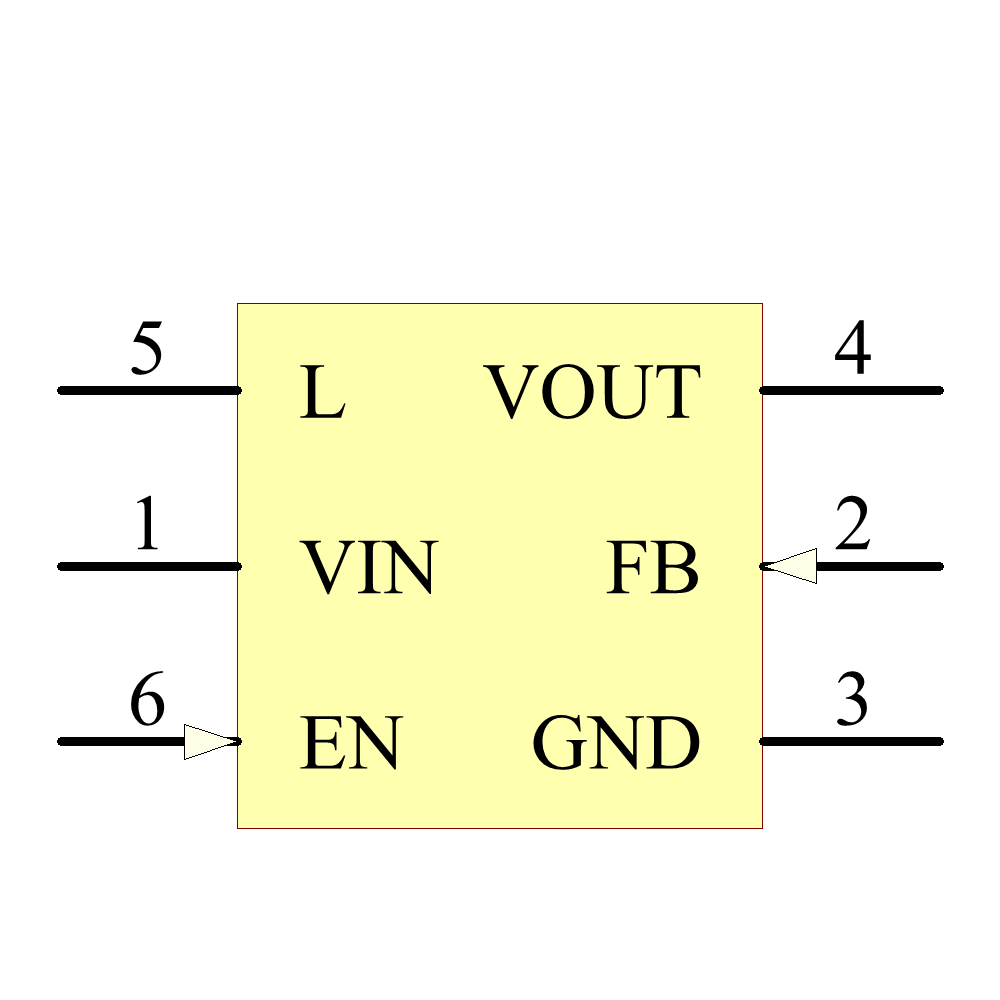

Symbol

TPS61220DCKR Symbol - Texas Instruments

TPS61220DCKR Symbol - Texas Instruments

TPS61220DCKR Symbol - Texas Instruments

TPS61220DCKR Symbol - Texas Instruments

‹ ›

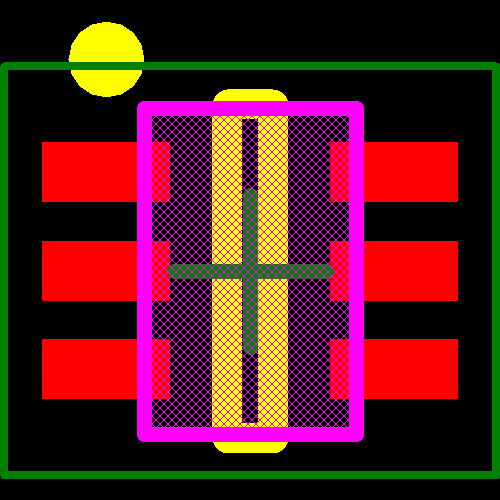

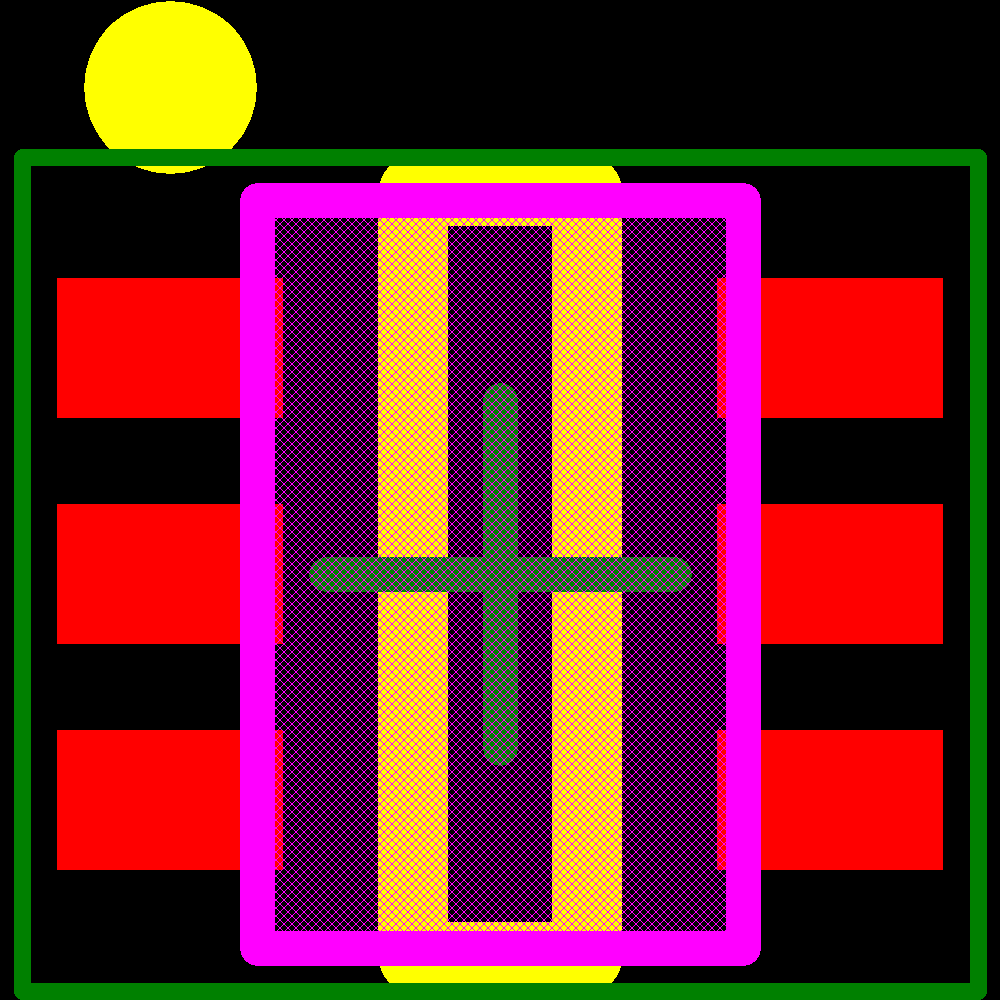

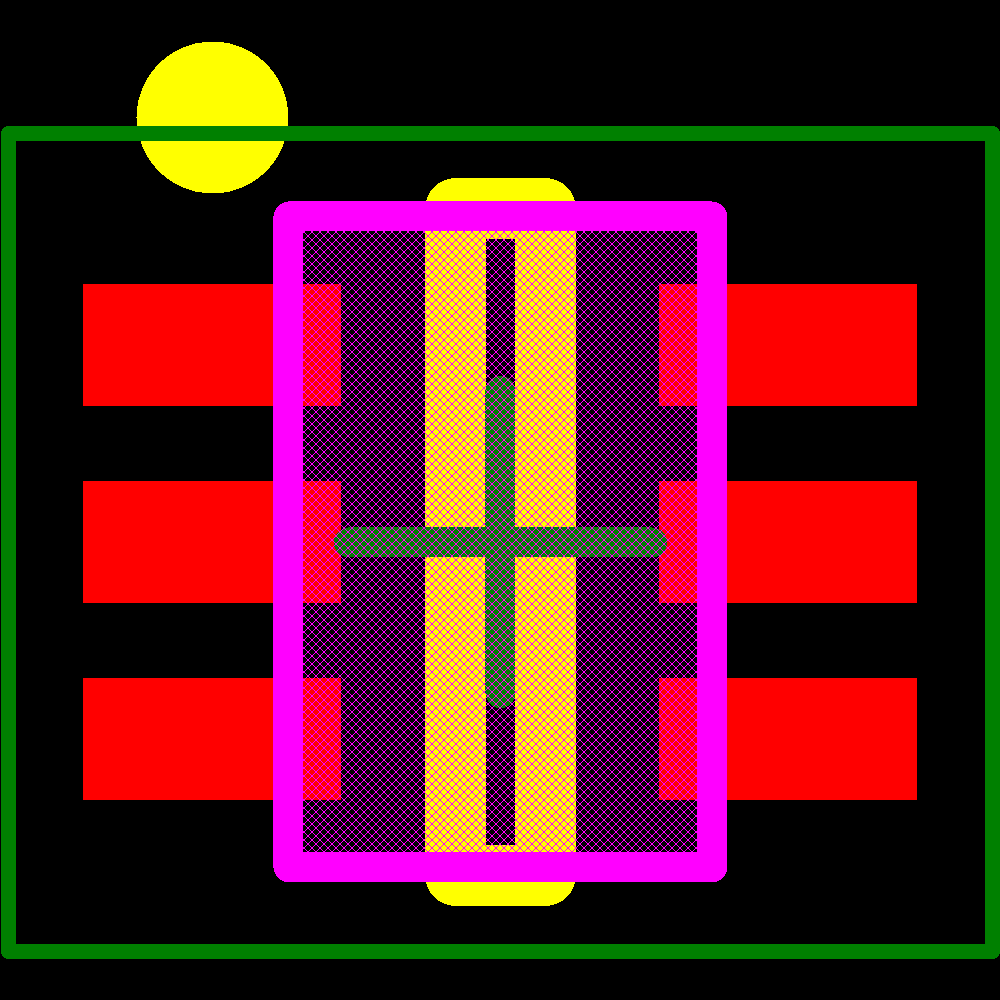

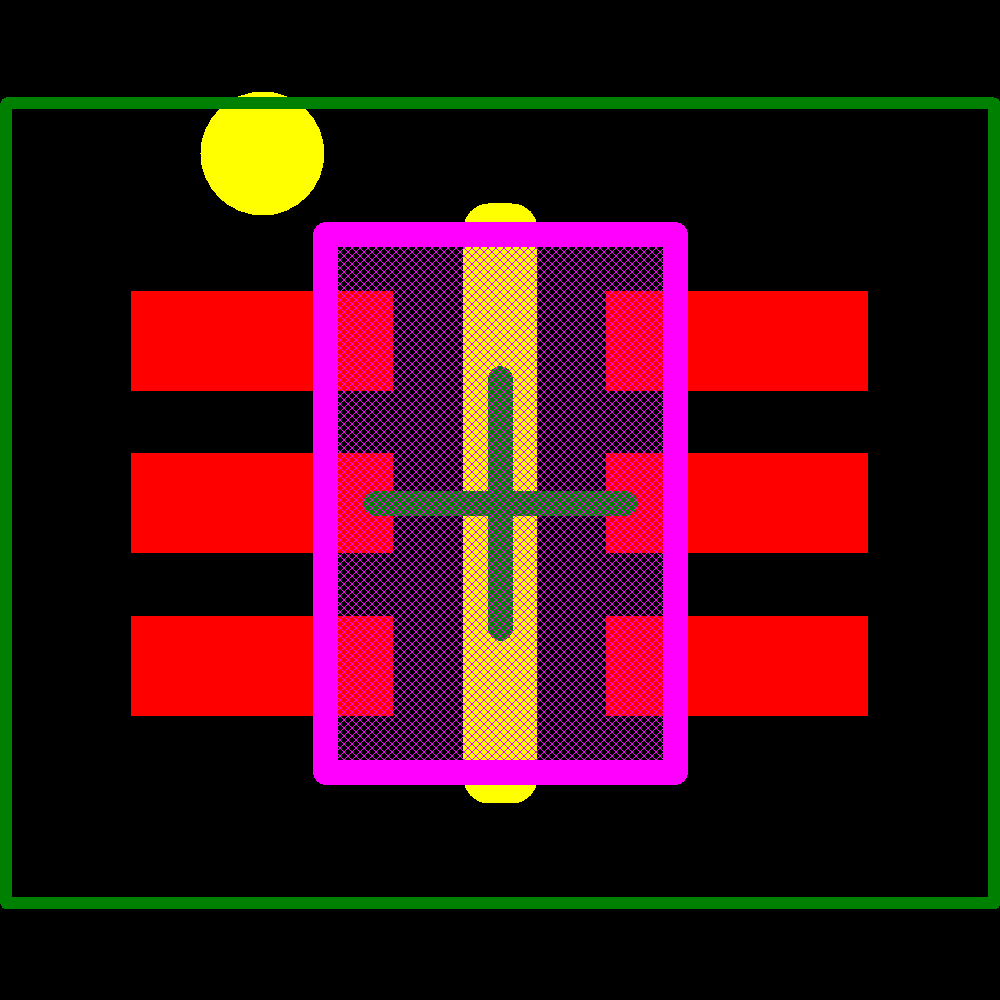

Footprint
