TPS61500PWPR - Texas Instruments
High brightness LED driver with integrated 3-A, 40-V power switch 14-HTSSOP -40 to 85
Technical Details
| Case/Package | HTSSOP EP |
| Contact Plating | Gold |
| Frequency | 2.2MHz |
| Height | 1.2mm |
| High Level Output Current | 40µA |
| Lead Free | Lead Free |
| Length | 5mm |
| Lifecycle Status | Production |
| Low Level Output Current | 40µA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 18V |
| Max Operating Temperature | 85°C |
| Max Output Current | 3A |
| Max Power Dissipation | 2.25W |
| Max Supply Current | 3.5mA |
| Max Supply Voltage | 18V |
| Min Input Voltage | 2.9V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.9V |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Number of Pins | 14 |
| Number of Segments | 4 |
| Output Current | 3A |
| Output Voltage | 38V |
| Power Dissipation | 2.25W |
| Quiescent Current | 3mA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Thickness | 1mm |
| Topology | Boost |
| Weight | 58.003124mg |
| Width | 4.4mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

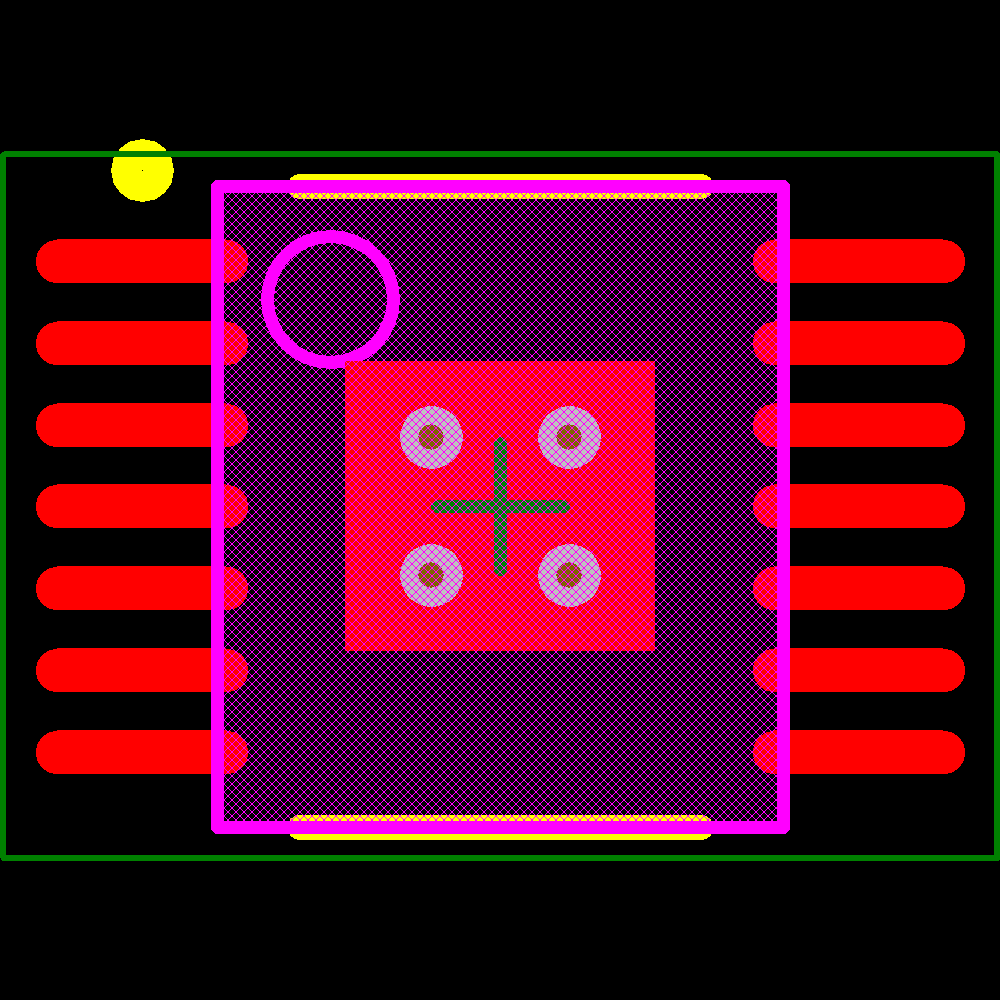

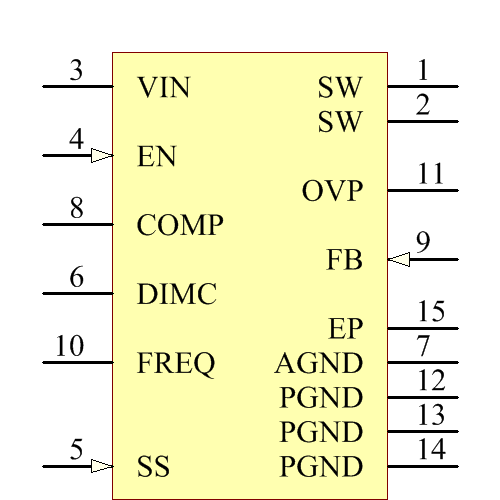

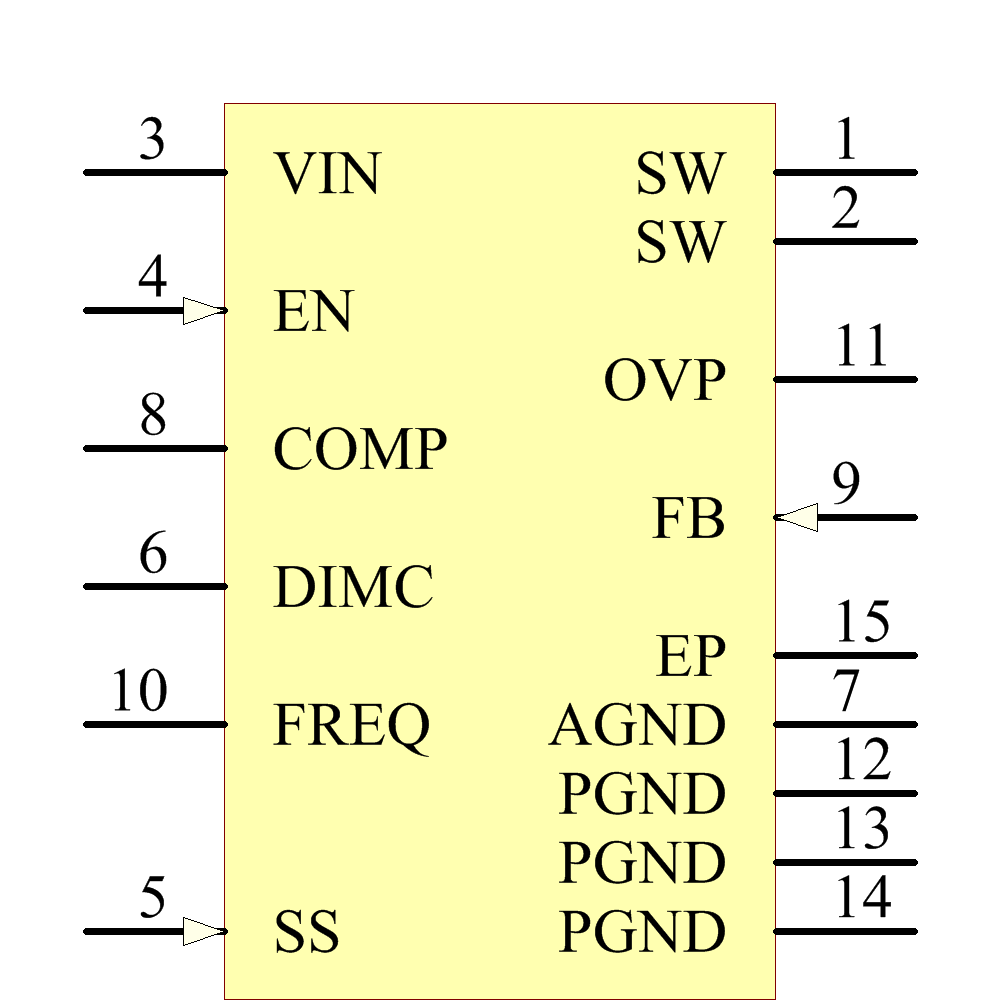

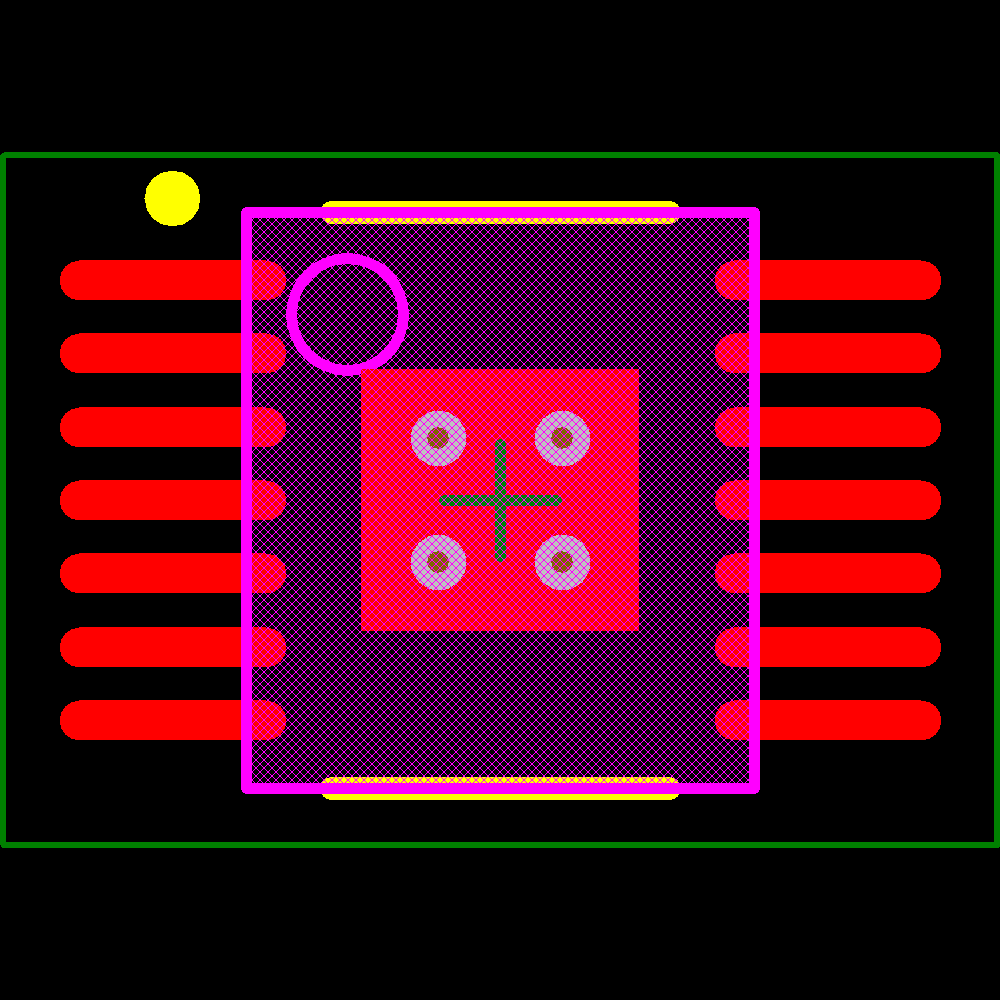

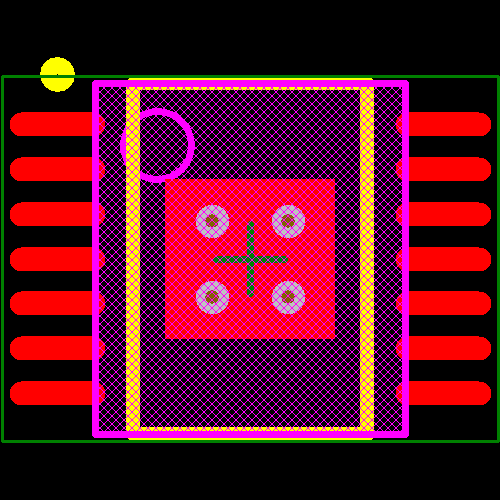

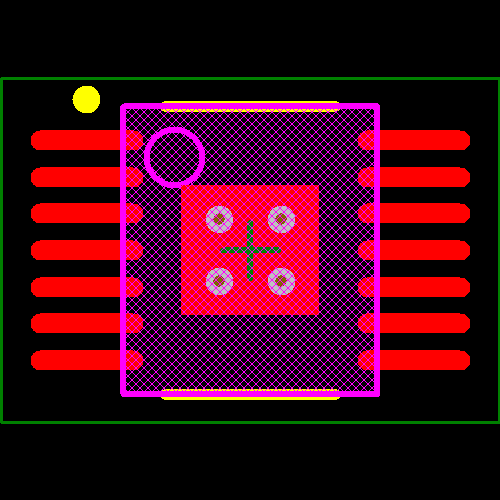

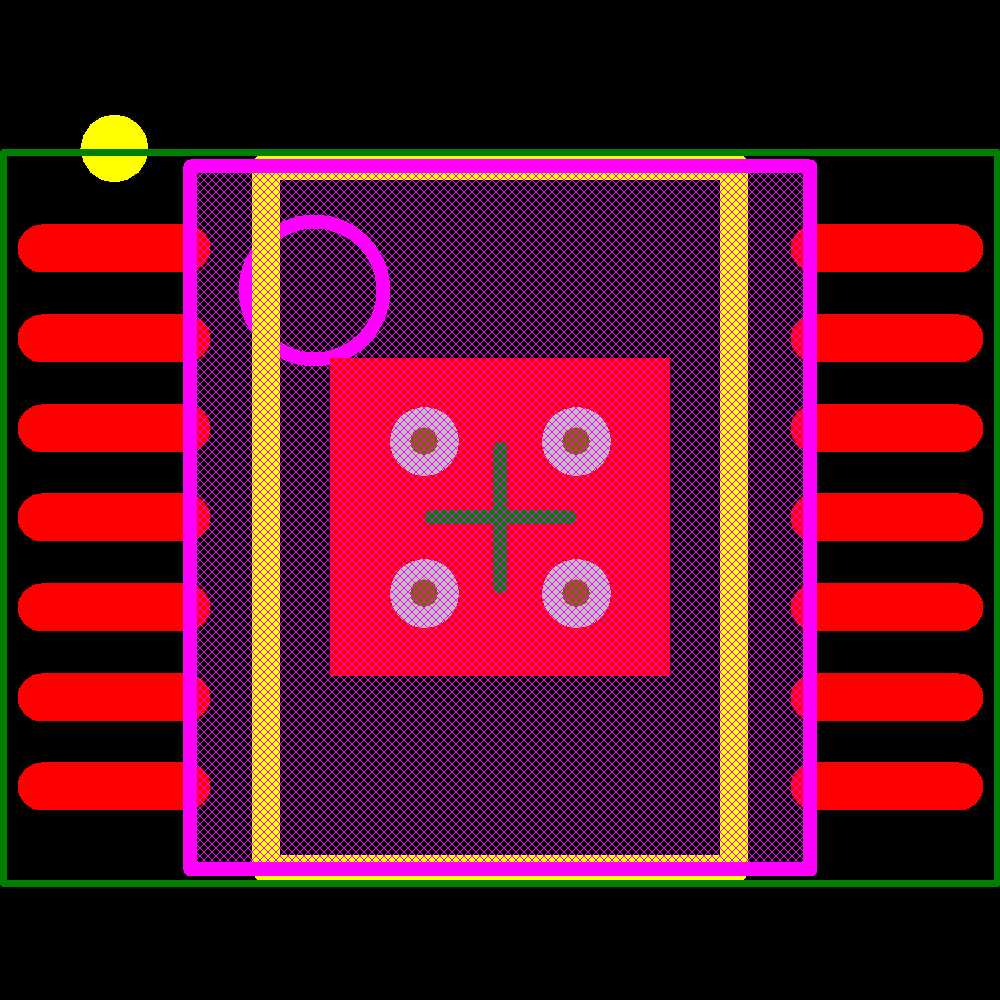

Images
Texas Instruments
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Analog Devices | Obsolete | ||
| Renesas | Obsolete | ||
| Renesas | Obsolete | ||
| Texas Instruments | Production | ||
| onsemi | EOL | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production |
