Integrated Circuits (ICs)  >  Power Management ICs  >  Voltage Regulators - Switching

Texas Instruments - TPS62236DRYT

TPS62236DRYT - Texas Instruments

IC REG BUCK 1.85V 500MA 6SON Buck Switching Regulator IC Positive Fixed 1.85V 1 Output 500mA 6-UFDFN

 Datasheets

Technical Details

Efficiency 94%
Height 600µm
Lead Free Lead Free
Length 1.45mm
Lifecycle Status Production
Manufacturer Lifecycle Status ACTIVE
Max Input Voltage 6V
Max Operating Temperature 125°C
Max Output Current 500mA
Max Output Voltage 1.85V
Min Input Voltage 2.05V
Min Operating Temperature -40°C
Min Output Voltage 1.85V
Number of Outputs 1
Number of Pins 6
Operating Supply Voltage 6V
Output Configuration Positive
Output Current 500mA
Output Type Fixed
Output Voltage 1.85V
Packaging Tape & Reel (TR)
Quiescent Current 22µA
Radiation Hardening No
RoHS Compliant
Schedule B 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
Switching Frequency 2MHz
Synchronous Rectifier Yes
Thickness 500µm
Topology Buck
Width 1mm

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No

Images

Texas Instruments TPS62236DRYT | Texas Instruments

Texas Instruments

Datasheets

 DigiKey
 DigiKey
 DigiKey

Lifecycle Status Indicator

   Production

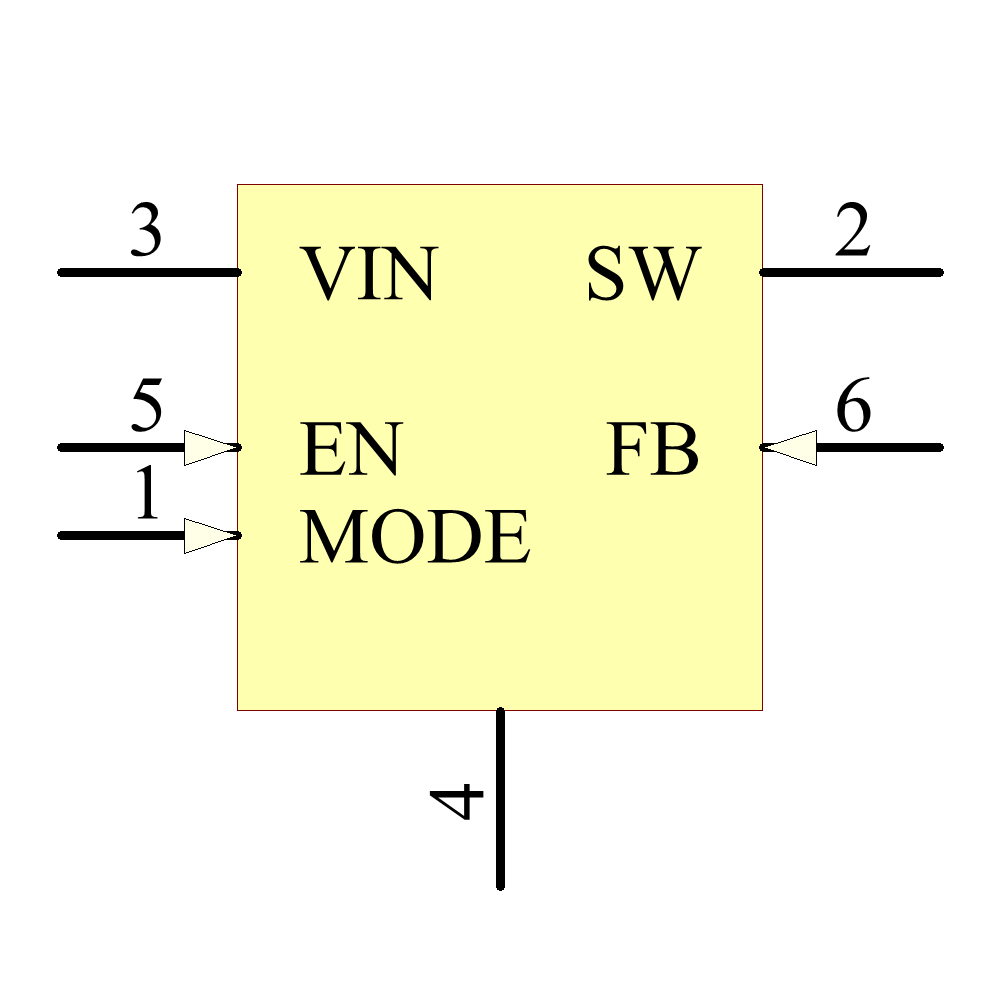

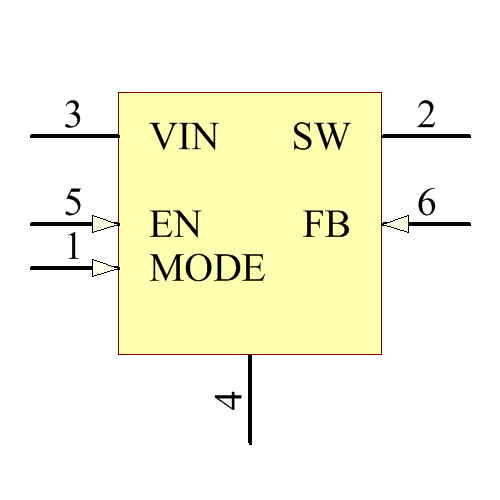

Symbol

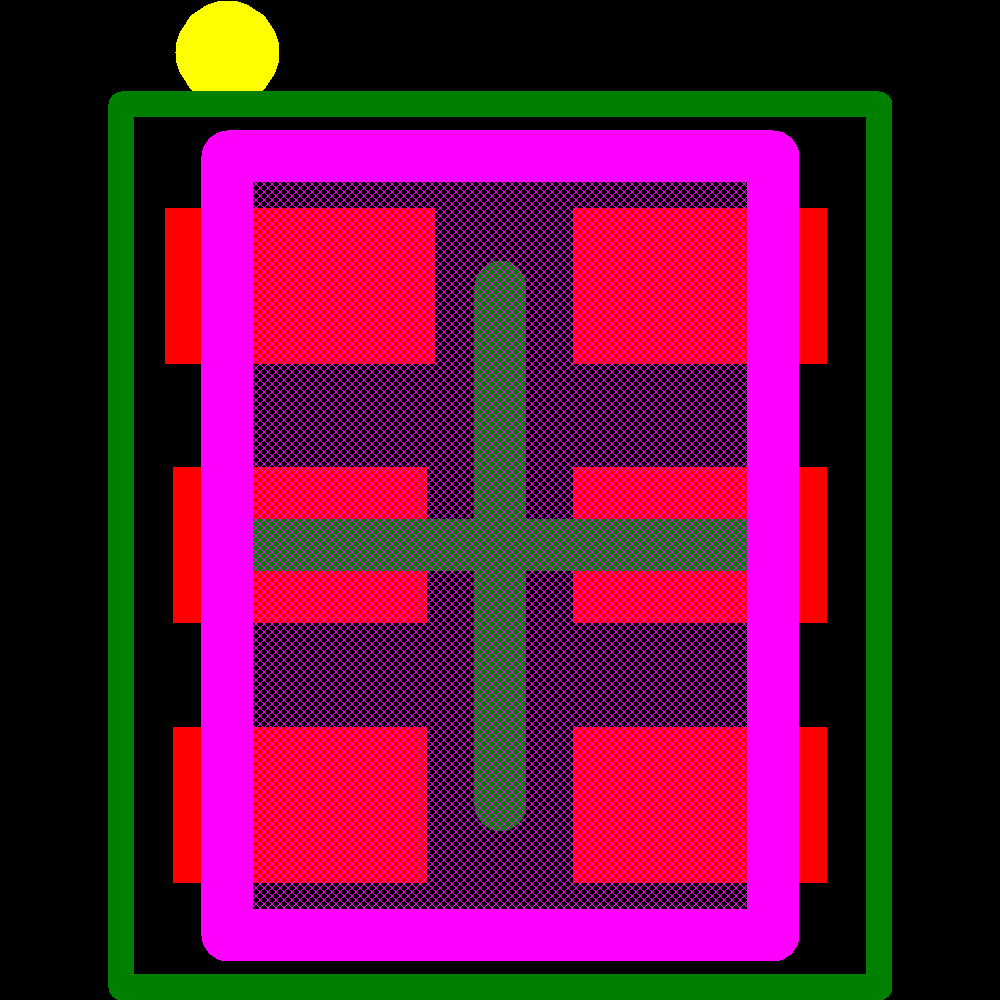

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Texas Instruments
TPS62236DRYR
Production
Texas Instruments
TPS622310DRYT
Production
Texas Instruments
TPS622311DRYT
Production
Texas Instruments
TPS62235DRYT
Production
Texas Instruments
TPS62238DRYT
Production
Texas Instruments
TPS62239DRYT
Production
Texas Instruments
TPS62233DRYT
Production
Texas Instruments
TPS62234DRYT
Production
Texas Instruments
TPS62232DRYT
Production
Texas Instruments
TPS622314DRYT
Production

See more alternatives See less alternatives
