TPS62273DRVT - Texas Instruments
2.25MHz 400mA Step-Down Converter with Selectable Vout 6-WSON -40 to 85
Technical Details
| Height | 800µm |
| Lead Free | Lead Free |
| Length | 2mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 6V |
| Max Operating Temperature | 85°C |
| Max Output Current | 400mA |
| Min Input Voltage | 2V |
| Min Operating Temperature | -40°C |
| Number of Outputs | 1 |
| Number of Pins | 6 |
| Operating Supply Voltage | 6V |
| Output Configuration | Positive |
| Output Current | 400mA |
| Output Type | Fixed |
| Output Voltage | 3.3V |
| Packaging | Tape & Reel (TR) |
| Quiescent Current | 15µA |
| RoHS | Compliant |
| Switching Frequency | 2.25MHz |
| Synchronous Rectifier | Yes |
| Thickness | 750µm |
| Topology | Buck |
| Weight | 9.695537mg |
| Width | 2mm |
Compliance
RoHS : Unconfirmed

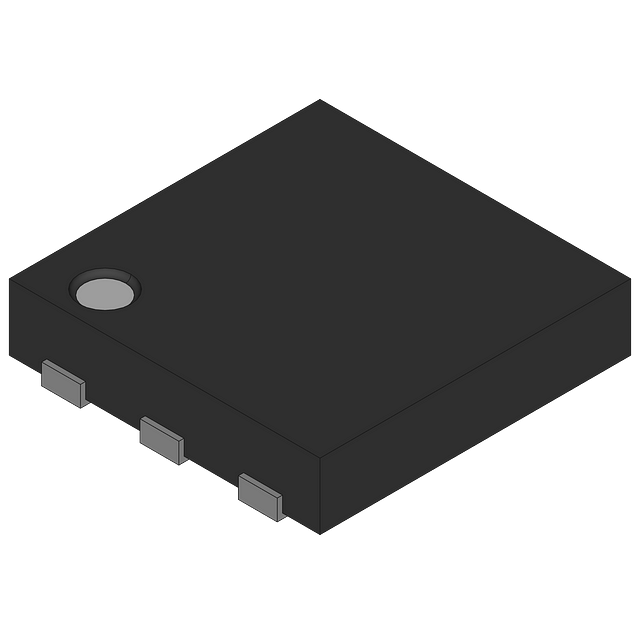

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Richtek | NRND | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown |
