TPS65560RGTT - Texas Instruments
Integrated photo flash charger and IGBT driver with 1.8A Iout 16-VQFN -35 to 85
Technical Details
| Case/Package | VQFN |
| Height | 1mm |
| Lead Free | Lead Free |
| Length | 3mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 12V |
| Max Operating Temperature | 85°C |
| Max Output Current | 1.8A |
| Max Supply Voltage | 4V |
| Min Input Voltage | 1.6V |
| Min Operating Temperature | -35°C |
| Min Supply Voltage | 2.7V |
| Number of Outputs | 1 |
| Number of Pins | 16 |
| Operating Supply Current | 1.3mA |
| Output Current | 1.8A |
| Quiescent Current | 3mA |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Thickness | 900µm |
| Topology | Flyback |
| Weight | 24.097095mg |
| Width | 3mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

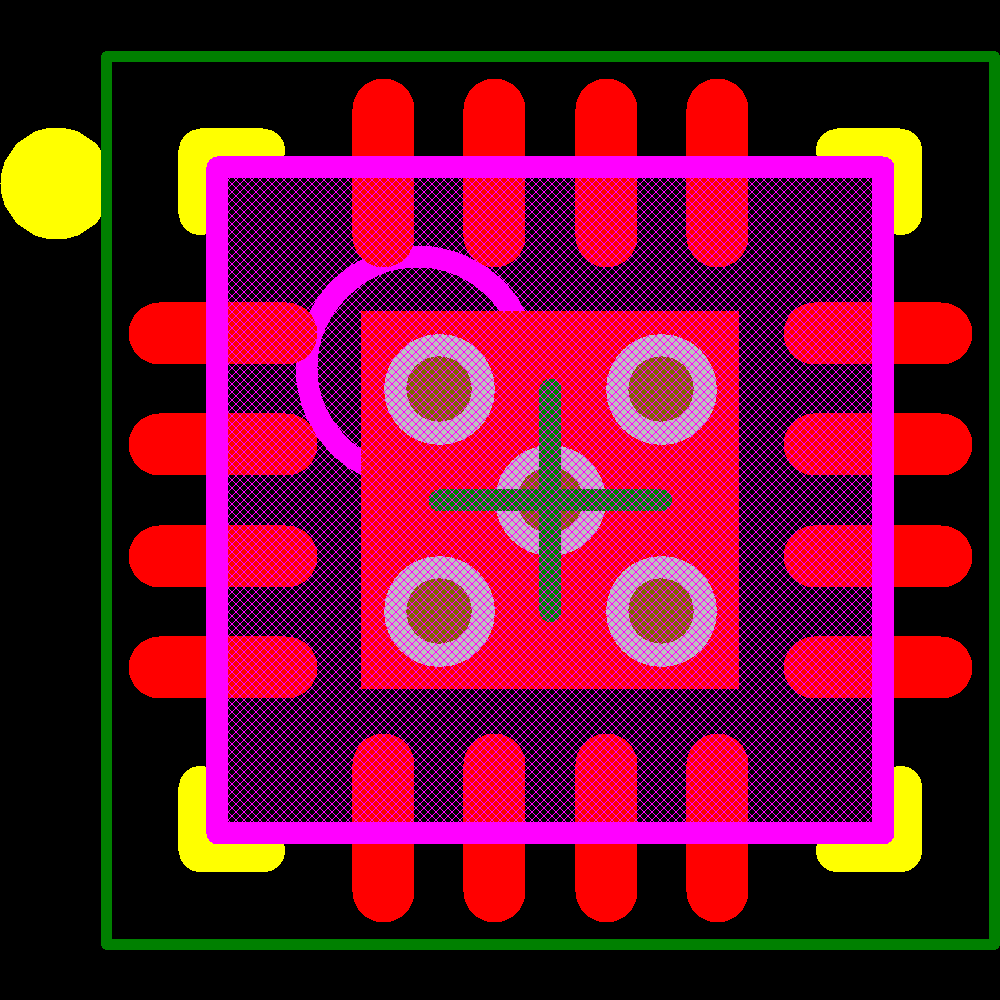

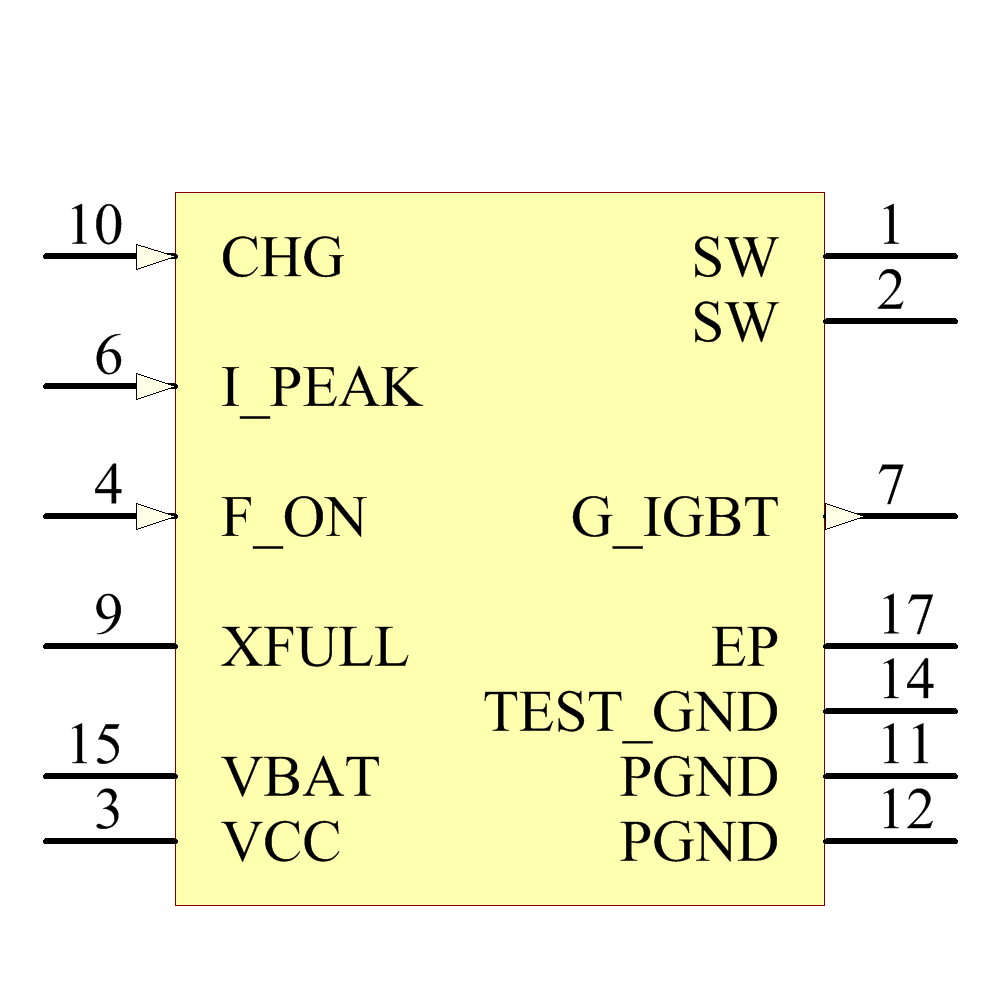

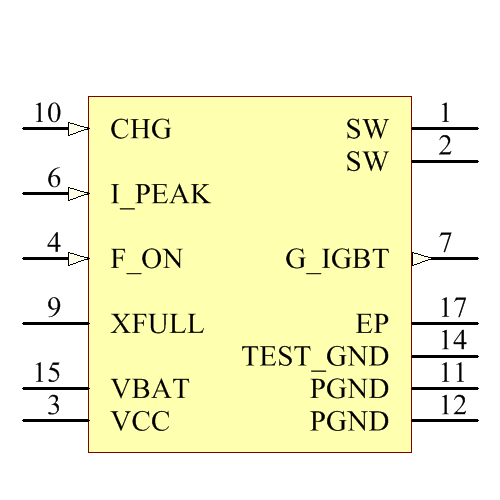

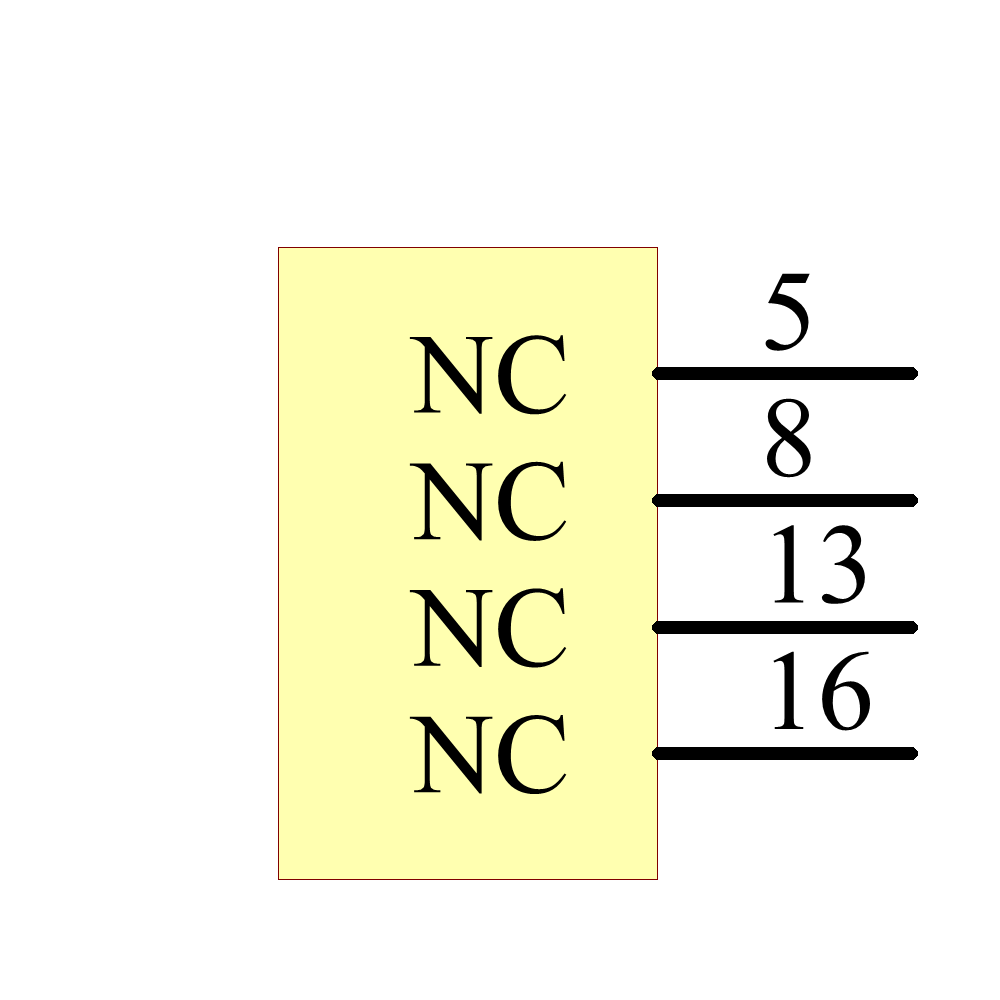

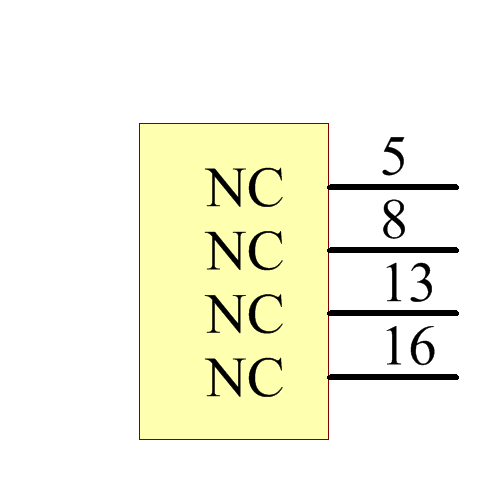

Images
