Integrated Circuits (ICs)  >  Power Management ICs  >  LED Drivers

Texas Instruments - TPS65563ARGTR

TPS65563ARGTR - Texas Instruments

LED Driver 3uA Supply Current 16-Pin VQFN EP T/R / IC PHOT FLSH CHRG/IGBT DVR 16QFN

 Datasheets

Technical Details

Case/Package VQFN
Height 1mm
Input Current 2mA
Lead Free Lead Free
Length 3mm
Lifecycle Status Production
Manufacturer Lifecycle Status ACTIVE
Max Input Voltage 5.5V
Max Operating Temperature 85°C
Max Supply Voltage 5.5V
Min Input Voltage 2.7V
Min Operating Temperature -35°C
Min Supply Voltage 2.7V
Nominal Supply Current 2mA
Number of Pins 16
Operating Supply Current 2mA
Packaging Tape & Reel (TR)
Power Dissipation 2.11W
Quiescent Current 3mA
Radiation Hardening No
REACH SVHC No
RoHS Compliant
Schedule B 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
Thickness 900µm
Topology Flyback
Weight 24.097095mg
Width 3mm

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : No

Images

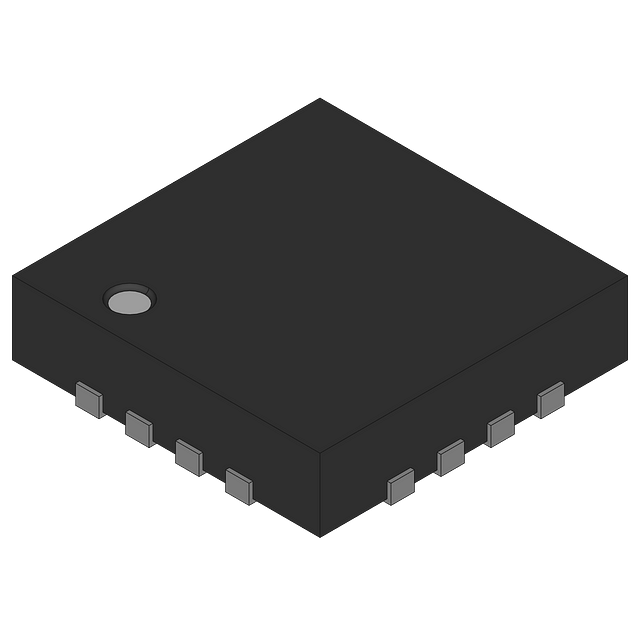

Texas Instruments TPS65563ARGTR | Rochester Electronics

Rochester Electronics

Datasheets

 Rochester Electronics
 Verical
 DigiKey

Lifecycle Status Indicator

   Production

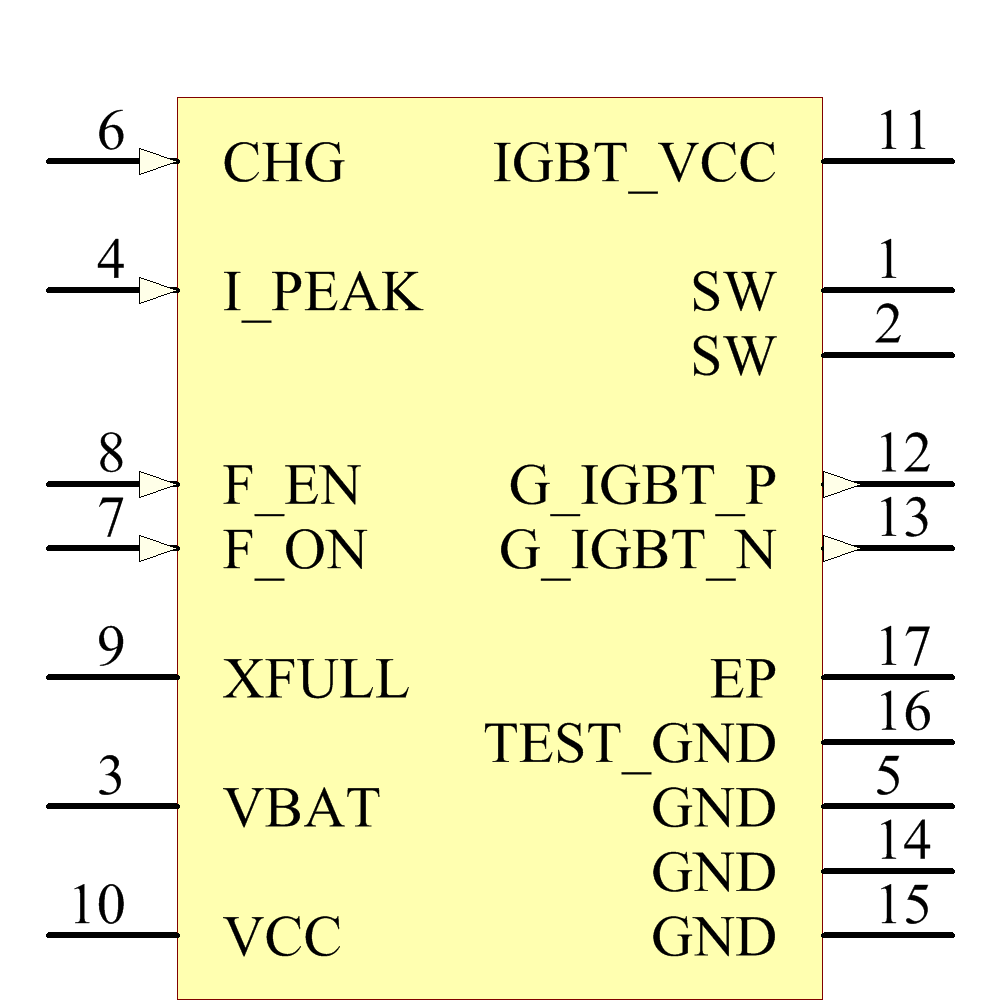

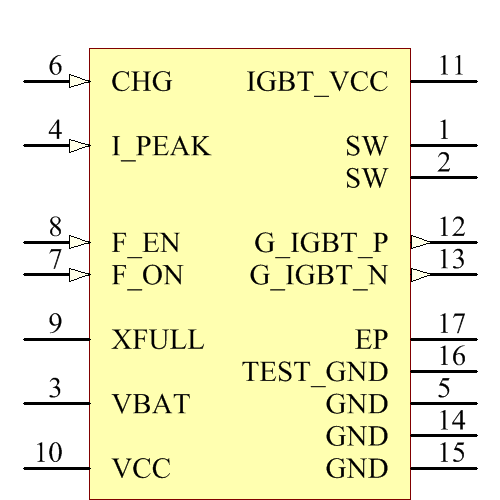

Symbol

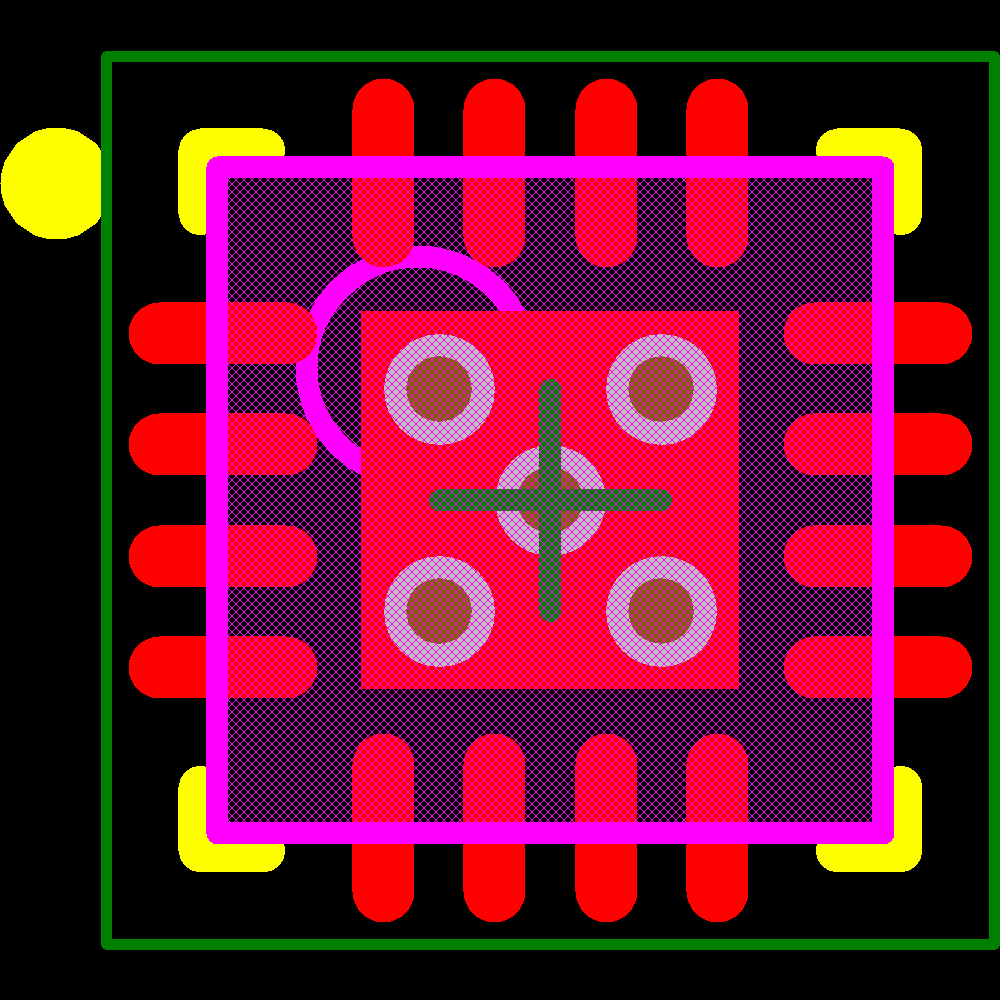

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Texas Instruments
TPS65563ARGTRG4
Unknown
Texas Instruments
TPS65563ARGTT
Production
Texas Instruments
TPS65563ARGTTG4
Unknown
Microchip
MIC2562A-0YM-TR
Production
Microchip
MIC2562A-1YTS-TR
Production
Micrel
MIC2562A-1BTS
Unknown
Micrel
MIC2562A-1BTSTR
Unknown
Microchip
MIC2562A-1YM-TR
Production
Micrel
MIC2562-0BM
Unknown
Micrel
MIC2562-1BM
Obsolete

See more alternatives See less alternatives
