TPS65563ARGTT - Texas Instruments

Integrated photo flash charger and IGBT driver with 2A Iout 16-VQFN -35 to 85

Technical Details

Case/Package	VQFN
Height	1mm
Lead Free	Lead Free
Length	3mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Input Voltage	5.5V
Max Operating Temperature	85°C
Max Supply Voltage	5.5V
Min Input Voltage	2.7V
Min Operating Temperature	-35°C
Min Supply Voltage	2.7V
Number of Pins	16
Operating Supply Current	2mA
Packaging	Tape & Reel (TR)
Quiescent Current	3mA
Radiation Hardening	No
REACH SVHC	No
RoHS	Compliant
Thickness	900µm
Topology	Flyback
Weight	24.097095mg
Width	3mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

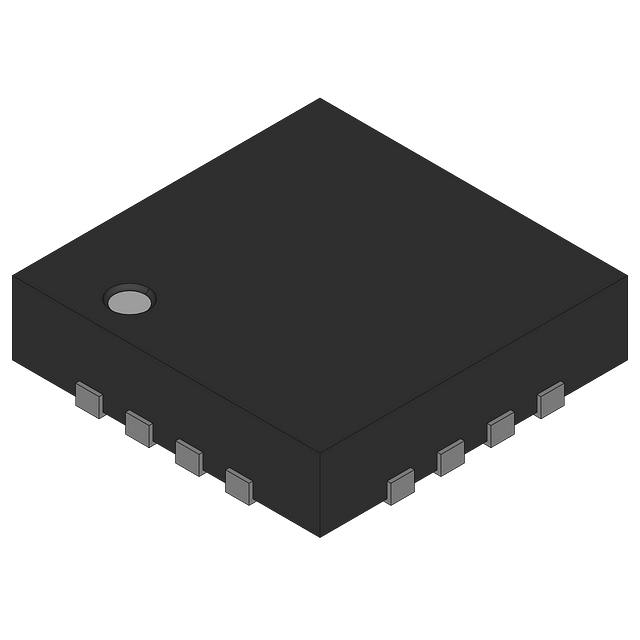

Texas Instruments TPS65563ARGTT | Rochester Electronics

Rochester Electronics

Datasheets

Rochester Electronics

Lifecycle Status Indicator

Production

Symbol

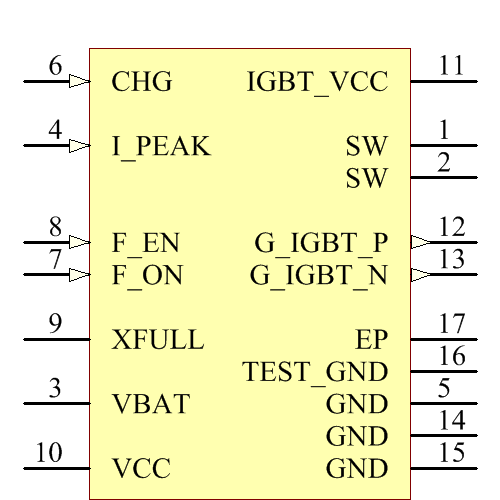

TPS65563ARGTT Symbol - Texas Instruments

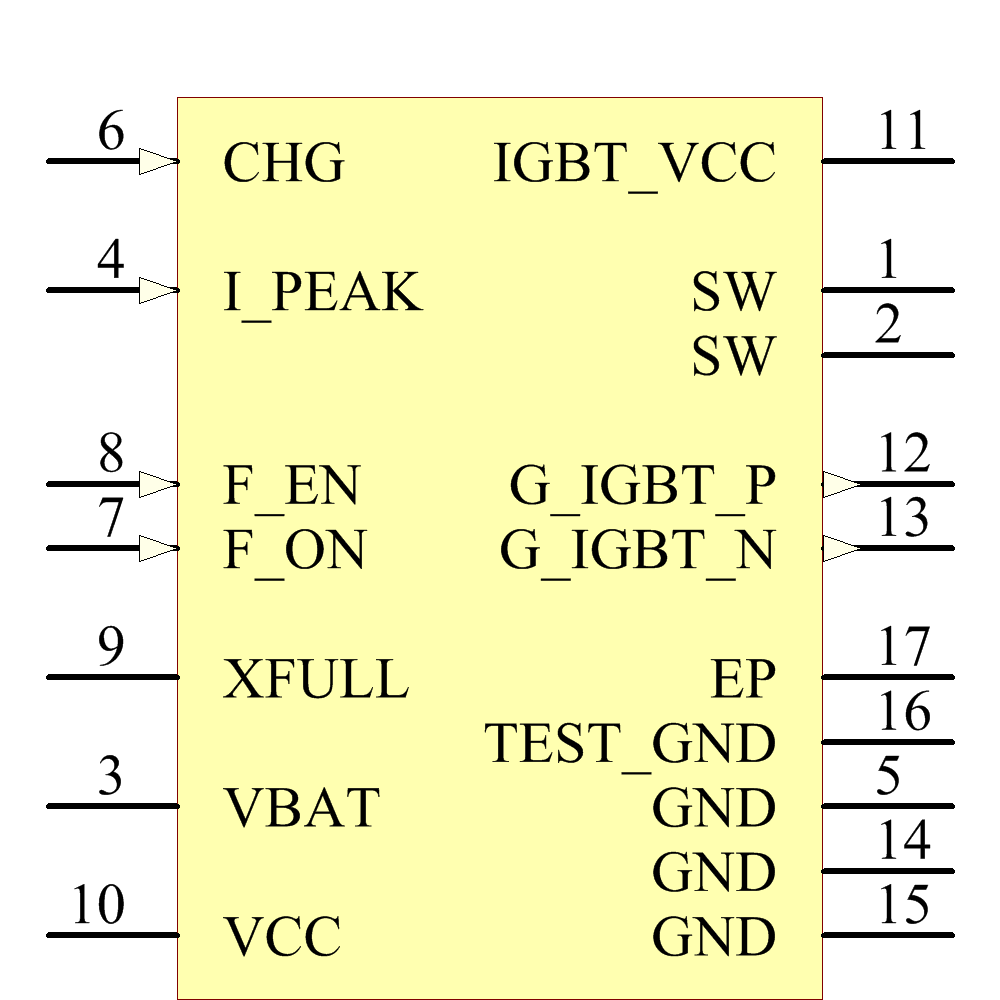

TPS65563ARGTT Symbol - Texas Instruments

TPS65563ARGTT Symbol - Texas Instruments

TPS65563ARGTT Symbol - Texas Instruments

‹ ›

Footprint

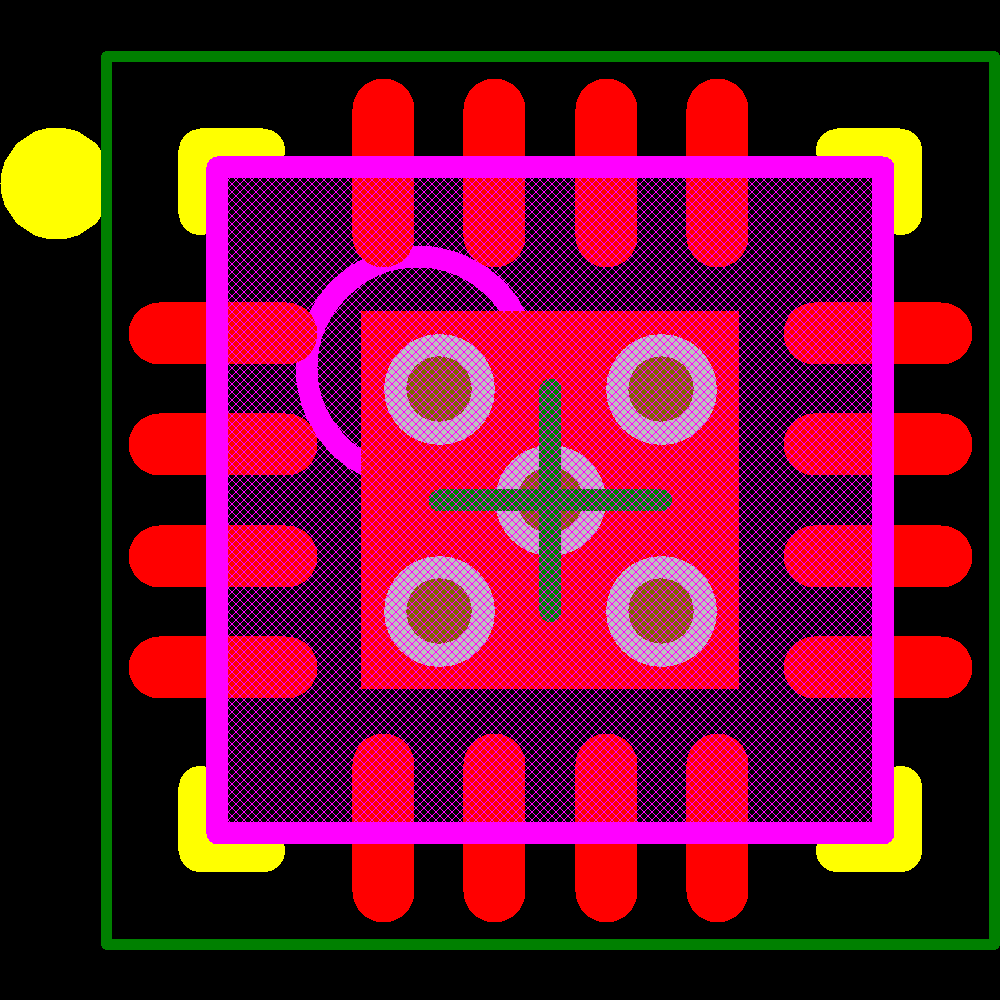

TPS65563ARGTT Footprint - Texas Instruments
