TPS71401DRVT - Texas Instruments
80-mA 24-V ultra-low-IQ low-dropout (LDO) voltage regulator 6-WSON -40 to 125
Technical Details
| Accuracy | 4% |
| Dropout Voltage | 670mV |
| Height | 800µm |
| Input Bias Current | 2nA |
| Lead Free | Lead Free |
| Length | 2mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 10V |
| Max Operating Temperature | 125°C |
| Max Output Current | 80mA |
| Max Output Voltage | 8.8V |
| Max Power Dissipation | 1.54W |
| Max Supply Voltage | 10V |
| Min Current Limit | 100mA |
| Min Input Voltage | 2.5V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 1.2V |
| Min Supply Voltage | 2.5V |
| Nominal Supply Current | 3.2µA |
| Number of Outputs | 1 |
| Number of Pins | 6 |
| Number of Regulators | 1 |
| Output Current | 80mA |
| Output Type | Adjustable |
| Polarity | Positive |
| Power Dissipation | 1.54W |
| Quiescent Current | 3µA |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Thickness | 750µm |
| Width | 2mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

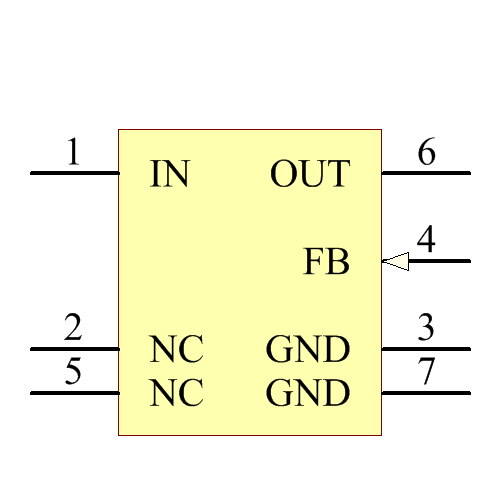

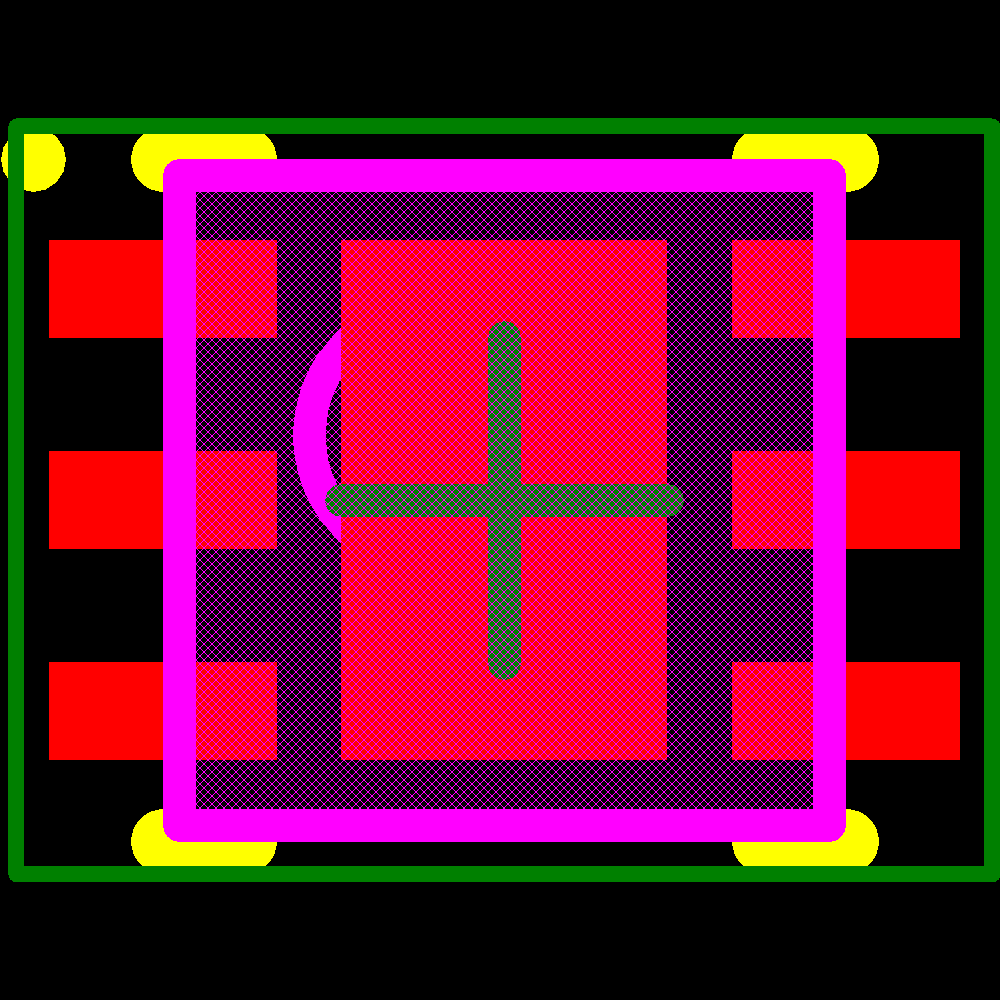

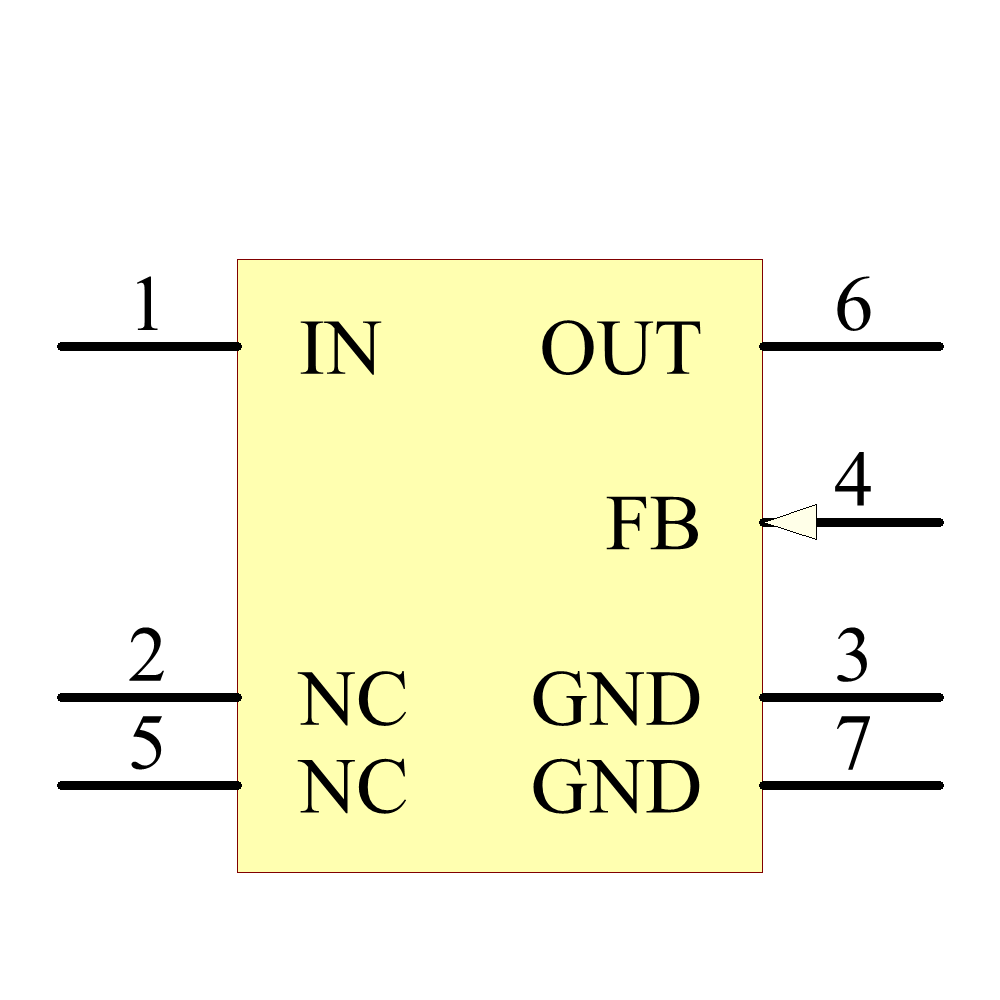

Images
