TPS73601DCQRG4 - Texas Instruments
LDO Regulator Pos 1.2V to 5.5V 0.4A 6-Pin(5+Tab) SOT-223 T/R
Technical Details
| Accuracy | 1% |
| Case/Package | SOT-223 |
| Dropout Voltage | 75mV |
| Height | 1.8mm |
| Input Bias Current | 300µA |
| Lead Free | Lead Free |
| Length | 6.5mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 5.5V |
| Max Operating Temperature | 125°C |
| Max Output Current | 400mA |
| Max Output Voltage | 5.5V |
| Max Power Dissipation | 2.22W |
| Min Current Limit | 400mA |
| Min Input Voltage | 1.7V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 1.2V |
| Number of Outputs | 1 |
| Number of Pins | 6 |
| Number of Regulators | 1 |
| Output Current | 400mA |
| Output Type | Adjustable |
| Output Voltage | 5.5V |
| Output Voltage Accuracy | 0.5% |
| Polarity | Positive |
| Power Dissipation | 2.22W |
| Quiescent Current | 300µA |
| REACH SVHC | No |
| Reference Voltage | 1.2V |
| RoHS | Compliant |
| Thickness | 1.6mm |
| Width | 3.5mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

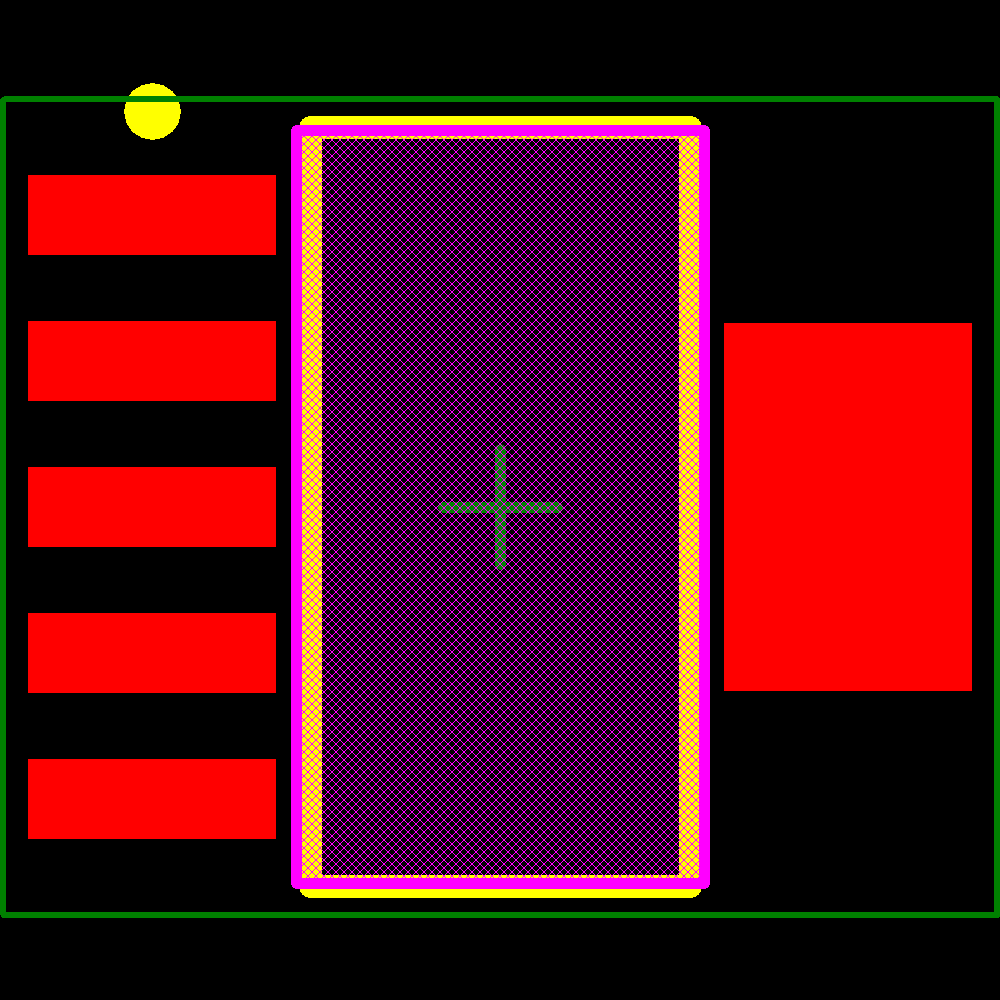

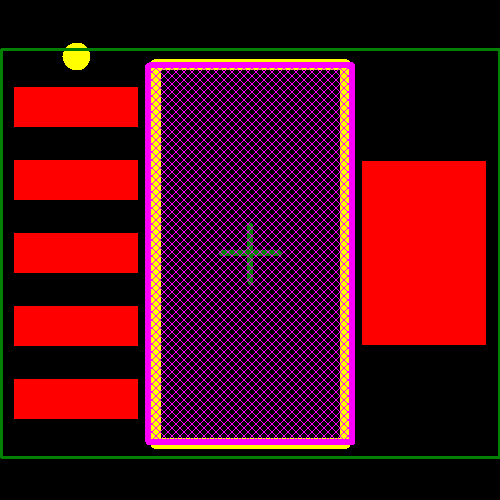

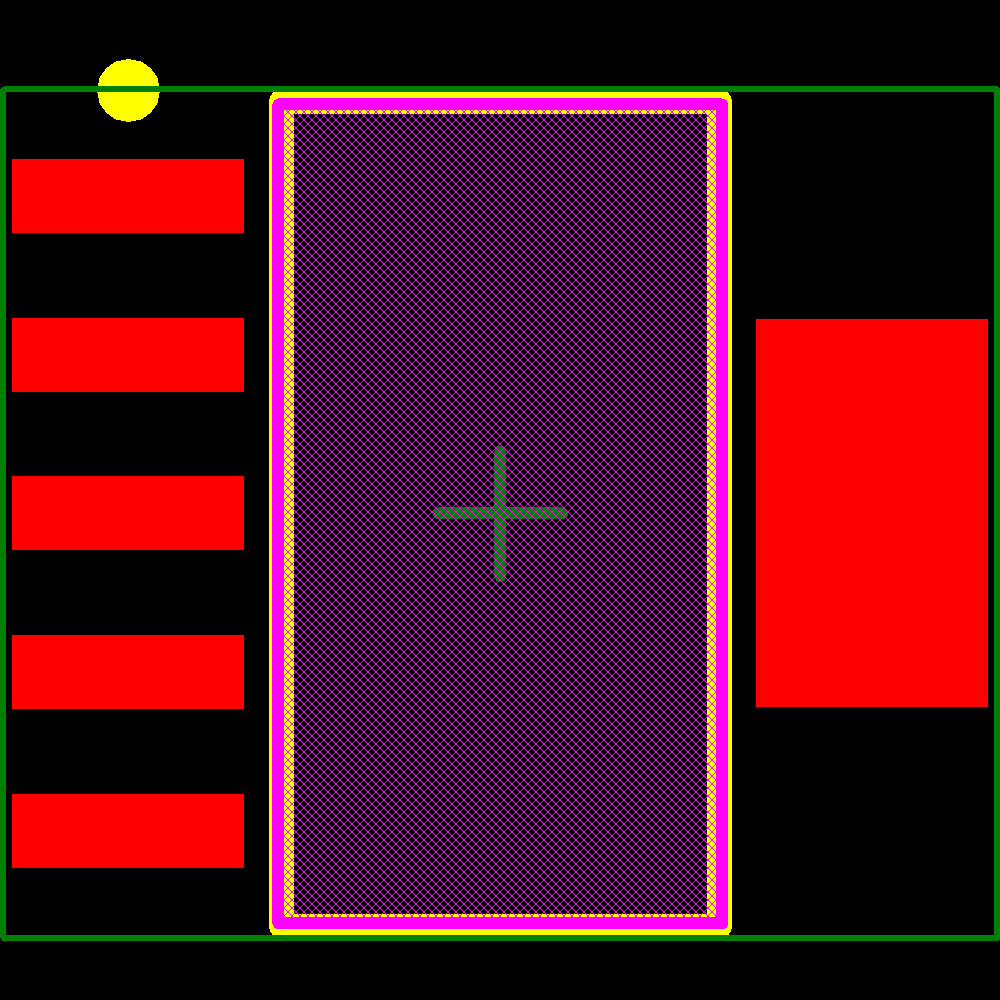

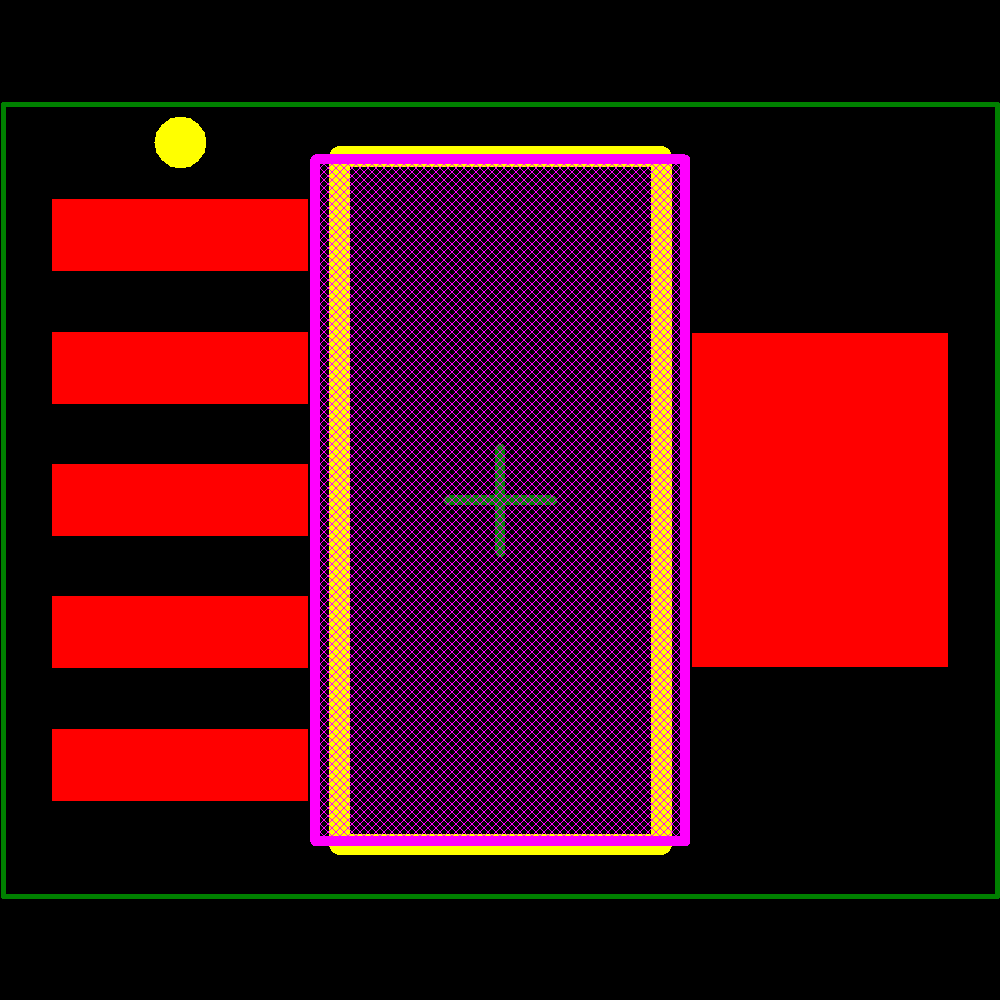

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| Texas Instruments | Obsolete | ||
| Texas Instruments | Obsolete | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown |
