TPS7415DG4 - Texas Instruments
Single Output LDO, 200mA, Fixed(1.5V), Fast Transient Response, Thermal shutdown Protection 8-SOIC -40 to 125
Technical Details
| Case/Package | D |
| Dropout Voltage | 170mV |
| Input Bias Current | 80µA |
| Lead Free | Contains Lead |
| Max Input Voltage | 7V |
| Max Operating Temperature | 125°C |
| Max Output Current | 200mA |
| Max Output Voltage | 1.5V |
| Max Power Dissipation | 904mW |
| Min Input Voltage | 2.5V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 1.5V |
| Number of Outputs | 1 |
| Number of Pins | 8 |
| Number of Regulators | 1 |
| Output Current | 200mA |
| Output Type | Fixed |
| Output Voltage | 1.5V |
| Output Voltage Accuracy | 3% |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Power Dissipation | 904mW |
| Quiescent Current | 1µA |
| RoHS | Compliant |
Compliance
RoHS : Unconfirmed

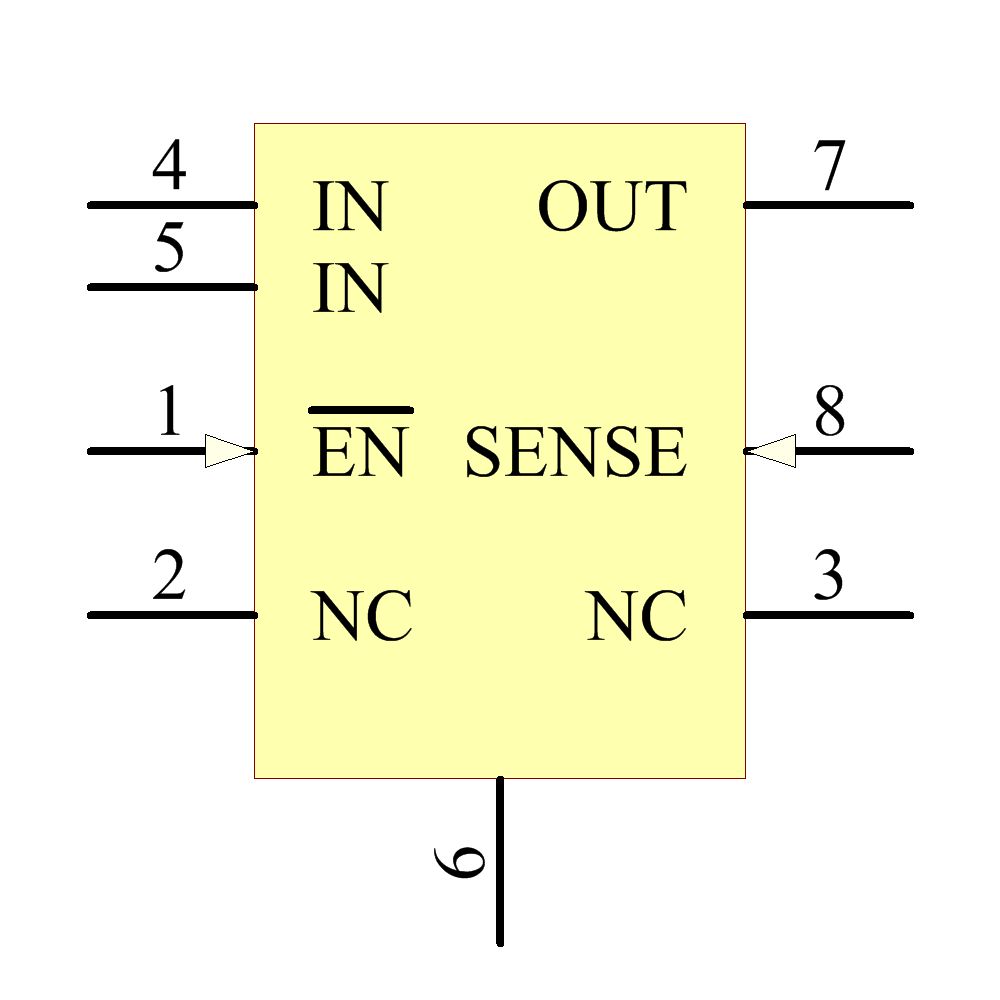

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| STMicroelectronics | Obsolete | ||
| Texas Instruments | Unknown | ||
| Analog Devices | Production | ||
| STMicroelectronics | Obsolete |
