TPS75103YFFT - Texas Instruments
low-dropout, two-bank LED driver with PWM brightness control 9-DSBGA -40 to 85
Technical Details
| Case/Package | BGA |
| Height | 625µm |
| Lead Free | Lead Free |
| Length | 1.4mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 5.5V |
| Max Operating Temperature | 85°C |
| Max Output Current | 25mA |
| Max Power Dissipation | 704mW |
| Max Supply Voltage | 5.5V |
| Min Input Voltage | 2.7V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.7V |
| Number of Channels | 4 |
| Number of Outputs | 4 |
| Number of Pins | 9 |
| Number of Segments | 4 |
| Output Current | 25mA |
| Output Voltage | 3.6V |
| Packaging | Tape & Reel (TR) |
| Power Dissipation | 704mW |
| Quiescent Current | 180µA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Thickness | 425µm |
| Width | 1.4mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

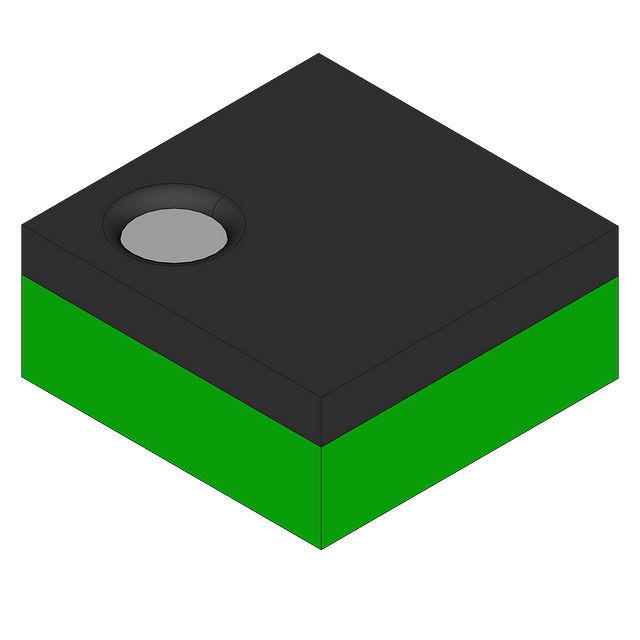

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| ROHM | EOL | ||
| onsemi | EOL | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | NRND |
