TPS76715QD - Texas Instruments
1-A, 10-V, low-dropout voltage regulator with enable & RESET with delay 8-SOIC -40 to 125
Technical Details
| Accuracy | 2% |
| Case/Package | SOIC |
| Dropout Voltage | 230mV |
| Height | 1.75mm |
| Input Bias Current | 85µA |
| Lead Free | Lead Free |
| Length | 4.9mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 10V |
| Max Operating Temperature | 125°C |
| Max Output Current | 1A |
| Max Output Voltage | 1.5V |
| Max Power Dissipation | 904mW |
| Min Current Limit | 1.2A |
| Min Input Voltage | 2.7V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 1.5V |
| Nominal Supply Current | 85µA |
| Number of Outputs | 1 |
| Number of Pins | 8 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 1A |
| Output Type | Fixed |
| Output Voltage | 1.5V |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 60dB |
| Quiescent Current | 80µA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Thickness | 1.58mm |
| Width | 3.91mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

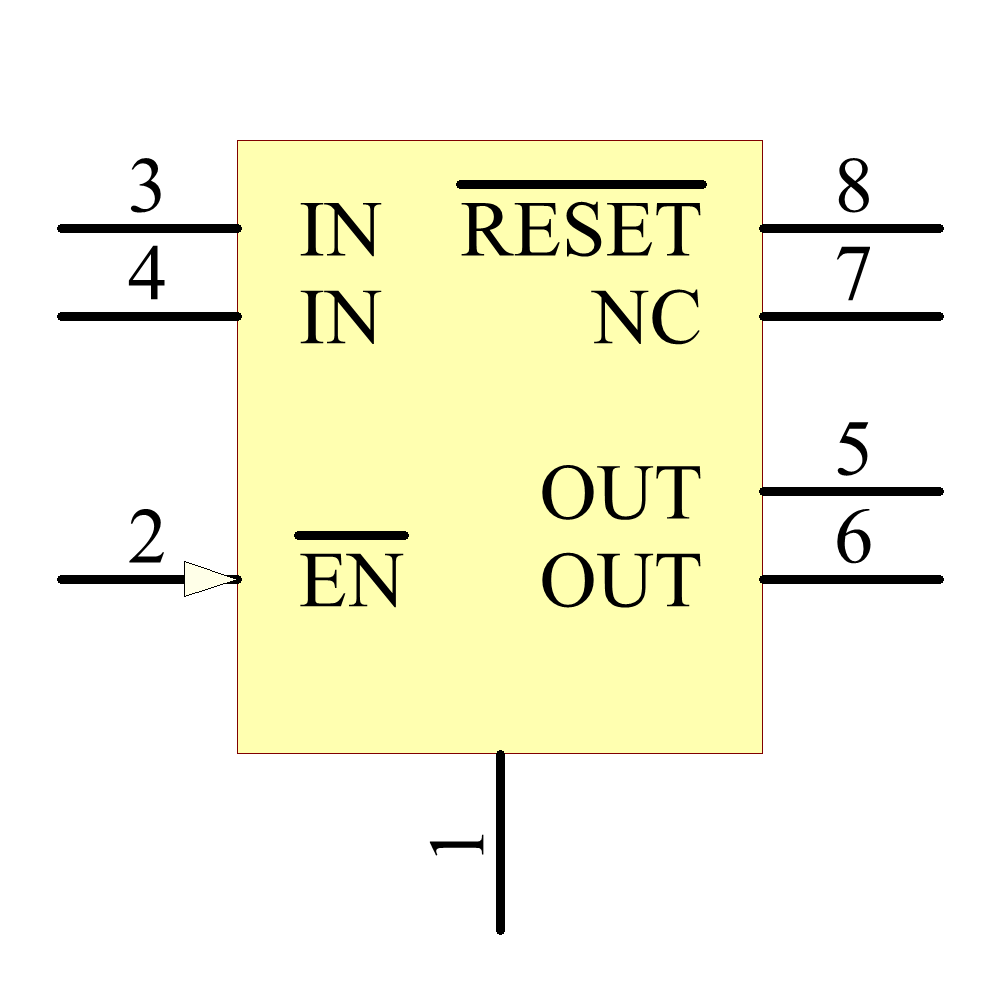

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| STMicroelectronics | Obsolete | ||
| Texas Instruments | Unknown | ||
| Analog Devices | Production | ||
| Texas Instruments | Production |
