TPS767D301QPWPRQ1 - Texas Instruments
LDO Regulator Pos 1.5V to 5.5V3.3V 1A Automotive 28-Pin HTSSOP EP T/R
Technical Details
| Accuracy | 2% |
| Case/Package | HTSSOP EP |
| Current - Output 1 | 1A |
| Current - Output 2 | 1A |
| Dropout Voltage | 350mV |
| Height | 1.2mm |
| Input Bias Current | 85µA |
| Length | 9.7mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 10V |
| Max Operating Temperature | 125°C |
| Max Output Current | 1A |
| Max Power Dissipation | 5.07W |
| Min Input Voltage | 2.7V |
| Min Operating Temperature | -40°C |
| Number of Outputs | 2 |
| Number of Pins | 28 |
| Number of Regulators | 2 |
| Output Current | 1A |
| Output Type | Adjustable, Fixed |
| Output Voltage Accuracy | 2% |
| Packaging | Cut Tape |
| Polarity | Positive |
| Power Dissipation | 5.07W |
| Quiescent Current | 80µA |
| Radiation Hardening | No |
| REACH SVHC | No |
| Reference Voltage | 1.1834V |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Thickness | 1mm |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | 5.5V |
| Width | 4.4mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

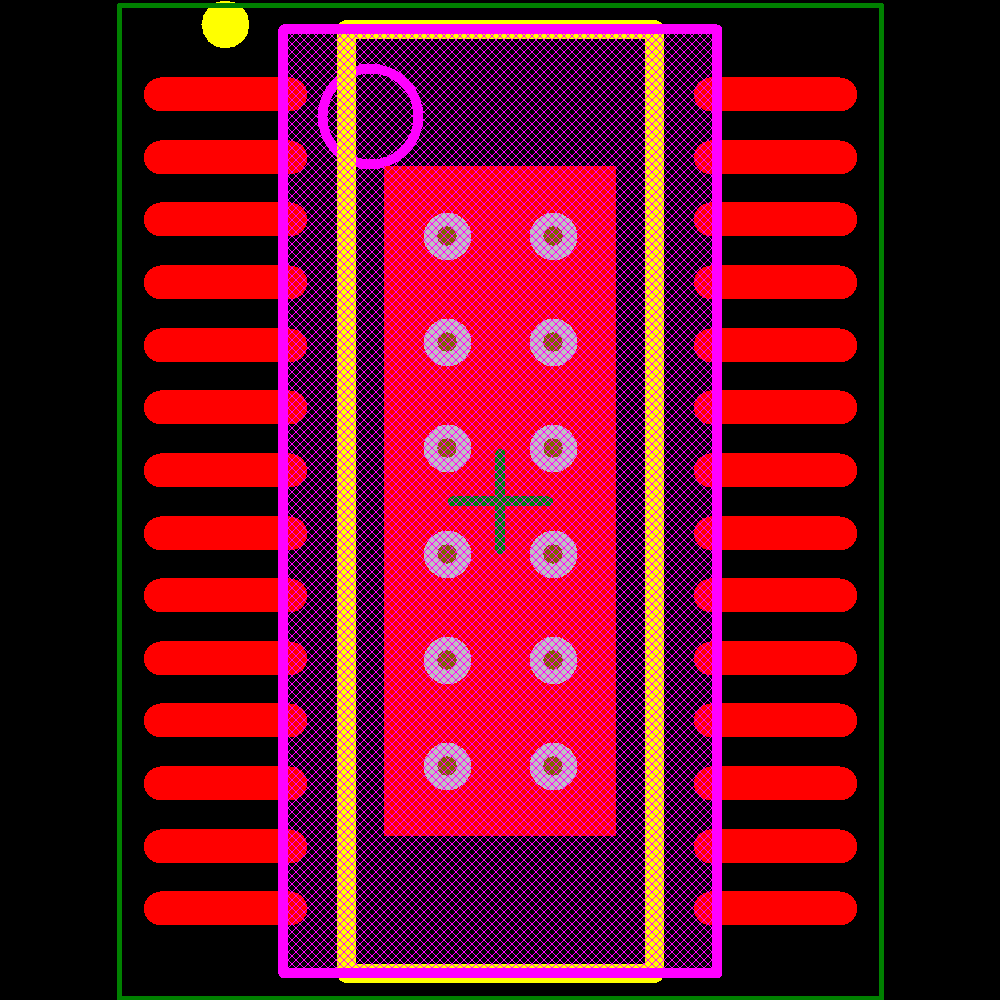

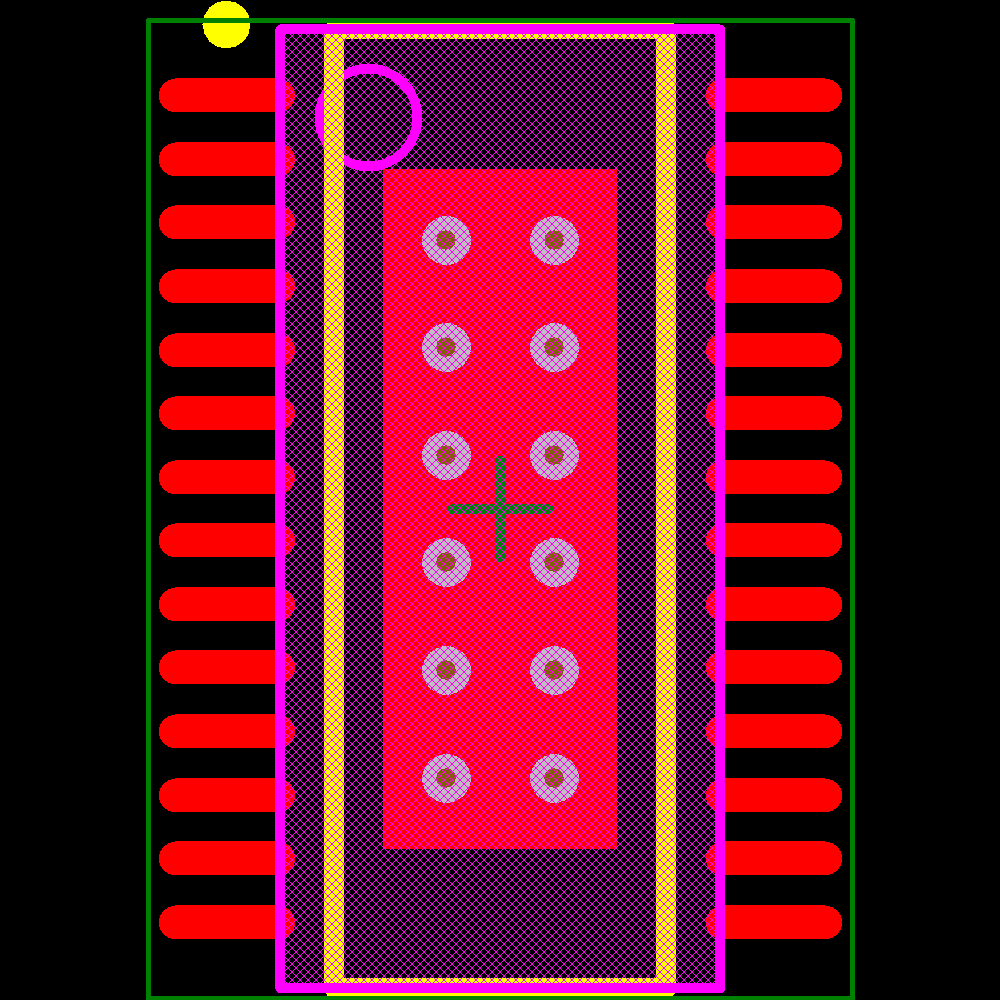

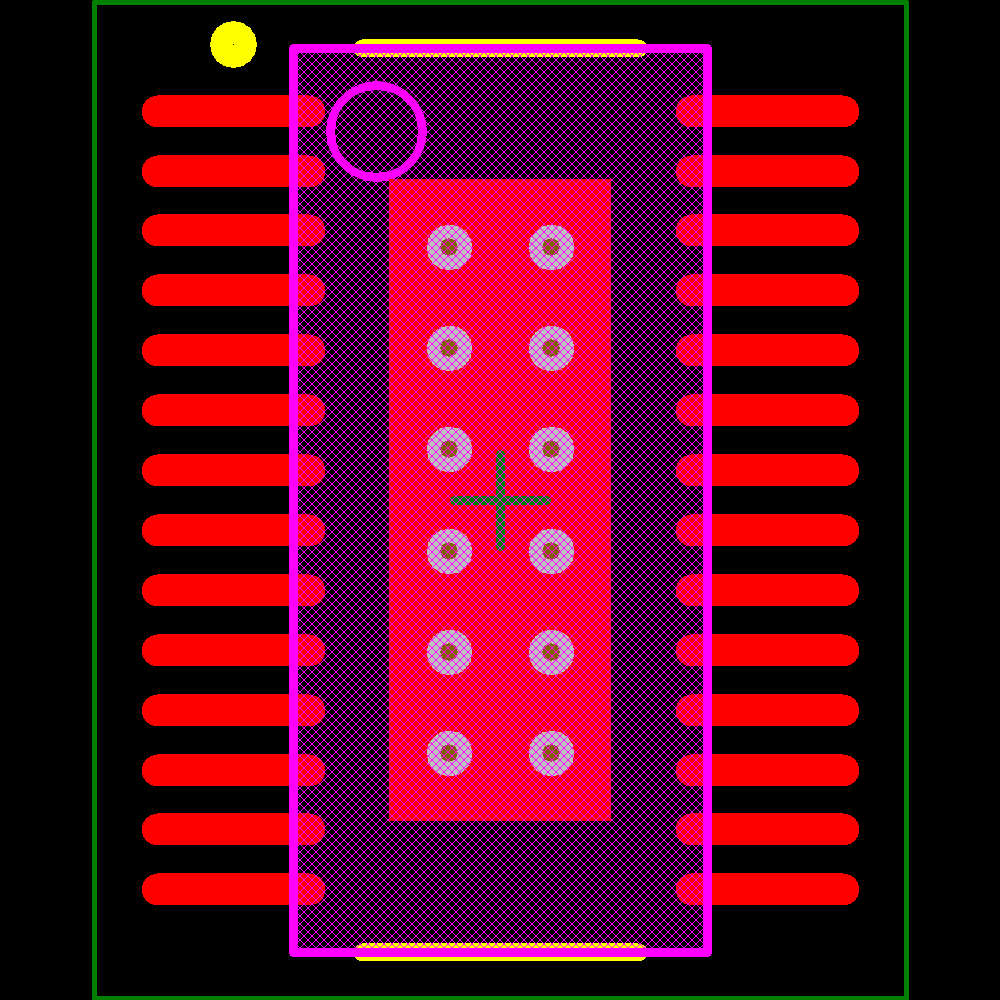

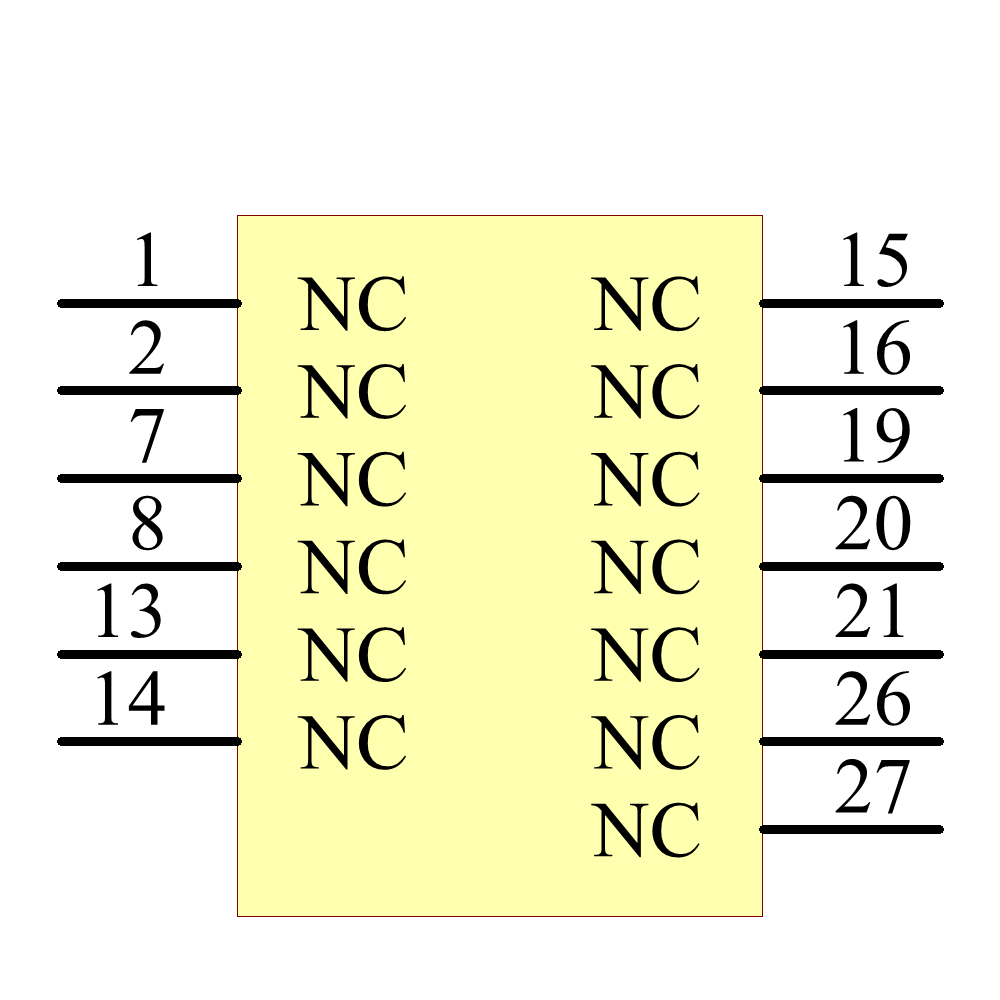

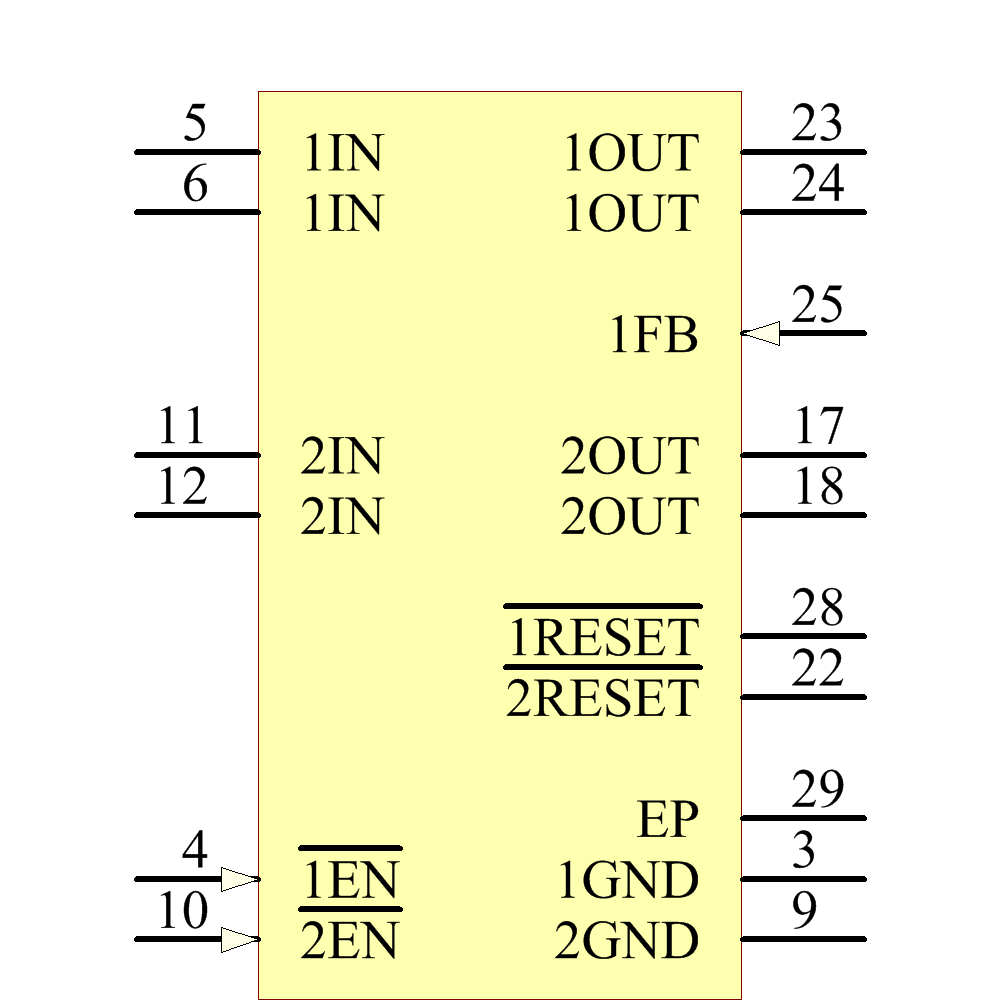

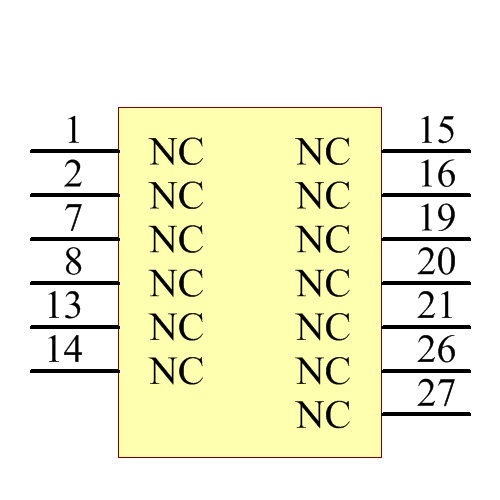

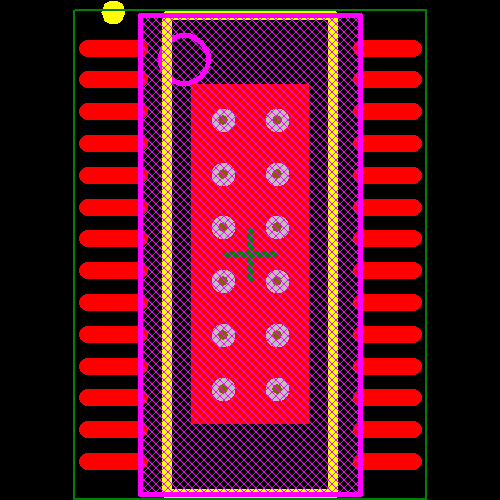

Images
